Advances in Analytical Strategies for Structural Characterization and Standardized Quantification of Rutin in Medicinal Plants

1.1 Importance of Phytochemicals in Medicinal Plants

Medicinal plants are valuable sources of phytochemicals—naturally occurring bioactive compounds responsible for the therapeutic effects of herbal medicines. Major classes include alkaloids, flavonoids, tannins, phenolic acids, terpenoids, and glycosides, which contribute to plant defense and pharmacological activity. These compounds exhibit diverse biological effects such as antioxidant, antimicrobial, anti-inflammatory, antidiabetic, anticancer, and cardioprotective actions. The therapeutic efficacy and safety of herbal preparations depend on their qualitative and quantitative phytochemical composition. Therefore, systematic phytochemical evaluation is essential for authentication, quality control, and pharmaceutical standardization of medicinal plant materials.

1.2 Role of Flavonoids in Therapeutics

Flavonoids are a major class of polyphenolic compounds widely distributed in fruits, vegetables, and medicinal plants. Characterized by a C6–C3–C6 structural framework, they possess significant antioxidant capacity through free radical scavenging, metal chelation, and modulation of endogenous antioxidant systems. Beyond antioxidant activity, flavonoids demonstrate anti-inflammatory, antimicrobial, antiviral, hepatoprotective, neuroprotective, and anticancer properties. Structural features such as hydroxyl substitutions and conjugated systems largely determine their biological activity. Owing to these multifunctional properties, flavonoids are extensively investigated as therapeutic leads and as chemical markers for herbal standardization.

1.3 Significance of Rutin as a Bioactive Compound

Rutin (quercetin-3-O-rutinoside) is a flavonol glycoside commonly found in buckwheat, citrus fruits, and Cissus quadrangularis. Structurally, it consists of the aglycone quercetin linked to the disaccharide rutinose, which improves its physicochemical stability and solubility. Rutin exhibits pronounced antioxidant, anti-inflammatory, and vasoprotective effects and has been used clinically in conditions such as chronic venous insufficiency and capillary fragility. Due to its well-established pharmacological profile, rutin serves as an important marker compound in flavonoid-rich medicinal plants, necessitating accurate analytical determination for consistent quality evaluation.

1.4 Need for Analytical Standardization

Reliable quantification of rutin requires validated analytical methodologies capable of ensuring accuracy, precision, sensitivity, and robustness. Variations in plant material and processing conditions can influence phytochemical content, underscoring the importance of standardized analytical procedures. Chromatographic and spectroscopic techniques play a central role in achieving reproducible identification and quantification. Harmonized analytical protocols are therefore essential for quality assurance, regulatory compliance, and the development of safe and effective plant-based pharmaceutical products.

1.5 Chemical Profile of Rutin

Rutin is a naturally occurring flavonol glycoside that is recognized under several alternative names, including quercetin-3-rutinoside, Rutoside, and 3-rhamnosyl-glucosyl quercetin, as well as its hydrate form. Chemically, it possesses the molecular formula C??H??O??. The systematic IUPAC designation of rutin is:

2-(3,4-dihydroxyphenyl)-5,7-dihydroxy-3-[(2S,3R,4S,5S,6R)-3,4,5-trihydroxy-6-[[(2R,3R,4R,5R,6S)-3,4,5-trihydroxy-6-methyloxan-2-yl]oxymethyl]oxan-2-yl]oxychromen-4-one.

Structurally, rutin consists of the flavonol aglycone quercetin linked to a disaccharide moiety (rutinose), which contributes to its physicochemical and biological properties.

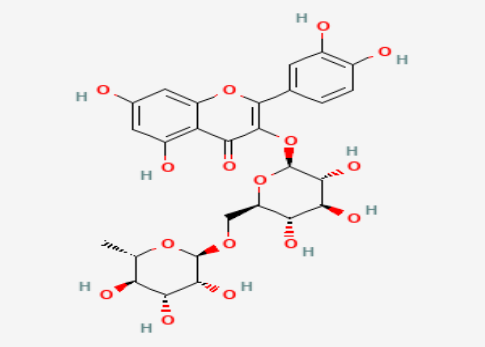

Fig.No.1: Structure of Rutin or Quercetin – 3 – rutinoside.

Table 1: Summary of the Physicochemical Properties of Rutin

2. PHARMACOLOGICAL ACTIVITIES OF RUTIN ^[27-35]

Rutin possesses a broad spectrum of pharmacological properties that are primarily attributed to its capacity to regulate oxidative balance, inflammatory cascades, and multiple intracellular signaling pathways.

2.1 Central Nervous System

Experimental findings indicate that rutin confers neuroprotection by attenuating oxidative injury, limiting lipid membrane damage, and modulating apoptotic pathways, including p53-associated mechanisms, particularly under ischemic and hypoxic conditions. It downregulates microglial overactivation and suppresses key inflammatory mediators such as TNF-α, IL-1β, COX-2, iNOS, and NF-κB, thereby mitigating β-amyloid-associated neurotoxicity and inflammatory degeneration. Evidence also suggests involvement of ERK2 and PI3K signaling in promoting neuronal survival. Behavioral studies demonstrate sedative and anticonvulsant properties without compromising the efficacy of standard antiepileptic drugs. Furthermore, modulation of monoaminergic neurotransmitters, including serotonin and noradrenaline, contributes to antidepressant-like responses and improved post-stroke functional outcomes.

2.2 Analgesic and Antiarthritic Effects

Rutin exhibits pain-relieving activity in both central and peripheral experimental models. Its effects are associated with suppression of reactive oxygen species and downregulation of inflammatory mediators implicated in acute and chronic inflammatory states. In arthritic models, rutin has been shown to reduce cartilage deterioration and modulate inflammatory progression within joint tissues.

2.3 Endocrine and Metabolic Effects

In metabolic disorders, rutin demonstrates glucose-lowering potential through enhancement of insulin secretion, facilitation of GLUT4 translocation, restoration of glycogen reserves, and improvement of carbohydrate-metabolizing enzyme activity. Protective antioxidant effects have been reported in hepatic, cardiac, and renal tissues. Additionally, improvements in lipid parameters—including reductions in triglycerides, total cholesterol, and low-density lipoprotein—support its role in lipid homeostasis. Evidence also indicates stimulation of thyroid iodide uptake via activation of the sodium–iodide symporter.

2.4 Cardiovascular Effects

Cardiovascular benefits of rutin are linked to improved endothelial responsiveness mediated by enhanced nitric oxide bioavailability and decreased oxidative burden. It contributes to normalization of vascular reactivity in hypertensive conditions and interferes with platelet aggregation through modulation of intracellular calcium dynamics. Possible interactions with anticoagulant-related proteins have also been suggested.

2.5 Gastrointestinal and Respiratory Systems

Gastroprotective activity has been observed in models of ethanol- and NSAID-induced mucosal injury, where rutin restores endogenous antioxidant defenses and limits lipid peroxidation and excessive proton pump activity. In respiratory models, reductions in airway resistance and inflammatory mediator release highlight its potential utility in asthma-related conditions.

2.6 Skeletal, Ocular, and Renal Effects

Rutin supports bone health by promoting osteoblastic differentiation while inhibiting osteoclast-mediated bone resorption, thereby enhancing mineral deposition. In ocular systems, it interferes with protein glycation and oxidative damage implicated in cataractogenesis and may contribute to retinal protection. Renal vasodilatory effects, largely mediated by nitric oxide, are associated with mild diuretic activity.

2.7 Reproductive and Dermatological Effects

Protection against oxidative injury in sperm cells and improvement of male reproductive parameters have been documented. In dermatological contexts, rutin demonstrates photoprotective and anti-aging properties by attenuating UVB-induced oxidative stress and inflammatory cytokine expression. Inhibition of dermal papilla cell apoptosis further suggests potential benefits in supporting hair follicle viability.

2.8 Anticancer and Antimicrobial Activities

Anticancer potential has been linked to its ability to promote programmed cell death, suppress uncontrolled proliferation, inhibit angiogenic processes, and limit metastatic progression. Beyond oncology, rutin exhibits inhibitory effects against a variety of microbial pathogens, including bacteria, fungi, mycobacteria, parasites, and certain viruses.

2.9 Organ-Protective, Immunomodulatory, and Radioprotective Effects

Protective effects have been reported in cardiac, hepatic, renal, pulmonary, and neural tissues, largely through attenuation of oxidative and inflammatory signaling pathways. Immunomodulatory activity includes regulation of cytokine balance, enhancement of macrophage function, and prevention of apoptosis in immune cells such as splenocytes. Formulations containing rutin have shown improved wound healing through enhanced antioxidant capacity and tissue repair mechanisms. Radioprotective properties are primarily attributed to free radical neutralization and restoration of endogenous antioxidant systems.

3.1 NATURAL SOURCES OF RUTIN IN MEDICINAL PLANTS:

Rutin is widely distributed across numerous plant species and food sources. It is commonly found in various vegetables, fruits, and medicinal plants, including asparagus, buckwheat, apricots, apples, cherries, grapes, grapefruit, plums, oranges, and tea.

3.1.1 Common Plant Sources

Tea leaves, apples, and many other plant species possess rutin as one of their active constituents. It is present in vegetables, food items, and beverages, making it an important naturally occurring flavonoid in the human diet.

3.1.2 Dietary and Medicinal Context

Rutin is a common dietary flavonoid that is widely consumed through plant-derived beverages and foods. In addition to its nutritional importance, it has been traditionally used in various systems of folkloric and herbal medicine worldwide due to its therapeutic properties.

3.1.3 Variability in Rutin Content

The biological activity and concentration of rutin vary considerably depending on geographical origin, plant species, and environmental growing conditions. Factors such as climate, soil composition, harvesting time, and plant part used can significantly influence rutin content.

3.2 Limitations in Available Data

Although rutin is widely reported in food plants and medicinal herbs, detailed information regarding specific medicinal plant species and the particular plant parts (such as leaves, flowers, roots, or seeds) containing the highest concentrations of rutin remains limited in many studies.

Table 2: Comparison of Rutin Content and Extraction Yields from Different Plant Sources ^[1-15]

4.1 Conventional Extraction Techniques

4.1.1 Maceration

Maceration represents a straightforward solid–liquid extraction approach commonly performed using ethanol. In this procedure, powdered plant material (2.5 g) was combined with 50 mL of solvent, maintaining a 1:20 (w/v) ratio, inside a closed Erlenmeyer flask. The mixture was kept at ambient temperature and shielded from light to minimize degradation of sensitive phytochemicals. To assess the influence of contact time on extraction efficiency, the suspension was allowed to stand for varying durations (1, 4, 8, 16, and 24 hours). This approach relies primarily on passive diffusion of soluble constituents into the solvent phase.

4.1.2 Decoction (Boiling in Water)

For aqueous extraction, distilled water served as the extracting medium. The impact of solvent volume and heating duration was systematically examined. A fixed quantity of plant powder (2.5 g) was treated with 25, 50, or 75 mL of boiling water, corresponding to solid–liquid ratios of 1:10, 1:20, and 1:30, respectively. The mixtures were maintained at boiling temperature for predetermined intervals ranging from 15 to 120 minutes. Elevated temperature enhances solute diffusion and disrupts plant cell structures, thereby promoting the release of water-soluble constituents.

4.1.3 Reflux Extraction

Reflux extraction was conducted using water, ethanol, or hydroethanolic mixtures under controlled heating conditions. Key experimental variables—including solvent composition, extraction temperature, time, and solvent-to-solid ratio—were systematically optimized. In a typical setup, 2.5 g of plant material was placed in a 250 mL flask equipped with a condenser to prevent solvent evaporation. The mixture was heated with continuous agitation (approximately 300 rpm). Ethanol concentrations ranging from 0% to 80% were evaluated, and solvent volumes of 25–75 mL were employed to achieve ratios between 1:10 and 1:30. Temperature conditions were varied between 30°C and 60°C, with extraction periods extending from 1 to 4 hours. Continuous condensation and recirculation of solvent enhance mass transfer and overall extraction efficiency.

5. MODERN EXTRACTION APPROACHES

5.1 Microwave-Assisted Extraction (MAE)

Microwave-assisted extraction was performed using a laboratory microwave system operating within a power range of 100–800 W. Leaf material was mixed with ethanol at a predetermined solid–liquid ratio and transferred into a sealed glass container suitable for microwave exposure. The sealed vessel was subjected to microwave irradiation to facilitate rapid heating and enhanced solvent penetration.

To avoid excessive thermal buildup, intermittent cooling was applied by immersing the container in a water bath maintained at 26–27°C after each irradiation cycle. This cooling step reduced solvent loss by promoting vapor condensation and prevented degradation of thermolabile constituents. After treatment, the extract was filtered and prepared for chromatographic analysis.

5.2 Ultrasound-Assisted Extraction (UAE)

Ultrasound-mediated extraction was carried out using an ultrasonic bath operating at 40 kHz. The indirect bath system was selected to prevent mechanical damage that may result from direct probe sonication. Plant material combined with ethanol was placed in sealed containers and positioned within the ultrasonic bath; multiple samples were processed simultaneously.

Following sonication, samples were cooled at room temperature prior to filtration and analysis. To maintain consistency between runs, the bath medium was refreshed after each cycle. Ultrasonic cavitation enhances cell wall disruption and improves solvent penetration, thereby facilitating efficient recovery of bioactive constituents.

5.3 Sequential Microwave–Ultrasound Extraction (MUAE)

In this combined strategy, microwave treatment preceded ultrasonic processing. The plant–solvent mixture was first exposed to microwave irradiation to promote rapid internal heating. After controlled cooling at 26–27°C, the same sample underwent ultrasound treatment. Cooling intervals were incorporated between stages to minimize thermal degradation and evaporation losses. This dual-stage method integrates dielectric heating with cavitation-induced cell disruption to potentially improve extraction performance.

5.4 Sequential Ultrasound–Microwave Extraction (UMAE)

In the reverse sequence, ultrasonic treatment was performed before microwave exposure. The sample was initially sonicated to induce mechanical disruption of plant tissues, followed by cooling and subsequent microwave irradiation. The integration of physical cavitation effects with rapid volumetric heating may enhance solute diffusion and overall extraction yield. The final extract was filtered prior to chromatographic evaluation.

5.5 Supercritical Fluid Extraction (SFE)

Supercritical fluid extraction employs solvents maintained above their critical temperature and pressure, where they display combined gas-like diffusivity and liquid-like solvating capacity. Carbon dioxide is the most frequently utilized medium in this technique due to its favorable physicochemical characteristics and low toxicity.

Under supercritical conditions, CO? penetrates plant matrices efficiently while dissolving target compounds. A key advantage of SFE is the ability to fine-tune solvent strength by adjusting pressure and temperature, thereby enabling selective extraction according to compound polarity and molecular characteristics.

5.5.1 Characteristics of Supercritical CO?

In its supercritical state, CO? behaves predominantly as a non-polar solvent, making it particularly suitable for isolating lipophilic constituents such as essential oils, carotenoids, and tocopherols. Operational parameters commonly range between 35–60°C and 100–300 bar, conditions that help preserve thermally sensitive molecules.

Because native CO? exhibits limited affinity for polar compounds, modifiers such as ethanol or water are often incorporated in small proportions (typically 5–15%). These co-solvents increase the polarity of the supercritical phase, thereby enhancing recovery of flavonoids, phenolic compounds, and other moderately polar phytochemicals.

Table 3: Comparative of Conventional and Modern Extraction Techniques

6. FACTORS AFFECTING EXTRACTION OF BIOACTIVE COMPOUNDS FROM MEDICINAL PLANTS

Extraction efficiency of bioactive compounds such as flavonoids is influenced by technical parameters, biological variability, and matrix-related factors. Careful control of these variables is necessary to achieve optimal yield, purity, and reproducibility.

6.1 Primary Technical Parameters

Extraction performance is primarily governed by:

• Temperature: Elevated temperatures enhance solubility and mass transfer but may degrade thermolabile constituents.
• Extraction time: Adequate duration ensures complete diffusion, whereas excessive exposure can promote oxidation or degradation.
• Solvent-to-sample ratio: Sufficient solvent volume improves recovery; inadequate ratios limit extraction efficiency.

Balancing these parameters is essential to maximize yield while preserving compound stability.

6.2 Biological and Geographical Influences

Phytochemical composition varies according to plant species, cultivation conditions, soil characteristics, altitude, climate, and sunlight exposure. Consequently, bioactive compound content—including rutin—may differ across regions and harvesting conditions. Such variability highlights the importance of controlled sampling and documentation when comparing analytical outcomes.

6.3 Sampling and Pre-treatment Factors

Reliable rutin quantification begins with appropriate sampling and pre-treatment. Distribution of rutin varies among plant organs (leaves, bark, roots, flowers, or seeds), and concentration may differ depending on developmental stage and harvest timing.

Post-harvest handling—including drying method, temperature control, and storage conditions—directly affects phytochemical stability. Improper processing can lead to degradation and inconsistent analytical results. Standardized sampling and controlled pre-treatment procedures are therefore essential for reproducible extraction performance.

6.4 Method Selection and Matrix Considerations

The choice of extraction technique (maceration, reflux, microwave-assisted extraction, ultrasound-assisted extraction, or supercritical fluid extraction) influences efficiency, selectivity, solvent consumption, and cost. Method selection should consider the polarity, chemical stability, and physicochemical characteristics of the target compound.

Medicinal plants represent complex chemical matrices containing multiple interacting constituents that may interfere with extraction or analysis. Appropriate solvent selection and optimized conditions are necessary to minimize matrix effects and improve selectivity.

6.5 Optimization in Rutin Extraction

Efficient isolation of rutin requires systematic optimization of solvent type, temperature, extraction time, and solvent ratio. Proper optimization enhances recovery while minimizing degradation and matrix interference. Additionally, operational efficiency and reduced solvent consumption are important for large-scale or routine analytical applications.

7. STRUCTURAL CHARACTERIZATION TECHNIQUES ^[14-18]

7.1 UV–Visible Spectroscopy

7.1.1 Fundamental Application in Flavonoid Analysis

“Ultraviolet-visible spectroscopy” is established as a core technique for “qualitative and quantitative estimation of flavonoids,” making it essential for rutin structural characterization. “Spectrophotometric and chromatographic techniques are utilized to identify and quantify individual phenolic compounds.”

7.1.2 Advanced UV Detection Systems

The importance of “diode-array UV (DAD UV)” detection is emphasized, noting its “potential of combined diode-array UV, tandem-MS and nuclear magnetic resonance (NMR) detection for unambiguous identification” of flavonoids. This indicates that modern UV-Vis systems provide enhanced structural information when integrated with other analytical techniques.

7.1.3 Chromatographic Integration

“Chromatographic separations (HPLC and CE) coupled with different detection systems (UV, MS and NMR)” are widely applied for polyphenol analysis, demonstrating that UV-Vis spectroscopy is most effective when combined with separation techniques for rutin characterization.

7.1.4 Methodological Considerations

Researchers must “carefully consider the biological process that they intend to study, and select an analytical method that optimally matches their specific objectives,” suggesting that UV-Vis spectroscopy should be selected based on specific analytical requirements for rutin analysis.

7.1.5 Structural Information Limitations

While UV-Visible spectroscopy provides valuable information about chromophoric properties and can assist in identification and quantification of rutin, it is most effective as part of an integrated analytical approach rather than as a standalone technique for comprehensive structural characterization. The technique excels in quantitative analysis and preliminary identification but requires complementary methods for complete structural elucidation.

8. FT-IR SPECTROSCOPY

8.1 Advanced Structural Analysis Tool

“FTIR Spectroscopy, nuclear magnetic resonance (NMR)” are identified as “highly sophisticated techniques for determining the structure of the bioactive fraction lead” in medicinal plant analysis, establishing FT-IR as a key method for rutin structural characterization.

8.2 Detection and Identification Applications

“Fourier Transform Infra-Red spectroscopy (FTIR)” is mentioned among the analytical methodologies for “detection of bioactive compounds from plant extracts,” confirming its role in identifying and characterizing rutin and related compounds in medicinal plants.

8.3 Integrated Analytical Approach

FT-IR works alongside “chromatography techniques such as HPLC/HPTLC/GC-MS” as part of comprehensive analytical strategies, indicating that FT-IR provides complementary structural information when used with separation techniques.

9. QUALITY ASSESSMENT APPLICATIONS

There is emphasis on improving “qualitative and quantitative analysis techniques of medicinal plants for quality assessment in the herbal pharmaceutical industry,” suggesting that FT-IR spectroscopy contributes to both qualitative structural characterization and quality control of rutin-containing medicinal plants.

Technical Details for Rutin FT-IR Characterization

9.1. Characteristic IR Absorption Bands for Rutin

9.2. Sample Preparation Methods for FT-IR Analysis of Rutin

Proper sample preparation is essential for obtaining reliable Fourier Transform Infrared (FT-IR) spectra of rutin. The potassium bromide (KBr) pellet method is one of the most commonly employed approaches, in which finely powdered rutin is thoroughly mixed with dry KBr and compressed into a transparent pellet for spectral acquisition. This method provides good spectral resolution and is widely used for structural confirmation of functional groups.

Alternatively, Attenuated Total Reflectance FT-IR (ATR-FTIR) enables direct analysis of powdered samples with minimal preparation. The sample is placed directly onto the ATR crystal surface, allowing rapid and non-destructive measurement. ATR-FTIR is particularly advantageous in routine quality control due to its simplicity, reduced sample handling, and improved reproducibility.

The film method, involving dissolution of rutin in a volatile solvent followed by evaporation to form a thin film, is less commonly applied but may be used when solution-based analysis is required.

9.3. Applications of FT-IR in Rutin Identification

Fourier Transform Infrared (FT-IR) spectroscopy plays an important supportive role in the identification and structural confirmation of rutin. The technique is primarily employed to verify characteristic functional groups present in the molecule, including phenolic hydroxyl groups and the conjugated carbonyl structure associated with the flavonoid nucleus. Distinct absorption bands corresponding to glycosidic linkages further aid in confirming the presence of the rutinoside moiety.

FT-IR spectra of plant extracts are often compared with those of reference standard rutin to ensure authentication and detect possible adulteration. Although FT-IR alone cannot provide complete structural elucidation, it serves as a rapid and reliable complementary technique to chromatographic and spectroscopic methods. When integrated with UV–Visible spectroscopy, HPLC, and NMR analysis, FT-IR strengthens overall structural confirmation and enhances confidence in rutin identification within complex herbal matrices.

9.4 Method Validation Parameters for FT-IR Analysis of Rutin

Validation of FT-IR methods is essential to ensure reliability and reproducibility in rutin identification and quality assessment. Specificity must be demonstrated by confirming that characteristic absorption bands correspond uniquely to rutin without interference from co-existing phytochemicals in plant matrices. Precision, including repeatability, is evaluated by assessing the consistency of spectral measurements under identical conditions.

Accuracy may be established through comparison with reference standards or complementary analytical techniques. For quantitative FT-IR approaches, linearity should be assessed across an appropriate concentration range to confirm proportionality between absorbance and analyte concentration. Sensitivity parameters, including the limit of detection (LOD) and limit of quantification (LOQ), are determined to define the minimum detectable and quantifiable levels of rutin.

Systematic validation of these parameters ensures that FT-IR methods provide dependable analytical performance in herbal drug standardization and authentication studies.

10. ADVANCED STRUCTURAL CHARACTERIZATION TECHNIQUES FOR RUTIN ANALYSIS

10.1 Nuclear Magnetic Resonance in Rutin Characterization

Nuclear Magnetic Resonance (NMR) spectroscopy is regarded as one of the most reliable tools for detailed structural determination of flavonoid compounds such as rutin. The technique provides molecular-level insight into hydrogen environments through ^1H NMR and elucidates the carbon skeleton via ^13C NMR analysis. Additionally, two-dimensional experiments—including COSY, HSQC, and HMBC—enable correlation of proton–proton and proton–carbon interactions, allowing comprehensive mapping of molecular connectivity.

In the structural investigation of rutin, NMR analysis verifies the presence of the quercetin core structure and confirms attachment of the rutinoside disaccharide unit. It also allows precise localization of the glycosidic bond, typically identified at the C-3 position of the aglycone. Because NMR can reveal substitution patterns and stereochemical relationships, it provides definitive structural confirmation. Under optimized conditions, quantitative NMR approaches may also be employed for content estimation. Despite these advantages, NMR generally requires relatively high amounts of purified analyte, and isolation of sufficiently pure rutin from complex botanical matrices can present practical challenges.

10.2 Mass Spectrometry in Rutin Characterization

Mass spectrometry (MS) plays a central role in determining molecular mass and supporting structural characterization of flavonoid glycosides. For rutin, MS analysis typically reveals a protonated molecular ion at m/z 611 ([M+H]^+) in positive ionization mode, enabling confirmation of its molecular formula through accurate mass measurement.

Fragmentation studies generate diagnostic product ions, including sequential cleavage of sugar residues and formation of the characteristic aglycone ion at m/z 301, corresponding to quercetin. Advanced multi-stage fragmentation experiments (MS?) provide additional insight into dissociation pathways, thereby strengthening structural interpretation.

Compared with NMR spectroscopy, mass spectrometry requires smaller sample quantities and offers superior sensitivity, making it particularly suitable for detecting rutin in trace amounts within complex plant extracts. Its high selectivity and compatibility with chromatographic systems further enhance its utility in routine qualitative and quantitative analysis.

11. HPTLC FOR RUTIN AND FLAVONOID ANALYSIS IN MEDICINAL PLANTS ^[19-21]

11.1 HPTLC and HPLC in Rutin Analysis

High-Performance Thin-Layer Chromatography (HPTLC) is an advanced planar chromatographic method extensively utilized in pharmacognostic evaluation and herbal drug quality assessment. In comparison with conventional thin-layer chromatography, this technique provides superior separation efficiency, automated and precise sample application, densitometric quantification, enhanced reproducibility, and lower solvent requirements. Within medicinal plant research, HPTLC is frequently employed for profiling and quantifying secondary metabolites, particularly flavonoids such as rutin, which commonly serves as a chemical marker for standardization purposes.

Separation in HPTLC is achieved through differential migration of analytes across a stationary phase under the influence of an optimized mobile phase system. Silica gel 60 F254 pre-coated plates are typically selected as the adsorbent layer. Mobile phases composed of ethyl acetate combined with modifiers such as formic acid, acetic acid, and water are often optimized to achieve effective resolution of rutin. Visualization is generally performed under ultraviolet illumination (254 or 366 nm), followed by densitometric scanning for quantitative analysis. Calibration is established using reference standards of rutin, with method validation addressing parameters including linearity, precision, accuracy, limit of detection (LOD), limit of quantification (LOQ), specificity, and robustness to ensure reliability in complex botanical matrices.

Beyond quantitative estimation, HPTLC is valuable for chromatographic fingerprint development, comparative phytochemical evaluation, detection of adulteration, and marker-based quality control. Although its sensitivity and structural elucidation capability are lower than column-based chromatographic techniques, its analytical performance can be strengthened through integration with spectroscopic or mass spectrometric confirmation methods.

High-Performance Liquid Chromatography (HPLC), by contrast, remains one of the principal analytical tools for determining rutin in plant extracts and finished formulations. Reverse-phase systems employing C18 stationary phases are most frequently adopted, with mobile phases consisting of acidified aqueous components combined with methanol or acetonitrile under isocratic or gradient elution. Detection commonly relies on UV or diode-array systems within the 254–360 nm range. Published validation studies consistently report strong linearity, precision, and recovery, supporting the suitability of HPLC for routine quality assurance and herbal product standardization.

Further technological enhancements—including HPLC coupled with diode-array detection (HPLC–DAD), tandem mass spectrometry (LC–MS/MS), ultra-performance liquid chromatography (UPLC), and multidimensional separations—have significantly improved analytical selectivity and sensitivity. Nevertheless, variability arising from plant origin, extraction procedures, and instrumental parameters underscores the necessity for harmonized and validated analytical protocols to ensure reproducibility across laboratories.

12. UPLC FOR ENHANCED RUTIN AND FLAVONOID DETERMINATION

12.1 Ultra-Performance Liquid Chromatography in Rutin Analysis

Ultra-Performance Liquid Chromatography (UPLC) represents a technologically refined progression of conventional HPLC. Its superior performance is largely attributed to the use of columns packed with particles smaller than 2 µm and operation under elevated system pressures. These characteristics substantially increase chromatographic efficiency, resulting in narrower peak profiles, improved resolution, and reduced analytical run times.

For rutin analysis, UPLC enables rapid and high-resolution separation within complex herbal matrices. Shorter peak widths contribute to enhanced signal intensity and improved detection sensitivity, facilitating accurate quantification even at low concentration levels. The improved resolving power minimizes co-elution with structurally related flavonoids and other phytochemicals commonly present in plant extracts. Additionally, reduced solvent consumption per analysis enhances both economic and environmental sustainability.

UPLC has become increasingly important in herbal drug standardization, multi-component flavonoid analysis, rapid screening applications, and degradation or stability investigations. When coupled with mass spectrometry (UPLC–MS), the technique provides precise molecular mass measurements and characteristic fragmentation patterns, enabling confident identification of rutin at trace levels. The combination of high-resolution chromatographic separation and sensitive mass detection makes UPLC–MS particularly valuable for advanced structural confirmation and accurate quantitative assessment.

13. CAPILLARY ELECTROPHORESIS (CE) IN RUTIN AND FLAVONOID ANALYSIS

Capillary Electrophoresis (CE) is an alternative high-efficiency separation technique that has gained attention for the analysis of polyphenolic compounds in botanical samples. Unlike chromatographic approaches that rely on partitioning between stationary and mobile phases, CE separates analytes based on differences in electrophoretic mobility within a narrow fused-silica capillary subjected to a high electric field. Migration behavior is governed by the charge-to-size ratio of the analyte, as well as buffer composition, pH, and applied voltage.

In the case of rutin, which contains multiple phenolic hydroxyl groups, partial ionization under alkaline conditions facilitates electrophoretic separation. Careful optimization of buffer pH and electrolyte composition is essential to ensure reproducible migration times and adequate resolution from structurally related compounds.

CE has been applied for both qualitative profiling and quantitative determination of rutin in complex plant extracts. Its high separation efficiency and relatively short analysis time make it attractive for rapid screening and quality control applications. Detection is most commonly performed using UV absorption (CE–UV) due to its simplicity and cost-effectiveness, whereas coupling with mass spectrometry (CE–MS) enhances selectivity and enables molecular mass confirmation. In specialized applications, CE–NMR may provide supplementary structural information, although sensitivity constraints limit routine use.

Compared with traditional chromatographic techniques, CE requires minimal solvent volumes and very small sample quantities while maintaining high separation efficiency. These advantages position CE as a useful complementary method within integrated analytical frameworks designed for rutin determination and medicinal plant standardization.

Table 4: Comparative HPLC, HPTLC, UPLC and Capillary Electrophoresis

14. METHOD DEVELOPMENT AND VALIDATION FOR RUTIN ANALYSIS IN MEDICINAL PLANTS ^[19,20]

Precise quantification of rutin in botanical materials demands carefully structured method development supported by comprehensive validation to ensure consistency, accuracy, and regulatory acceptability. Because plant matrices contain numerous co-extracted constituents that may interfere with analysis, systematic and science-based strategies such as Analytical Quality by Design (AQbD) are increasingly implemented to strengthen analytical reliability. In contrast to empirical optimization approaches, AQbD focuses on predefined objectives, scientific understanding of method variables, and proactive risk evaluation within an established design framework.

Within the AQbD paradigm, the Analytical Target Profile (ATP) outlines the intended purpose of the analytical procedure, specifying required performance characteristics such as accuracy, precision, and sensitivity for applications including routine quality control, authentication of plant materials, or stability monitoring. Critical Analytical Procedure Parameters (CAPPs)—for example, mobile phase composition, pH of the aqueous phase, column temperature, flow rate, and detection wavelength—are systematically investigated to determine their impact on chromatographic performance. Defining a Method Operable Design Region (MODR) enables identification of a multidimensional range of operating conditions under which the method consistently meets predefined criteria. Adoption of this structured approach enhances robustness, minimizes out-of-specification occurrences, and facilitates lifecycle management with greater regulatory adaptability.

Development of an analytical procedure for rutin also necessitates optimization of sample preparation and chromatographic variables. Appropriate selection of extraction solvents, commonly ethanol or hydroethanolic systems, along with careful control of extraction temperature and duration, is essential to maximize analyte recovery while reducing matrix interference. Chromatographic optimization generally employs reverse-phase C18 stationary phases in combination with acidified aqueous mobile phases and organic modifiers such as methanol or acetonitrile, applied under either isocratic or gradient elution modes. Detection is typically performed using UV or diode-array systems to verify peak purity and ensure specificity. Critical performance indicators—including adequate separation from co-existing flavonoids, symmetrical peak shape, and minimal tailing—must be achieved to confirm suitability of the method.

In summary, combining AQbD-based risk management principles with optimized extraction and chromatographic conditions provides a scientifically robust framework for accurate and reproducible determination of rutin in medicinal plant matrices.

15. METHOD VALIDATION PARAMETERS (AS PER ICH GUIDELINES)

Validated analytical procedures are essential to ensure consistency, accuracy, and credibility in the quality evaluation of herbal formulations containing rutin. Method validation confirms that the analytical approach performs reliably under defined experimental conditions.

Key Validation Parameters in Rutin Analysis
