In silico anti-diabetic (?-glucosidase) inhibitory activity of schiff’s base derived 1,3,4, oxadiazole analogues.

Medicinal chemistry plays a foundational and basal role in chemical biology, and pharmacology to discover secure and effective drugs. It relies upon consecutive learning cycles composed of the compound plan, synthesis, evaluation, and information investigation to give new substance tests and lead compounds for novel and druggable targets. Medicinal chemistry is the execution of synthetic examination approaches for the combination of drugs. During the starting periods of medicinal chemistry improvement, scientists were fundamentally worried about the separation of medicinal agents tracked down in plants. Today, researchers in this field are similarly worried about the creation of newly designed drug compounds. [1,2]

Heterocyclic compounds are organic elements featuring nitrogen, oxygen, and sulfur that possess an extensive spectrum of applications in pharmacology, industry, and agriculture. Oxadiazoles are heterocyclic five-membered rings incorporating oxygen and nitrogen atoms. Numerous compounds comprising 1,3,4-oxadiazole rings have been scientifically recognized to be beneficial anti-diabetic agents. As oxadiazole rings are correspondingly more stable in biological circumstances and can be utilized as bio-isosteric alternatives for carbonyl-containing groups like esters, amides, carbamates, and hydroxamic esters, they are frequently employed as a motif in the structure of therapeutic candidates. [3,4]

Diabetes mellitus is a chronic metabolic illness that can be fatal and is symbolized by hyperglycemia and inappropriate insulin production. Type II diabetes mellitus has been linked to an elevated post-prandial glucose level, subsequently increasing the risk of plaque buildup, stroke, and other heart-related diseases. The functioning of α-glucosidase has a direct association with increased blood glucose concentrations. It is challenging to categorize DM because of metabolic diversity and variety. The American Diabetes Foundation (ADA) designed the oldest and most commonly recognized sorting in 1997. The most prevalent groupings for DM comprise type 1, type 2, various forms, and gestational diabetes mellitus. [5,6]

The molecule docking technique is fully used in computer-assisted drug design in recent years to identify the binding affinity and assess the method of interaction since it may significantly increase productivity and reduce research expenses. Molecular docking is a form of computational modeling that makes it easier to predict the ideal binding orientation of one molecule (for example, a ligand) to another (for example, a receptor) when two molecules incorporate to produce a stable complex. The preferred orientation of the bound molecules may be utilized to predict the stability and strength of complexes, in addition to the energy profiles (such as their binding free energy). This can be done by using a molecular docking scoring function. Presently molecular docking is frequently used to establish the initial binding properties of small molecules (possible medicines) to their biomolecular targets (such as proteins, polysaccharides, and nucleic acids). [7,8,9]

Materials

Reagents and chemicals required:

Table 1.1. List of reagents/chemicals used for synthesis using Schiff base

2. List of reagents/chemicals used for antioxidant activity

Table 1.3. List of glassware/apparatus used

Table 1.4. List of apparatus/equipment used

Table. 1.5. List of software used for the study

Scheme for synthesis

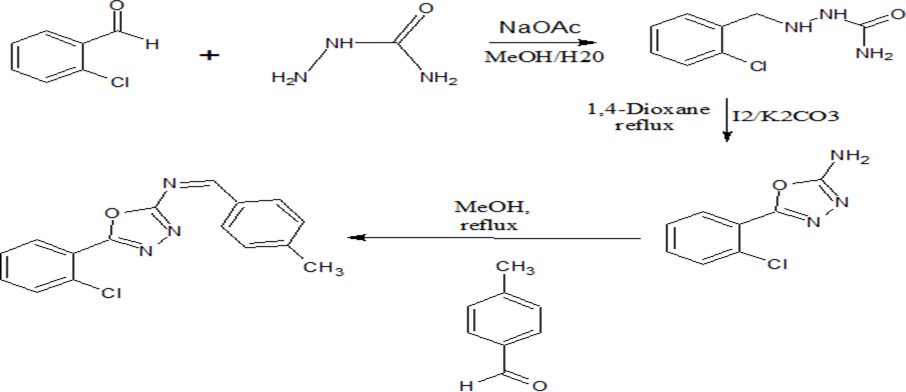

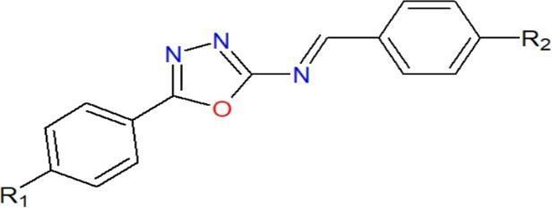

Fig. 1.1. Synthesis of 1,3,4-oxadiazole bearing Schiff bases derivatives

• • • • o-Chlorobenzaldehyde reacts with semi-carbazide in the presence of methanol and water refluxed with sodium acetate.
      • Then the substituted/ refluxed compound reacts with iodine and potassium carbonate which is refluxed with 1,4-dioxane.
      • Thus, the obtained compound from the above step is again refluxed with methanol and reacts with p-tolu aldehyde to get the product.

Molecular Docking using Schrödinger Software

To dock 1,3,4-oxadiazole derivatives in the Schrödinger Suite, you can follow these general steps:

1. Prepare the protein structure:
   1. Obtain the protein structure you want to dock the 1,3,4-oxadiazole derivatives into (here PDB ID; 7KBJ). You can either have the protein structure file in the required format (e.g., PDB) or obtain it from a protein database.
   2. Prepare the protein structure by removing any water molecules, ions, and other ligands that are not relevant to the docking.
2. Prepare the ligand structure:
   1. Obtain the structure file of the 1,3,4-oxadiazole derivatives you want to dock. The structure file should be in a compatible format such as SDF, PDB, or MOL2.
   2. If needed, use a molecular modeling software or cheminformatics tool to optimize the ligand structure, ensuring that it is in a reasonable conformation for docking. This step may involve energy minimization or other structure refinement techniques.
3. Launch the Schrödinger Suite:
   1. Open the Schrödinger Suite software on your computer.
4. Set up the receptor grid:
   1. Open the “LigPrep” utility in the Schrödinger Suite.
   2. Import the protein structure file prepared in Step 1 into LigPrep.
   3. Use LigPrep to assign bond orders, add hydrogen atoms, and optimize the protein structure. You may need to specify the protonation state and tautomeric form of the protein.
   4. Save the prepared protein structure as a new file, which will serve as the receptor for docking.
5. Prepare the ligand:
   1. Open the “LigPrep” utility again, this time with the prepared ligand structure file obtained in Step 2.
   2. Use LigPrep to assign bond orders, add hydrogen atoms, and optimize the ligand structure. Specify the desired protonation state and tautomeric form if necessary.
   3. Save the prepared ligand structure as a new file.
6. Set up the docking:
   1. Open the “Glide” utility in the Schrödinger Suite.
   2. Import the prepared protein receptor file and the prepared ligand file into Glide.
   3. Specify the docking parameters, such as the grid generation method, scoring function, and search options. Adjust the parameters as per your requirements.
   4. Set up the docking protocol, including the type of docking (e.g., ligand docking, flexible docking) and any additional constraints or preferences.
   5. Start the docking calculation.
7. Analyze and interpret the results:
   1. Once the docking calculation is complete, review the generated docking poses and score them based on the scoring function used.
   2. Analyze the binding modes and interactions of the 1,3,4-oxadiazole derivatives with the protein.
   3. Further analyze the results by visualizing the docking poses, calculating binding energies, and comparing different ligan poses if applicable.

Docking Study Interpretation

A)

B)

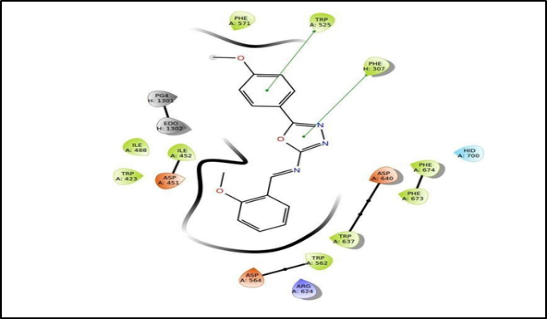

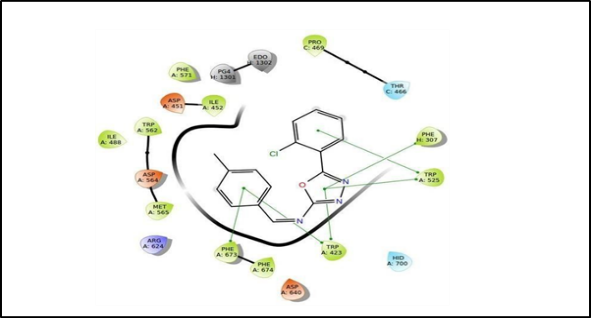

Fig.5.2. (A) 2D interaction of compound Oxocpt-11 with 7KBJ (B) 2D interaction of compound Oxpa2m-12 with 7KBJ

A)

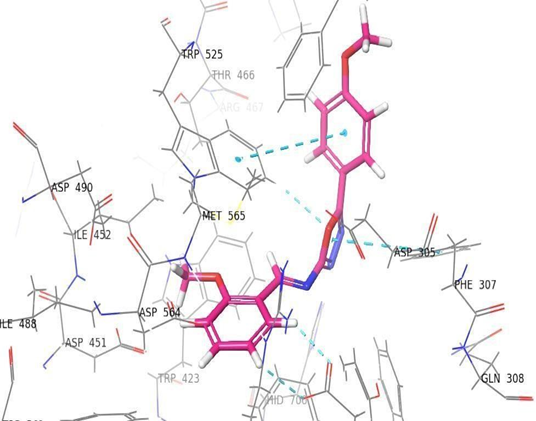

Fig.5.3. (A) 3D interaction of compound Oxocpt-11 with 7KBJ (B) 3D interaction of compound Oxpa2m-12 with 7KBJ

Table.5.2. Glide docking scores (kcal mol⁻¹) of the compounds (Oxocpt-11, Oxpa2m- 12 and standard) on enzyme PDB ID: 7KBJ

1. Docking results

The molecular docking technique permits us to characterize exactly how molecules interact in the binding site of targeted proteins and improve our knowledge of basic biological processes by simulating the interaction between a docked molecule and a protein at the atomic level. The synthesized compounds attach to the target binding region grooved at the target PDB: 7KBJ (Co-crystal structure of the alpha-glucosidase enzyme with compound 9), at the target's active region. We expressed the binding affinity of these derivatives as docking scores (Table 2). The binding free energy of docked derivatives ranged from −7.746 to −4.13.

In terms of binding energies, compounds Oxocpt-11 and Oxpa2m-12 have the greatest binding scores, with binding energy values (Docking score) of −7.746, and −7.495 respectively (Table.5.2). Acarbose showed the highest binding affinity towards the target with binding free energies of −9.938. In our current study, we have only synthesized one compound which is having greatest binding score (Oxocpt-11: -7.746). The compound Oxocpt-11 which was the most active compound in the dataset presents a conventional hydrophobic interaction with the benzene group in the chlorobenzene ring with TRP A:525 residue (Fig.5.2. (A)). 1,3,4-oxadiazole ring provides hydrophobic linkage interaction with PHE H:307, TRP A:525, and TRP A:423 residue (Fig.5.2. (A)). The benzene group which is present in the methyl-substituted benzene ring has hydrophobic interaction with PHE A:673 and TRP A:423 residue (Fig.5.2. (A)). The candidate selected was considered to be appropriate for anti-diabetic activity based on their docking scores.

The compound Oxpa2m-12 which was the next active compound from the dataset has a hydrophobic interaction with the benzene group in the methoxybenzene ring with TRP A:525 residue only (Fig.5.2. (B)). The 1,3,4-oxadiazole ring allows hydrophobic linkage with PHE H:307 residue (Fig.5.2. (B)).

1. 1. Determination of Oxocpt-11 by FTIR Spectra

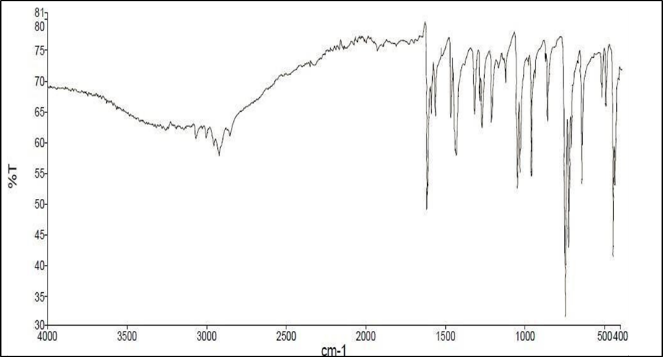

Fig.5.5. FTIR Spectrum of the Synthesized compound (Oxocpt-11)

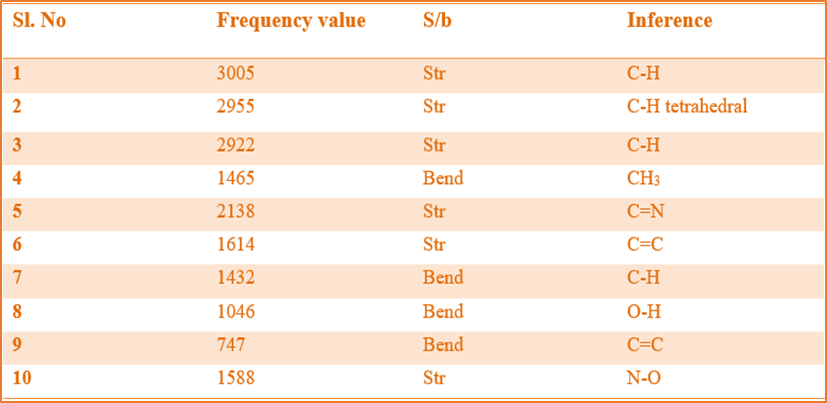

Table.5.4. Interpretation of FTIR spectrum

Str- Stretching C-Carbon

Bend- Bending O-Oxygen

N-Nitrogen H- Hydrogen
