Department of Pharmaceutical Chemistry, Madras Medical College, Chennai, Tamil Nadu, India
Central nervous system (CNS) disorders represent a major global health burden necessitating precise and reliable quantification of CNS-active pharmaceutical ingredients (APIs). The analytical complexity associated with these drugs, due to narrow therapeutic indices, low systemic concentrations and complex biological matrices has accelerated the evolution of ultra-high-performance liquid chromatography (UHPLC) and ultra-performance liquid chromatography (UPLC) platforms. This review comprehensively explores the advancements in UHPLC/UPLC based stability indicating methods (SIMs) tailored for CNS drug analysis, focusing on their role in ensuring product integrity, efficacy and regulatory compliance. The shift from conventional HPLC to UHPLC/UPLC has significantly enhanced resolution, sensitivity and runtime efficiency, enabling precise detection of APIs, metabolites and degradation products in challenging matrices like plasma and cerebrospinal fluid. Regulatory frameworks such as ICH Q1A(R2) and Q2(R1) underscore the necessity for forced degradation studies and method validation parameters including specificity, precision, linearity and robustness. Emerging trends such as Green Analytical Chemistry (GAC), quality by design (QbD) and AI-driven optimization are redefining modern analytical workflows. Furthermore, the integration of hyphenated techniques (e.g., UHPLC–MS, LC-QTOF-MS, NMR) has enhanced impurity profiling and degradation product characterization. Automation and digital compliance frameworks are now essential for real time release testing and sustainable analytical operations. Despite these advancements challenges persist in matrix effects, pediatric validations and degradation toxicity assessment. This review concludes by proposing future directions aimed at harmonizing innovation, precision and sustainability in CNS drug analysis.
The Analytical Imperative in CNS Therapeutics
The Global Burden of CNS Disorders and the Expanding Therapeutic Arsenal: Central nervous system (CNS) disorders such as Alzheimer’s disease, Parkinson’s disease, epilepsy, depression and schizophrenia represent a rising public health crisis globally. According to WHO estimates and recent epidemiological studies, neurological conditions are now a leading cause of disability-adjusted life years (DALYs) worldwide [1]. This growing burden has fueled accelerated efforts in drug discovery, repositioning and nanotechnology-based therapeutics [2,3,4].
CNS therapeutics are becoming more diverse and complex, ranging from conventional small molecules to biopharmaceuticals and nano formulations [4,5]. Despite innovative progress, translating these therapies into clinical success remains challenging due to the brain's unique anatomy and physiology especially the presence of the blood brain barrier (BBB) [7]
Analytical Challenges Unique to CNS Pharmacotherapy: CNS drugs face distinctive pharmacokinetic and formulation challenges. One of the most critical is the narrow therapeutic index of many CNS agent’s small fluctuations in concentration can lead to subtherapeutic effects or toxicity [8,9]. Moreover, complex drug formulations (e.g., liposomes, nanoparticles, extended-release systems) are being developed to enhance BBB penetration, which increases analytical complexity [6,10].
Drug distribution to the brain often involves low concentrations and requires detection in diverse matrices, including plasma, cerebrospinal fluid and brain tissue. This necessitates ultra-sensitive and highly selective analytical tools [8]. Compounding this, CNS-active drugs often undergo rapid metabolism and transformation leading to multiple degradation products that must be monitored precisely [11].
Why Precision Quantification is Critical in CNS Drug Development and Monitoring: The delicate balance between therapeutic efficacy and neurotoxicity makes precise quantification of CNS drugs essential during both development and clinical application. Stability-indicating methods (SIMs) are vital in evaluating drug integrity, identifying degradation pathways and validating shelf-life especially for sensitive CNS compounds [8,9,12].
With regulatory agencies demanding robust stability data, the role of advanced analytical technologies such as ultra-high-performance liquid chromatography (UHPLC) and ultra-performance liquid chromatography (UPLC) is increasingly indispensable. These methods provide enhanced resolution, speed and sensitivity compared to traditional HPLC, making them ideal for CNS-targeted drugs with complex degradation profiles [9,11].
Objective of the Review: This review aims to comprehensively examine the evolution and application of UHPLC/UPLC-based stability-indicating methods (SIMs) for CNS therapeutics. It seeks to bridge the analytical knowledge gap by highlighting current challenges, recent advancements and future directions in CNS drug quantification. By integrating multidisciplinary insights from pharmacokinetics and nanotechnology to analytical chemistry this review underscores the critical role of precision analysis in ensuring the success of modern CNS pharmacotherapy [1-13].
Analytical Complexities in CNS Drug Quantification:
Blood Brain Barrier: A Major Analytical Obstacle: The blood brain barrier (BBB) poses a significant challenge in CNS drug quantification due to its selective permeability. Its tight junctions and efflux transporters like P-glycoprotein prevent many therapeutic agents from reaching brain tissue in effective concentrations. Even when drugs cross the BBB, their heterogeneous distribution complicates quantitative assessments in target regions [14,17]. A Schematic of the BBB and drug transport mechanisms is shown in Figure 1. Additionally, lipophilic drugs may accumulate in brain lipids leading to analytical variability [14].

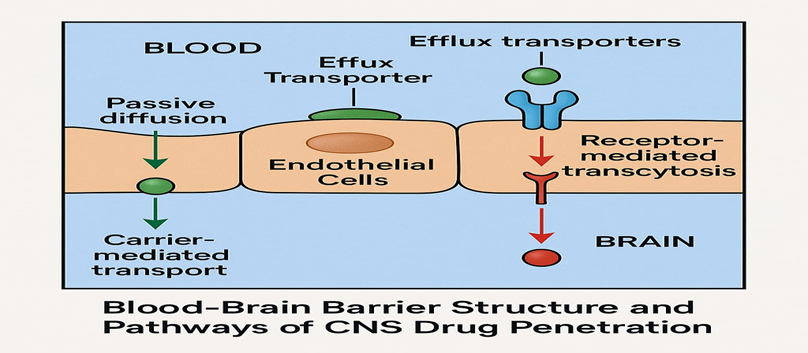

Figure 1: Schematic of the BBB and drug transport mechanisms
Complexity of CNS Matrices: Pharmaceutical vs Biological: CNS drug quantification often demands distinct analytical strategies for pharmaceutical (formulation based) and biological (plasma, CSF, brain homogenates) matrices. While Pharmaceutical matrices primarily require excipient control and drug-release profiling, biological matrices bring added variability due to enzymatic degradation, protein binding and metabolic transformations [15]. The matrix selection directly influences extraction efficiency, detection sensitivity and overall method validation outcomes.
Analytical Interferences: Excipients, Degradants and Matrix Effects: Formulation excipients and degradation products can significantly impact assay selectivity. Excipients may alter extraction profiles, cause ion suppression or enhancement in LC-MS/MS methods and even chemically interact with active drugs, especially in orphan formulations [18]. Moreover, biological matrix effects such as co-eluting endogenous compounds and protein interference can reduce assay accuracy, calling for rigorous matrix-matched calibration and method optimization [15,18]. Figure 2 illustrates the impact of matrix components on CNS drug quantification in plasma and CSF.

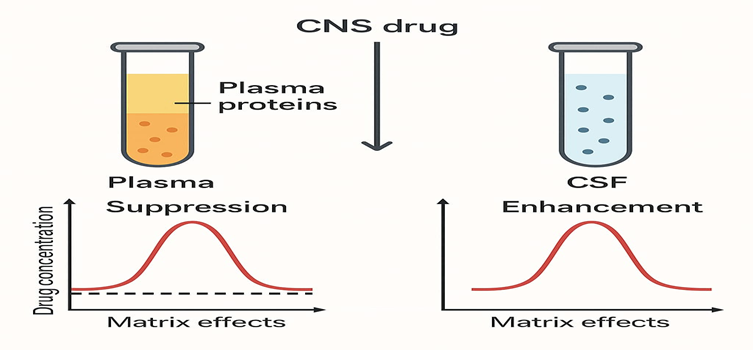

Figure 2: CNS drug quantification in plasma and CSF.
Sensitivity vs Specificity: A Critical Trade-off: Achieving both high sensitivity and specificity in CNS drug quantification remains a delicate balance. Sensitivity is essential for detecting trace drug levels in brain tissue or CSF, whereas specificity is needed to discriminate between the parent drug, metabolites and structurally similar compounds [11,16]. Predictive analytical models for CNS drug behavior including quantitative systems pharmacology (QSP) require precise input data from validated assays that strike this balance [11,16]. Inadequate attention to either can lead to misinterpretation of pharmacokinetic behavior and therapeutic outcomes.
Addressing CNS Penetration During Method Development: Modern drug discovery emphasizes early assessment of CNS penetration potential. Analytical methods must accommodate the physicochemical properties that influence CNS entry, such as molecular weight, lipophilicity and polar surface area [12]. Accurate quantification strategies are essential for evaluating CNS bioavailability and optimizing candidates with ideal BBB permeability profiles.
UHPLC/UPLC: A Technological Leap in CNS Drug Analysis:
Evolution from HPLC to UHPLC/UPLC: Speed and Efficiency: Traditional High Performance Liquid Chromatography (HPLC) has long served as a cornerstone in pharmaceutical analysis. However, the advent of Ultra High-Performance Liquid Chromatography (UHPLC) and Ultra-Performance Liquid Chromatography (UPLC) marked a paradigm shift in the field, particularly for complex domains like CNS drug analysis. UHPLC/UPLC systems operate at much higher pressures (up to 15,000 psi), allowing the use of columns packed with smaller particle sizes (sub-2 µm), which significantly enhances resolution, sensitivity and throughput compared to conventional HPLC [19]. The Comparative Features of HPLC. UHPLC and UPLC are summarized in Table 1. This leap in performance is critical for CNS formulations, which often require separation of structurally similar components such as isomers, degradants and excipient-related impurities.
Table 1: Comparative Features of HPLC, UHPLC and UPLC
|
Parameter |
HPLC |
UHPLC |
UPLC |
|
Particle Size |
3-5 µm |
<2 µm |
~1.7 µm |
|
Pressure |
≤ 6000 psi |
Up to 15000 psi |
Up to 15000 psi |
|
Resolution |
Moderate |
High |
Very High |
|
Runtime |
15-30 mins |
5-10 mins |
3-5 mins |
Resolving Complexity in CNS Formulations: CNS drugs especially in combination or extended-release forms often contain complex mixtures of actives, metabolites and excipients. UHPLC/UPLC platforms are uniquely suited to handle such complexity due to their enhanced peak capacity and faster analysis time. This allows for efficient profiling of CNS formulations and their degradation products without compromising precision [19,20]. Moreover, the ability to analyze multiple samples quickly is a key benefit in high throughput screening environments, where rapid method turn around is essential.
Integration with Advanced Detectors: The analytical power of UHPLC/UPLC is significantly augmented when coupled with advanced detection systems. Photodiode Array (PDA) detectors enable full-spectrum UV-Vis monitoring for compound fingerprinting and peak purity assessment. Mass Spectrometry (MS) including High-Resolution MS (HRMS) offers molecular level structural insights that are indispensable in impurity profiling and metabolite identification [20,21]. UHPLC–PDA–ESI–ToF/HRMS platforms have demonstrated exceptional capability in identifying trace components and secondary metabolites even in complex herbal and biological matrices, underscoring their relevance for CNS drug studies [20].
Electrospray Ionization (ESI) and Atmospheric Pressure Photoionization (APPI) are frequently employed as ion sources, providing flexibility in detecting both polar and non-polar CNS-related compounds [21]. This synergy of separation and detection technologies enhances both qualitative and quantitative assessments in drug development.
Advancing Impurity Profiling and Multi-Analyte Detection: For CNS drug formulations regulatory guidelines demand stringent control over impurities and degradation products. UHPLC/UPLC systems with their superior resolution and signal-to-noise ratios facilitate the detection of minor impurities at low concentrations [19,22]. Moreover, when integrated with MS or PDA detection these platforms support simultaneous multi-analyte detection ideal for CNS drugs where pharmacokinetics of the parent drug, active metabolites and excipients must be concurrently assessed.
Stability Indicating Methods (SIMs): Foundations and Compliance:
Defining SIMs and Their Role in Pharmaceutical Quality Assurance: Stability indicating methods (SIMs) are validated analytical procedures designed to accurately and specifically measure active pharmaceutical ingredients (APIs) without interference from degradation products, process impurities or excipients. In CNS drug development, where sensitivity and specificity are paramount due to the complex pharmacokinetic profiles, SIMs are indispensable. They ensure the integrity, safety and efficacy of formulations throughout their shelf life, providing a scientific basis for product stability and formulation robustness [23,25].
Regulatory Mandates: ICH Q1A(R2), Q2(R1), FDA and EMA Guidance: Global regulatory frameworks have emphasized the critical role of SIMs in drug approval and lifecycle management. The ICH Q1A(R2) guideline outlines the necessity for forced degradation studies under stress conditions to identify likely degradation pathways and validate SIMs. ICH Q2(R1) elaborates on the validation parameters such as specificity, accuracy, precision, linearity and robustness that a SIM must meet [23]. Similarly, the FDA and EMA mandate the submission of comprehensive stability data and stress testing outcomes for regulatory filing, reinforcing the use of SIMs as a compliance tool across markets [23,26].
Implementation of Forced Degradation Studies: A SIM's validity hinges on thorough forced degradation studies, which simulate stress conditions a drug may face during manufacturing, storage or distribution. These include:
These stress conditions reveal degradation products that must be resolved by the method, affirming the method’s specificity and selectivity [25,26]. The workflow of forced degradation studies in SIM validation is outlined in Figure 3. Quality by Design (QbD) and Design of Experiments (DoE) approaches are now increasingly used to optimize HPLC-based SIMs for CNS drugs, minimizing trial and error and ensuring method robustness [24].

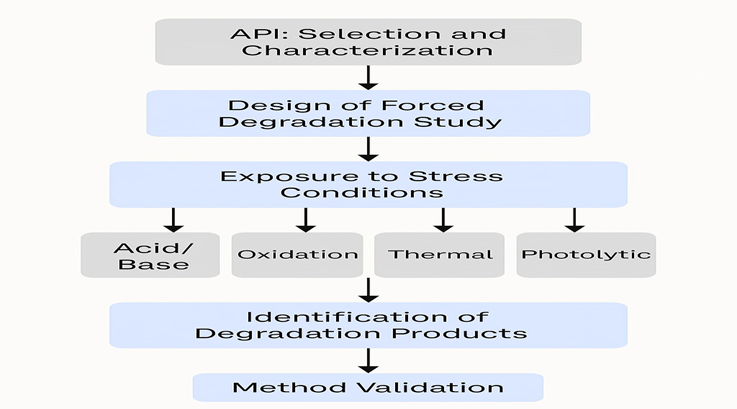

Figure 3: The workflow of forced degradation studies in SIM validation
SIMs as a Lifecycle Tool in CNS Drug Development and Approval: Beyond pre approval testing, SIMs serve as vital tools across the entire drug lifecycle. In the CNS domain where drugs often undergo reformulation, route-switching (oral to intranasal/injectable) or are subject to post market surveillance SIMs support continuous quality assurance and regulatory compliance. They are integral to change control, annual product reviews and addressing stability related complaints, thereby ensuring sustained therapeutic performance and patient safety [25,26].
Strategic Method Development for CNS Pharmaceuticals: Critical Chromatographic Parameters: Column Selection, Mobile Phase Composition, Flow Rate and Temperature
Developing robust analytical methods for CNS pharmaceuticals requires meticulous control of chromatographic variables. The physicochemical properties of CNS drugs especially their high lipophilicity demand specialized method optimization. Key parameters include column chemistry and pore diameter, mobile phase polarity and pH, flow rate and temperature control, which collectively influence resolution, retention time and peak shape [27]. In CNS formulations containing surfactants or complex excipients like poloxamers, minor shifts in these variables can lead to significant analytical variability, making fine-tuning essential [27].
CNS Drug Specific Challenges: Lipophilic Nature, Polymorphic Behavior and Excipient Interactions: CNS active drugs are often lipophilic, contributing to erratic solubility and matrix effects during analysis. Moreover, polymorphism can alter dissolution profiles and chromatographic behavior, complicating quantification. The presence of lipid-based excipients or nanocarriers increasingly used in CNS delivery systems may interfere with peak resolution or cause co-elution, necessitating customized separation strategies [28,29]. These drug specific complexities underline the need for stability indicating methods that account for excipient-drug interactions throughout the product lifecycle.
Application of Quality by Design (QbD) and Design of Experiments (DoE) for Systematic Optimization: Modern method development is guided by Quality by Design (QbD) principles supported by Design of Experiments (DoE) for structured experimentation and robustness testing. DoE helps identify critical method parameters (CMPs) and critical quality attributes (CQAs) by evaluating their interdependencies under simulated stress or formulation variability [29]. In CNS drug formulations especially those involving lipid nanoparticles or solid lipid carriers, QbD provides a systematic pathway to achieve consistent performance despite formulation complexity [29].
Use of Software Assisted Modeling and Predictive Analytics: Software tools play an increasingly significant role in chromatographic method development and qualitative data analysis. These include predictive modeling platforms, retention time simulators and optimization algorithms that facilitate the rational design of mobile phases and column parameters. Furthermore, qualitative software such as NVivo and ATLAS.ti, though traditionally used in textual research are increasingly adapted in pharmaceutical QbD frameworks for coding, trend analysis and decision-making based on complex experimental datasets [20,31]. These tools enhance reproducibility, minimize human error and accelerate method development timelines.
Analytical Method Validation: From Concept to Compliance: The validation of analytical methods is central to ensuring the reliability, reproducibility and regulatory acceptability of data, especially when dealing with complex CNS active pharmaceutical ingredients (APIs). For CNS therapeutics, where accurate quantification at low concentrations is crucial the validation process must be both scientifically sound and regulatory-compliant.
Validation Essentials: Specificity, Linearity, Accuracy, Precision, Robustness, LOD and LOQ
Method validation parameters outlined in ICH Q2(R1) form the cornerstone of any analytical protocol. These include: Specificity: Ability to measure analyte response without interference from impurities, degradants, or matrix components. Linearity: Demonstration that test results are directly proportional to analyte concentration within a defined range [35,36]. Accuracy and Precision: Essential for CNS drugs with narrow therapeutic windows. Precision encompasses repeatability and intermediate precision [34,35]. LOD and LOQ: Especially critical for CNS APIs detectable in nanogram ranges [32,33]. Robustness: Assessed by intentional variations in analytical parameters (e.g., flow rate, pH) to evaluate consistency under stressed conditions [33]. All these parameters collectively determine the reliability of a method and its fitness for regulatory submission [34,35]. Figure 4 Summarizes the key analytical parameters outlined in ICH Q2(R1)

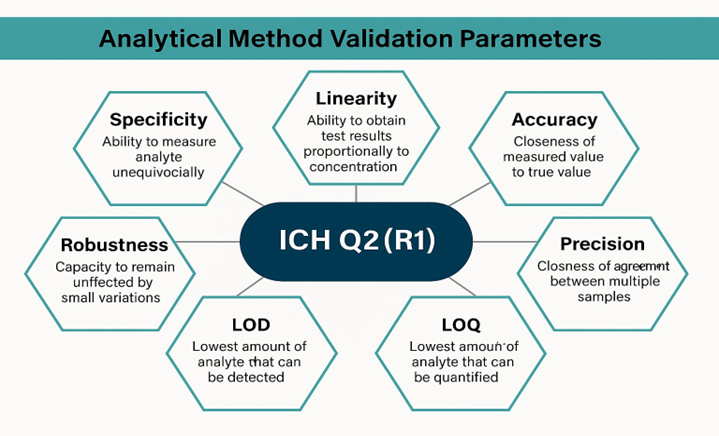

Figure 4: Summarizes the key analytical parameters outlined in ICH Q2(R1)
ICH Q2(R1) Alignment for CNS-Active Substances: CNS drugs often have complex PK profiles and require high-sensitivity assays due to blood–brain barrier (BBB) penetration and low systemic exposure. ICH Q2(R1) provides a framework adaptable to these requirements, especially in:
Addendums such as ICH E11 (pediatric use) emphasize modified validation strategies for special populations where limited sampling volume and ethical constraints exist [37].
Matrix Validation Approaches: Handling Complex Dosage Forms and Excipient Loads: CNS formulations frequently include multi-excipient systems (lipid carriers, surfactants, polymers) that introduce matrix effects during quantification [38,31]. Method validation must account for:
Risk-based assessment of excipients, especially orphan or less-studied ones, helps predict their impact on assay sensitivity and selectivity. Tools like excipient interaction matrices and risk ranking algorithms are becoming standard in formulation validation pipelines [38,31].
Real-World Challenges: Regulatory Audits, Documentation and Lifecycle Maintenance:
Despite robust protocols, practical hurdles often arise: Regulatory audits demand traceable records including raw data, validation reports and calibration logs [32,40].
Documentation burden increases with multi-lab and global trials. Data integrity and ALCOA+ principles (Attributable, Legible, Contemporaneous, Original, Accurate) must be upheld [39].
Lifecycle management involves periodic revalidation, particularly post-formulation changes or manufacturing site transfers [32,39]
Moreover, real-world data (RWD) integration into regulatory submissions requires harmonization across platforms, raising challenges in method comparability and data normalization [32,39].
Case-Based Review of UHPLC/UPLC SIMs for CNS Drugs: Stability-indicating methods (SIMs) based on UHPLC/UPLC technologies have significantly improved the analytical resolution, speed and selectivity required for CNS-active drugs. This section compiles case based literature spanning the last 10-15 years across major CNS drug classes emphasizing innovations in analytical techniques and highlighting key validation parameters.
Tricyclic Antidepressants (e.g., Dothiepin, Amitriptyline): Tricyclic antidepressants (TCAs) like Dothiepin and Amitriptyline demand highly selective methods due to their structural similarities with other CNS drugs. UHPLC/PDA or LC-MS/MS methods are preferred for their low detection limits and high resolution. Key analytical parameters for Amitriptyline and Dothiepin are summarized in Table 2. Notably dried blood spot (DBS) analysis has also been validated for post mortem detection of tricyclics offering a miniaturized stable sample preparation method [47].
Table 2: Key analytical parameters for Amitriptyline and Dothiepin
|
Drug |
Colum |
Detector |
Runtime |
Validation Range (ng/mL) |
|
Amitriptyline |
C18, 100 mm × 2.1 mm |
LC–MS/MS |
~ 5 mins |
2–500 [41,44] |
|
Dothiepin |
C8, 150 mm × 4.6 mm |
PDA |
~ 10 mins |
50–1000 [41] |
Antivertigo Agents (e.g., Betahistine): Betahistine, a histamine analog used in vertigo management presents solubility challenges. Sustained-release formulations are increasingly studied alongside HPLC/UHPLC methods to evaluate their long-term stability. Table 3 summarizes key analytical conditions for Betahistine quantification. Polymer based microsphere formulations of Betahistine have been evaluated using validated UV based SIMs demonstrating robust peak integrity and minimal degradation [40].
Table 3: Key analytical conditions for Betahistine quantification.
|
Drug |
Colum |
Detector |
Runtime |
Validation Range (ng/mL) |
|
Betahistine |
C18, 250 mm × 4.6 mm |
UV at 260 nm |
~ 8-10 mins |
0.5–20 [40] |
Antipsychotics (e.g., Olanzapine, Haloperidol): Atypical and typical antipsychotics like Olanzapine and Haloperidol are analyzed via UHPLC-MS/MS due to their multi analyte complexity and low plasma levels. Long term stability and simultaneous quantification are key concerns. Table 4 summarizes the chromatographic parameters used for their quantification. Multi drug plasma assays now routinely include 4-6 antipsychotics per run with minimal matrix effect particularly when paired with SPE (solid-phase extraction) [44,46].
Table 4: summarizes the chromatographic parameters used for their quantification.
|
Drug |
Colum |
Detector |
Runtime |
Validation Range (ng/mL) |
|
Olanzapine |
C18, 100 mm × 2.1 mm |
LC–MS/MS |
~ 6 mins |
0.2–100 [45,46] |
|
Haloperidol |
C18, 150 mm × 4.6 mm |
LC–MS/MS |
~ 7-8 mins |
1–50 [46] |
Antiepileptics (e.g., Phenytoin, Carbamazepine): Stability indicating methods for classical and third generation antiepileptics must address their long-term degradation, especially in thermolabile compounds. Table 5 outlines key analytical parameters for Phenytoin and Carbamazepine. Recent SIMs use AQbD (Analytical Quality by Design) for robustness testing across temperature and pH variations to ensure consistent detection of known impurities [45].
Table 5: outlines key analytical parameters for Phenytoin and Carbamazepine.
|
Drug |
Colum |
Detector |
Runtime |
Validation Range (ng/mL) |
|
Phenytoin |
C18, 250 mm × 4.6 mm |
UV |
~ 10 mins |
5–100 [42] |
|
Carbamazepine |
C18, 100 mm × 2.1 mm |
LC–MS/MS |
~ 5 mins |
0.1–10 [42] |
Anti-Parkinson Agents (e.g., Levodopa, Rasagiline): Anti Parkinson drugs often face stability issues due to oxidative degradation. UHPLC methods with gradient elution and reduced runtime help mitigate degradation during analysis. Table 6 presents the chromatographic conditions for Levodopa and Rasagiline. Use of methanol water with formic acid as a green mobile phase has reduced toxicity while maintaining resolution, contributing to eco-friendlier SIMs [45].
Table 6: chromatographic conditions for Levodopa and Rasagiline.
|
Drug |
Column |
Detector |
Runtime |
Validation Range (µg/mL) |
|
Levodopa |
C18, 150 mm × 3 mm |
UV |
~6 min |
1–100 [43] |
|
Rasagiline |
C18, 100 mm × 2.1 mm |
MS |
~5–6 min |
0.05–10 [43] |
Innovations Across Classes: Green Solvent – Methanol: water, ethanol: buffer mixtures and formic/acetic acid systems are replacing acetonitrile to reduce environmental impact [19,45]
Miniaturization: DBS and micro sampling are increasingly adopted particularly in forensic or post-mortem settings [48]
AQbD Integration: Analytical quality by design ensures method robustness through stress testing across critical parameters like pH, buffer strength and column temperature [41,47].
Comparative Summary
To highlight key analytical differences across CNS drug classes, Table 7 provides a comparative overview based on runtime, eco-friendliness, sensitivity and method robustness.
Table 7: comparative overview
|
Aspect |
Tricyclics |
Antivertigo |
Antipsychotics |
Antiepileptics |
Antiparkinson |
|
Average Runtime |
5-10 mins |
8-10 mins |
5-8 mins |
5-10 mins |
5-6 mins |
|
Eco Friendliness |
Moderate |
High |
Moderate |
High |
High |
|
Sensitivity (LOD) |
~0.2 ng/mL |
~0.5 µg/mL |
~0.1 ng/mL |
~0.05 µg/mL |
~0.05 µg/mL |
|
Method Robustness |
High (DBS, LC-MS/MS) |
Medium |
Very High (SPE-MS/MS) |
Very High (AQbD) |
Medium |
Greener, Smarter and More Sustainable Analytical Techniques: In recent years, Green Analytical Chemistry (GAC) has emerged as a vital approach to making pharmaceutical analysis more sustainable, efficient and environmentally responsible. This is particularly relevant in CNS drug analysis where complex matrices, high-throughput demands and regulatory pressure require greener solutions without compromising sensitivity or selectivity.
Principles of Green Analytical Chemistry in CNS Drug Analysis: The foundational pillars of GAC such as minimizing solvent use, reducing waste generation and improving operator safety are increasingly integrated into CNS drug research. Techniques adhering to the 12 principles of GAC (including direct analysis, miniaturization and in-situ measurements) are prioritized to reduce environmental impact while preserving analytical robustness. These principles are often remembered through the SIGNIFICANCE mnemonic, which encapsulates strategies like Solvent minimization, In-situ measurements and greener sample preparation [48].
Eco-Friendly Solvents and Energy Efficient Instrumentation: A shift from hazardous solvents to biodegradable or less toxic alternatives (e.g., ethanol, ethyl lactate or ionic liquids) is being observed in CNS drug quantification. In parallel, modern UHPLC/UPLC systems are engineered for shorter run times, reduced power consumption and lower mobile phase usage, enhancing throughput while aligning with GAC objectives [49].
Miniaturized and Solvent Free Workflows: Miniaturization plays a dual role conserving reagents and enhancing sensitivity. Innovations such as Lab-on-a-Chip, microfluidic platforms, and paper based analytical devices (PADs) enable high precision CNS drug assays with minimal ecological footprint. Additionally solvent free techniques like solid-phase microextraction (SPME) and thermal desorption have been explored for preclinical and clinical CNS drug studies [50].
Emerging Green Extraction Tools: Recent advancements highlight the promise of microextraction techniques notably dispersive liquid-liquid microextraction (DLLME) and stir bar sorptive extraction (SBSE) which require tiny sample volumes and limited solvent usage [50]. These tools are especially effective for CNS drugs present at trace levels in plasma, cerebrospinal fluid and brain tissue.
Case Studies: Green UHPLC/UPLC Approaches: Several validated UHPLC/UPLC methods for CNS drugs have demonstrated high eco-efficiency as assessed through green metrics like Analytical Eco-Scale, GAPI (Green Analytical Procedure Index) and AGREE (Analytical GREEnness metric) [50]. For instance, eco-scored UHPLC assays for antidepressants and antipsychotics have showcased low energy consumption, minimal hazardous waste, and high analytical throughput, setting benchmarks for future method development [49].
Characterization of Degradation Products: In pharmaceutical analysis degradation product profiling is a regulatory and scientific imperative especially for CNS-active drugs where even minor impurities can impact therapeutic outcomes and neurotoxicity risk. Advanced characterization techniques and regulatory frameworks guide the identification, structural elucidation and toxicological evaluation of these degradation products.
Use of Hyphenated Techniques: UHPLC-MS, LC-QTOF-MS, FTIR and NMR: The precise identification of degradation products relies heavily on hyphenated analytical platforms. These include:
Structural Elucidation and Toxicity Assessment of Degradation Products: Understanding the structure and biological impact of degradation products is critical particularly for CNS drugs which must maintain a high safety margin. Tools like:
In CNS applications, even trace level degradants can cross the blood brain barrier (BBB) and accumulate in neural tissue, elevating toxicity risks. For example, radiation or oxidative stress in CNS formulations has been shown to produce reactive aldehyde degradants that correlate with neuronal damage [53].
Regulatory Expectations for Degradation Profiling and Reporting:
According to ICH Q1A(R2) and detailed regulatory commentary [52,54] degradation products that exceed the reporting threshold (usually ≥0.05% for actives with a daily intake of ≤2 g) must be:
Regulators like the FDA and EMA also require submission of:
Degradation profiling is no longer confined to pre-approval studies. It is increasingly required during post-approval changes, formulation reformulation and when photostability, radiolysis or excipient compatibility is in question [52].
Illustrative Examples: Dothiepin, Betahistine and Others: Dothiepin: Under acidic hydrolysis, it forms a sulfoxide degradant identified via LC-MS/MS. This product retains partial pharmacological activity but shows reduced stability in light exposed conditions.
Betahistine: Exhibits oxidative degradation forming imidazole ring altered products. These have been structurally confirmed via FTIR and NMR and show increased hydrophilicity and lower CNS permeability [54].
Sumatriptan (case study): Degraded under alkaline, oxidative and photolytic stress to form seven distinct products. Three were predicted to be hepatotoxic, necessitating tighter control strategies [51].
These case studies exemplify how forced degradation studies coupled with hyphenated tools not only support method validation but also fulfill regulatory safety mandates for CNS drugs.
Future-Proofing CNS Analytical Platforms: As the analytical demands in CNS drug development continue to evolve, future-proofing strategies now hinge on digital integration, intelligent automation and sustainability. CNS drugs with their pharmacokinetic complexity and safety-critical profiles require platforms that can adapt to high throughput, error-minimized and multi-analyte environments. This evolution is being driven by artificial intelligence (AI), machine learning (ML), robotic handling and regulatory digitization.
Integration of AI and ML in Method Prediction and Optimization: AI and ML are transforming pharmaceutical analytics from empirical guesswork to predictive precision. These technologies are increasingly used to:
A systematic review by Fahle et al. highlights the utility of ML models such as decision trees, support vector machines (SVM) and neural networks for modeling manufacturing parameters and analytical workflows with high accuracy [55]. In CNS analytics, AI enables the prediction of drug behavior across complex matrices such as cerebrospinal fluid (CSF), improving both sensitivity and selectivity.
Automated Method Development and Robotic Liquid Handling in QC Labs: Analytical quality control (QC) laboratories are being reimagined through robotic liquid handling systems, integrated autosamplers and automated sample preparation platforms. Mahmud et al. report that liquid handling technologies have evolved to accommodate microfluidic formats, enabling miniaturization and high throughput while reducing solvent usage [56].
Automated platforms can now conduct:
Thurow’s analysis further supports that full laboratory automation enhances reproducibility and reduces human error by over 60% in regulated bioanalysis, a critical advantage for CNS stability studies [61].
Multi Analyte Quantification and AI Assisted Validation: Emerging CNS therapies often involve polypharmacy, necessitating multi-analyte quantification platforms. These platforms integrate UHPLC with tandem MS or UV-DAD systems and can analyze dozens of CNS drugs and their metabolites in a single run.
AI assisted validation tools are now being adopted to automate:
Nguyen et al. demonstrated an automated method capable of simultaneous determination of diverse CNS-active organic compounds with sub-ng/mL detection, highlighting the synergy between AI, automation and analytical depth [60].
Global Regulatory Trends: Harmonized, Digitized and Sustainable Frameworks: Regulatory bodies like the FDA, EMA and ICH are moving toward harmonized, digitally-driven compliance frameworks. The emphasis is on paperless submissions, cloud-based method validation repositories and digital audit trails. The World Journal of Advanced Research and Reviews outlines a digital risk management framework that merges compliance with data driven risk prediction models [60].
Sustainability is also a regulatory priority. The integration of automation and AI reduces:
Moreover, frameworks like ICH Q14 (Analytical Procedure Development) and the upcoming ICH M4Q(R2) are likely to mandate digital documentation, real-time release testing, and continuous method monitoring requiring CNS labs to be not only compliant but digitally future ready [56,60].
CONCLUSION AND OUTLOOK:
Summary of Advancements: Over the past decade, the landscape of CNS drug analysis has undergone a transformative evolution, largely driven by the integration of ultra-high-performance liquid chromatography (UHPLC) and ultra-performance liquid chromatography (UPLC). These technologies have offered significant improvements in resolution, runtime, and sensitivity over traditional HPLC making them indispensable tools in quantifying CNS drugs, which often have complex matrices and degradation profiles [19,20].
Simultaneously stability indicating methods (SIMs) have become the analytical gold standard allowing precise monitoring of drug integrity across product lifecycles. The implementation of forced degradation studies in line with ICH Q1A(R2) and Q2(R1) guidelines ensures robust evaluation of degradation products and formulation stability [23,25]. Additionally, trends such as Green Analytical Chemistry (GAC), miniaturization (e.g., DBS, Lab-on-a-Chip) and hyphenated platforms (UHPLC–PDA–HRMS, LC-QTOF-MS) have brought analytical sustainability and precision to the forefront of CNS method development [48–50].
The convergence of Quality by Design (QbD), design of experiments (DoE), and AI/ML-based modeling has accelerated method optimization, ensuring robustness across various stress and matrix conditions. Automation and robotic liquid handling have further enhanced throughput, minimized human error, and supported real-time analytical adjustments, particularly in regulated bioanalytical labs [55,56,61].
Gaps in Current Research
Despite these advancements, several analytical challenges persist:
Future Directions for Analytical Method Development
To bridge these gaps and ensure future-readiness, the following areas warrant emphasis:
