S.N.D College of Pharmacy, Babhulgaon
The method of encasing or enclosing one material In another, known as microencapsulation, is well-established and produces tablets that range in size from several hundred microns to considerably less than one micron. Microencapsulation is one of the more rookie techniques. Microcapsule and microsphere encapsulation potency depends on a number of variables, including the polymer’s solubility in solvent, concentration, herbal solvent solubility in water, rate of solvent removal, etc. Encapsulation of substances can limit the core ingredient for a specific amount of time inside tablet shells (coating material).This strategy has been applied in many industries like printing, food, textiles, pharmaceuticals, agriculture, and defence. This strategy has led to the introduction of chemically decontaminating textiles or self-healing composites in defence settings. The assessment of microencapsulation and the materials involved, microencapsulation technologies, microencapsulation goals, microcapsule morphology, microcapsule methodology, release mechanism, and application fields with microencapsulated additives in building advent materials are all covered in this article
Through the process of microencapsulation, solids, beverages, or even gases can be encased in microscopic detritus that forms thin wall fabric coatings across the substances. In the late 1930s, the method was developed as a cleaner substitute for carbon paper and carbon ribbons, which were in demand by the business machinery sector. The last advancement in the 1950s was the development of ribbons and duplicate paper that contained dyes in tiny gelatin drugs that were launched using a typewriter key or the pressure of a pen or pencil. This led to the development of several microencapsulated materials, including medications. A well-thought-out controlled drug delivery system can overcome several problems with conventional treatments and enhance a medicine’s therapeutic potential. In order to maximise healing effectiveness, it will become It is crucial to deliver the agent to the target tissue in the appropriate amount within the allotted time frame by causing the least amount of toxicity and side effects possible. Turning in a therapeutic substance to the target website online in a managed launch method involves a number of steps. Using microspheres to deliver medications is one such method. Typically, microspheres are loose-flowing powders, such as proteins or synthetic polymers, that are biodegradable and ideally have a particle length of significantly less than 200 μm. The process of microencapsulation involves covering or enclosing extremely small liquid or stable fabric droplets or debris with a continuous layer of polymeric fabric.
Microspheres: These stable debris particles have a matrix-like morphology and range in diameter from 1 to 1000 µm. The medication is either dissolved or uniformly distributed within the biodegradable polymer.
Microcapsule: A tiny pill that is released when the pill breaks, melts, or dissolves and contains substance (such as an adhesive or medication).
Advantages:
Disadvantage:
Reason for Microencapsulation:
Core Material:
The centre fabric, which is defined as the special fabric that will be coated, might have a liquid or robust consistency. Because the liquid middle may contain dissolved or scattered material, the middle fabric’s composition may vary. A mixture of energetic components, stabilisers, diluents, excipients, and release-charge retardants or accelerators can make up the strong middle. The ability to alter the middle material composition provides a certain amount of flexibility, and its application frequently enables beneficial layout and enhancement of the desired microcapsules’ characteristics.
Coating Material:
It should be possible for the coating fabric to form a film that is nonreactive, cohesive, and chemically matched with the centre cloth. Stability using the centre cloth, When it comes to energetic substances, inert Launched under controlled conditions, the coating can be thin, hard, brittle, flexible, etc.
Manufacturing methods for microcapsules
Physical Method

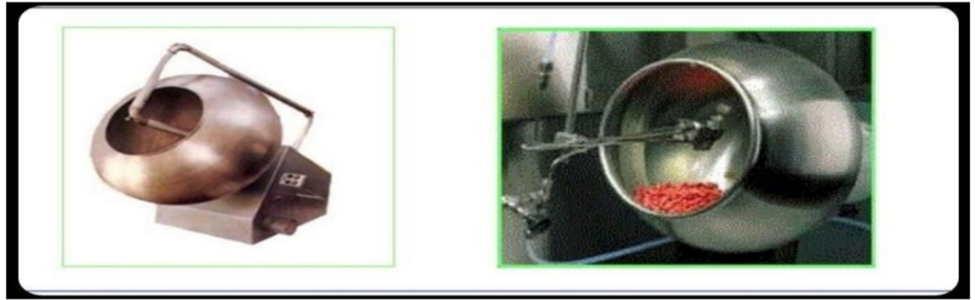

1) Pan coating:
Fig: Pan coating:

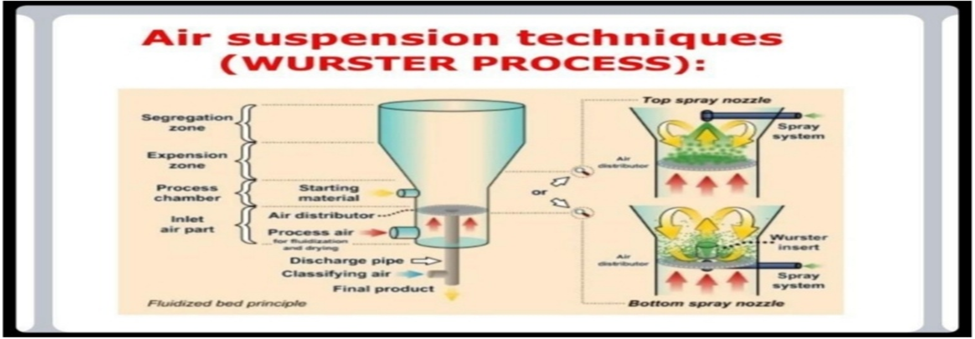

2) Air-suspension coating:
Initially established in 1959 by Professor Dale Erwin Wurster at the University of Wisconsin, Compared to pan coating, air suspension coating offers more flexibility and control. This method disperses the solid particulate intermediate material into the supporting air, and the suspended debris is lined with polymers in an unstable solvent, resulting in a very thin coating of polymer covering it. The air movement that aids in the debris’ removal also makes drying easier, and the drying charge is directly correlated with the air movement's temperature, which can be adjusted to also affect the coating's homes.
Fig: Air-suspension coating
3) Extrusion Centrifugal:
Centrifugal extrusion, have been studied and used by a few producers. A number of coating structures approved for use in food were developed to encapsulate products that included vitamins, spices, and flavourings. Carrageenan, sodium alginate, gelatin, lipids, fatty acids, waxes, gum acacia, starches, cellulose derivatives, and polyethylene glycol are examples of these wall products. A concentric orifice placed at the outer circumference of a spinning cylinder, or the pinnacle, and nozzles are used in centrifugal extrusion, a liquid coextrusion technique. A concentrated feed tube in the encapsulating cylinder or head allows coating and centre materials to be pumped one at a time to the several nozzles positioned at the tool's exterior floor. Coating cloth moves via the outer tube while the centre cloth travels through the middle tube. In order for the pinnacle to revolve around its vertical axis, the entire tool is attached to a revolving shaft. The microcapsules are accumulated on a moving mattress of fine-grained starch, which absorbs unwanted coating moisture and lessens their impact. The technique's generated particles range in diameter from 150 to 2000 mm.
Fig: Extrusion Centrifugal

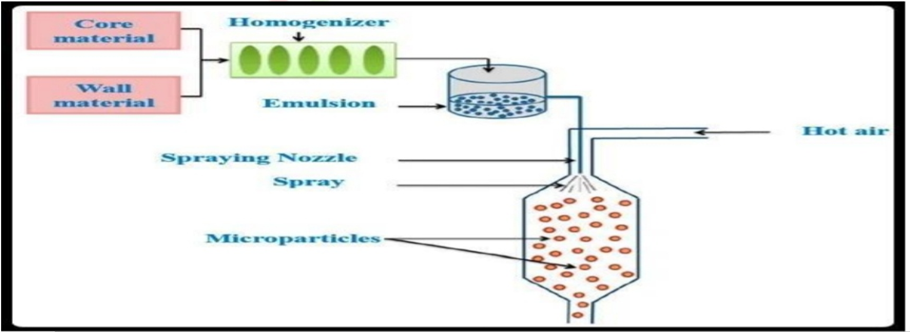

4) Spraying to Dry:
One of the most often used drying and microencapsulation techniques in the food and pharmaceutical industries is spray drying because it is adaptable, affordable, effective, clean to scale up, easily accessible, and yields a suitable, palatable powder (Desobry et al. 1997). For many years, it has been widely utilised in conjunction with the encapsulation of bioactive food ingredients, such as proteins, lipids, vitamins, enzymes, pigments, and flavours. However, because the prescribed high temperature causes the product to volatilise and/or destroy, its usage in thermo-touchy products—which include germs and important oils—is limited.containing the center and wall material, observed via way of means of nebulization/atomization in a drying heated air-circulating chamber. The process of microencapsulation via spray drying involves the creation of an emulsion, solution, or suspension comprising the wall and centre material, which is monitored by nebulisation or atomisation in a drying room with warm air circulating. When the water comes into contact with the fresh air, it immediately evaporates, and the matrix encloses the core substance.
Fig: Spraying to Dry
Chemical and physical techniques

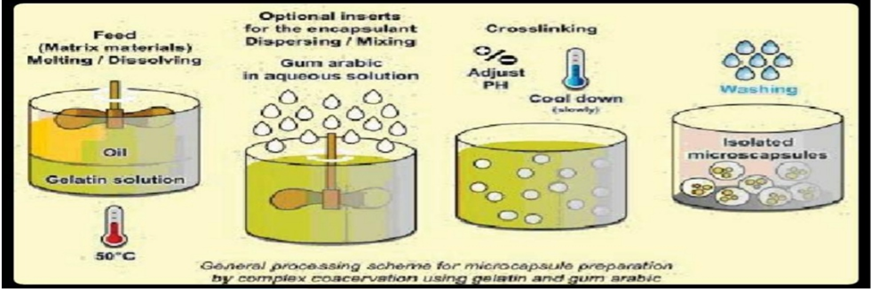

1. Coacervation
Due to the fact that the central material is totally encased by the process, coacervation, often referred to as “section separation,” is regarded as a legitimate microencapsulation technique. Way of means via the matrix. This approach Both simple and complex methods of coacervation, which involves the precipitation or separation of a colloidal component from an aqueous component, can be employed (Dziezak, 1988; Bakan, 1973). The polymer competes for the solubility of gelatin protein solution using a non-solvent or a polymer with higher water solubility in straightforward coacervation. Of hydrophobic interaction. The tablet is formed in complex coacervation by the ionic interaction of oppositely charged polymers, which are often the high-quality prices on protein molecules. And gum arabic and gelatin, which are anionic macromolecules (Versic, 1988; Soper, Brazel, 1999; 1995). The intricate Coacervation involves the segregation of a liquid portion of the coating fabric, while the two opposite rates are neutralized by one another (Soper, 1995). From a polymeric reaction seen through the coating of that segment as a consistent layer surrounding the suspended core particles. After that, the coating is hardened. In general,The three stages of batch-kind coacervation techniques are carried out under continuous stirring.
Coacervation microencapsulation was assessed using a large range of coating materials, but the results were not positive. The gelatin/gum Acacia device is the coating apparatus that has been researched and understood the most. But there are many different coating designs, such as those made of gliadin, heparin/gelatin, carrageenan, chitosan, soy protein, polyvinyl alcohol, and gelatin/carboxymethylcellulose. Guar gum/dextran and B lactoglobulin/gum Acacia are also suitable. Microencapsulation by coacervation (Gouin, 2004). In recent years, there have also been modifications to coacervation methods.
Chemical Method
1. Polymerization
Protective microcapsules are shaped in situ using polymerisation techniques in a notably novel microencapsulation approach. • The procedures include the reaction of monomeric units placed on the interface current between a non-stop section where the centre cloth is distributed and a core cloth material. • Since a liquid or petrol often serves as the non-stop or centre cloth assisting section, the polymerisation response occurs at the interface between the and solid or liquid..
Fig: Polymerization
2. Interfacial polymerization:
The materials are multifunctional monomers, such as multifunctional acid chlorides and multifunctional isocyanates. Both of these can be used individually or in combination. In the liquid centre material, the multifunctional monomer dissolved. The mixture can be supplied with a coreactant multifunctional amine. In order to neutralise the acid created throughout the reaction, base is supplied. This causes the contact to polymerise quickly, and the pill shell era begins. polyurea shell can form during the reaction of isocyanate and amine. It is possible to create polynylon or polyamide shells while amine and acid.
Fig: Interfacial polymerization

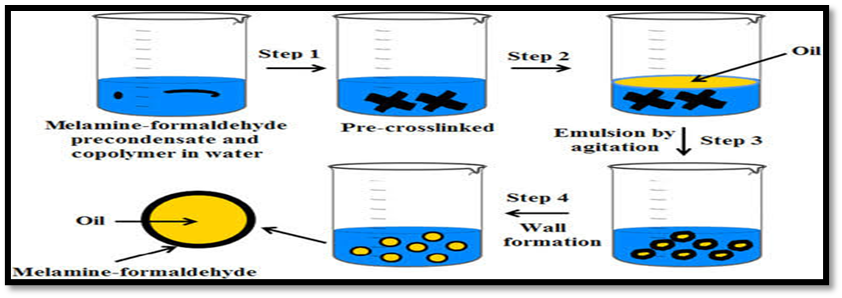

3. Polymerisation in situ
Similar to IFP, the creation of the pill shell is caused by the polymerisation of monomers introduced into the encapsulation reactor. The core material is not exposed to any reactive retailers using this approach. With the help of the non-stop segment and the dispersed core material, polymerisation takes place entirely continuous segment as well as at the interface’s non-stop segment side. A prepolymer with a low molecular weight will be formed initially, and as time passes, the prepolymer will increase in size. It uses a powerful pill shell to deposit on the floor of the middle material that has been scattered there.
Fig: Polymerisation in situ
Drug release mechanism and control
The four main processes of drug release from microcapsules are erosion, osmosis, dissolution, and diffusion.

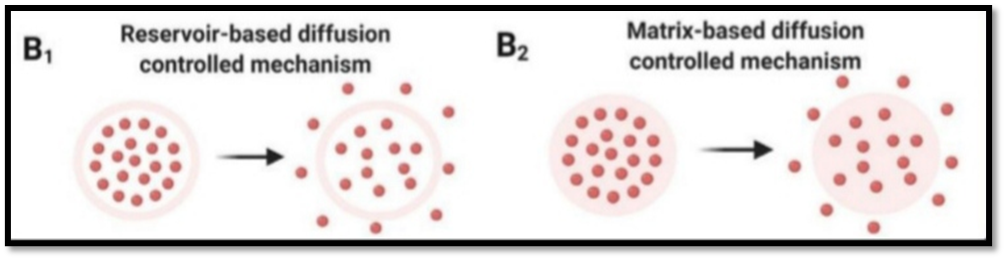

1) Diffusion
Diffusion is the most widely recognised mechanism by which the dissolving fluid enters the shell, dissolves in the middle, and escapes through the pores or interstitial channels. Therefore, the overall launch depends on, (a) how quickly the dissolution fluid reaches the microcapsule wall; (b) how quickly the medication dissolves inside the dissolution fluid. The rate at which the drug dissolves and spreads across the surface (3,4,16). Such a drug launch’s kinetics follow Higuchi’s Equation as follows (4,5,8,50,51): [D/J (2A-ε CS) CS t] = Q ½ where Q is the amount of drug released in accordance with the unit area of the exposed floor at time t; D is the solute’s diffusion coefficient inside the solution; A is the total amount of drug in accordance with unit volume; CS is the drug’s solubility in the permeating dissolution fluid; and ε is the microcapsule wall’s porosity.J is the capillary device’s tortuosity inside the wall. Q = vt, where v is the basic launch rate, is a simplified version of the previous equation.

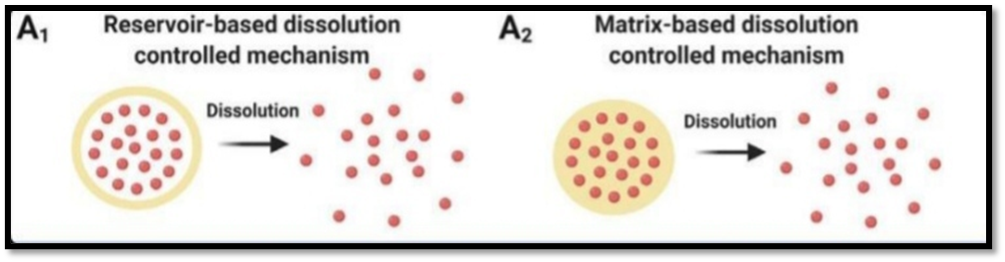

2) Dissolution
When the polymer coat dissolves in the dissolution fluid, the drug’s launch charge from the microcapsule is determined by the coat’s dissolution charge. The discharge charge is influenced by the coat’s thickness and solubility in the dissolving fluid.
3) Diffusion of osmosis
The microcapsule’s polymer coat functions as a semi-permeable membrane, allowing an osmotic stress differential between its interior and exterior and forcing the medication solution out of the microcapsule through tiny pores inside the coat.

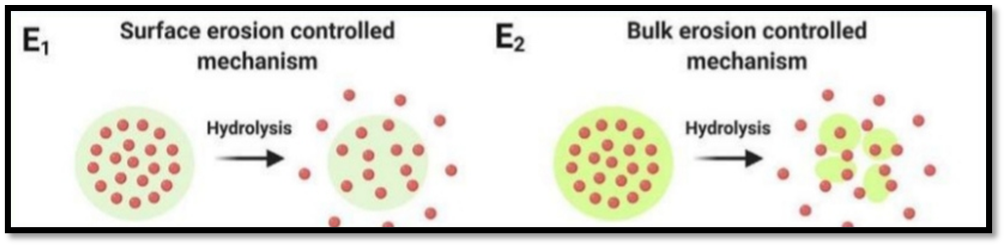

4)Erosion
Positive coat ingredients like glyceryl monostearate, bee’s wax, and stearyl alcohol are used in drug launches due to coat erosion caused by pH and/or enzymatic hydrolysis. The amazing diversity of microcapsule body types in terms of size, shape, and arrangement of the middle and coat substances has made attempts to model drug launch from microcapsules challenging. Additionally, the physiochemical properties of coating substances, such as variable thickness, porosity, and inertness, and core substances, such as solubility, diffusibility, and partition coefficient, make drug launch modelling challenging. But based mostly on a variety of studies of the discharge characteristics, the following generalisations can be made:
Microcapsule characterisation:
Traditional mild microscopy, or scanning electron microscopy (SEM), is the most widely utilised method for visualising microcapsules. Each of these techniques is employed to study the shape and form of microcapsules. Offers more options than mild microscopy. It also allows for the analysis of double-walled systems by examining the microsphere surfaces. Confocal laser scanning microscopy (CLSM) is a non-destructive visualisation approach that provides information about interior particles in addition to surface systems (Preet et al., 2013).
It is utilised to study how the polymeric matrix of the provider system degrades and to examine how the drug system and polymer interact.
The continual funnel and cone approach proved to be compatible with the attitude of repose. Using poured or trapped bulk densities of identified weight of pattern and a measuring cylinder, the bulk density of combined microcapsules was determined by calculating the Hausner’s ratio or Carr’s index (Hausner, 1967; Carr, 1965). [Tapped Density-Bulk Density/Tapped Density] × 100 is Carr’s Index. Hausner’s ratio (HR) is equal to ρT/ρB, where ρB is bulk density and ρT is tapped density (Mishra et al., 2013).
To achieve clear quantities between 50 and 100 millilitres, weigh the proper microcapsules and then move to a 100 millilitre cylinder. Bulk Density (ρρ) = [Weight of Microcapsules (g) (M) / Bulk Volume (ml)(V)] where Vo is the powder’s amount and M is its mass.
A device called micro electrophoresis is used to measure the electrophoretic mobility of microspheres, which makes it easy to compute the isoelectric factor. The mobility is related to the microcapsules’ ion absorption capacity, ionisable behaviour, and floor-contained charge.
The drug content was determined by extracting a 20 mg microcapsule design using methanol. UV spectrophotometry was used to evaluate the results after filtration and methanol dilution. %loading is equal to the drug’s weight divided by the microcapsules’ weight. %Encapsulation performance = [actual drug content/%theoretical drug content] 100% Yield = M/M0 × 100 M = Microcapsule Weight M0 is the total estimated medication and polymer weight (Mishra et al., 2013; Agnihotri et al., 2012).
The wetting properties of the microcapsule are determined by calculating the attitude of touch. This method makes it easy for us to identify the hydrophilicity and hydrophobicity of microcapsules. This is measured at the solid, air, or water floor by placing a droplet in a circular movable device that is hooked up above the inverted microscope’s objective. It is measured at 200 degrees Celsius during a minute of microcapsule breakdown.
The USP rotating basket and paddle equipment can be used in a variety of pH conditions, such as pH 1.2 and pH 7.4. After specific time intervals, the pattern must be removed and altered using an equal medium.
DIFFERENT CAPSULES PROPERTIES:
The unique methods that can be employed to provide the microcapsules determine the particle length of the microcapsules. Due to the unique tactics employed, Table 3 recommends the version within the particle sizes. The term “morphology of the microcapsules” refers to both the internal and external forms of the medications, which are largely dependent on the conditions under which the microcapsules are supplied as well as the materials utilised for their walls.
One of the most important characteristics of the microcapsules that determines their presence in a certain meal matrix is their porosity, which is shaped by the use of any technique. Composition of the microcapsule’s wall fabric and the process by which it is supplied. If you wish to guide the mass transition between the surroundings and the middle, the wall matrix that holds the middle is created in one of these ways.
Surface hydrophobicity can be defined as a molecule’s physical property that is rejected by water. This is an asset that is essentially based entirely on the wall cloth and the middle cloth to be contained. In a study conducted by Mendanha et al. (2009), microcapsules containing casein hydrolysate were created inside SPI and pectin; the results showed that hydrophobicity decreased with the boom.
According to Turchiuli et al. (2005), the Hausner Ratio (HR) and % compressibility, also known as Carr’s Index, are used to determine the flowability of microencapsulated powder shapes.6) Micromechanical characteristics The microcapsules’ micromechanical homes determine their mechanical cause. Examining the mechanical properties of the microcapsules as soon as they are manufactured is crucial since it enables you to ensure that the middle fabric discharge occurs at a specific target and time, and no earlier.
One of the most important residencies to research is the thermal residence of microcapsules, which enables you to determine both their discharge rates and garage balance.
Apart from the microcapsules’ physical, mechanical, and thermal houses, useful houses are also crucial, especially when using the microcapsules to expand a new product with provided useful houses.
In order to determine how the microcapsules behave in water or any other medium—that is, whether or not the middle fabric is launched in that medium—the solubility evaluation of the microcapsules is essentially completed
APPLICATIONS

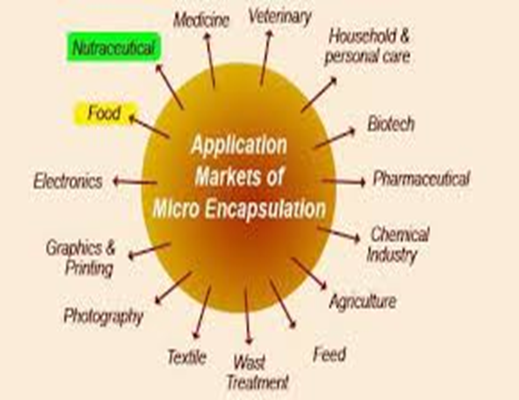

Fig: Applications of Microencapsulation
Crop protection is one of the most important microencapsulated product packages (87–93). Insect pheromones are becoming a viable biorational substitute for conventional, strong insecticides. In particular, by interfering with the mating process, sex attractant pheromones can reduce insect populations.
Medications Pharmaceutical and biomedical programs for regulated and sustained drug delivery are among the leading areas of encapsulation technique94-103. Potential uses for this drug delivery system include the replacement of medicinal substances (such as insulin, which is no longer taken orally) 104,105, gene therapy106-109, and the use of vaccinations to treat AIDS110-112, tumors113,114, cancer115, and diabetes116-118.
There may be a current trend towards a healthier way of living that includes consumers becoming more aware of what they eat and the benefits certain foods have for maintaining good health. Using a weight-loss regimen to prevent contamination is a whole new line of innovative so-called “practical foods,” many of which may be enhanced with ingredients to support health.
REFERENCE
Tejas Zond, Appasaheb Kuhile, Dikshita Valvi, Sapna Raut, A Review: Microencapsulation, Int. J. of Pharm. Sci., 2025, Vol 3, Issue 11, 1408-1420. https://doi.org/10.5281/zenodo.17572246
10.5281/zenodo.17572246
