A Review on Moving Boundary Electrophoresis

Electrophoresis is defined as the migration of the charged particles through solution under the influence of an external electric field. Ions between two electrodes moves the direction of the electrodes with the opposing charges. Movement of cations and anions are based on the strength of the buffer solution. Electrophoresis is an analytical technique used in biochemistry for separating particles, molecules or ions by size or by binding affinity either freely or through a supportive medium using one directional flow of electrical charge. Electrophoresis has a wide application in separating and analyzing biomolecules such as protein, plasmids, DNA, RNA and nucleic acids.

Classification of electrophoresis:

They are two types:

• Zone Electrophoresis

• Paper Electrophoresis
• Gel Electrophoresis
• Thin Layer Electrophoresis
• Cellulose Acetate Electrophoresis

• Moving Boundary Electrophoresis

• Capillary Electrophoresis
• Immuno Electrophoresis
• Isoelectric Focusing Electrophoresis
• Isotachophoresis

Moving Boundary Electrophoresis:

The moving boundary electrophoresis allows the charged particles to migrate free solution in the absence of supporting media.

• Capillary electrophoresis

In capillary electrophoresis ions are separated using high voltage. It is electrokinetic method.

• Immunoelectrophoresis

Immunoelectrophoresis involves an additional step of antigen-antibody complex formation in the equivalence zone.

• Isotachophoresis

The separation of ionic particles is based on their effective mobilities in isotachophoresis.

• Isoelectric focusing electrophoresis

The charged molecules are separated on the basis of their isoelectric point (i.e.) the pH at which the molecules as no charge.

2. Moving Boundary Electrophoresis

The migration of charged species with the free solution without the help of supporting media is called as moving boundary electrophoresis. It is one of the reference methods for determining the electrophoretic mobility. Samples having minute concentration can also be easily detected.

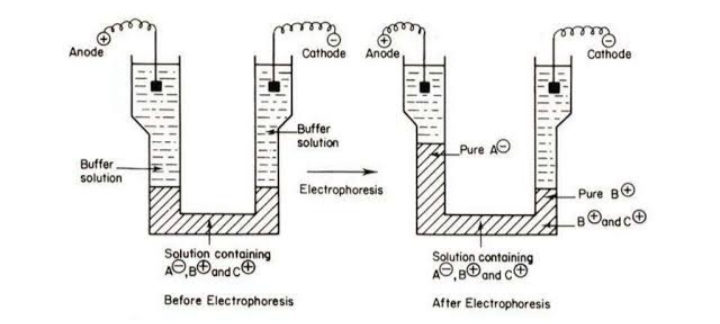

Fig.1 Schematic diagram of moving boundary electrophoresis

Types of moving boundary electrophoresis

There are four types of moving boundary electrophoresis. They are:

• Capillary electrophoresis
• Immunoelectrophoresis
• Isotachophoresis
• Isoelectric focusing electrophoresis

3. Capillary Electrophoresis

In 1930, Arne Tiselius showed that electrophoresis could separate proteins, in a liquid. But people didn’t pay much attention to his work until 1960s, when Hjerten started using capillaries, for this method. Capillary electrophoresis is an electro kinetic method used to separate ions using high voltage and how fast an ion moves depends on its charge, size and how thick the liquid is. Bigger electric fields make ions moves faster. Neutral particles don’t move, only charged ones do. If two ions are the size, the one with more charge moves faster. If they have the same charge, the smaller one moves faster then, this method is popular because it gives quick and clear results, and there are many ways to detect the ions.

Principle

Capillary electrophoresis works by separating molecules based on how fast they move in an electric field. This speed depends on their charge, size and shape as per the equation given below. The movement of a molecule is called Electrophoretic mobility (µe).

µ=q/6πηr

Whereas,

q is the charge of the molecule

? is the viscosity of the liquid

r is the radius of the molecule.

In capillary electrophoresis, a very thin tube made up of fused silica (usually 25-100micrometer wide) is filled with a liquid called buffer. When a high voltage (between 10,000 to 30,000 volts) is applied, molecules move through the tube at different speeds depending on their charge and size.  This is also called Electro-osmotic flow (EOF), which means the whole liquid inside the tube moves and helps carry molecules along. To detect and measure the molecular technique like UV- Visible light absorption, fluorescence or mass spectrometry is used, depending on what kind of molecule are being analyzed.

Types

Five types of commonly known capillary electrophoresis:

• Capillary zone electrophoresis (CZE)
• Capillary isoelectric focusing (CIEF)
• Miscellar electro kinetic chromatography (MEKC)
• Capillary gel electrophoresis (CGE)G
• Capillary electrochromatography (CEC)

Apparatus

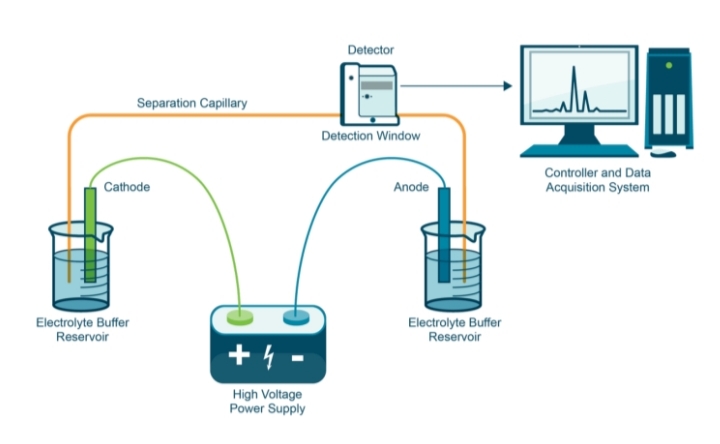

Fig.2 Schematic diagram of Capillary Electrophoresis

Instrumentation

The main parts of capillary electrophoresis include, a high voltage power supply that provides more than 30,000 volts. The capillaries are about 25-100 micrometers wide. The electric circuit is completed with buffers like citrate, phosphate or acetate. A detector, usually one that uses UV light to detect the separated substances.

Working

During the process, a small amount sample is placed into one end of the capillary. This is usually an electric field (electro migration). A high voltage power supply creates an electric current that pushes the sample through the capillary. As different part of the sample moves through, they were separated and eventually detected by a sensor at the other end. The data is then recorded. Capillary electrophoresis is easy to develop methods for reliable, fast and flexible. Its especially useful because it can separate substance that are hard to separate using HPLC. Also, Capillary electrophoresis can be automated to measure the amounts of substance quickly and accurately. Capillary electrophoresis is important in industries where it can be used as part of process analytical technology (PAT).

Advantages

• High electric field can be used without creating too much heat, the process is quicker than many other methods.
• The process can be automated, including things like sample injection and detection which saves times and effort.
• Capillaries offer really high separation efficiency, which means they can separate different substances very clearly.
• Only a tiny amount of sample is needed for sample is needed for testing, which is helpful when there is not much material available.

Disadvantages

• The equipment needed on, can be pretty expensive at the beginning, which might not be ideal for all labs.
• Capillaries can get clogged, so they need to be checked and cleaned regularly to keep everything working properly.
• Need to have good knowledge and training to use the system and fix any issue that comes up.

Applications

• Allergens, additives and contaminations can be detected.
• Used for the analysis of pharmaceutical compounds, ensuring drug purity and identifying impurities.
• Used for the analysis of pharmaceutical compounds, ensuring drug purity and identifying impurities.
• In biotechnology, quality can be checked in products like recombinant proteins and monoclonal antibodies.
• It can also measure the harmful substances and water quality by detecting important ions like nitrates and sulfates.
• It helps to measures and identifies electrolytes, enzymes and hormones in body fluids, which is used to diagnosis a disease. And also, it measures the protein level accurately and quickly.
• Used to test water and soil for pollutants like pesticides, heavy metals and some pharmaceuticals.
• Used in DNA sequencing, checking for mutations and studying RNA to understand gene activity.

4. Immunoelectrophoresis

In 1953 Grabar and Williams coined the term immunoelectrophoresis. It is a technique in which an antigen mixture is firstly separated into its component’s parts. The presence of antigen is determined by formation of precipitin arc or line by immune – diffusion in agar. Immunoelectrophoresis plays a major role in diagnostic purpose and for separation, identification and /or quantification of target proteins in complex biological samples (plasma, serum). It involves an additional step of antigen – antibody complex formation.

Principle

A slide is layered with the gel and electric current is applied to it. According to their charge and size the antigen mixture placed in the wells is separated into individual antigen components. Following the electrophoresis specific antisera and antibody is reacted with the separated antigens which is placed parallel to the electrophoretic migration where diffusion is allowed to occur. Separation precipitin lines are formed as the result of movement of antiserum towards antigen components which indicates the reaction between individual proteins with its antibody.

Types

• Classical immunoelectrophoresis
• Rocket immunoelectrophoresis
• Crossed immunoelectrophoresis
• Immunofixation electrophoresis

• Classical immunoelectrophoresis:

Classical immunoelectrophoresis is also known as gamma globulin electrophoresis and it represent an important advance in the analysis of biological samples separation and detection of antigens is based on their size and net charge. The proteins are first separated by electrophoresis. The antigens are allowed to diffuse towards a reservoir punched into the gel that contain specific antibodies. An antigen antibody complex precipitate in the form of arc if target antigens are present in the sample.

• Rocket immunoelectrophoresis:

Rocket immunoelectrophoresis is an adaptation of radial immunoassay or electro immune-diffusion. It is a quantitative one-dimensional single electro immunodiffusion technique. In this method antibody is incorporated in the gel at pH value in which the antibodies remain essentially immobile.

• Crossed immunoelectrophoresis:

Crossed immunoelectrophoresis is performed in two steps. In the first step the antigens are separated, and in the second the separated antigens are forced into an antibody containing gels slab by application of electric field at right angles to the direction of separation of the antigen in the first step.

• Immunofixation electrophoresis:

Immunofixation electrophoresis is also known as serum protein electrophoresis. It is used for detecting monoclonal antibodies or immunoglobulins (Ig) in serum or urine. It plays a major role in diagnosis and monitoring blood related disease like myeloma. It takes place in two steps. In the first step the Ig present in the serum or urine are deposited on agarose gel allowed by separation of electrophoretic mobility under the effect of electric field. Once Ig is separated second step is migration of serum proteins. Appearance of a narrow band will be observed as precipitates if there is presence of monoclonal Ig.

Apparatus

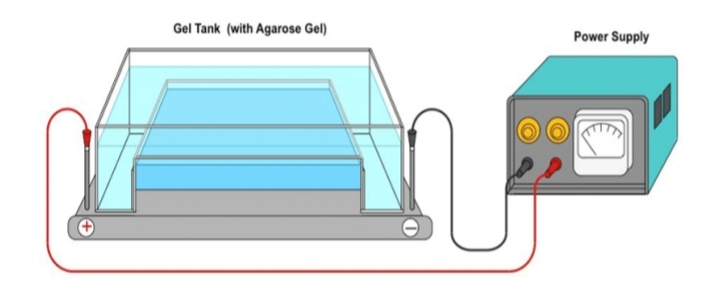

Fig.3 Schematic diagram of immunoelectrophoresis

Immunoelectrophoresis includes power supply, electrophoresis tank, gel support system and detector. Power supply provides electrical current (typically 200-300V) necessary for electrophoresis. Electrophoresis tank holds the gel and buffer solutions with electrodes to create the electric field. Gel support system cast the agarose gel on a glass or plastic plate providing the medium for protein separation. The detection method relies on the formation of precipitin arcs where antibodies bind to antigens in the gel medium.

Working

Using the sample template, agarose gel is prepared on a glass slide. Across each corresponding slit 5µl of sample and control is applied. On the cathodic side gel is placed into the electrophoresis chamber with the samples and electrophoresis runs for 20mins /100 volts.

Advantages

• Detects and identifies multiple antigens in one test.
• Preserve proteins in a near-native condition (no harsh denaturation).
• Provides better resolution than simple electrophoresis or diffusion.

Disadvantages

• Time consuming process.
• Low sensitivity for detecting proteins in very small amounts.
• Interpretation is difficult.

Limitation of immunoelectrophoresis

• Immunoelectrophoresis is slower, less sensitive and more difficult to interpret.
• IEP fails to detect some small monoclonal Ig protein.

Application

• Used to analyze complex mixture containing different antigen.
• Useful to monitor antigen and antigen-antibody purity and to identify a single antigen in a mixture of antigens.

• Complex protein mixture containing different antigens can be analyzed.
• Useful in patients with suspected monoclonal and polyclonal gammopathies.

5. Isotachophoresis

Isotachophoresis is an electrophoresis technique used for the separation of ionic species based on their effective mobility’s under an electrical field. Isotachophoresis (Greek: iso = equal, tachos = speed, phoresies = migration) is an advanced electrophoresis method used for the qualitative and quantitative analysis of ions. The method characterized by the equal migration velocities of the separated ions once a steady state is reached. Techniques like capillary electrophoresis and isotachophoresis are also effective for separating ionic substances.

Principle

Isotachophoresis requires a system of three types of ions with the same charge polarity.

1. Leading electrolyte:

Contain fast moving leading ions (L ?) with higher mobility than any sample ion.

2. Terminating electrolytes:

Contains a slow-moving terminating ion (T ?) with slow mobility than any sample ion.

3. Sample zone:

        Contains ions with intermediate motilities.

When an electric field is applied

• Ions arrange is discrete consecutive zone
• Each ion migrates at equal velocity in steady state
• Sharp boundaries from between zone

Apparatus

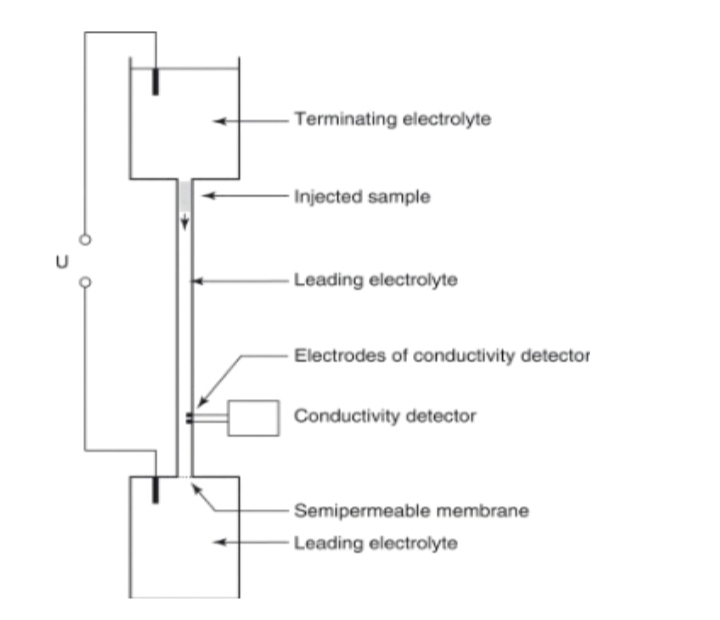

Fig .4 Schematic diagram of isotachophoresis

Isotachophoresis consist of a separation column placed between two electrodes. The sample is introduced between two electrolytes: a leading electrolyte (with higher ion mobility than the sample) and trailing electrolyte (with lower ion mobility). A detector is integrated with the column to monitor the separated zone. The separation occurs based on the differential mobility of ions under an electric field, forming sharp and distinct zones. Detection is typically performed using conductivity or UV/Visible detectors, while thermal optical detectors may be used to enhance resolution.

A standard isotachophoresis system includes:

• Power supply: 0-15Kv voltage, 0-500 μA current.
• Sample injection system: Valve injector with a 30μL sample loop.
• Separation columns: Made of fluorinated ethylene-propylene (FEP). Pre-separation column: 0.8mm internal diameter, 90mm length. Analytical column: 0.3mm internal diameter, 160mm length.
• Detectors: Each column is fitted with an on-column conductivity detector.

Working:

The sample analytical mixture is placed between the trailing electrolytes in an aqueous medium. When an electric field migrate between leading electrolyte and terminating electrolyte. Ions separate into discrete zones based on their individuals mobility ? s.  The analytics form sharp, stacked bands in decreasing order of mobility. The differential in ionic mobility across leading electrolyte and terminating electrolytes creates a self- After the gradient is established, all zones migrate at the same velocity–hence the name isotachophoresis (equal speed migration).

Advantages

• Rapid separation achieved by adjusting pH condition.
• Requires a simpler setup compared to chromatographic methods.
• Reduced chemical use and simpler setup lead to lower costly solvents.
• Mainly uses aqueous soluition reducing the need for costly solvents.
• Most samples can be analyzed directly.

Disadvantages

• Flow Control Challenge: Requires precise control of pressure-driven flow and electroosmotic flow (EOF), demanding high precision in microfluidic system design.
• Joule Heating: Limits scalability due to heat induced issues in chip material, geometry and assay duration; can cause damage or performance drop.
• Buoyancy Effects: In large -volume systems, density difference between buffers cause orientation-dependent effects, impacting reproducibility.
• Interface Instability: High fields or deep channels can induce instability due to electro viscous flow overwhelming electro migration control.
• Sample Dilution Requirement: High-salt biological samples often require 10-100x dilution to avoid pH shifts and poor separation, increasing preparation time.

Applications

• Environmental monitoring: Useful for detecting inorganic ions in water, through less effective for volatile air pollutan (or) ion-rich soil matrices.
• Clinical and biochemical analysis: Detection of nucleotides, proteins and metabolites in body fluids and tissues.
• Pharmaceuticals: Direct analysis of active compounds like 8-hydroxyquinoline in ointments using mixed solvents.
• Industrial use: Monitoring ionic impurities in non-ionic matrices such as solvent (or) esters.
• Food chemistry: Simultaneous identification of multiple acids in beverages like wine, with minimal sample preparation.

6. Isoelectric Focusing Electrophoresis

Isoelectric focusing is also known as electro focusing. It is a technique is used for separated charged molecules like protein are peptide depending on their isoelectric point (i.e) the pH at which the molecules as no charge. It has better resolution and quantification than the gel electrophoresis technique so it is widely used in molecular biology labs and biotech labs. Further it is easier to perform as the samples do not have stress of the placement.

Principle

Slab of polyacrylamide or agarose gel that contains a mixture of amphoteric electrolytes (ampholytes) is used to carry out separation. The ampholyte starts to migrate in the gel which creats the pH gradient when subjected to an electrical field. When the applied protein reaches the gel fraction that has the pH that is same as  their isoelectric point their charge is neutralized migration access. The separation is estimated by determining the minimum pH difference.

ΔpI=3D(dpHdx)/E(-dμdpH)

Where,

D is the diffusion coefficient of the protein

D pH /dx is the pH gradient

E is the intensity of  the electrical field in volts per centimeter -du /d pH is the variation of the solute mobility with the pH in the region close to the pI

Types if isoelectric focusing

• Microfluidic chip based IEF:It is a miniaturized technique that separates molecules based on their isoelectric points within the microfluidic device.
• Capillary isoelectric focusing: It is a higher resolution separation technique that isolates proteins and other amphoteric molecules based on their isoelectric point.
• IEF gel electrophoresis: It involves applying an electric field to a gel matrix containing a pH gradient causing proteins to migrate until the reach pH matching their isoelectric point.

Apparatus

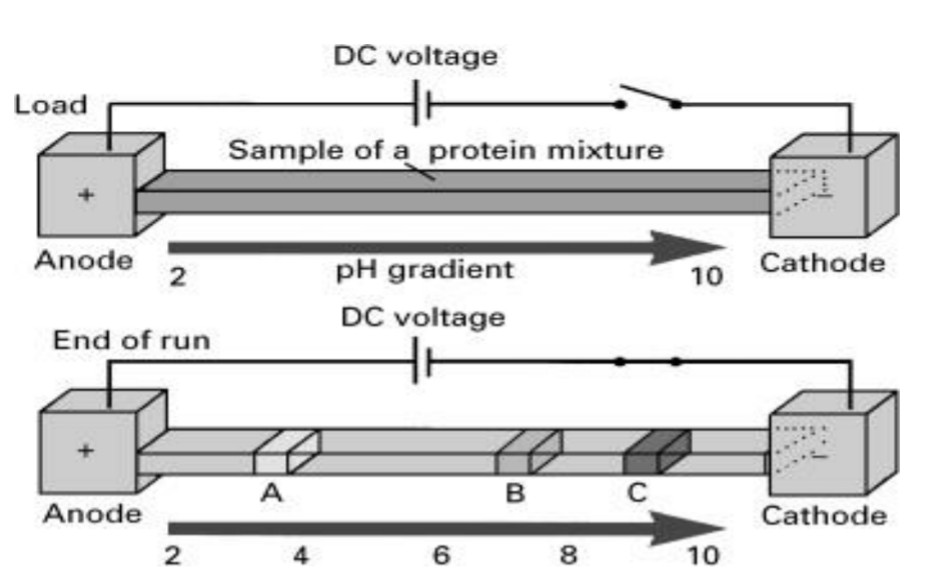

Fig.5 Schematic diagram of isoelectric focusing
