Key Challenges in Meeting Regulatory Requirements of Medical Devices

Improving human health and quality of life depends on the creation and marketing of medical devices^{. (1)} To get their products on the market, medical device manufacturers must, however, negotiate a complicated and constantly changing regulatory environment.  Medical device regulations are getting more and more strict, and non-compliance can have serious repercussions. Manufacturers must overcome many obstacles throughout the product lifecycle, from pre-market development to post-market surveillance, in order to successfully create and commercialize medical devices^{. (2)} This includes managing device classification, performing clinical trials, maintaining quality management systems, and making sure regulatory frameworks are followed^{. (3)} The purpose of this presentation is to list and explain the main obstacles that makers of medical devices encounter while trying to comply with regulatory standards, as well as to offer suggestions for solutions.  Medical device producers can guarantee regulatory compliance, lower risk, and introduce safe and efficient items to the market by comprehending and putting effective methods into place. From the first phases of research and design to regulatory validations, the creation of medical devices is a multi-stage, intricate process^{. (4)}  Strict regulatory frameworks that guarantee the items fulfill safety, efficacy, and quality criteria control the introduction of medical devices into the market.  However, there are notable regional differences in the regulatory environment around medical devices.  Because of their global significance in the medical devices industry, the European Union (EU), the United States of America (USA), and Japan will be the main subjects of this review article^{. (5)}

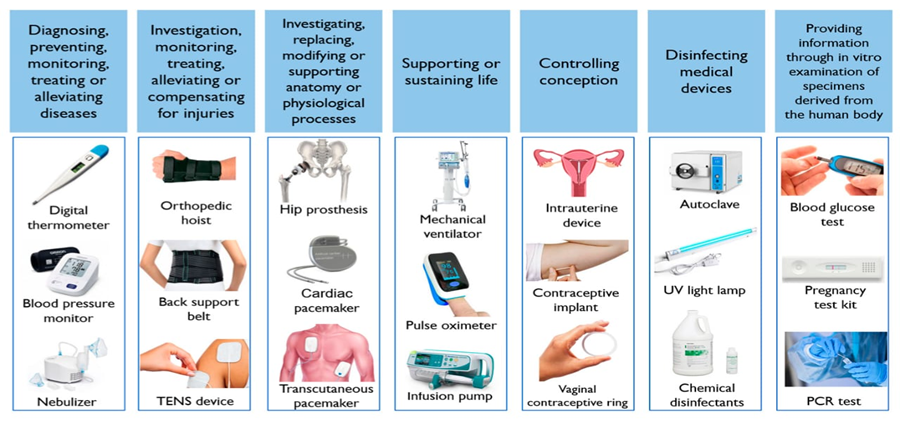

Fig. Medical device examples according to their respective purpose^{. (3)}

Medical devices :

Medical devices are products used to diagnose, treat, or prevent medical conditions, diseases, or injuries. They can be simple or complex, ranging from bandages and gloves to implantable devices like pacemakers and artificial joints^{. (6)}

Types of medical devices :

1. Implantable devices: Used to treat medical conditions, such as insulin pumps, pacemakers, and implantable cardio-defibrillators (ICDs).
2. Surgical Diagnostic devices: Used to diagnose or monitor medical conditions, such as ultrasound machines, MRI scanners, and blood glucose meters.
3. Therapeutic devices: Used during surgical procedures, such as scalpels, forceps, and surgical staplers.
4. Rehabilitation devices: Used to help patients recover from injuries or illnesses, such as wheelchairs, walkers, and physical therapy equipment.
5. Implantable devices: Designed to be implanted in the body, such as artificial joints, dental implants, and implantable sensors^{. (6)}

Examples of medical devices :

• Contact lenses
• Hearing aids
• Prosthetic limbs
• Orthotics
• Surgical meshes
• Wound dressings
• Medical imaging devices (e.g., X-ray machines, CT scanners) ⁽⁶⁾

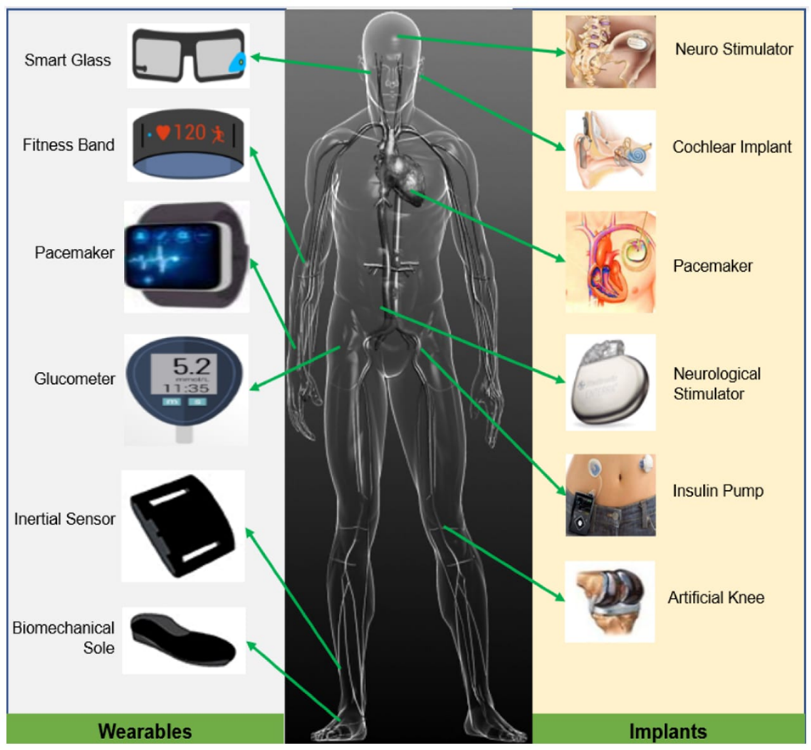

Fig. wearable and Implants Medical Devices^{. (13)}

Development process :

In order to guarantee that the finished product conforms to strict regulatory rules, the development and manufacturing of medical devices is a difficult and demanding process that calls for exact specifications and high-quality standards.  Additionally, in order to maintain quality and promote reproducibility, this procedure needs to be thoroughly recorded. This process consists of multiple steps that direct the development of a fully functional product that is prepared for use in the medical sector from a conceptual design^{. (7)}

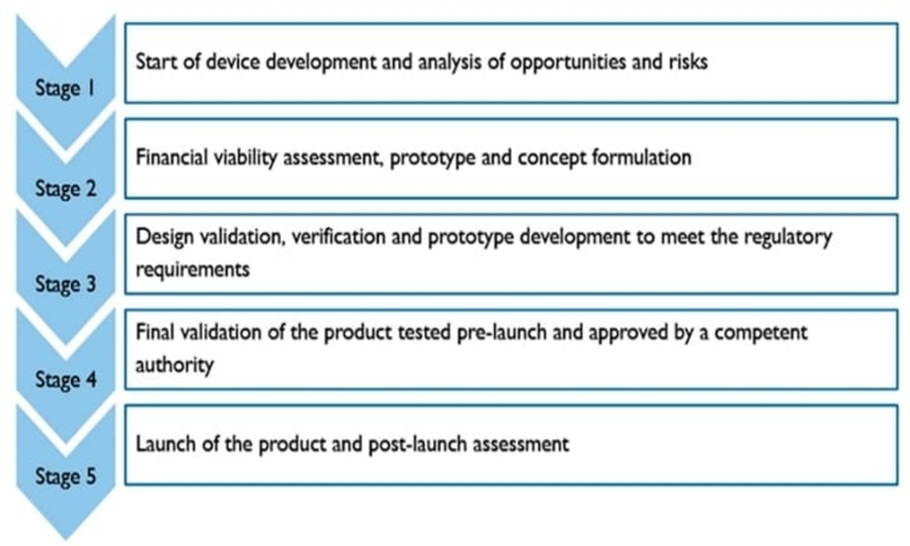

Fig. Stages in the Development and Manufacture of Medical Devices^{. (3)}

Since it lays the groundwork for the entire process, the initial phase of medical device development is crucial.  Analyzing the possible dangers and possibilities is the main goal at this point.  Finding a medical need or an opportunity for innovation is the first step.  After that, it's critical to specify the device's intended purpose precisely, find comparable items already on the market, evaluate consumer demand, and determine what makes the new product unique.  To guide the design process, it is also crucial to collect user needs.  To comprehend possible technical and clinical issues that can come up throughout the remainder of the device development process, a first risk analysis is conducted concurrently^{. (8)} To determine the necessary investment and possible profit the device can make, a financial viability analysis is carried out in stage 2.  The regulatory requirements relevant to the product to be developed are also recognized, and a thorough risk analysis is conducted.  The initial prototype is constructed as a proof of concept to illustrate the device's usefulness.  To find any technical problems and make the required design changes, this prototype is put through the first safety and efficacy testing.  These experiments aid in honing the product concept, which is subsequently described in depth, including its features, essential parts, and production-related materials^{. (8)} The development of the device's design at a more intricate level is a major focus of the third stage.  To make sure the gadget fulfills the desired functionality under a variety of conditions and, most importantly, that it satisfies the demands of the user, the prototype's design from the previous phase is thoroughly assessed and validated.  To make sure it conforms with all applicable regulatory standards, the prototype is continuously developed and refined, and the design is validated.  To ensure that the product is prepared for the upcoming stages of manufacturing and clinical trials, this step is essential^{. (9)}

In the fourth stage, a final validation of the product is performed. Depending on the class of the device, clinical trials are required to confirm its safety and efficacy in real-world use. It is important to mention that these tests follow strict standards of Good Clinical Practices (GCP). During this period, clinical data is collected and submitted to regulatory agencies that review and analyze the results and, if they are satisfactory, grant approval so that the device can be placed on the market⁽⁹⁾ Monitoring a medical device's performance after it has been commercially introduced and received regulatory approval is essential in phase 5, the final stage of the device's development.  This entails getting customer input and making sure that any issues or flaws are fixed right away.  To maintain the device's safety and efficacy, measures like post-market surveillance, safety reporting, and ongoing design and manufacturing upgrades are implemented^{. (9)} A medical device's development process can take a variety of lengths of time, depending on the device's complexity and regulatory requirements, but it typically takes more than a year. The costs associated with developing a medical device can vary, for instance, from hundreds of thousands to several million dollars, depending on the level of innovation involved and the development timeline^{. (9)}

Key challenges in meeting the regulatory requirements of medical devices :

• There are four challenges in meeting the regulatory requirements of medical devices

1. Pre–market challenges
2. Post–market challenges
3. Quality Management System (QMS) challenges
4. Other challenges

These are the challenges in meeting the regulatory requirements of medical devices. (3)

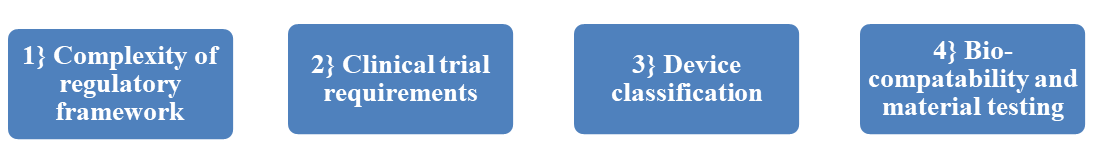

1) Pre–market challenges

1. Complexity and Regulatory Framework: Comprehending and managing a variety of international laws, including the FDA (US), CE marking (EU), and PMDA (Japan). Ensuring compliant labeling and packaging to meet regulatory requirements. Conducting clinical trials to demonstrate device safety and efficacy.
2. Clinical Trial Requirements: Managing expenses and schedules while conducting clinical studies to prove safety and efficacy outline study objectives, design, and procedures. Identify potential risks and develop mitigation strategies. Comply with regulatory requirements. Ensure data integrity and compliance.
3. Device Classification: Identifying the appropriate device classification that influences the regulatory process. Different countries and regions have their classification systems. The manufacturer may struggle to determine the correct classification.
4. Biocompatibility and Material Testing: Verifying that the device's materials adhere to legal requirements verifying material properties and consistency across different batches and manufacturing processes. Evaluating material resistance to degradation, corrosion, and wear^{. (10)}

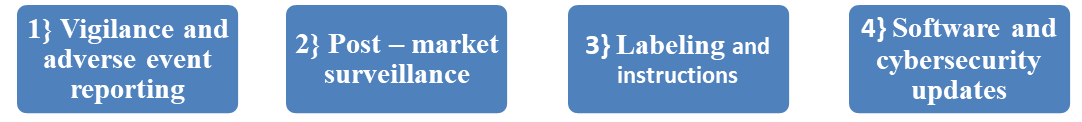

2) post–market challenge

1. Vigilance and Adverse Event Reporting:  keeping an eye out for negative events, reporting them, and taking appropriate action. Continuously tracking device safety and performance in real–world settings. Detecting early warnings of potential safety issues, such as Device malfunctions or adverse events.
2. Post-Market Surveillance: Continually monitoring the market to spot and resolve possible safety issues. Ensuring that data is accurate, complete, and reliable Standardizing data formats and definitions to facilitate analysis. Collecting data from various sources, such as healthcare providers, patients.
3. Labeling and Usage Instructions: Making sure that labeling and usage instructions adhere to legal specifications. They are easy to understand and free from ambiguity. Fitting essential information onto labels, especially for small devices ensuring that labeling is accurate and compliant in multiple languages.
4. Software and cybersecurity updates: managing software updates and ensuring cybersecurity measures are in place. Validating software updates to ensure they meet regulatory requirements and do not introduce new risks^{. (3)}

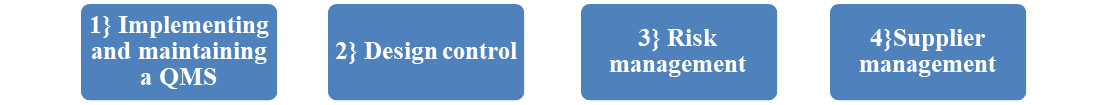

3) Quality Management System (QMS) challenges

1. Implementing and Maintaining a QMS: Putting in place and keeping up a QMS that complies with legal specifications, like ISO 13485.  Establishing clear quality objectives and metrics. Creating procedures and policies that align with quality and objectives. Educating employees on QMS requirements.
2. Design Controls: Making certain that the design process is managed by design controls. Ensuring that design inputs accurately reflect user needs and requirements. Conducting regular design reviews to ensure design outputs meet design inputs. Validating that the design meets user needs and requirements.
3. Risk management: is the process of determining and reducing the hazards connected to the equipment. Identifying potential risks associated with medical devices, including hazards, harm, and harm severity. Assessing the probability and severity of potential risks
4. Supplier Management: Supervising suppliers to guarantee adherence to legal mandates ensuring that suppliers meet quality, regulatory, and business requirements. Building and maintaining effective relationships with suppliers. Conducting regular audits. ⁽¹⁰⁾

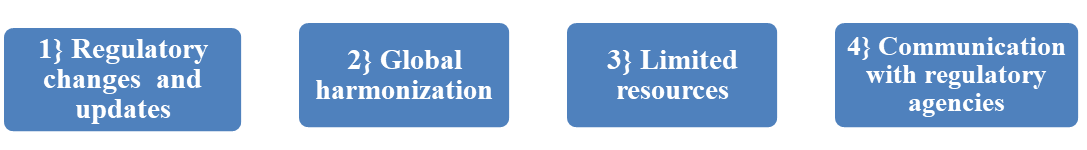

4) Other challenges
