St. Xavier’s College, Ahmedabad, Gujrat, India.
Photoredox catalysis has emerged as a powerful tool for the direct functionalization of aromatic C-H bonds, offering mild reaction conditions and excellent functional group tolerance. This review provides a comprehensive overview of recent developments in photoredox-catalyzed C-H amination reactions, with particular emphasis on site-selective aromatic functionalization. We discuss various mechanistic pathways, including radical cation intermediates, nitrogen radical precursors, and aminium radical cation chemistry, along with their applications in synthetic organic chemistry. The evolution from traditional harsh reaction conditions to mild, visible-light-mediated processes represents a significant advancement in the field, enabling late-stage functionalization of complex molecules and expanding the synthetic toolbox for medicinal chemistry applications.
The direct functionalization of aromatic C-H bonds represents one of the most fundamental transformations in organic synthesis, enabling the efficient construction of C-N bonds without the need for pre-functionalized starting materials.¹ Among various C-H functionalization reactions, aromatic C-H amination has garnered significant attention due to the prevalence of aryl-nitrogen bonds in pharmaceuticals, natural products, agrochemicals, and materials science.²,³ Traditional approaches to aryl amine synthesis, such as the Buchwald-Hartwig amination and Ullmann condensation, require pre-activated aryl halides or triflates, limiting their atom economy and increasing synthetic complexity.?,?
The emergence of photoredox catalysis has revolutionized the field of C-H functionalization by providing access to unique reactivity patterns under mild reaction conditions.?,? Unlike traditional thermal processes that often require high temperatures and harsh reaction conditions, photoredox-catalyzed transformations can be performed at room temperature using visible light as an energy source. This approach has opened new avenues for site-selective aromatic C-H amination through various mechanistic pathways, including arene radical cation chemistry, nitrogen radical intermediates, and aminium radical cation formation.?,?
The development of efficient photoredox-catalyzed C-H amination methods addresses several key challenges in synthetic organic chemistry: (i) achieving site-selective functionalization of aromatic substrates, (ii) expanding the scope of nitrogen coupling partners beyond traditional amides and imides, (iii) enabling late-stage functionalization of complex molecules, and (iv) providing environmentally benign synthetic protocols.¹? This review aims to provide a comprehensive overview of recent advances in photoredox-catalyzed aromatic C-H amination, discussing mechanistic insights, substrate scope, regioselectivity patterns, and synthetic applications.
2. Historical Development and Mechanistic Foundation
2.1 Early Developments in Photoredox C-H Functionalization
The conceptual foundation for photoredox-catalyzed C-H functionalization can be traced back to pioneering studies by Skell and coworkers, who demonstrated UV-mediated C-H amination using N-bromophthalimide.¹¹ However, these early methods suffered from limitations including harsh reaction conditions, poor selectivity, and narrow substrate scope. The modern era of photoredox catalysis began with the renaissance of visible-light photoredox chemistry initiated by MacMillan, Yoon, and Stephenson, who demonstrated the synthetic utility of ruthenium and iridium polypyridyl complexes as photocatalysts.¹²,¹³
The transition from UV to visible light photocatalysis marked a significant advancement, enabling milder reaction conditions and improved functional group compatibility. Early photoredox studies focused primarily on carbon-carbon bond formations, but the potential for C-H functionalization became apparent through the work of several research groups who recognized the ability of photoexcited catalysts to generate reactive intermediates under mild conditions.¹?
2.2 Mechanistic Pathways in Photoredox C-H Amination
Photoredox-catalyzed C-H amination can proceed through several distinct mechanistic pathways, each offering unique advantages and limitations. Understanding these mechanisms is crucial for the rational design of new reactions and the prediction of regioselectivity patterns.
2.2.1 Arene Radical Cation Pathway

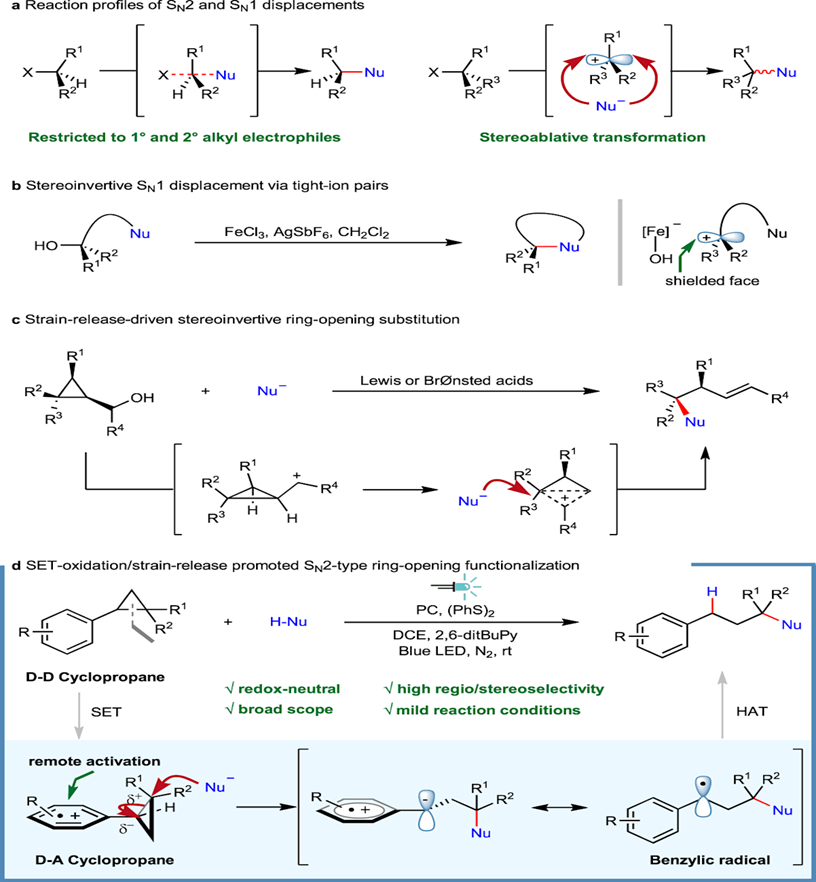

One of the most well-established mechanisms involves the formation of arene radical cations through single-electron oxidation by photoexcited catalysts.¹? Romero and coworkers demonstrated that acridinium photocatalysts with high excited-state oxidation potentials (E*red = +2.20 V vs SCE) can effectively oxidize electron-rich arenes to generate reactive radical cation intermediates.¹? The resulting arene radical cations undergo nucleophilic attack by nitrogen-containing compounds, followed by deprotonation and rearomatization to yield the aminated products.
The mechanism proceeds through the following key steps:
This pathway is particularly effective for electron-rich arenes bearing methoxy, alkyl, or other electron-donating substituents, which lower the oxidation potential and facilitate radical cation formation.¹?
2.2.2 Nitrogen Radical Precursor Strategy
An alternative approach involves the generation of nitrogen-centered radicals from suitable precursors, which then undergo addition to aromatic substrates. Allen and Sanford pioneered the use of N-acyloxyphthalimides as nitrogen radical precursors in photoredox-catalyzed C-H amination.¹? This strategy circumvents the need for arene oxidation and enables the functionalization of less electron-rich substrates.
The mechanism involves reductive fragmentation of N-acyloxyphthalimides by photoexcited iridium catalysts, generating phthalimidyl radicals (PhthN- ) that undergo addition to aromatic C-H bonds. The key advantage of this approach is the ability to functionalize a broader range of aromatic substrates, including electron-deficient arenes that are difficult to oxidize.¹?
2.2.3 Aminium Radical Cation Chemistry
Recent developments have highlighted the potential of aminium radical cations (ARCs) as electrophilic aminating species in photoredox catalysis.²? Knowles and coworkers demonstrated that primary and secondary amines can be oxidized to generate aminium radical cations, which undergo addition to alkenes and arenes to form C-N bonds. This approach represents a conceptual shift from traditional nucleophilic amination strategies, enabling unique reactivity patterns and regioselectivity.
The aminium radical cation pathway offers several advantages:
3. Photocatalyst Systems and Mechanistic Considerations
3.1 Transition Metal Photocatalysts
3.1.1 Ruthenium Complexes
Ruthenium polypyridyl complexes, particularly [Ru(bpy)?]²?, have been extensively used in photoredox-catalyzed C-H amination reactions.²² These catalysts offer balanced oxidation and reduction potentials, long excited-state lifetimes, and excellent stability under reaction conditions. The excited-state oxidation potential of [Ru(bpy)?]²? (E*ox = +0.77 V vs SCE) makes it suitable for oxidizing electron-rich arenes and generating reactive intermediates.
Pandey and coworkers demonstrated the utility of ruthenium photocatalysts in the direct C-H amination of arenes with various azoles, achieving good regioselectivity and functional group tolerance.²³ The use of Selectfluor as an oxidative quencher in combination with ruthenium catalysts enabled efficient turnover and high yields of aminated products.
3.1.2 Iridium Complexes
Iridium photocatalysts offer distinct advantages in terms of redox potentials and excited-state properties. The heterholeptic complex [Ir(ppy)?(dtbbpy)]PF? has found widespread application in photoredox chemistry due to its favorable excited-state reduction potential and excellent stability.²? Recent studies have shown that modification of the ligand framework can tune the photophysical properties of iridium catalysts, enabling access to different reaction manifolds.
The work by Allen and Sanford highlighted the importance of catalyst selection in determining reaction efficiency and selectivity. They found that Ir(ppy)? was optimal for the reductive fragmentation of N-acyloxyphthalimides, providing high yields of aminated products under mild conditions.¹?
3.2 Organic Photocatalysts
The development of organic photocatalysts has gained significant momentum due to their low cost, environmental compatibility, and tunable properties.²? Acridinium salts, in particular, have emerged as powerful oxidizing photocatalysts capable of activating electron-rich arenes for C-H functionalization.
3.2.1 Acridinium Photocatalysts
Nicewicz and coworkers developed a series of acridinium photocatalysts with exceptionally high excited-state oxidation potentials, enabling the oxidation of challenging substrates.²? The 9-mesityl-10-methylacridinium ion (Mes-Acr?) and its derivatives have been particularly successful in aromatic C-H functionalization reactions.
The key advantages of acridinium photocatalysts include:
3.2.2 Other Organic Photocatalysts
Beyond acridinium salts, various other organic chromophores have been explored for photoredox C-H amination. Eosin Y, benzophenone derivatives, and cyanoarene photocatalysts have all shown promise in specific applications.²? The choice of photocatalyst often depends on the specific mechanistic requirements and substrate compatibility.
3.3 Dual Catalytic Systems
The combination of photoredox catalysis with other catalytic manifolds has opened new opportunities for C-H functionalization. Metallaphotoredox catalysis, pioneered by MacMillan and coworkers, combines photoredox catalysts with transition metal catalysts to enable challenging transformations.²?
In the context of C-H amination, dual catalytic systems often involve:
4. Substrate Scope and Regioselectivity
4.1 Aromatic Substrate Scope
The substrate scope of photoredox-catalyzed C-H amination has expanded significantly over the past decade. Early methods were limited to highly electron-rich arenes, but recent developments have broadened the scope to include a wide range of aromatic systems.
4.1.1 Electron-Rich Arenes
Anisole derivatives, alkylbenzenes, and other electron-rich aromatics remain the most reactive substrates in photoredox C-H amination.³¹ The presence of electron-donating groups lowers the oxidation potential, facilitating radical cation formation and subsequent nucleophilic attack. Romero and coworkers demonstrated excellent yields and selectivities with various methoxy-substituted arenes, achieving para:ortho ratios of up to 15:1 in favorable cases.¹?
4.1.2 Heterocyclic Substrates
Heterocycles present unique challenges and opportunities in C-H amination reactions. The presence of heteroatoms can significantly influence the electronic properties and reactivity patterns. Several research groups have successfully extended photoredox C-H amination to pyridines, quinolines, indoles, and other heterocyclic systems.³²
The regioselectivity in heterocyclic substrates is often governed by:
4.1.3 Challenging Substrates
Recent advances have enabled the functionalization of more challenging aromatic substrates, including electron-deficient arenes and those lacking strong directing groups. The development of nitrogen radical precursor strategies has been particularly important in this regard, allowing access to substrates that are difficult to oxidize.¹?
4.2 Nitrogen Coupling Partners
The scope of nitrogen coupling partners in photoredox C-H amination has expanded dramatically, encompassing various classes of nitrogen-containing compounds.
4.2.1 Azoles and Heterocycles
Azoles represent one of the most successful classes of nitrogen coupling partners in photoredox C-H amination. The work by Romero and coworkers demonstrated that pyrazoles, triazoles, tetrazoles, imidazoles, and benzimidazoles can all be effectively coupled with aromatic substrates.¹? The success of azoles can be attributed to their:
4.2.2 Primary Amines and Ammonia
The direct use of primary amines and ammonia in C-H amination represents a significant synthetic advance. Traditional methods often require protection-deprotection sequences or harsh reaction conditions. Photoredox approaches have enabled the direct synthesis of anilines from arenes and ammonia equivalents.³?
Margrey and coworkers developed a method using acridinium photocatalysts and primary amines, demonstrating broad substrate scope and excellent functional group tolerance.³? The use of amino acid derivatives as coupling partners has enabled access to biologically relevant structures with high efficiency.
4.2.3 Amino Acid Derivatives
The incorporation of amino acid derivatives as nitrogen sources has opened new possibilities for late-stage functionalization of pharmaceutical compounds. The mild reaction conditions and high functional group tolerance make this approach particularly attractive for medicinal chemistry applications.³?
4.3 Regioselectivity Patterns
Understanding and predicting regioselectivity is crucial for the practical application of photoredox C-H amination methods. The regioselectivity in these reactions is influenced by multiple factors:
4.3.1 Electronic Effects

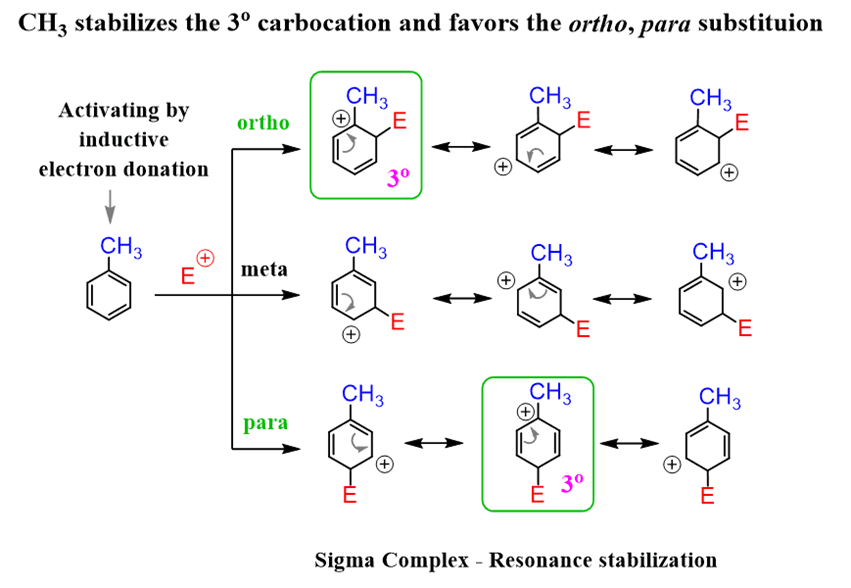

Electronic effects play a dominant role in determining regioselectivity in aromatic C-H amination. For arene radical cation mechanisms, nucleophilic attack preferentially occurs at positions that provide maximum stabilization of the resulting radical intermediate. This typically leads to para and ortho selectivity in monosubstituted electron-rich arenes.³?
4.3.2 Steric Effects
Steric hindrance can significantly influence regioselectivity, particularly in substrates bearing bulky substituents. The balance between electronic activation and steric accessibility often determines the outcome of the reaction.³?
4.3.3 Directing Group Effects
Traditional directing group strategies have been adapted to photoredox systems, enabling ortho-selective C-H amination through coordination effects. However, many photoredox methods achieve selectivity through inherent substrate bias rather than external direction.??
5. Mechanistic Studies and Theoretical Insights
5.1 Kinetic and Thermodynamic Considerations
Detailed mechanistic studies have provided important insights into the factors governing photoredox C-H amination reactions. Kinetic isotope effect studies, radical trapping experiments, and computational investigations have elucidated key mechanistic details.?¹
The competition between productive C-N bond formation and undesired side reactions, such as back electron transfer and substrate decomposition, often determines the overall efficiency of these transformations. Understanding these competing pathways has led to the development of strategies to suppress side reactions and improve yields.?²
5.2 Computational Studies

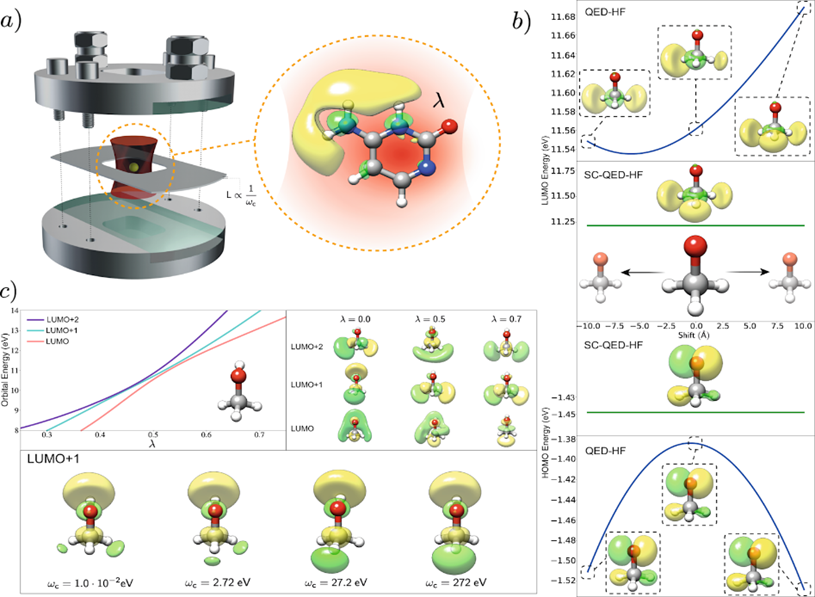

Density functional theory (DFT) calculations have provided valuable insights into the electronic structure and reactivity of key intermediates in photoredox C-H amination. These studies have helped rationalize observed regioselectivity patterns and guide the development of new methods.?³
Key computational findings include:
5.3 Spectroscopic Evidence
Advanced spectroscopic techniques, including time-resolved spectroscopy and electron paramagnetic resonance (EPR), have provided direct evidence for proposed intermediates and mechanisms. These studies have been crucial in validating theoretical predictions and guiding synthetic developments.??
6. Synthetic Applications and Late-Stage Functionalization
6.1 Pharmaceutical Applications
The mild reaction conditions and excellent functional group tolerance of photoredox C-H amination make it particularly attractive for pharmaceutical applications. Several research groups have demonstrated the late-stage functionalization of complex drug molecules using these methods.??
Notable examples include:
6.2 Materials Science Applications
Beyond pharmaceutical applications, photoredox C-H amination has found utility in materials science, particularly in the synthesis of organic semiconductors and photovoltaic materials. The ability to introduce nitrogen-containing heterocycles into aromatic frameworks has enabled the development of new materials with tailored electronic properties.??
6.3 Total Synthesis Applications
The incorporation of photoredox C-H amination into total synthesis strategies has demonstrated the practical utility of these methods. The ability to introduce nitrogen functionality at late stages of complex synthetic sequences has streamlined several natural product syntheses.??
7. Challenges and Future Directions
7.1 Current Limitations
Despite significant advances, several challenges remain in photoredox C-H amination:
7.1.1 Substrate Scope Limitations
While the substrate scope has expanded considerably, certain classes of aromatics remain challenging. Electron-deficient arenes, heavily substituted aromatics, and some heterocycles still present difficulties for existing methods.??
7.1.2 Regioselectivity Control
Achieving perfect regioselectivity remains challenging, particularly for substrates with multiple reactive sites. The development of more selective methods and better predictive models is an ongoing area of research.?¹
7.1.3 Scalability Issues
Many photoredox methods suffer from scalability issues due to light penetration limitations and photocatalyst costs. Addressing these challenges is crucial for industrial applications.?²
7.2 Emerging Strategies
7.2.1 Flow Chemistry Applications
The integration of photo redox C-H amination with continuous flow chemistry has shown promise for addressing scalability challenges. Flow reactors enable better light penetration and heat management, potentially enabling large-scale applications.?³
7.2.2 Heterogeneous Photocatalysis
The development of heterogeneous photocatalysts offers advantages in terms of catalyst recovery and recyclability. Recent work on metal-free semiconductor photocatalysts and immobilized molecular catalysts has shown promising results.??
7.2.3 Artificial Intelligence and Machine Learning
The application of machine learning approaches to predict reaction outcomes and optimize conditions represents an exciting frontier in photoredox chemistry. These tools could accelerate the discovery of new methods and improve existing ones.??
7.3 Future Opportunities
7.3.1 Enantioselective Methods
The development of enantioselective photoredox C-H amination remains a significant challenge and opportunity. While some progress has been made, general methods for asymmetric C-H amination are still needed.??
7.3.2 C-H Functionalization of sp³ Centers

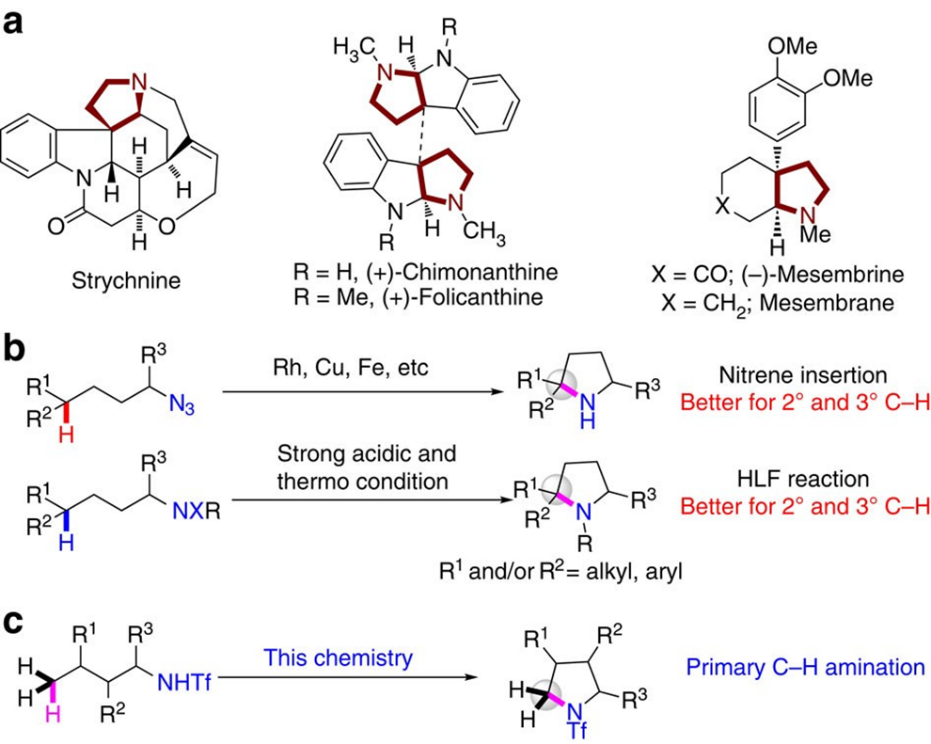

Extending photoredox methods to sp³ C-H amination could open new synthetic possibilities. Recent advances in this area suggest that such methods may become increasingly important.??
7.3.3 Sustainable Chemistry
The development of more sustainable photoredox methods, including the use of solar light and earth-abundant catalysts, represents an important future direction. The inherently green nature of photochemistry provides opportunities for environmentally benign synthesis.??
CONCLUSION
Photoredox-catalyzed C-H amination has emerged as a powerful and versatile approach for the direct functionalization of aromatic compounds. The evolution from harsh traditional methods to mild, visible-light-mediated processes has opened new possibilities for synthetic chemists and has found applications across pharmaceutical, materials, and academic research.
The field has benefited from a deep understanding of mechanistic pathways, enabling the rational design of new methods and the prediction of reaction outcomes. The development of both transition metal and organic photocatalysts has provided complementary approaches to address different synthetic challenges.
Key achievements in the field include:
Looking forward, the field continues to evolve with new catalysts, novel mechanistic pathways, and expanded applications. The integration of computational methods, machine learning, and sustainable chemistry principles promises to further advance the field and address remaining challenges.
The success of photoredox C-H amination exemplifies the power of photochemistry in enabling new synthetic transformations under mild conditions. As the field continues to mature, we can expect to see increasing applications in industrial settings and the continued development of more efficient, selective, and sustainable methods.
