Chocolate-Based Drug Delivery Systems: A Palatable Platform for Novel Therapeutics

The development of patient-friendly drug delivery systems has become a central focus in pharmaceutical research, especially for populations such as children and the elderly who often face difficulties with conventional dosage forms. In this context, the use of food-based carriers has garnered significant attention, with chocolate emerging as a particularly promising medium. Known for its rich sensory appeal, safety profile, and widespread acceptance, chocolate offers a novel platform for the oral delivery of various therapeutic agents.

Chocolate’s unique composition, which includes fats, sugars, polyphenols, and bioactive compounds like theobromine, not only makes it a palatable option but also contributes to drug stability and controlled release properties. Its thermosensitive nature enables potential use in melt-based formulations, while its pleasant taste effectively masks the bitterness of many active pharmaceutical ingredients (APIs). Additionally, the antioxidant and mood-enhancing properties of cocoa further support its value in health-focused applications^.[1]

Although traditionally enjoyed as a confectionery item, chocolate is increasingly being explored as a functional matrix in the design of pharmaceutical and nutraceutical products. This innovative approach aims to improve medication adherence, enhance the therapeutic experience, and open new avenues in personalized medicine. However, its application in drug delivery is not without challenges, particularly in terms of stability, standardization, and regulatory classification ^[2]

Rationale for using chocolate as a delivery matrix

Conventional drug delivery systems often face challenges related to patient compliance, particularly among children, the elderly, and individuals with swallowing difficulties. Unpleasant taste, large tablet size, or frequent dosing can significantly reduce adherence to therapy. In this context, chocolate offers an innovative and patient-friendly alternative that combines therapeutic delivery with sensory appeal ^[3].   Widely accepted for its taste and texture, chocolate can effectively mask the bitterness of many drugs, enhancing palatability. Its lipid-rich composition serves as a suitable matrix for incorporating both water-soluble and fat-soluble drugs, while its thermosensitive nature allows for gentle, melt-based formulation methods that avoid high-temperature processing. Moreover, chocolate naturally contains bioactive compounds such as flavonoids and theobromine, which have demonstrated antioxidant and cardioprotective effects. These intrinsic health benefits may complement the pharmacological action of the incorporated drug, offering added value. The psychological comfort and familiarity associated with chocolate can also improve acceptance and adherence to treatment. With its Generally Recognized as Safe (GRAS) status and compatibility with regulatory frameworks, chocolate presents a promising matrix for developing palatable, effective, and innovative drug delivery systems particularly in the areas of pediatric medicine, geriatrics, and functional therapeutics ^[4].

1. Chocolate: Composition, Properties, And Pharmaceutical Relevance

Chocolate is not just a popular confectionery but a complex matrix with significant pharmaceutical potential. Its unique physical, chemical, and sensory properties make it an attractive medium for drug delivery, especially in oral formulations. Understanding the types and composition of chocolate is essential to explore its functionality as a drug carrier.

Types of chocolate

Chocolate can be broadly classified into three main types dark, milk, and white each differing in composition, taste, and pharmaceutical utility.

Figure 1: Types of chocolate

Dark chocolate contains a high percentage of cocoa solids and cocoa butter, with little to no milk content. It is rich in flavonoids, polyphenols, and theobromine, contributing to its strong antioxidant profile and bitter taste. From a pharmaceutical perspective, its high cocoa content offers potential health benefits and allows incorporation of lipophilic drugs due to the presence of cocoa butter. However, its bitterness may require additional taste-masking when used in pediatric formulations ^[5].

• Milk Chocolate:

Milk chocolate contains cocoa solids, cocoa butter, milk powder or condensed milk, and a higher proportion of sugar. It has a creamier texture and sweeter taste, making it ideal for pediatric and geriatric drug delivery. The milk content provides additional emulsifying properties, which may influence drug dispersion and release. Its pleasant flavor makes it particularly suitable for taste-sensitive drugs ^[6].

• White Chocolate:

Unlike dark or milk chocolate, white chocolate does not contain cocoa solids. It is made primarily from cocoa butter, milk solids, and sugar. While it lacks the antioxidant benefits of dark chocolate, its mild flavor and smooth texture make it an excellent base for formulating palatable dosage forms. The absence of cocoa solids also reduces the risk of certain drug-polyphenol interactions, offering better chemical compatibility for some active ingredients ^[7].

Each type of chocolate offers unique properties that can be tailored to specific formulation needs whether it’s enhancing drug stability, improving taste, or targeting specific patient groups. The choice of chocolate type depends on the nature of the drug, target population, and desired therapeutic outcome ^[8].

Chemical composition

Chocolate is a complex and rich mixture of biologically active and functional compounds that not only define its taste and texture but also contribute to its potential as a drug delivery vehicle. Its composition varies depending on the type of chocolate and the manufacturing process, but the key components remain largely consistent across different forms.

a. Cocoa Butter (Fats)

Cocoa butter, the primary fat in chocolate, makes up approximately 28–35% of its content. It consists mainly of triglycerides, including stearic, oleic, and palmitic acids. This fat matrix plays a crucial role in drug solubilization, controlled release, and enhancing the bioavailability of lipophilic drugs. Its melting point (around 34–36°C) is close to body temperature, making it ideal for melt-in-mouth formulations and thermosensitive drug delivery ^[9].

b. Cocoa Solids

These are the non-fat components of cocoa beans and include polyphenols, flavonoids, alkaloids (such as theobromine and caffeine), and some minerals. These compounds have strong antioxidant properties and may offer synergistic health benefits. In drug formulations, the polyphenols can potentially interact with active ingredients, which may either enhance or interfere with drug stability or absorption ^[10].

c. Sugars

Sugars like sucrose and glucose are added during chocolate processing to provide sweetness and improve palatability. They also contribute to the mouthfeel and texture. While helpful in masking the bitter taste of drugs, excessive sugar can be a limitation for diabetic patients or those requiring sugar-free formulations, prompting interest in low-glycemic alternatives.

d. Milk Solids

Present in milk and white chocolate, milk solids include proteins (like casein), lactose, and minerals. They influence the emulsifying properties of the chocolate and can improve the uniform dispersion of drugs. Proteins in milk may also form complexes with some drugs, affecting their release or absorption.

e. Emulsifiers

Common emulsifiers like lecithin (often derived from soy) are used to stabilize the chocolate mixture and improve viscosity. These agents can aid in uniform drug distribution and enhance the texture of the final formulation.

f. Alkaloids: Theobromine and Caffeine

Theobromine is a mild stimulant and vasodilator naturally present in cocoa. Though less potent than caffeine, it contributes to the therapeutic profile of chocolate. Both compounds may exert pharmacological effects, particularly in formulations targeting cognitive health, alertness, or cardiovascular function ^[11].

g. Minerals and Micronutrients

Chocolate naturally contains magnesium, iron, potassium, and zinc, which may support its use in nutraceuticals or functional food-based drug delivery systems. However, the levels vary with processing and cocoa content.

Melting behavior and bioadhesive   properties

The physical characteristics of chocolate, particularly its melting behavior and bioadhesiveness, play a critical role in its suitability as a drug delivery matrix. These properties influence how the formulation behaves in the body, particularly in the oral cavity and gastrointestinal tract, and can be tailored to enhance therapeutic efficacy and patient experience. Chocolate exhibits a distinct and desirable thermos responsive melting profile, which is mainly governed by the triglyceride composition of cocoa butter. Cocoa butter contains a balanced mix of saturated and unsaturated fatty acids that gives it a melting point range of approximately 30–36°C, closely aligned with human body temperature ^[12].

This unique characteristic allows chocolate-based formulations to:

• Melt rapidly in the mouth without requiring water or chewing.
• Avoid high-temperature processing, making it suitable for thermolabile (heat-sensitive) drugs.
• Facilitate immediate or rapid drug release in the oral cavity, beneficial for fast-acting drugs.
• Enable taste masking as the drug remains embedded in the matrix until melted.

This melt-in-mouth property also opens the possibility for orally disintegrating dosage forms, which can be particularly advantageous for pediatric, geriatric, or dysphagic patients who have difficulty swallowing tablets or capsules.

Although chocolate is not traditionally considered a bioadhesive material, its semi-solid, lipid-rich nature can exhibit mild mucoadhesive behavior, especially when formulated with certain excipients or polymers. Upon melting, the chocolate matrix may adhere temporarily to mucosal surfaces in the oral cavity, allowing localized drug delivery or buccal absorption for drugs with poor gastrointestinal stability ^[13]_.

GRAS status and safety profile

Chocolate and its primary constituent’s cocoa powder and cocoa butter are classified as Generally Recognized as Safe (GRAS) by the U.S. FDA when used appropriately in food and pharmaceutical applications ^[14]. This designation supports its use as an excipient in oral drug formulations, particularly those targeting pediatric and geriatric populations. Cocoa butter (21 CFR § 184.1230) and other chocolate ingredients are well tolerated, with a long history of safe human consumption. However, some considerations apply:

• Allergens such as milk, soy, or nuts may be present depending on formulation.
• Theobromine and caffeine, naturally occurring in cocoa, can have mild stimulant effects and may need regulation in sensitive populations.
• High sugar and fat content may limit use in diabetic or calorie-restricted patients, though sugar-free or low-fat alternatives exist.
• Contaminants like heavy metals are rare but possible; sourcing high-quality, pharmaceutical-grade chocolate ensures safety ^{[15, 16]}.

2. Historical And Traditional Uses Of Cocoa In Medicine

Chocolate, derived from cocoa beans (Theobroma cacao), has been valued not only as a food but also for its medicinal properties for centuries. Ancient civilizations recognized cocoa as a powerful botanical, incorporating it into healing rituals, tonics, and traditional remedies long before it became a global commodity ^[17].

The term Theobroma means “food of the gods,” reflecting cocoa's revered status in ancient Mesoamerican cultures. The Aztecs and Mayans were among the first to consume cocoa as a bitter beverage, often mixed with spices or herbs, not as a sweet treat but as a therapeutic elixir. It was believed to invigorate the body, improve stamina, and even enhance mood and spiritual connection ^[18]. Cocoa held significant ethnopharmacological importance, used in ceremonies and healing rituals. It was considered sacred and was often reserved for nobility, warriors, and healers. Cocoa’s stimulant effects, likely due to its theobromine and caffeine content, contributed to its use in preparations aimed at boosting energy and alertness. Traditionally, cocoa has been used in indigenous medicine to treat ailments such as fatigue, digestive issues, heart problems, and skin conditions due to its stimulant and healing properties ^{[19, 20]}.

3. Advantages Of Chocolate as A Drug Delivery Vehicle

Chocolate offers several functional and therapeutic advantages that make it an attractive carrier for oral drug delivery, especially for patient-centric formulations.

• Improved Patient Acceptability-Chocolate's familiar taste and smooth texture make it highly acceptable, especially for children, elderly, and patients with swallowing difficulties ^[21].
• Effective Taste Masking-The rich cocoa flavor and natural sweetness help mask the bitterness of many active pharmaceutical ingredients (APIs), improving palatability.
• Thermosensitive Behavior-Melts at body temperature (~34–36°C), enabling melt-in-mouth formulations and potential for immediate or controlled drug release ^[22].
• Natural Antioxidant Properties-Contains flavonoids and polyphenols that offer antioxidant and cardioprotective benefits, which may support or enhance therapeutic outcomes²³.
• Non-toxic and GRAS Status-Recognized as safe (GRAS) by regulatory authorities, allowing easier formulation without complex safety concerns ^[23].
• Suitable for Multiple Drug Types-Compatible with both lipophilic and hydrophilic drugs, especially in low-dose formulations.

4. Formulation Strategies And Techniques

The formulation of chocolate-based drug delivery systems involves careful selection of ingredients and techniques to ensure uniform drug dispersion, stability, and palatability. The method of drug incorporation largely depends on the physicochemical properties of the active pharmaceutical ingredient (API) and the desired release profile. Below are common methods used to incorporate drugs into chocolate matrices:

• Melt Incorporation (Fusion Method)

• In this method, the chocolate is gently melted (typically at 35–40°C) and the finely powdered or liquid drug is uniformly mixed into the molten base. The mixture is then poured into molds and allowed to solidify.
• This technique is ideal for heat-stable, lipophilic drugs and ensures good drug dispersion without the need for solvents ^[24].

• Solid Dispersion Technique

• APIs are dispersed in the chocolate matrix at the molecular or particulate level to enhance solubility and bioavailability.
• It is suitable for poorly soluble drugs and can be combined with polymers or surfactants to improve drug release ^[25].

• Direct Blending

• The drug is mixed with chocolate powder or granules at room temperature and then compressed or processed into desired dosage forms.
• This method is useful for thermos-labile drugs that degrade on heating, but may compromise uniformity.

• Emulsion-Based Approach

• Drugs are first emulsified into a fat-soluble or water-in-oil (W/O) system and then incorporated into the chocolate matrix.
• Useful for hydrophilic drugs or biologics, and may improve stability and controlled release ^[26].

• Encapsulation within Chocolate Microspheres or Nanosystems

• Drugs can be encapsulated into lipid-based microspheres or nanoparticles using chocolate as a carrier for targeted or sustained delivery.
• Offers potential for advanced formulations like functional foods or nutraceuticals ^[27]

Method of Preparation of chocolate

1. Preparation of the Chocolate Base
The process begins with the preparation of a sugar syrup by heating pharmaceutical-grade sugar and water in a beaker at 50 °C for approximately 4–5 minutes using a heating mantle. Separately, cocoa butter is melted in another beaker for around 2 minutes. The prepared sugar syrup and cocoa powder are then added to the melted cocoa butter and mixed thoroughly. The resulting mixture is allowed to cool until it reaches a semi-solid consistency, at which point a suitable flavouring agent is incorporated.

2. Chocolate Formulation

The prepared chocolate base is reheated in an oven maintained at 50 °C until it becomes a smooth, free-flowing liquid. The required amount of the active pharmaceutical ingredient (API) is then incorporated into the molten base. Uniform distribution of the API is achieved by magnetic stirring for about 10 minutes. The mixture is then poured into polycarbonate moulds and cooled for approximately 15 minutes to solidify ^[28].

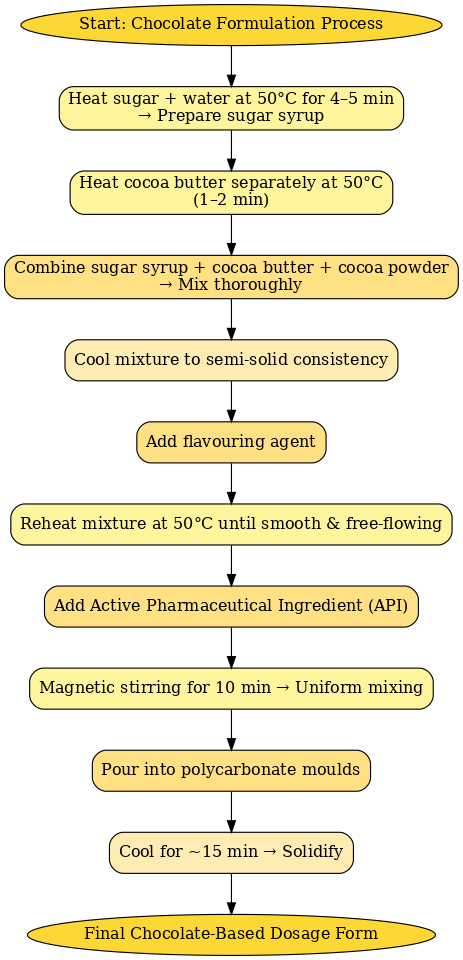

Figure 2: Method of Preparation of chocolate

Selecting appropriate excipients is crucial to ensure the stability, compatibility, taste, texture, and release behavior of chocolate-based drug delivery systems. These excipients must blend well with chocolate’s natural matrix without compromising its sensory or structural qualities ^[29].

5. Chocolate-Based Delivery for Targeted Populations

Chocolate, with its appealing taste and versatile texture, serves as an excellent vehicle for delivering drugs to patient groups that often face difficulty with traditional pharmaceutical forms. Its sensory qualities and ease of administration make it particularly suitable for children, elderly individuals, patients with cognitive or sensory challenges, and even health-conscious consumers seeking functional foods.

Pediatric Population

Children are among the most difficult groups to treat when it comes to oral medications due to their natural aversion to bitter tastes and their inability to swallow tablets or capsules easily. Chocolate-based formulations help overcome these challenges by offering a familiar, enjoyable taste and melt-in-the-mouth convenience. Unlike syrups, which may still have lingering medicinal flavors, chocolate masks unpleasant tastes more effectively and allows for creative forms like bars, molded shapes, or chewable bites. This not only improves adherence but also turns medicine time into a more positive experience for young patients.

Geriatric Population

Older adults frequently experience swallowing difficulties (dysphagia), decreased appetite, and altered taste perception, all of which can compromise medication adherence. Chocolate-based drug delivery offers a solution by providing soft, easily meltable dosage forms that do not require water for ingestion. In addition to improving compliance, chocolate can serve a dual purpose by offering nutritional support thanks to its energy content and antioxidant profile making it a practical choice for elderly patients who may also be dealing with malnutrition or chronic conditions requiring multiple medications ^[30].

Psychiatric and Special Needs Patients
Patients with cognitive impairments, autism spectrum disorders, or psychiatric conditions often resist traditional medication due to sensory sensitivities, fear, or confusion. In such cases, the conventional look and feel of a tablet or syrup can trigger refusal or distress. Chocolate-based formulations offer a more approachable alternative that doesn't resemble typical medication. Its comforting flavor and texture may also promote cooperation, while compounds naturally found in chocolate such as theobromine and phenylethylamine may provide mood-enhancing effects that complement pharmacological treatment ^[31].

Nutraceutical and Wellness Consumers
In the growing market of nutraceuticals and functional foods, chocolate has emerged as a preferred carrier for supplements and health-enhancing agents. It can be used to deliver vitamins, minerals, herbal extracts, antioxidants, and probiotics in a format that consumers enjoy and are more likely to use regularly. These chocolate-based products blur the line between medicine and food, appealing to health-conscious individuals who value both taste and therapeutic benefit in their daily regimen.

6. Types Of Drugs Delivered Via Chocolate Systems

Chocolate-based drug delivery systems have been successfully explored for a variety of therapeutic agents, especially those intended for oral administration in pediatric, geriatric, or nutraceutical-focused populations. The high acceptability and compatibility of chocolate with both hydrophilic and lipophilic drugs make it a versatile platform for delivering several categories of actives ^[32].
