Emesis is a natural impulse unnatural by nucleus in the brainstem acknowledged as the queasiness centre. During retching, the lesser oesophageal sphincter relaxes abdominal skeletal strength contract, and forceful peristaltic contraction of the strong outdoor work in the opposite track of normal, dynamic tummy along with small intestine stuffing upward hooked on the oesophagus. While these contractions are brutal enough, the stuffing of the GI tract canister passes from first to last the greater oesophageal sphincter, cause emesis [1].

The discharge of the contents of the stomach through the mouth canal is known as emesis. Emesis is preceded by nausea, which is a sick feeling. Vomiting is an adaptive behaviour that can help you get rid of hazardous stuff you've eaten. Nausea and vomiting, on the other hand, can occur [2].

Transmucosal Drug Delivery System

Transmucosal liberation of beneficial agents is a well-liked & expedient method because mucous membranes are comparatively holey; transmucosal government of medicinal drugs is a common and convenient approach [3]. This allows for quick uptake of a medicine addicted to the total transmission while bypassing hepatic major go by processing. Controlled release focused and localised drug delivery, avoidance of drug degradation, longer action, bypassing first pass metabolism, and a reduction in balanced state plasma intensity variation are all benefits of transmucosal medicine government [4].

Various types of Delivery Systems are used in the transmucosal route:

• Buccal medicine release method
• GIT medicine relief organization
• Nasal medicine liberation classification
• Ocular medicine liberation method
• Rectal medicine release System.
• Vaginal medicine liberation system [5].

MATERIALS AND METHOD

Materials

The following materials & instruments were used for the preparation of Dimenhydrinate buccal patches [6].




Table No. 1: List of Chemicals Used

Identification of Drug

Melting aspect is a critical physical asset of natural compounds, which has located extensive use in chemical identity, as a criterion of purity and for the calculation of various critical physicochemical homes which include vapour pressure and aqueous solubility [8].

Capillary melt technique

Melting factor of Domperidone modified into determined with the aid of the usage of capillary soften technique the usage of melting element system (msw-403, macro clinical works, New Delhi).

UV absorption spectrum of Domperidone at 0.1N Hcl exhibits a most ?max at 228nm. Absorption obtained for numerous concentrations of Domperidone at 0.1N HCL given in table 6.2. The plot of absorbance as opposed to Domperidone awareness became discovered to be linear over the awareness variety of 216?g/ml. This drug follows the beer-lambert regulation in the 216µg/ml range. The most absorption of domperidone became discovered just before being 281nm [9].




Graph No. 1: U. V. range of Domperidone

Dissolve 100mg of this medicine in 100ml of methanol & accurately weigh to attain an answer with a concentration of 1000?g/ml, that is known as inventory answer take 1 ml of the chemical answer from the inventory solution 1 in a 100ml volumetric flask, dilute it with distilled water to make one hundred ml, and get in touch with it inventory solution ii. Drug answers were organized from stock answers 1, 2, 3, 4, 5, 6, 7, 8, 9 and 10?g/ml and scanned at 280nm the usage of methanol as control using UV Visible spectrophotometer [10].




Table No.3: Absorbance of Different Concentration of Drug Solution

An I. R. The spectrophotometer area for recording a spectrum with I. R. Includes an optical machine able to presenting monochromatic light in an area of ??4000-400cm. 444 (about 2.5-16?m) and a way for measuring the intensity ratio of transmitted and incident mild. Fourier transform I. R. Spectrophotometers replace traditional dispersion units. System 1 mg of drug pattern (Domperidone) and one hundred mg of potassium bromide were placed in a mortar & ground to a powder. A little amount of pulverized model changed keen on positioned into a granulator and compressed to a weight of 10kg/cm 2. The organized sediment was saved in a model holder & scanned as of 4000 cm1 to 400 cm1. I. R. spectra of drug test were obtained usage of FTIR 8400s, Shimadzu [11].




Graph No. 3: IR of Domperidone




Table No.4: Important peaks of Infrared spectrum

Solubility evaluation became executed to pick the appropriate solvent system for dissolving the drug & to check its solubility inside dissolution medium just before being used. The solubility of domperidone within 6.8 phosphate buffer is 32.52µg/ml. The effects indicate an extra solubility of the stable dispersion as compared to the natural drug in the phosphate buffer 6, 8 solutions, which may be due to the complex formation between the medicine, PEG600 & pvpc25. The Formulations prepared through means of solvent evaporation from F1-F5 display: greater solubility evaluate to the organized solid dispersion. Different way. A1:4:1 ratio of drug: PEG 6000: PVPC25 shows extra solubility in those formulations containing A4. The solubility of method A4 is 92.91/ml [12].

In drug discovery and development, lipophilicity is usually expressed by the partition between aqueous and organic phase [13].

The partition co-efficient Kpc of a medicine is given through.

separation co-efficient of medicine was considered by the formula specified beyond along with was found to be 3.84.

Here,

[Drug]_octanol = conc. of drug into n-octanol

[Drug]_water = conc. of preparation into H2O

A sample of the drug is shaken with a mixture of n-octanol and water and its concentration in each layer is determined ^[13].

Slaughter going on aeration & humidity contented.

The LOD is intended to degree quantity of H2O & volatiles within a pattern whilst the example is dried underneath particular situations [105⁰c, 3hours]. The LOD is decided through heating the sample in an oven below its melting factor and includes water and solvent content. LOD is approx. An analytical approach that gets rid of water in addition to all other risky impurities from a sample [14].




Table No. 7: % LOD of Domperidone

Moisture content is the amount of H2O current in the trial [15].

Moisture content of drug can be determined by-

%MC= (w-d/w) ×100

        w= wet wt.

         d= wt. later than dried out

Moisture contents or water contents are usually given in percent of the sample mass. The moisture content of domperidone was found to be 1.2%

Drug excipient interaction

Suitable formula design and method calls for deliberation of physical, chemical & organic properties of all medicine materials as well as excipients second-hand in manufacture of product. Every polymer old in components changed into mixed with the drug in an amount realistic with appreciates to the final components [16]. Every polymer became thoroughly blended by way of the drug to growth medicine polymer molecular touch, dashing up reaction if potential. Compatibility studies of excipients are an essential a part of product research to decide drug-excipient interactions. Measurements after a period of storage using the appropriate logical method showed no interplay among medicine and excipient [17].

I. R. spectrum of Polymer and Drug




Graph No. 5: I. R.  Spectrum of Domperidone & Hypromellose




Graph No. 6: I. R.  spectrum of Domperidone & PVPK30

Formulation Development

Preparation of backing membrane- Firstly prepared backing membrane. Take 4% PVA solution in distilled water, then it was poured in Petridis over aluminium foil, it was kept in the oven at 42⁰c dried backing membrane was prepared [18].




Fig.- Method for preparation of backing membrane.

Optimization of drug and polymer ratio

A selection of polymers is to be had to create the buccal patch. The choice of polymer is one of the most crucial and important parameters for a hit system improvement. The polymer used to make the buccal patch [19].

Preparation of buccal patches

Patches contain Domperidone, HPMC, Chitosan, PVPK30 and PG in one-of-a-kind ratios have been manufactured by way of casting from solvents. Medicine is dissolved in five ml of methanol, as well as the polymer changed into dissolved in a take apart container of 20 ml of distilled water Whilst Stirring Constantly For 4hours [20].

Total quantity of polymers = 500mg

Evaluation of Buccal Patches

Thickness uniformity

breadth of patches was calculated at 5 dissimilar indiscriminately particular a skin condition via twist gauge. The mean along with standard were considered [21].

Weight uniformity

Each movie (1x1 cm2) becomes weighed on a digital scale at different places on the movie and the common weight was considered [22].

Folding endurance:

the fold electricity of the buccal patch become decided through taking a 20 mm diameter patch and folding it again and again until it was torn within the equal place. The quantity of times a patch will be folded inside the equal role without breaking it determined the fold durability price. The check became run 3 times and the imply and fashionable had been calculated [23].

Swelling study

The weight of the buccal patch was measured by digital electronic weighing balance. Patches are positioned on the shell of an agar serving dish in addition to approved to engorge by keeping it an incubator at 37 ºC and the diameter is measured at predetermined time intervals for 90 minutes. inflammation index was considered on or after following equation-

?Swelling index = (W2- W1 / W1) ×100?

Were,

SI (%) is percent swelling.

W2 is the swollen patch wt.

W1 is the first wt. of the patch [24].

Surface pH

To determine the surface ph, 3 films of every formulation were allowed to swell on the surface of an agar plate for two hours. The surface ph changed into measured by using placing a ph paper at the floor of the swollen component. The common of three readings was recorded [25].

Mucoadhesion, a pair of chrome harden cylinders among a diameter of 11 ± zero. 2mm were used within place of clamp. A round (diameter 1cm) polymer patch sample become organized and preload turned into applied for 5min, 2min, and 15min. The maximum pulling force (fmax) is constant in newtons [26].

Medication content material uniformity became calculated through taking 3 film devices of every expression had been occupied in separate 100ml of volumetric steins, a hundred ml of ph6. Eight phosphate buffers were introduced and constantly stirred for 24hours. Effects had been filter, adulterated suitably & anatomized at 281nm in an ultraviolet spectrophotometer. regular medication filling of 3 flicks turned into taken as final reading [27].

In-vitro medicine release looks at.

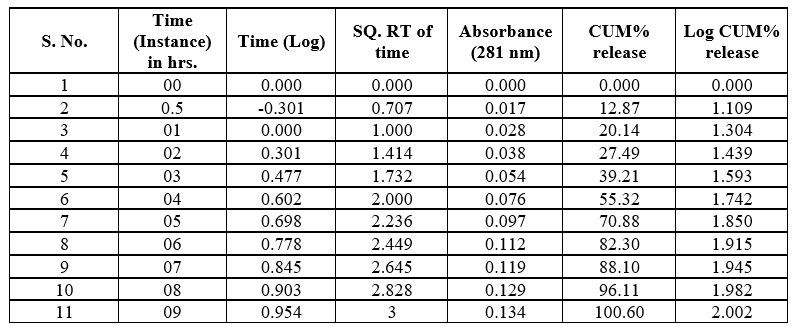

The in-vitro termination was studied during phosphate buffer ph -6.8. The in-vitro dissolution study was accomplished inside triplet & outcomes exposed in table which suggest of mirror standards. In-vitro launched facts attained designed for patches F1-F10 are tabulated here table no. Alone from 10:00-19:00 results from in vitro dissolution studies acquired from those formulations were blended into 4 records processing models [28-34]:

 1. The probability of drug release increases over the years. (Zero order).

 2. The logarithm of the buildup possibility of the ultimate drug as a feature of time. (The first order).

 3. Will increase the probability of drug release with admire to the rectangular root of time. (Higuchi synopsis) four. Log threat vs. Log time of drug release. (Peppa graph) the graph suggests the time versus opportunity for drug release for diverse buccal plaques. Increase opportunity pills released to flora are 99.78 (08hours), 99.58 (7hour), 99.49 (10hours), 100.17 (09hour), 100.18 (9hour), 97.15 (08hour), 98.54 (08hours), 100.75 (10hours), 99.67 (09hours), and 100.6 (9hour) independently intended for F1 to F10. Plots of random drug launch versus time for all formulations are proven in graphs 6-24 and the relative boom in release is shown in graph quantity 2.26.




Table No.13: In-vitro medicine discharge look at muco-adhesive buccal patch of Domperidone F3




Table No.14: In-vitro medicine discharge look at muco-adhesive buccal patch of Domperidone F4




Table No. 15: In-vitro medicine discharge look at muco-adhesive buccal patch of Domperidone F5




Table No. 16: In-vitro medicine discharge look at muco-adhesive buccal patch of Domperidone F6




Table No.17: In-vitro medicine discharge look at muco-adhesive buccal patch of Domperidone F7




Table No.18: In-vitro medicine discharge look at muco-adhesive buccal patch of Domperidone F8




Table No.19 In-vitro medicine discharge look at muco-adhesive buccal patch of Domperidone F9




Table No.20: In-vitro medicine discharge look at muco-adhesive buccal patch of Domperidone F10




Table No. 21: Collective % medicine discharge of formulation F1 - F10.

Stability studies

The stableness of a medicine may exist described because time as of the date of manufacture as well as packaging of drug to the instant whilst its chemical or herbal impact isn't lower than the specified area of the indicated power and there's no exchange in its bodily properties [35]. Conspicuously or conversely. The balance observes changed into executed according with ICH Q1C guidelines to evaluate drug balance and expression. The maximum first-rate expression is sealed in an aluminium box and stored at room temperature in a moist chamber at 40±0.5 for 1month [36].

RESULTS

Detection of uncontaminated medicine

Solubility Study:

Approximate solubilities of substance are indicating via the expressive requisites in the associated.

Thickness of the Patches

The thinness of the patches was assessing at 6 dissimilar point of the patch via thinness gauze (Mitutoyo, Japan). For every formulation, 3 erratically certain patches were use.

The thickness of organized buccal patch of every formulation is unwavering surrounded by assortment of 0.23 to 0.26mm.




Graph No. 8: Bar diagram of formulation showing thickness of patch of trial batches.

The prepared formulations were found to have thickness in between 0.23- 0.26mm. The signify thickness of the buccal patch prepared increases by means of increase in the amount of polymer percentage. When the concentration of chitosan and HPMC are increased then increasing the thickness of patches. The optimized batch F3 was found to have thickness of 0.24 and was within limits.

Weight Uniformity:

The wt. of formulate buccal patches ranges in between 37.86±0.15mg to 59.75±0.20 mg.




Graph No. 9: Bar diagram of formulation showing weight uniformity of trial batches.

Folding endurance:

Number of instances film knows how to be folded within same role with no tearing determined the fold sturdiness cost. The imply and standard deviation of the 3 observations have been calculated.




Graph No. 10: Bar diagram of formulation showing Folding endurance of trial batches.

Folding stamina of every formulation was unwavering within the range of 302 - 318. It exposed that high-quality elasticity of patch. The optimized batch F3 was found to have folding endurance of 313 and was within limits.

Swelling Index

The percentage swelling index taken at predetermined the calculated percentage swelling.




Graph No. 11: Bar diagram of formulation showing Swelling index of trial batches.

Surface P^H:

The shell pH was precise by way of pH paper positioned on top of shell of inflated patch. Mean of 2 explanations were considered.




Graph No. 12: Bar diagram of formulation showing Surface pH of trial batches.

Performance alternatives:

Uniformity of energetic element content material:

Table 9.2 suggests the drug content uniformity outcomes of every component. Three replicates of every look at were accomplished. The average drug content became discovered to variety from 3.68 to 3.8 for the prepared (10mm diameter patches every) buccal patch components

Bioadhesion electricity size:

An effective buccal mucosal tool ought to maintain near contact among the mucus layer overlying epithelial tissue. This limitation may be awfully important for a hit use of this formulation. Therefore, an in-vitro assessment of the buccal vicinity changed into carried out using the porcine gastric mucosa. It's far an oblique degree of bioadhesive electricity in grams. Table no. 09.1 shows the bio-adhesiveness of each buccal patch components. Mean Bioadhesion energy values ??were found to be 144.3, 149.34, 187.67, 176.28, 167.33, 132.64, 134.23, 167.35, 168.23 & 159.46 for F1, in that order. The bond (n) is 1.40, 1.44, 1.82, 1.62, 1.75, 1.62, 1.42, 1.47, 1.76, & 1.12(n) for F1- F10, correspondingly. Bonding agent energy (nm2) for F1-F1, 453.08, 432.12, 586.09, 543.63, 513.78, 421.12, 435.47, 564.65, 523.34 and 498.21(nm10) Power taking place adhesion (n) 1.40, 1.44, 1.82, 1.62, 1.75, 1.62, 1.42, 1.47, 1.76 & 1.12(n) for F1 - F10 correspondingly. Bond power (nm-2) 453.08, 432.12, 586.09, 543.63, 513.78, 421.12, 435.47, 564.65, 523.34 & 498.21 (nm-2) for F1 - F10 in that order.

In-vitro drug discharge

In-vitro medicine discharge study was carried out using Keshary-Chien (K-C) cell of 25 ml capacity using 0.22µm cellulose membrane; in acetate buffer saline (ABS) pH 6.6 receptor sections was packed through acetate buffer saline pH 6.6 while a patch of 1cm2 was positioned in the contributor section. Hotness of receptor compartment be maintain at 37±0.50^oC with the help of circulate stream bathtub.  The Samples (2ml) were withdrawn at ordinary interval & replaced with equal volume of ABS pH 6.6, to continue the sink situation. Samples were filter through Whatman filter, diluted rightfully by means of analyzed spectrophotometrically at 281nm.




Graph No. 14: Cumulative % drug discharge of formulation F1-F5




  Graph No. 15: Cumulative % drug release of formulations F6-F10

The prepared formulations were established to have in-vitro discharge in between 7.92 to 99.78 the optimized batch F3 was found to have in-vitro release was within limits.

Balance looks at:

stability have a look at of the prepared buccal patch changed into executed by storing the f5 system in a humidity managed oven at room temperature and humidity and 400°c ± 20°c/75% rh ± 5%rh for 90days. A balance examines become completed at the f5 formula for ninety days to expect the degradation that could arise upon long-time period garage at various temperatures and humidity. The outcomes of the stableness look at conducted inside 90day are exposed into Table 24. These outcomes showed a mild lower in the in-vitro launch of the F5 system in comparison to the sparkling F5 formulation. Based totally on these parameters, the shelf lifestyles of the manufactured device changed into calculated.
