Microneedle Technology: Advancements, Applications, and Future Different Directions

Abstract

Microneedle Technology: Progress, Uses, and Prospects Micro needles, micro meter-sized instruments for minimally invasive transdermal delivery, provide an auspicious option against conventional injections. This review canvasses the new developments in micro needle technology with features of pain-free application, better drug bioavailability, and minimizing bio hazardous waste. We consider here the several different types of microneedles, namely, solid, coated, dissolving, and hydrogel, specifically designed for selected drug delivery strategies and therapeutic indications. The manufacturing process, especially the creation of wax moulds, is described in detail, highlighting material choice and manufacturing processes important for accurate microneedle design. Applications of this technology range from pharmaceuticals to cosmetics and diagnostics, taking advantage of its capacity to penetrate the stratum corneum and trigger wound healing mechanisms. Challenges still exist in the form of dose constraints, possible inflammation, and intricate manufacturing processes. Future research directions involve biodegradable microneedles, biosensors integrated into the microneedles for real-time monitoring, and nanotechnology-based drug delivery. To address today's needs using multidisciplinary studies, it will unlock even more of microneedle's potential towards effective patient-friendly healthcare options.

Keywords

Introduction

Micro needles are Painless Delivery System Micron-Scale Needles they Micro needles are tiny, needle-like structures that measure up to 1 mm in length and have a thickness in microns. Non-Invasive Delivery They penetrate the skin in a minimally invasive way, bypassing pain receptors and blood vessels. Enhanced Drug Delivery of Micro needles create micro channels in the skin, improving the delivery of both hydrophilic and lipophilic drugs, as well as macromolecular therapeutics. Reduced Pain and Tissue Damage Unlike traditional injections, micro needles minimize pain and tissue damage, making them a more patient-friendly option. The information you provided is correct. The concept of micro needles was first patented in the 1970s, but it wasn't until the 1990s that significant advancements were made in their development and application. DMNs are a type of micro needle composed of biodegradable polymers that incorporate a target drug. Once inside the skin, interstitial fluid facilitates the dissolution or degradation of the polymers, as well as the subsequent release of the drug.

Advantages and disadvantages of micro needles as a transdermal delivery tool:

• Enhancing the process of delivering medication to patients:

(1) Medication is directly injected into the body through the stratum corneum.

(2) The drug action begins rapidly (there is a capillary bed and lymphatic vessel in the

superficial dermis).

(3) The desired quantity of the drug is given by controlling micro needle formulations.

(4) First-pass metabolism is avoided by micro needles.

(5) High drug bioavailability is enabled by micro needles.

(6) It is effective for vaccine delivery due to many immune cells residing in the dermis.

• Improving the techniques used to ensure patient safety and compliance

(1) Micro needles are painless and thus safe because of the small length and girth.

(2) The level of expertise required is lower for the application of the patch.

(3) Reduces or eliminates the bio hazardous waste of sharps needles.

• Streamlining the manufacturing process Saves cost

 (1) The optimised solid state formulation of micro needle does not require the cold chain system

 (2) Microneedle patches with the functions of the drug, needle, and syringe consolidate the overall size of the drug package.

(3) Microneedle patches save money in term of dose sparing, manufacturing, logistics and cost.

• Memorized micro needle design limitations:

 (1) Small micro needle size limits the drug dose

 (2) Can cause mild temporary inflammation and allergy

 (3) Manufacturing of micro needle patches incorporate complicated technologies.

Types of micro needles:

While the design of micro needles differs based on the delivery route, micro needle type, and mechanism of action of the drugs to be delivered, most patches share certain commonalities. A standard micro needle is a tapered pointed tip with a length of 150–1500 μm, width of 50–250 μm, and tip thickness of 1–25 μm (Waghule et al. 2019). Micro needles are most commonly metal, silicon, polymer, glass, or ceramic. The pharmaceutical is typically deposited in nor on the tip of the micro needle, which is secured to the base substrate beneath to create an array. The micro needle array is mounted on the patch backing for convenience; this backing contains a skin adhesive to enhance contact with the skin. The micro needles are generally categorized into four types (Fig. 1).

 Solid micro needles are chiefly constructed of metal and silicon, which have good mechanical properties and are drug-free. Thus, after using the micro needles, it is required to again apply the drug to the area. On the other hand, when coated micro needles are used on the skin surface, the drug is released simultaneously with the application. In dissolving micro needles, the drug can be incorporated into the biodegradable matrix, in which case there is no sharp waste generated following the application of micro needle. Hydrogel micro needles make it possible to deliver drugs slowly since the drug is placed in all locations like the tip of the micro needle and also the patch backing. Because the properties of micro needles depend on the type, an appropriate, Four type of Microneedle

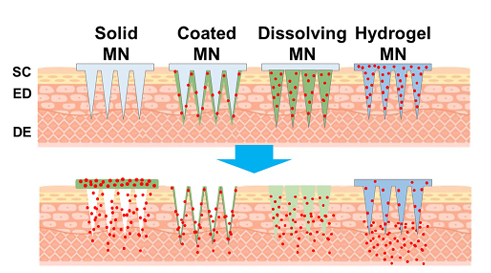

Dig.1 Schematic illustration of the types of micro needles and their drug delivery methods. SC stratum corneum, ED epidermis, DE dermis, MN micro needles

• Solid micro needles:- These are very fine needles, most often in micrometer range, constructed from biocompatible material (metal, silicon, polymer). They are "solid" in the sense that they carry no drug with them. What they are there to do is make openings.
• Mechanism of Action:

Formation of pores: When applied pressure to the skin, micro needles drive through the stratum corneum (outer skin layer), establishing microscopic pores.

Improved Drug Delivery: The stratum corneum is the primary barrier to drug penetration. Through the formation of these pores, the micro needles circumvent this barrier.

Enhanced Bioavailability: Once pores are formed, a drug product placed on the skin surface can penetrate more readily into the deeper layers of the skin, such as the dermis, where capillaries exist. This results in improved absorption into the bloodstream and increased bioavailability (the proportion of the drug that enters systemic circulation).

Henry et al. 1998: This is a really early very important paper that contributed to the idea of delivering drugs transdermally using micro needles.

Agent formulation: the agent may be formulated in short. This means the drug being delivered may be in some form. For instance, a patch, gel, or cream.

Coated Micro needle: Coated micro needles are a unique method of transdermal drug delivery, differing from solid micro needles in the manner of drug administration. Here is a brief summary:

Drug Delivery Mechanism:

Rather than forming pores for future drug application, coated micro needles have the drug applied directly as a coating on the surface of the micro needle. Upon insertion into the skin, the coated drug dissolves and is released into the layers of the skin.

Accurate Dosage: This technique provides more accurate control over the dosage of drug delivered.

Versatility: Micro needles can be coated with a broad variety of drugs, ranging from small molecules to proteins and even vaccines.

Rapid Delivery: The drug is delivered into the skin when the micro needles are inserted, allowing for potentially quicker absorption.

Considerations: The coating process should be such that the drug is evenly distributed on the micro needles. The coating should be formulated to release the drug efficiently after the micro needles have penetrated the skin. The mechanical stability of the micro needles is critical to ensure that the coating is deposited into the skin layers effectively. Coated micro needles essentially provide a direct and controlled route for drug delivery across the skin, with improved bioavailability and potentially better therapeutic effects.

Dissolving Micro needle: These Dissolving micro needles is an emergent innovation with many advantages offered for transdermal drug delivery . The principal characteristics of its composition and mechanisms are discuses Dissolvable microneedles are made from biocompatible and water-soluble material like polymers-hyaluronic acid or polyvinylpyrrolidone. These microneedles are designed to encapsulate the drug within their structure. Once they are inserted into the skin, the microneedles degrade, delivering the drug into the layers of the skin.

Microneedles represent a ground breaking innovation in the field of drug delivery, offering a novel approach that addresses many of the limitations associated with traditional methods. These tiny, needle-like structures, typically ranging from a few micrometres to a millimetre in length, are designed to penetrate the outermost layer of the skin, the stratum corneum, to deliver therapeutic agents directly into the epidermis or dermis. [0, 1]

This minimally invasive technique offers numerous advantages, including painless administration and reduced risk of infection compared to conventional hypodermic needles. Furthermore, microneedles enhance the bioavailability of certain drugs that tend to degrade or are poorly absorbed when taken orally. This technology has paved the way for new possibilities in treating various diseases, as it allows for more precise targeting of tissue and enables sustained drug release over time. [2 ,3 ,4 ]

The potential of microneedles extends beyond pharmaceuticals; they are also being explored in the delivery of vaccines, allowing for efficient immunization with minimal discomfort. Their application is not limited to medical use alone; they have also found relevance in the cosmetic industry for enhancing the penetration of skincare products. As research and development continue, microneedles are poised to become an integral part of modern medicine, transforming how we approach treatment and prevention, advancing toward a future of more effective and patient friendly healthcare solutions. [5 ,6 ,7]

Selection Of Materials For Wax Mould Creation:

During Microneedle wax mould fabrication, material selection plays a pivotal role to permit accurate replication and productive manufacturing. The wax choice, specifically, directly affects the fidelity and usability of the mould. Paraffin wax is widely utilized because of its desirable characteristics, like low melting point, which provides easy pouring and release from a master mould. [35,42]

Its uniformity enables the recording of the fine details that are characteristic of Microneedle structures. Beeswax, usually mixed with paraffin, can be employed for its natural adhesive properties and smooth surface, though it might be more expensive. [35 ]

Synthetic waxes such as polyethylene wax can also be used, providing advantages such as even melting and less shrinkage, which helps in preserving dimensional stability. The hardness of wax chosen is responsible for ensuring that the mould is strong enough to withstand any pressure from outside during handling without deformation and yet flexible enough to facilitate easy removal of the Microneedle structures after production.[ 35] The additives can also be incorporated into the wax to improve certain properties. For example, stearic acid could be incorporated to enhance mould release properties, thus minimizing the chance of damage to fragile Microneedle protrusions. In the end, the material used in making wax moulds should find a balance between performance, expense, and the unique needs of the Microneedle manufacturing process. [39,43]

Step-By-Step Guide To The Production Of Microneedle Wax Moulds:

 In order to produce a Microneedle wax mould, start by choosing the right mould design, customized for the particular application of the microneedles. Prepare all the required materials, which consist of a master template of the microneedles, typically produced using silicon or any other hardy material, and a proper wax, e.g., paraffin or beeswax. Get the work area ready in a way that maintains cleanliness since even minute particles can interact with mould accuracy. [35,39]

Begin by warming the wax to melting point with a controlled heat source in order to provide even uniformity. Once melted, slowly pour the wax over the master microneedle template so that it completely envelops the template to record its fine details. Let the wax cool and become hard, which might need to be done with great precision to avoid deformities. Carefully remove the wax mould from the template by exerting a small amount of pressure to avoid causing any damage. [35,41,44,45]

If defects are found, the procedure would have to be redone from the melting of the wax. Once successfully achieved with a wax mould, it can be treated with post-processing methods, such as trimming or polishing, to make it more accurate and finer. It is crucial to treat the wax mould with care in order to maintain its structural integrity during these processes so that it can be used successfully for future microneedle fabrication procedures. [46,40]

Designs Of Microneedles:

Microneedles are a new technology that involves a range of types and designs, each of which is suited to particular applications and therapeutic requirements. In general, microneedles can be classified according to their materials and forms. Solid microneedles are used for pretreatment of the skin or to enable drug delivery by means of small punctures, increasing permeability without any residues remaining in the skin. Dissolvable microneedles, on the other hand, are made from biocompatible polymers that biodegrade following insertion, discharging the implanted drugs right at the desired location. [8,9 ,6,10 ]

This reduces the problem of needle disposal, providing an environmentally friendly method of drug administration. Another form is the hydrogel-forming microneedles, which uptake interstitial fluid during skin penetration, swell, and form channels for steady-state drug diffusion. These are especially beneficial for long-duration release formulations or for the delivery of drugs that demand stable, controlled environments. Coated microneedles are another design variability where drugs are deposited on to the surface of solid microneedles in such a manner that when the microneedles penetrate the skin, the drug is delivered effectively into the epidermis. [11,12 ,13]  With respect to geometrical shapes, microneedles are variable in size, length, and tip sharpness, influencing penetration depth and pain perception. Their array configurations are also different, affecting their efficiency and user experience. Through adjustment of these variables, microneedles can be optimized for multiple therapeutic applications, such as vaccinations, insulin therapy, and cosmetic use.[15,16]

Understanding The Wax Mould Fabrication Process :

In the complex process of microneedle manufacturing, the process of fabricating the wax mould is a key factor in determining the small, intricate structures required for successful application. A thorough knowledge of

both the material properties and the technology involved in the process is needed to comprehend it. Wax is selected because of its good malleability and ability to retain fine details, which is critical in the fabrication of moulds that determine the geometry and surface characteristics of the microneedle. [35,36 ]

The procedure starts with the selection of good-quality wax that is resistant to the following processing steps without deforming. [35]

After selection, the wax is melted and cast into a master mould, usually fabricated from a more rigid material such as silicon, which is used as the master mould for the microneedle structure. This master mould carefully defines the shape and size of each single microneedle. As the wax is cooled, it hardens, capturing the exact characteristics of the master mould, thereby creating the negative replica to be employed as the basis for fabricating the microneedles themselves. [37,38,35 ]

The cooling procedure needs to be regulated to guarantee uniformity and avoid any warping or introduction of defects, which would translate into defects in the final Microneedle structure. Precision during these preliminary stages is of at most importance since even the slightest discrepancy can adversely affect the effectiveness and credibility of the microneedles that are manufactured. Appreciating this delicate balancing act of material science and innovative engineering is crucial for any party involved in the manufacture of microneedles by wax moulds. [39,40,41]

Mechanisms Of Action: How Microneedles Work:

Microneedles function by a very interesting mechanism of action involving the piercing of the stratum corneum, the outer layer of the skin, to provide therapeutic agents or elicit physiological reactions without inducing major pain or discomfort. These tiny needles, usually shorter than a   millimetre, are engineered to create temporary micro channels in the skin, thereby increasing the permeability and allowing direct delivery of active ingredients.[16,9]

One of the main benefits of microneedles is that they can bypass the outer skin barrier, which is usually impenetrable to most drugs. Through their micro-injuries, microneedles allow effective drug, protein, and even vaccine transport directly into the epidermis or dermis layers. [6,17]

Microneedling also initiates the body's own wound healing process, which include the spreading and proliferation of fibroblasts along with enanced collagen and elastin production. This is especially useful in dermatological treatments where rejuvenation and healing of the skin are required. Additionally, the relative non-invasiveness and non-trauma of microneedles minimize the chances of infection and scarring as opposed to the use of common needles. The non-invasive nature of microneedles imparts little pain during treatment while achieving adequate efficacy for therapeutic treatments. [18,19,5]

This helps to improve patient compliance and provides new avenues in transdermal delivery systems aimed at improving the bioavailability of drugs that otherwise have difficulty in terms of solubility and systemic circulation.

Applications And Benefits Of Microneedle Technology:

Microneedle technology has come to be a revolutionary method across many fields, especially in medicine and cosmetics, with several applications and advantages that have attracted significant interest from researchers and practitioners. Microneedles, for the most part, allow painless and minimally invasive drug delivery, notably in transdermal patches that improve the administration of vaccines, insulin, and other drugs. This new method circumvents the stratum corneum, or the outer layer of skin, enabling effective and targeted delivery of therapeutic agents directly into the dermis or systemic circulation, greatly enhancing patient compliance and comfort  by removing the psychological deterrents inherent in conventional hypodermic needles. [21,6]

In addition, Microneedle technology is also being increasingly investigated in the field of dermatology for cosmetic applications. The micro channels generated by this method can induce collagen production, thus enhancing skin texture, elasticity, and diminishing the effects of aging, including wrinkles and scars. The fact that microneedles can be designed using different materials—from metals and polymers to dissolvable chemicals—also means that treatment options can be tailored to specific therapeutic applications. [22,23,24]

Apart from these applications, microneedles are transforming diagnostics. By making it possible to minimally invasive sampling of interstitial fluid and other biological fluids, microneedles facilitate real-time biomarker monitoring, with potential for future developments in personalized medicine and

health monitoring. In general, Microneedle

 technology continues to grow its reach through its multifaceted applications and immense advantages, ushering in a new age in medical and cosmetic treatments. [11,8 ]

Challenges And Limitations In Microneedle Development:

Microneedle technology is very promising in many different fields, and especially in drug delivery and cosmetics. Its progress is, nonetheless, plagued with a number of challenges and restrictions that must be overcome to totally exploit its capability. One key challenge is in the fabrication process. The demand for accurate Microneedle design and homogeneity can be challenging to handle, particularly upon scaling up commercial production. Variation in Microneedle geometry or structure can lead to varying therapeutic effects, making their reliability and effectiveness questionable. [25,8,5]

Mechanical strength of microneedles is another crucial issue. They should be strong enough to penetrate through the skin barrier without deformation or fracture, presenting a challenge in material science. The choice of suitable materials that are capable of withstanding insertion stresses but degrade in a safe manner within body remains important. In addition, skin heterogeneity between individuals in terms of thickness, hydration, and texture can affect microneedle performance. [26,2,5 ]

It can be challenging to achieve uniform penetration depth and drug delivery efficiency because of these individual variations. [27]

Regulatory barriers also pose limitations, as current frameworks might not entirely support the novel features of Microneedle technology, decelerating approval processes. Moreover, patient acceptance and psychological barrier related to needle use, irrespective of diameter, may impact adoption rates. Solving these challenges calls for multidisciplinary research and collaboration between material scientists, engineers, regulatory agencies, and healthcare practitioners to customize microneedle applications properly and overcome present limitations. [17,18]

Future Directions And Innovations In Microneedle Research:

The potential of microneedle research in the future is enormous, with potential innovation that can change the way medical treatments and diagnostics are done. Going forward, a number of areas of emphasis are arising. One of the more promising avenues is the creation of biodegradable microneedles, which provide the advantage of being safer because they will not require being removed following drug delivery or monitoring. These advances can greatly improve patient comfort and compliance, especially in chronic treatments. [22,28 ,29,12 ]

Another innovative approach involves the integration of biosensors within microneedles. These smart systems can provide real-time monitoring of biological markers, enabling personalized medicine through precise, on-demand drug delivery and health monitoring. The convergence of microneedle technology with digital health platforms may pave the way for devices that autonomously regulate treatment according to ongoing health information, extending the limits of telemedicine and remote patient monitoring. [21,22,27]

 Nanotechnology will also have a central role to play in the future development of microneedles. By increasing the loading capacity and release profiles of therapeutic drugs, nano carriers incorporated into microneedles may provide more effective therapies, particularly for multifactorial diseases such as cancer. Further, studies are even more directed toward designing microneedle patches that can deliver a wider array of substances, such as vaccines and biologics. [14,22,7] These advances highlight a bright future where microneedle technology is becoming increasingly more versatile, patient-friendly, and powerful in dealing with global health issues.

CONCLUSION

Microneedle technology has the potential to replace traditional injections with minimally invasive transdermal delivery advantages of painless application, increased drug bioavailability, and reduced biohazardous waste. Solid, coated, dissolving, and hydrogel microneedles offer various drug delivery functions in pharmaceuticals, cosmetics, and diagnostics by effectively puncturing the stratum corneum and stimulating wound healing. Even though limitations include dose limitation, potential inflammation, and complex production, biodegradable microneedles, biosensors, and nanotechnology drug delivery are under investigation to overcome these limitations. Finally, interdisciplinary is the key to realizing the full potential of microneedles to revolutionize patient-friendly care.
