X-Ray Crystallography and Diffraction: A Review of Theory and Practical Applications

In 1912, Max von Laue and colleagues found that crystalline materials function as three-dimensional diffraction gratings at X-ray wavelengths that are comparable to the distances between the planes in a crystal lattice. Nowadays, a popular method for examining atomic spacing and crystal structures is X-ray diffraction. Monochromatic X-rays and a crystalline sample constructively interfere to produce X-ray diffraction. A cathode ray tube produces these X-rays, which are then pointed toward the sample after being collimated to concentrate them and filtered to produce monochromatic radiation. As they travel through matter, the energy of the alpha-beta and gamma rays released during radioactive decay is transferred to the atom, molecule, or ions they collide with. There are numerous x-ray procedures and techniques in use. However, we will group all approaches into the three primary types. These are talked about as follows:

X-ray absorption methods

These are comparable to absorption techniques used in other electromagnetic spectrum regions. These techniques involve letting an X-ray beam pass through the sample and measuring the attenuation, or the percentage of X-ray photons absorbed, to determine the concentration of the absorbing material. Only in some situations, like as elemental analysis and thickness studies, are X-ray absorption techniques useful. These are the least popular X-ray techniques when compared to others.

X-ray diffraction methods

• One of the first techniques for examining the structure of solids was X-ray diffraction.
• Electromagnetic waves with the same frequency but distinct phases interact during diffraction to create both constructive and destructive interference.
• Very precise values of the lattice parameters can be deduced by closely examining the diffraction pattern.
• The basis of these techniques is the way crystals scatter X-rays. One can determine the crystal structure of different solid components using these techniques.

These techniques are far more significant than X-ray absorption and X-ray fluorescence techniques.

Theory

5. Origin of x-ray

• X-rays are a type of electromagnetic radiation that is also known as X-radiation.

• The majority of x-rays have wavelengths between 0.01 and 10 nanometres’, which correspond to energies between 100 eV and 100 KeV and frequencies between 30 petahertz and 30 hexahertz.

• The most effective range for analytical purposes is between 0.07 and 0.2 manometers.

• X-ray wavelengths are usually longer than gamma ray wavelengths and shorter than ultraviolet ray wavelengths.

When high-velocity electrons strike a metal object, X-rays are produced.

• The scattered X-ray experiences both constructive and destructive interreference in materials having crystalline structures. This is the diffraction process.

• Bragg's law describes how crystals deflect x-rays. In fig no. -1

                       2d sinθ =nλ

here, d is the space between the diffracting planes,

θ (theta) = incident angle,

n = integer

λ= beam wavelength

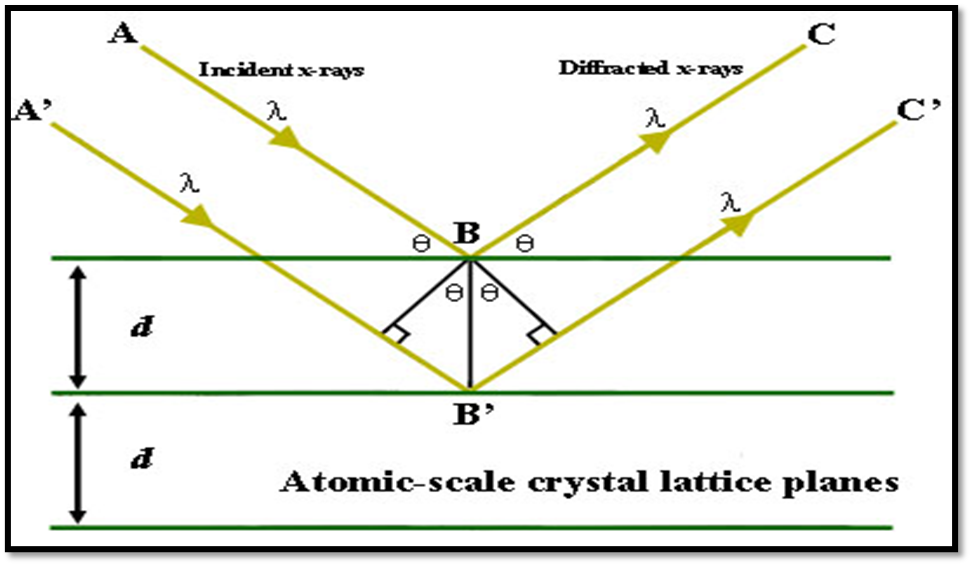

Bragg's Law reflection (Figure 1).

• When an X-ray strikes a sample, it will either be scattered by the material's atoms' electrons or transmitted, in which case it will continue in its original trajectory. Every atom in the x-ray beam's path scatters x-rays.
• The peaks created when scattered x-rays constructively interfere are of primary interest to us.
• Peaks of dispersed intensity that match the following circumstances are seen when x-rays are scattered from a crystal lattice:

1. The angle of scattering equals the angle of incidence.
2. An integer number of wavelengths represents the change in path length.

We may compute information about the crystal structure using the maximum intensity criterion found in Bragg's equation above. or to ascertain the wavelength of the x-ray’s incident upon the crystal if the crystal structure is known.

X-ray Crystallography:

• It is a method of identifying a crystal's atomic and molecular structure by seeing how a beam of incident x-rays is diffracted into numerous distinct directions due to the crystalline structure.
•  A crystallographer can create a three-dimensional image of the electron density inside the crystal by calculating the angles and intensities of these diffracted beams.
• The mean locations of the atoms in the crystals, their chemical bonds, their crystallographic disorder, and other details can all be ascertained from this electron density.
• X-ray crystallography has been essential to the advancement of numerous scientific disciplines as a wide range of materials, including salts, metals, minerals, semiconductors, and different inorganic, organic, and biological molecules, may form crystals.
• The technique also demonstrated the structure and functionality of numerous biological substances, such as proteins, vitamins, medications, and nucleic acids like DNA.
• The main technique for describing the atomic structure of novel materials is still X-ray crystallography.

Different types of crystal structure (Bravais lattice structure)

When describing the periodic arrangement of points in a crystal, the Bravais lattice system is a classification of the various three-dimensional lattice configurations that are feasible. Understanding the general symmetry and organization of crystal formations is made easier by these lattice systems. Based on the relationships between the lattice points and their lattice parameters, there are 14 different varieties of Bravais lattices. There is distinct crystal systems linked to each Bravais lattice.

1. Primitive Cubic (P):

In a primitive cubic lattice, each lattice point is positioned at the corners of a cube, meaning that each unit cell shares its corner atoms with adjacent cells. This structure represents the simplest and least dense form of the Bravais lattices. It belongs to the triclinic crystal system and has a coordination number of six, indicating that each lattice point is directly connected to its six nearest neighbours. This arrangement results in a relatively low packing efficiency compared to other crystal structures.

2. Body-centred Cubic (BCC):

The corners of a cube have lattice points in a body-centred cubic (BCC) lattice, whereas the cube's centre has an extra lattice point. With a coordination number of eight, this structure is a member of the cubic crystal system, and each lattice point is directly coupled to its eight nearest neighbours. Although the BCC arrangement is less dense than a face-centred cubic (FCC) structure, it offers a higher packing efficiency than a plain cubic lattice.3. Face-Cantered Cubic (FCC).

3. Primitive Tetragonal (P):

Lattice points are arranged in a structured and  orderly manner at the corners of a rectangular prism in a primitive tetragonal lattice. This lattice has a coordination number of four, which indicates that every lattice point is directly related to its four nearest neighbours. It is a member of the tetragonal crystal system. One axis is longer or shorter than the other two in the primitive tetragonal structure, which is a variant of the cubic system and produces a unique geometric arrangement.

5. Primitive Orthorhombic (P):

Lattice points are arranged in a systematic and structured manner at the corners of a rectangular box in a primitive orthorhombic lattice. With a coordination number of eight, this lattice is a member of the orthorhombic crystal system, and each lattice point is directly coupled to its eight nearest neighbours. Because each of the three axes in the orthorhombic structure has a different length, it has a different geometric configuration than the cubic system.

6. Primitive Rhombohedral (P):

Lattice points are placed at the corners of a rhombohedron, which is a six-faced parallelepiped with equal length on all sides but not necessarily 90-degree angles between them, in a basic rhombohedral lattice. With a coordination number of twelve, this structure is a member of the trigonal crystal system, which means that every lattice point is physically related to its twelve nearest neighbours. In contrast to other crystal systems, the rhombohedral arrangement offers a distinctive geometric configuration.

7. Primitive Hexagonal (P):

Lattice points are placed at the corners of a hexagonal prism to create a repeating geometric pattern in a primitive hexagonal lattice. With a coordination number of twelve, this structure is a member of the hexagonal crystal system, and each lattice point is physically coupled to its twelve nearest neighbours. An effective packing structure produced by the hexagonal arrangement is frequently observed in a variety of natural and manufactured materials.

Instrumentation

The instrumentation used in crystallography consists of following components.as per figure no.-2

• A source
• A wavelength selector
• A sample holder
• A detector
• A recorder

Instrumentation of X-ray diffraction

Source:

Two major sources used to obtain x-radiation are as follows

• Production of x-ray using an x-ray tube

The most prevalent source of X-ray radiation is the X-ray tube, as per figure no.-3 sometimes referred to as a Coolidge tube. It is made up of an evacuated glass tube that has an anode, and a cathode attached to it. Electrons are released from the cathode, which is a tungsten filament heated by a high voltage. The anode, a heavy copper block coated with target elements like tungsten, copper, molybdenum, rhodium, silver, iron, or cobalt, is where these electrons are accelerated. To avoid overheating, some systems circulate cool water around the anode. The accelerating potential, or positive voltage given to the anode, controls the force with which the electrons contact the target metal, whereas the cathode's emission of electrons is determined by the voltage applied for heating. This in turn influences the energy and wavelength of the X-rays that are released, with larger accelerating forces resulting in X-rays that are more energetic and have shorter wavelengths. A beryllium window installed on one side of the tube allows the generated X-rays to exit, making the Coolidge tube a popular and effective X-ray source. Synchrotron/FEL X-rays for structural research, liquid metal jets for brightness, CNT tubes for efficiency, laser-driven sources for contrast, and microfocus tubes.

Figure- 2 Instrumentation of X-ray Crystallography

Some radioactive materials are useful sources of X-ray radiation because they naturally release X-rays as a byproduct of their radioactive decay process. Various processes, depending on the kind of radioactive decay, can produce these X-rays. Electron capture or K-pressure is the main method by which elements like iron-55 (²?Fe??), cobalt-57 (²?Co??), cadmium-109 (??Cd¹??), and iodine-125 (?¹I¹²?) produce X-rays. This process results in the emission of distinctive X-rays. However, isotopes such as tritium (¹H³) and lead-210 (?²Pb²¹?) make X-rays by releasing high-energy electrons through the beta (β) emission mechanism, which results in secondary X-ray radiation. These X-ray sources that arise naturally are important for many scientific and medicinal purposes.

Wavelength selector

Certain tools, including filters, can be used to isolate a limited range of wavelengths from the entire X-ray spectrum. X-ray photometers are devices that make use of these filters. X-ray filters are composed of thin metallic strips or particular materials with a specified thickness that are intended to absorb particular wavelengths only. For example, a molybdenum target yields two distinctive lines from 0.62 Å to 0.75 Å and a continuous spectrum from 0.4 to 0.6 Å. A pure Kα line can be isolated when X-rays from this target travel through a thin strip of zirconium because the filter absorbs the Kβ line and the majority of the continuous energy. In order to create monochromatic X-ray beams for a variety of applications, this selective filtration process is crucial.

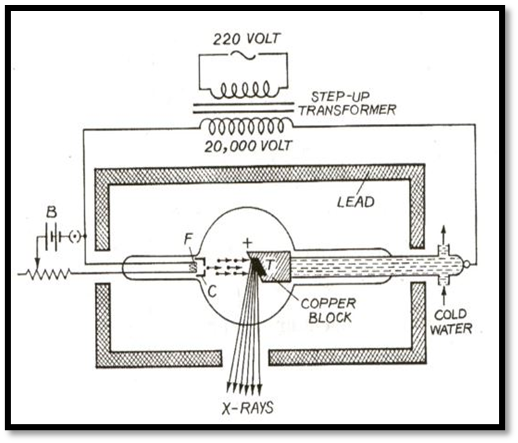

Figure -3 X-ray tube or Coolidge tube

Spectrophotometers are devices that choose wavelengths by using a monochromator. In essence, an X-ray monochromator is a crystal that separates wavelengths from a wider spectrum by diffracting X-rays according to their wavelengths. A crystal's lattice spacing determines how well it can diffract X-rays, hence determining the useful wavelength range that may be acquired from it. Mounting the crystal on a goniometer or revolving table enables controlled modifications to the diffraction angle, resulting in exact wavelength selection. Bragg's equation, which explains the connection between the angle of diffraction, the interatomic spacing of the crystal lattice, and the wavelength of incident X-rays, forms the basis of a crystal monochromator's operation. Certain wavelengths can be isolated for use in a variety of analytical applications, including crystallography and X-ray spectroscopy, by carefully choosing the crystal type and orientation. This technique is essential for getting high-resolution data and improving X-ray analysis accuracy. (figure no-4)

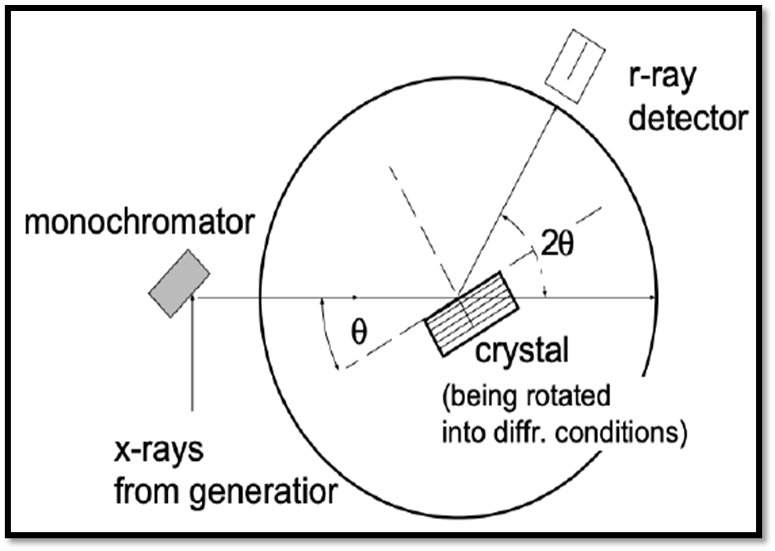

Figure-4 Crystal monochromator

The sample crystal is held in place during analysis by the sample holder, also called a crystal mount, which is a revolving table. To guarantee consistent exposure to X-rays, the sample crystal is placed in the middle of the mount, which rotates at a predetermined speed. The precision of diffraction measurements made possible by this controlled rotation improves the precision of data collection in crystallography and X-ray spectroscopy. In order to provide in-depth structural research, the crystal mount is essential in ensuring that the sample interacts with X-rays at the best angles.

X-ray detector

Three types of detectors are used for x-ray detection.

1. Gas filled detectors

A metal tube filled with an inert gas, such as argon, krypton, or xenon, makes up a gas-filled detector, a form of X-ray detection apparatus. X-rays can flow through the tube's two transparent windows, which are positioned on opposing sides and are composed of materials like mica, beryllium, aluminum, or mylar. The tube's lower side, which is negatively charged, serves as the cathode, while the tube's center has an anode in the shape of a thin wire. Excitation and the loss of an outer electron result from interactions between the X-rays and the inert gas's atoms when they enter through one of the windows. An electric signal is produced by the free electrons produced by this ionization process moving in the direction of the anode. The voltage applied to the anode determines how many electrons arrive at the anode for every incoming X-ray photon. Minimal ionization takes place if the potential is less than 200 volts. The detector functions in the ionization chamber zone, where primary ionization is monitored, when the potential is between 200 and 400 volts. Secondary ionization intensifies the signal in the proportionate counter zone, which has a potential between 800 and 1000 volts and is proportional to the X-ray photon's energy. The detector operates in the Geiger counter zone at even higher potentials, between 1100 and 1600 volts, where a massive electron avalanche is created, producing a consistent pulse for every photon detected, independent of energy. Gas-filled detectors, which provide many modes of operation depending on the applied voltage and the particular requirements of the measurement, are essential in X-ray spectroscopy and radiation detection.(figure no – 5)

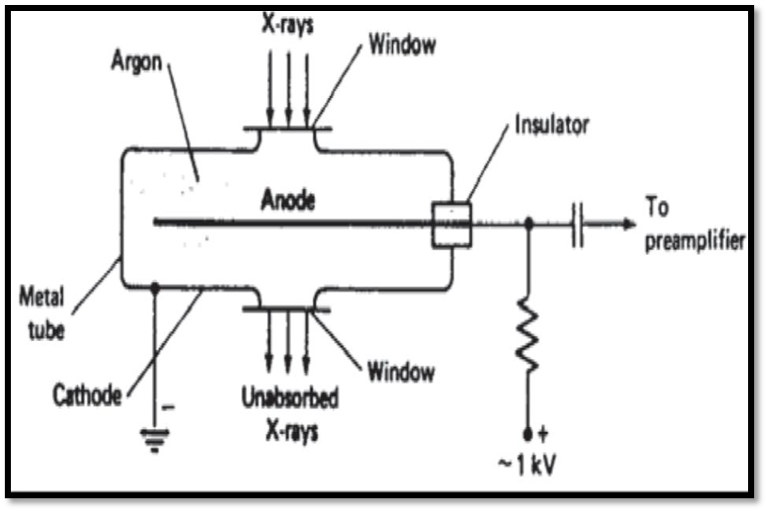

Figure 5 -Gas filled detector

A translucent, cylindrical sodium iodide (NaI) crystal that is roughly 3–4 inches long and wide makes up a scintillation counter, a radiation detection instrument. A tiny amount (0.2%) of thallium iodide is added to the sodium iodide crystal to increase its effectiveness by promoting the activation of electrons inside the crystal structure. The crystal's electrons are energized when X-rays hit it, and as they return to their initial energy levels, photons are released. A fluorescent substance inside the system detects the visible scintillations produced by this process. A photomultiplier tube then gathers and intensifies the released photons, creating a cascade of electrons that produces a sizable electrical signal. Scintillation energy.

Figure 6 - Scintillation counter/detector

3. Semiconductor detector

Since semiconductor detectors offer high-resolution X-ray photon detection, they are important in X-ray crystallography. In this discipline, the lithium-drifted silicon detector (Si (Li)) and the lithium-drifted germanium detector (Ge(Li)) are the two main types of semiconductor detectors. When subjected to X-rays, the principle of charge collection within a semiconductor material is the basis for these detectors' operation. One p-type semiconducting layer, one central intrinsic layer, and one n-type semiconducting layer make up the Si (Li) detector's three primary layers. The p-type semiconductor's exterior is covered in a thin coating of gold for electrical contact, which is followed by an X-ray-transparent beryllium window. It is the intrinsic lithium-drifted silicon region beneath this layer that interacts with X-ray photons to gather charges. To guarantee correct electrical contact, a small coating of aluminium is applied externally to the n-type semiconductor, which is found at the end of the intrinsic layer. Before the signal is sent to an amplifier and recorder for additional processing, this aluminium sheet is first linked to a preamplifier, which strengthens it. With the main exception of using germanium as the semiconductor material rather of silicon, the Ge (Li) detector has the same structural design as the Si (Li) detector. Detecting X-rays with wavelengths shorter than 0.3 Å is made easier with Ge (Li) detectors because of the better stopping power of germanium for high-energy photons. High-purity germanium (HPGe) detectors, which do not require lithium drifting and provide improved resolution and efficiency, are the result of recent developments. High-precision X-ray crystallography, synchrotron radiation investigations, and X-ray fluorescence (XRF) spectroscopy all make extensive use of semiconductor detectors such as Si (Li) and Ge (Li) because of their exceptional energy resolution, which enables accurate elemental and structural analysis.

Rotating crystal technique

In X-ray diffraction analysis, a crystal set on a graded turntable is exposed to an X-ray beam with a known wavelength. The X-rays experience diffraction in accordance with Bragg's Law as they contact with the crystal lattice. After entering a recorder's ionization chamber, the diffracted rays ionize the air within, creating an electric current that flows between the

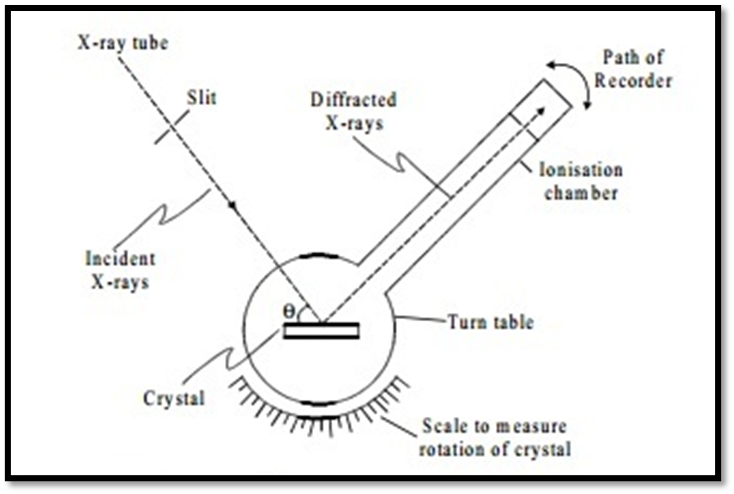

Figure 7 - Rotating crystal method

X-ray diffraction methods

Through its important insights into both organic and inorganic substances, X-ray diffraction (XRD) has made a substantial contribution to our understanding of atomic groupings and interatomic spacing in crystalline materials. This method has proven useful in many different sectors, such as material science, biomedical research, industry, science, and technology. Drug research and molecular engineering have been made easier in the pharmaceutical and biochemical industries by XRD's ability to clarify the structures of complicated natural products like steroids, vitamins, and antibiotics.  Furthermore, by improving our knowledge of the characteristics of metals, alloys, minerals, polymers, and other solid materials, XRD has improved the use of these materials in engineering and industrial operations. The production of X-rays in an X-ray tube and their subsequent direction toward a sample form the basis of the basic idea of X-ray diffraction. Diffraction is the result of these rays interacting with the material's atomic planes; structural features are ascertained by collecting and analysing the diffracted beams. When utilizing Bragg's Law to calculate interatomic distances, the angle between the incident and diffracted X-rays is a crucial component of diffraction research. Phase transitions, strain effects, and nanomaterial structures can now be analysed in real time because to recent developments in XRD technology, including high-resolution synchrotron XRD, in situ diffraction research, and computational modelling. With these advancements, X-ray diffraction remains a vital analytical technique in structural biology, crystallography, and materials science, facilitating ground-breaking discoveries and breakthroughs in a variety of fields.

Single-crystal x-ray diffraction

One effective method for precisely analyzing the atomic structure of crystalline materials is single-crystal X-ray diffraction. The regular arrangement of atoms in a single crystal causes X-rays to scatter when they impact it, creating a characteristic diffraction pattern. These dispersed beams create a pattern of spots when they arrive on a detector, either an electrical sensor or a piece of photographic film. The strengths and angles of these beams are methodically recorded as the crystal is slowly rotated, yielding thorough structural information. Every reflection, or spot, in the diffraction pattern represents the reflection of X-rays from a particular group of equally spaced atomic planes inside the crystal lattice. X-ray diffraction data may accurately identify chemical bond lengths within a few thousandths of an angstrom and bond angles within a few tenths of a degree if the crystal is sufficiently regular and pure. Moreover, atoms inside a crystal oscillate around their equilibrium positions, usually by a few tenths of an angstrom, as revealed by X-ray crystallography. Scientists can determine the strength of these oscillations by examining diffraction data, which offers important information about material characteristics and atomic mobility. This method is still crucial for accurately characterizing molecular and crystalline structures in disciplines including chemistry, materials science, and structural biology.

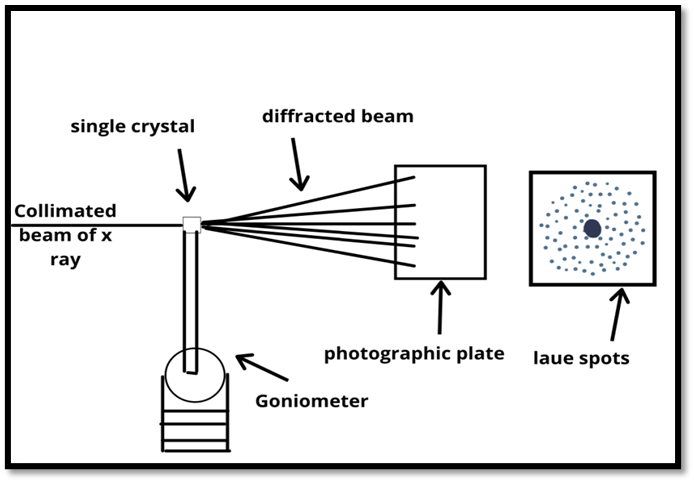

Figure 8-Single crystal X-ray diffraction

There are three basic processes in the single-crystal X-ray crystallography process. A suitably large crystal (usually larger than 0.1 mm in all dimensions), one that is pure in composition, structurally regular, and free of major internal flaws like cracks or twinning is necessary for the first step. To get precise diffraction data, the crystal's quality is essential. The crystal is subjected to a powerful monochromatic X-ray beam in the second step, which results in a highly organized pattern of reflections. Every compound has a distinct diffraction pattern, and the angles and intensities of the diffracted X-rays are measured. Reflections that were previously seen vanish when the crystal is slowly turned, and new ones appear. Each diffraction spot's intensity is recorded at several orientations, and in order to guarantee thorough coverage, it would be necessary to gather several data sets. Tens of thousands of distinct reflections are typically included in each dataset, which typically records just over half of a full rotation of the crystal. In the third and last stage, a detailed model of the atomic arrangement within the crystal is created by computationally processing the gathered data and combining it with complimentary chemical information. For future study and scientific reference, this improved structural model—also referred to as the crystal structure—is thereafter kept in open databases. Because it makes it possible to accurately determine molecular and atomic structures, single-crystal X-ray crystallography is still a vital technique in structural biology, chemistry, and materials research.

Powder diffraction method

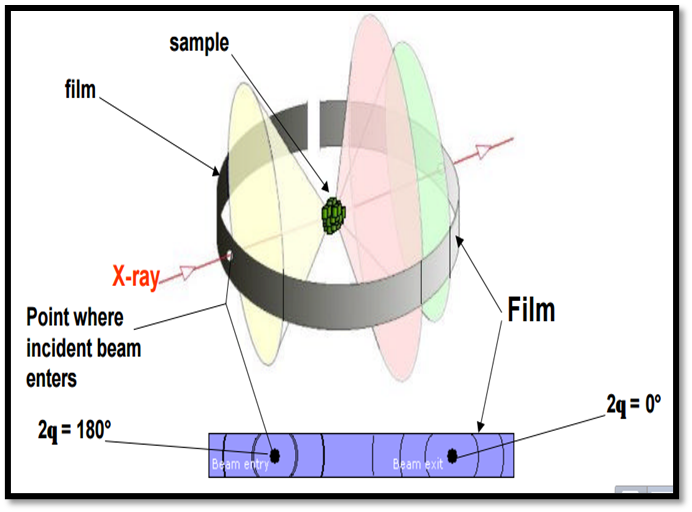

Figure 9- Powder diffraction method
