Poor aqueous solubility remains a principal barrier to oral delivery of many drugs, including cefuroxime axetil (CA). Cefuroxime Axetil (CA), a second-generation cephalosporin prodrug, exhibits poor aqueous solubility and low oral bioavailability due to its high lipophilicity and crystalline nature. As a Biopharmaceutics Classification System (BCS) Class II drug, its therapeutic efficacy is largely limited by its dissolution rate, necessitating advanced formulation strategies to enhance solubility. Traditional techniques such as solid dispersions, complexation, and lipid-based systems have shown partial success but often involve high energy consumption or the use of toxic solvents. This review focuses on the role of DES in enhancing the solubility and dissolution of Cefuroxime Axetil by discussing their mechanisms, types (choline chloride-based, NADES, THEDES), formulation methods, and in vitro evaluation techniques, including solubility, dissolution, and characterisation studies. A eutectic system or eutectic mixture is a type of homogeneous mixture that has a melting point lower than that of the constituents. The lowest possible melting point over all of the mixing ratios of the constituents is called the eutectic temperature. DESs were prepared by combining choline chloride (HBA) with various hydrogen bond donors (HBDs) such as glycerol, lactic acid, and urea in different molar ratios. Choline chloride (CHCL), commonly used as a hydrogen bond acceptor (HBA), forms deep eutectic solvents (DESs) when combined with various hydrogen bond donors (HBDs). For example, ChCl (melting point 303°C) and urea (134°C) form a DES at a mole ratio of 1:2, with a eutectic point of 12°C. Drug–DES mixtures were formulated by the solvent evaporation method and characterised for physicochemical compatibility (FTIR), crystallinity (DSC, PXRD), morphology (SEM), and thermal stability (TGA). The solubility of CA was evaluated in water and simulated gastrointestinal fluids, and in vitro dissolution studies were performed using a USP Type II apparatus. Among all DES formulations, choline chloride–glycerol (1:2) showed the greatest solubility enhancement and achieved more than 85% drug release within 30 minutes, compared to only 35% from pure CA. The improved dissolution is attributed to the hydrogen bonding and partial amorphisation of CA within the DES matrix. The study concludes that DES-based systems represent a promising, cost-effective, and environmentally benign strategy for improving solubility and dissolution of poorly water-soluble drugs like CA, with potential to enhance oral bioavailability.
Poor aqueous solubility and slow dissolution are major hurdles for many orally administered drugs, especially those falling under BCS Class II (low solubility, high permeability). For such drugs, the dissolution in gastrointestinal fluid becomes the rate-limiting step for absorption. One promising formulation strategy that has emerged in recent years is the use of deep eutectic solvents/systems (DESs) as solubilising media or as part of formulation systems to enhance solubility, dissolution and ultimately bioavailability.
A DES is typically a mixture of a hydrogen-bond acceptor (HBA) and a hydrogen-bond donor (HBD) at specific molar ratios whose melting point is significantly depressed relative to the individual components. This eutectic behaviour yields a liquid or semi-liquid at room or near-room temperature and can provide a solvent medium with interesting properties (e.g., high solvation power, tunable polarity, hydrogen-bonding network, often lower toxicity than ionic liquids). Among the applications, the pharmaceutical field has seen growing interest in DES for poorly soluble drugs. (1)
About Cefuroxime Axetil
Cefuroxime Axetil is the 1-acetoxyethyl ester prodrug of Cefuroxime, a second-generation cephalosporin antibiotic belonging to the β-lactam class. It was developed to enhance the oral bioavailability of Cefuroxime, which itself exhibits very poor gastrointestinal absorption due to its hydrophilic nature (Rautio et al., 2008).
Upon oral administration, Cefuroxime Axetil is rapidly hydrolyzed by esterases in the intestinal mucosa and plasma to release the active compound, Cefuroxime, which exerts a bactericidal action by inhibiting bacterial cell wall synthesis through binding to penicillin-binding proteins (3).
Importance of Cefuroxime Axetil
Cefuroxime Axetil is clinically important because it provides effective oral therapy for infections caused by both Gram-positive and Gram-negative bacteria. These include respiratory tract infections, urinary tract infections, skin and soft tissue infections, otitis media, sinusitis, and gonorrhea (4). The drug is commonly prescribed as an oral alternative when parenteral therapy with Cefuroxime sodium is not feasible, offering improved patient compliance. However, despite being a lipophilic prodrug designed for better absorption, Cefuroxime Axetil suffers from poor aqueous solubility (approximately 0.1 mg/mL) and variable oral bioavailability (30–50%) (5). This low solubility limits its dissolution rate, thereby affecting the extent and consistency of absorption in the gastrointestinal tract. According to the Biopharmaceutics Classification System (BCS), Cefuroxime Axetil falls under Class II, characterised by low solubility but high permeability (6). Hence, improving its solubility and dissolution rate is critical to achieving consistent therapeutic levels and maximising its antibacterial efficacy. The pharmaceutical importance of Cefuroxime Axetil lies in its clinical versatility and safety profile, coupled with the challenge of optimising its oral delivery. Researchers have therefore explored several formulation strategies—such as solid dispersions, nanoparticles, lipid-based carriers, and deep eutectic systems (DES)—to enhance its solubility and dissolution. Among these, DES have emerged as a green, cost-effective, and promising approach due to their ability to disrupt the crystalline lattice of the drug and increase molecular interaction with solvent components (7).
Poor Aqueous Solubility and Limited Bioavailability
One of the major challenges associated with the oral administration of Cefuroxime Axetil (CA) is its poor aqueous solubility and limited bioavailability, which significantly affect its therapeutic performance. Cefuroxime Axetil, a lipophilic prodrug of Cefuroxime, was designed to enhance gastrointestinal absorption; however, it still exhibits low solubility in water (approximately 0.1 mg/mL at 25 °C) and variable oral bioavailability ranging from 30–50% (8). These characteristics lead to slow and incomplete dissolution in gastrointestinal fluids, which is a rate-limiting step for absorption (9). According to the Biopharmaceutics Classification System (BCS), Cefuroxime Axetil is categorized as a Class II drug, characterized by low solubility and high permeability (10). For such drugs, the dissolution rate directly influences the rate and extent of absorption from the gastrointestinal tract. Thus, even though Cefuroxime Axetil possesses good membrane permeability, its therapeutic efficacy is restricted by inadequate dissolution in the aqueous environment of the gastrointestinal tract (11).
The poor aqueous solubility of Cefuroxime Axetil arises primarily from its crystalline structure and the presence of strong intermolecular hydrogen bonds, which stabilize the crystal lattice and hinder solubilization (12). Additionally, its lipophilic ester moiety increases hydrophobicity, further reducing solubility in aqueous media (13). The result is a slow onset of action, reduced bioavailability, and inconsistent plasma drug levels, which can compromise clinical efficacy and necessitate higher doses to achieve the desired therapeutic effect (14).
Moreover, the conversion of the prodrug to the active form (Cefuroxime) occurs only after enzymatic hydrolysis in the intestinal mucosa and plasma. Incomplete dissolution of the prodrug before hydrolysis limits the amount of drug available for absorption and activation (15). This phenomenon leads to variable pharmacokinetic profiles, particularly under fasting conditions, where the solubility and absorption of Cefuroxime Axetil are significantly lower compared to fed states (16) Improving the solubility and dissolution behavior of Cefuroxime Axetil is, therefore, a critical formulation goal to enhance its oral bioavailability and therapeutic consistency. Several approaches have been explored to overcome these limitations, including solid dispersions, cyclodextrin inclusion complexes, lipid-based formulations, nanosuspensions, and more recently, deep eutectic systems (DES). Among these, DES are emerging as a promising, green, and biocompatible alternative due to their ability to disrupt drug crystallinity and enhance dissolution without the need for harmful organic solvents (17).
Solubility Enhancement for BCS Class II Drugs
The Biopharmaceutics Classification System (BCS) categorises drugs based on their aqueous solubility and intestinal permeability into four classes:
Class I: High solubility, high permeability
Class II: Low solubility, high permeability
Class III: High solubility, low permeability
Class IV: Low solubility, low permeability (18).
Cefuroxime Axetil belongs to BCS Class II, meaning it exhibits low aqueous solubility but high intestinal permeability. For such drugs, the rate-limiting step in absorption is dissolution rather than permeability (19).
Hence, improving the solubility and dissolution rate becomes critical to achieve optimal bioavailability and consistent therapeutic efficacy.
Poorly soluble drugs like Cefuroxime Axetil tend to have slow dissolution rates in gastrointestinal fluids, resulting in limited drug absorption, low plasma concentrations, and inconsistent therapeutic outcomes (20).
This can lead to dose variability, where small differences in physiological conditions (such as gastric pH or food intake) significantly impact absorption. In extreme cases, a substantial portion of the administered dose may remain unabsorbed, reducing drug efficacy (21).
Enhancing solubility for BCS Class II drugs :
Increase the dissolution rate – As per the Noyes–Whitney equation, the dissolution rate is directly proportional to solubility.
Improve bioavailability – Greater solubility allows more drug to be available for absorption across biological membranes.
Reduce variability in absorption – Enhanced solubility minimises the influence of physiological factors (such as gastric pH or motility) on drug performance.
Ensure dose consistency and efficacy – Better solubility leads to predictable pharmacokinetic profiles and steady therapeutic outcomes (22).
To address these limitations, various formulation strategies have been employed for solubility enhancement, including solid dispersions, micronisation, nanocrystals, lipid-based systems, cyclodextrin inclusion complexes, and deep eutectic systems (DES) (23).
Deep Eutectic Systems (DES)
In recent years, Deep Eutectic Systems (DES) have emerged as a novel and green approach for improving the solubility and bioavailability of poorly water-soluble drugs, such as Cefuroxime Axetil. DES are a new class of designer solvents that are formed by the complexation of a hydrogen bond donor (HBD) and a hydrogen bond acceptor (HBA), which results in a significant depression of the melting point compared to that of the individual components (24). The interaction between HBD and HBA leads to the formation of a liquid eutectic mixture at room temperature, which can effectively solubilize both hydrophilic and hydrophobic compounds (25).
Unlike traditional organic solvents or ionic liquids, DES are biocompatible, biodegradable, non-toxic, and easy to prepare, making them a sustainable alternative in pharmaceutical formulations (26). Typical components of DES include naturally derived and safe compounds such as choline chloride, urea, glycerol, citric acid, and sugars, which can be combined in specific molar ratios to yield a liquid with unique physicochemical properties suitable for drug solubilization (27).
Advantages of the DES Process for Solubility Enhancement:
Furthermore, DES can be customised to optimise polarity, viscosity, and hydrogen-bonding capacity, allowing formulators to tailor solvent systems for specific drugs and desired solubility outcomes. This tunability provides a significant advantage over conventional solubilization methods such as solid dispersions, co-crystals, or surfactant-based systems (29). The use of DES in pharmaceutical sciences is rapidly expanding, with applications in drug solubilization, extraction, stabilisation, and delivery. In particular, Natural Deep Eutectic Solvents (NADES) — composed of naturally occurring metabolites — are being explored for oral, topical, and transdermal formulations, offering the dual benefits of enhanced solubility and improved safety profiles (30).
Physicochemical Properties of Cefuroxime Axetil
|
Sr. no. |
Property |
Description |
Reference |
|
|
Chemical name (IUPAC) |
(1-(acetyloxy)ethyl (6R,7R)-3-(carbamoyloxymethyl)-7-[[(Z)-2-(furan-2-yl)-2-(methoxyimino)acetyl]amino]-8-oxo-5-thia-1-azabicyclo[4.2.0]oct-2-ene-2-carboxylate |
Kumar, S., Singh, S., & Jain, A. (2018). Formulation development and evaluation of Cefuroxime Axetil solid dispersions. Asian Journal of Pharmaceutics, 12(3), S923–S930. |
|
|
Molecular formula |
C??H??N?O??S |
|
|
|
Molecular weight |
510.48 g/mol |
|
|
|

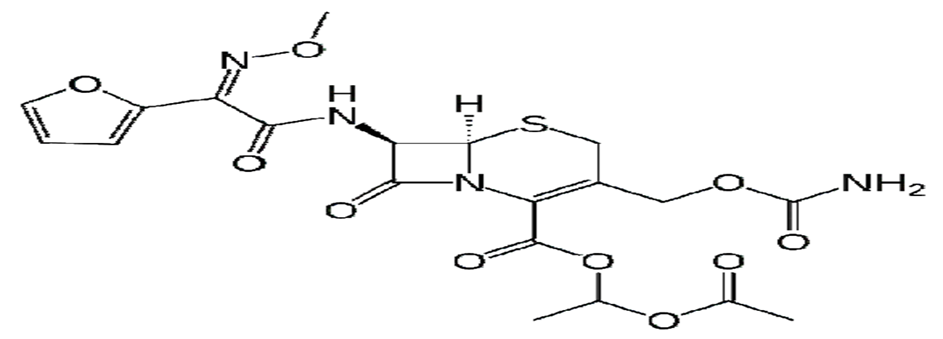

Chemical structure |
Prodrug ester of Cefuroxime; contains β-lactam ring and acetoxyethyl ester group |
|
|
|
Appearance |
White to off-white crystalline powder |
|
|
|
Odor |
Odourless |
|
|
|
Taste |
Slightly bitter |
|
|
|
Solubility |
Solubility Poorly soluble in water (≈ 0.1 mg/mL); freely soluble in methanol, ethanol, acetone, and dimethylformamide; slightly soluble in chloroform (Kumar et al., 2018) |
|
|
|
pKa |
Approximately 2.9 (carboxylic acid) and 7.1 (amino group) (Dixit & Patel, 2017) |
Dixit, R., & Patel, P. M. (2017). Physicochemical characterisation and formulation aspects of Cefuroxime Axetil. International Journal of Pharmaceutical Sciences Review and Research, 46(1), 89–94. |
|
|
Partition coefficient (log P) |
1.7 – 2.5 (lipophilic due to ester moiety) |
Ono, A., Noro, Y., & Takahashi, T. (1992). Physical characterization of Cefuroxime Axetil polymorphs. Chemical & Pharmaceutical Bulletin, 40(5), 1281–1286. |
|
|
Melting point |
178 – 180 °C |
|
|
|
Crystalline form |
Exists as amorphous and crystalline polymorphs (A- and B-forms); polymorph A exhibits better bioavailability (Ono et al., 1992) |
|
|
|
Stability |
Stable under dry conditions; hydrolyses in the presence of moisture or at high pH, forming Cefuroxime; photosensitive (Patil et al., 2016) |
Patil, V., Sawant, S., & Rathod, V. (2016). Stability studies of Cefuroxime Axetil and approaches for enhancement of its solubility. International Journal of Pharmacy and Pharmaceutical Sciences, 8(11), 101–107. |
|
|
Absorption |
Enhanced with food intake; undergoes enzymatic hydrolysis to Cefuroxime in the intestinal wall and plasma |
Hussain, T., Shakeel, F., & Khar, R. K. (2021). Cefuroxime Axetil: Pharmacokinetic and formulation perspectives for oral bioavailability enhancement. Pharmaceutical Development and Technology, 26(3), 300–312 |
|
|
Bioavailability |
30 – 50 % after oral administration of the tablet formulation (Hussain et al., 2021) |
Physicochemical Properties of Cefuroxime Axetil Cause Solubility Challenges
The poor aqueous solubility of Cefuroxime Axetil (CA) is primarily attributed to its physicochemical characteristics, including its crystalline structure, hydrophobic functional groups, and lipophilic prodrug nature. These intrinsic properties directly influence the dissolution behaviour of the drug in biological fluids, thereby affecting its bioavailability and therapeutic performance (31).
1. Crystalline Nature and Strong Intermolecular Bonding
Cefuroxime Axetil exists in a highly crystalline form, stabilised by strong intermolecular hydrogen bonding and van der Waals interactions. These strong lattice forces make it energetically unfavourable for the crystal structure to disintegrate into individual molecules during dissolution (32). Consequently, the drug dissolves very slowly in aqueous media, as substantial energy is required to break these intermolecular interactions. Crystalline drugs typically show lower solubility and slower dissolution rates than their amorphous counterparts (33).
2. Lipophilic and Ester Functional Groups
Cefuroxime Axetil is an ester prodrug of the hydrophilic parent drug, Cefuroxime, designed to improve membrane permeability. However, the introduction of lipophilic axetil moieties increases the compound’s hydrophobic character and reduces its polarity, resulting in very low aqueous solubility (~0.1 mg/mL at 25 °C) (34). These nonpolar regions resist interaction with water molecules, hindering the solvation process necessary for dissolution (35).
3. Poor Wetting and High Interfacial Tension
Due to its hydrophobic surface properties, Cefuroxime Axetil exhibits poor wettability in aqueous media. The drug particles tend to aggregate rather than disperse when in contact with water, leading to reduced surface area exposure and slower dissolution (36). This property further limits the rate at which the drug becomes available for absorption in the gastrointestinal tract.
4. Instability in Aqueous Environment
Cefuroxime Axetil is also chemically unstable in aqueous environments, particularly under acidic or basic conditions, where it undergoes hydrolysis to Cefuroxime before absorption (37). This instability complicates formulation efforts, as improving solubility in water may simultaneously lead to degradation, reducing the available active drug concentration.
5. High Partition Coefficient (log P)
The lipophilic nature of Cefuroxime Axetil is reflected in its relatively high log P value, indicating a preference for lipid over aqueous environments. While this favors membrane permeability, it adversely affects dissolution in gastrointestinal fluids, where water is the primary medium. Thus, there exists a trade-off between permeability and solubility, which is a hallmark challenge for BCS Class II drugs like Cefuroxime Axetil (38).
Solubility and Bioavailability Challenges
Several intrinsic physicochemical factors are responsible for this limited solubility.
1. Crystalline Structure and Strong Lattice Energy
Cefuroxime Axetil exists in a crystalline solid form, characterised by strong intermolecular hydrogen bonding and van der Waals interactions between its molecules. This tight crystal lattice requires a significant amount of energy to disrupt during dissolution (39). Drugs with high lattice energy, such as CA, tend to have low aqueous solubility because water molecules cannot easily penetrate and separate the crystalline layers.
2. Lipophilic Nature and Presence of Ester Moiety
Cefuroxime Axetil is an ester prodrug of the hydrophilic parent compound Cefuroxime. The axetil esterification increases the molecule’s lipophilicity (log P ≈ 2.6), which enhances permeability through biological membranes but drastically reduces solubility in water (40). The hydrophobic axetil group resists interaction with polar water molecules, preventing effective solvation and dissolution (41).
3. Poor Wettability
Due to its hydrophobic surface characteristics, CA particles exhibit poor wettability in aqueous environments. When introduced into water, the drug particles tend to aggregate instead of dispersing uniformly, reducing the available surface area for dissolution. This poor wetting behaviour further slows down the dissolution rate (42).
4. Instability in Aqueous Media
Cefuroxime Axetil is chemically unstable in water, undergoing hydrolysis to its parent compound, Cefuroxime, before absorption can occur (43). This instability complicates formulation efforts, as enhancing solubility often accelerates degradation, leading to loss of active drug before it can be absorbed.
5. Limited Hydrogen Bonding with Water
The molecular structure of CA contains several nonpolar regions, limiting its ability to form hydrogen bonds with water molecules. Since hydrogen bonding is a key driver of solubility for polar drugs, this structural feature further reduces CA’s solubility in aqueous media (44).
6. Biopharmaceutics Classification
According to the Biopharmaceutics Classification System (BCS), Cefuroxime Axetil is categorised as a Class II drug — characterised by low solubility and high permeability (45). For these drugs, the dissolution rate becomes the rate-limiting step for absorption, meaning that poor solubility directly limits oral bioavailability.
Solubility Enhancement Methods
Enhancing the solubility and dissolution rate of poorly water-soluble drugs like Cefuroxime Axetil is a critical step in improving their oral bioavailability and therapeutic performance. Over the years, several conventional formulation strategies have been developed to address this issue. Among the most effective and widely used techniques are solid dispersions, complexation with cyclodextrins, lipid-based formulations, and nanosuspensions.
1. Solid Dispersions
Solid dispersion (SD) involves dispersing a poorly soluble drug in a hydrophilic carrier matrix to enhance its solubility and dissolution rate. The drug is molecularly dispersed or finely distributed within the carrier, leading to:
2. Complexation with Cyclodextrins
Cyclodextrins (CDs) are cyclic oligosaccharides capable of forming inclusion complexes with hydrophobic drug molecules. The hydrophobic cavity of CDs encapsulates the non-polar portion of the drug, while the hydrophilic exterior interacts with water, thereby increasing apparent solubility. (47,48).
3. Lipid-Based Formulations
Lipid-based systems (such as self-emulsifying drug delivery systems (SEDDS) and liposomes) enhance solubility by dissolving the drug in lipidic excipients. These systems promote micellar solubilization and facilitate lymphatic transport, bypassing hepatic first-pass metabolism. (49).
4. Nanosuspensions
A nanosuspension is a colloidal dispersion of drug nanoparticles stabilised by surfactants. Reducing the particle size to the nanometre range increases surface area and dissolution velocity according to the Noyes–Whitney equation. Furthermore, nanoparticles can improve drug permeability across biological membranes. (50).
Deep Eutectic Systems (DES):
Deep Eutectic Systems (DES) are novel liquid systems formed by mixing two or more solid components, typically a hydrogen bond donor (HBD) and a hydrogen bond acceptor (HBA), which interact through hydrogen bonding to form a eutectic mixture with a melting point significantly lower than that of the individual components (51). These systems were first introduced by Abbott and co-workers in 2003 as an alternative to ionic liquids (ILs) due to their biocompatibility, biodegradability, cost-effectiveness, and ease of preparation. Unlike conventional solvents, DESs are often composed of naturally derived, non-toxic materials, making them especially suitable for pharmaceutical and biomedical applications. A typical example of a DES is the combination of choline chloride (HBA) with urea (HBD) in a 1:2 molar ratio, which produces a clear liquid at room temperature even though both components are solid individually.
Types of Deep Eutectic Systems (DES)
Deep eutectic systems (DES) can be categorised based on the nature and purpose of their components. In the pharmaceutical field, three major types are of particular relevance: Choline chloride-based DES, Natural Deep Eutectic Solvents (NADES), and Therapeutic Deep Eutectic Solvents (THEDES). Each class exhibits unique physicochemical and biological properties that influence its suitability for solubility enhancement, drug delivery, and formulation development.
1. Choline Chloride-Based Deep Eutectic Systems
Choline chloride-based DES are the earliest and most commonly studied systems. They are typically composed of choline chloride (ChCl) as the hydrogen bond acceptor (HBA) and compounds such as urea, glycerol, ethylene glycol, or organic acids as hydrogen bond donors (HBDs). These combinations interact through hydrogen bonding to form a liquid at room temperature, even though the individual components are solid.
Choline chloride is biodegradable, non-toxic, and inexpensive, making it highly suitable for pharmaceutical applications. Such DESs effectively improve the solubility and stability of hydrophobic drugs due to enhanced hydrogen bonding and polarity.
Example systems:
Applications:
Used for improving drug solubility, bioavailability, and dissolution rate of poorly soluble compounds, including ibuprofen, ketoprofen, and cefuroxime axetil. (52)
2. Natural Deep Eutectic Solvents (NADES)
Natural deep eutectic solvents (NADES) are formed from naturally occurring primary metabolites, such as sugars, amino acids, organic acids, and polyols. They are biocompatible, biodegradable, and environmentally sustainable, offering an eco-friendly alternative to synthetic solvents. These solvents mimic the natural intracellular environment and have been shown to enhance solubility, stability, and bioavailability of both hydrophilic and hydrophobic drugs. NADES are particularly advantageous for pharmaceutical, nutraceutical, and cosmetic formulations.
Example systems:
Applications:
NADES are used for solubilizing poorly water-soluble drugs, stabilizing biomolecules, and extracting natural compounds. (53)
3. Therapeutic Deep Eutectic Solvents (THEDES)
Therapeutic deep eutectic solvents (THEDES) are an innovative subclass of DES in which one or more components are active pharmaceutical ingredients (APIs). In THEDES, the drug itself participates in hydrogen bonding as an HBD or HBA, forming a eutectic mixture with enhanced solubility and stability. This approach allows THEDES to serve both as a solvent and as an active drug delivery medium, leading to improved bioavailability, permeability, and controlled release.
Example systems:
Applications:
THEDES are applied in transdermal drug delivery, oral formulations, and co-delivery systems, offering synergistic therapeutic effects and improved drug solubilization.(54,55)
Mechanisms of Solubility & Dissolution Enhancement by DES
1. Hydrogen-bonding/interaction effects
DESs provide an environment rich in hydrogen-bond donor and acceptor sites. These may interact with drug molecules (e.g., via H-bonding to polar/ionisable groups or via van der Waals/hydrophobic interactions), thereby stabilising the drug in solution and disrupting the solid-state crystalline lattice. For example, one review reports that the strong hydrogen bonding and van der Waals interactions within DESs reduce the lattice energy of the API, thereby facilitating dissolution and enhancing solubility. (56)
2. Disruption of crystallinity/amorphisation
By dissolving or partially solubilising the drug in the DES medium, or forming a drug-DES complex/interaction, the crystalline lattice energy barrier is reduced (or the drug exists in a partly amorphous form). This improves dissolution kinetics. Reviews catch this as one of the major mechanisms. (57)
3. Tenable solvent polarity, viscosity, microenvironment
DESs can be designed by varying the HBA/HBD ratio, incorporating water or co-solvents, adjusting temperature, etc. This tunability means one can tailor the medium to better solvate a given drug. For example, increasing water content may shift the optimum composition for solubility. (58) On the flip side, high viscosity of DES can impose limitations on mass-transfer/diffusion and hence dissolution rate.
4. Supersaturation/dissolution enhancement effect
When a drug is delivered in a DES or DES-based medium, once diluted (e.g., by gastrointestinal fluids), a supersaturated state may be created (i.e., concentration above equilibrium solubility), thereby enhancing the driving force for absorption. Some reviews consider DES as “supersaturating systems”. (59)
5. Permeability/absorption benefits
Beyond solubility/dissolution, some studies indicate that DESs may enhance drug permeability or absorption (through modulation of membrane interactions or via improved solubilisation). For example, in one formulation of a DES with Celecoxib, both in vitro and in vivo absorption benefits were shown. (60)
Evaluation Parameters for DES-Based Drug Formulations
The development of Deep Eutectic Systems (DES) for enhancing the solubility and dissolution of poorly soluble drugs requires systematic in vitro evaluation to establish their effectiveness, stability, and underlying interaction mechanisms. The following analytical and performance tests are commonly employed to assess DES-based formulations.
1. Solubility Studies (Shake-Flask Method)
To determine the equilibrium solubility of the drug in various DES formulations compared with pure water or conventional solvents.
Method:
The shake-flask method involves adding an excess amount of drug to a known volume of DES, followed by shaking at a controlled temperature (typically 25–37 °C) until equilibrium is reached. After centrifugation and filtration, the supernatant is analysed using UV–Vis spectrophotometry or HPLC to quantify dissolved drug concentration.
This method focuses on the extent of solubility enhancement (fold increase), the compatibility between drug and DES components and Hydrogen-bonding or ionic interactions that increase drug solvation. (61,62)
2. Dissolution Studies (USP Type II Paddle Apparatus)
To evaluate the in vitro drug release profile from DES formulations compared with pure drug or other delivery systems.
Method:
The dissolution study is performed using a USP Type II apparatus (paddle method) at 37 ± 0.5 °C, in an appropriate dissolution medium (e.g., phosphate buffer pH 7.4 or 0.1 N HCl). Aliquots are withdrawn at predetermined intervals and analysed spectrophotometrically.
This method focuses on the rate and extent of drug dissolution enhancement, the influence of DES composition and viscosity on dissolution kinetics and the possible reduction in drug crystallinity leading to faster release. (63,64)
3. Characterisation Studies
Analytical characterisation techniques are essential to confirm drug–DES interactions, structural modifications, and changes in crystallinity.
a. Fourier Transform Infrared Spectroscopy (FTIR)
Detects chemical interactions between the drug and DES components via shifts or disappearance of characteristic functional-group peaks.
It involves the Formation of hydrogen bonds or ionic interactions between the drug and DES, confirming molecular compatibility. (65,66)
b. Differential Scanning Calorimetry (DSC)
Measures thermal transitions to assess changes in melting point, glass transition, or crystallinity. Reduction or disappearance of the drug’s melting endotherm indicates amorphisation or eutectic formation. (67)
c. Powder X-Ray Diffraction (PXRD)
Identifies crystalline versus amorphous nature of the drug. A decrease or loss of sharp peaks indicates conversion from crystalline to amorphous state, leading to improved solubility. (68)
d. Scanning Electron Microscopy (SEM)
Examines surface morphology and particle size distribution. Changes from well-defined crystals to irregular or smooth amorphous particles indicate successful incorporation of drug into the DES matrix. (69)
4. Stability Studies
To assess the physical and chemical stability of the DES–drug system under accelerated and ambient storage conditions.
Method:
Formulations are stored at controlled temperatures (25 °C / 60 % RH and 40 °C / 75 % RH) for several weeks or months and periodically tested for drug content, pH, viscosity, and visual changes. (70)
5. Permeability or Diffusion Studies
To evaluate the effect of DES on drug permeation through biological or artificial membranes, simulating absorption behaviour.
Method:
Performed using Franz diffusion cells or Caco-2 cell monolayers. Drug permeation flux and permeability coefficients are calculated. (71)
CONCLUSION
Deep Eutectic Systems (DES) have shown great promise as new ways to improve the dissolution of Cefuroxime Axetil, a BCS Class II medication that doesn't dissolve well in water. The cumulative results from current studies unequivocally demonstrate that DES markedly enhance solubility by modifying the drug's physicochemical characteristics via robust hydrogen-bond interactions, reduced crystallinity, the creation of molecular complexes, and enhanced wettability. These changes in structure and microenvironment make dissolution happen faster and more efficiently than classic methods like solid dispersions or surfactants. Moreover, DES offer notable advantages including simplicity of preparation, low cost, high tunability, and environmental friendliness, aligning them with the principles of green chemistry. Their ability to dissolve a wide spectrum of hydrophobic pharmaceuticals without the use of harmful organic solvents makes them even more important in the pharmaceutical world. The research examined demonstrate that DES can be customized to attain particular release profiles, rendering them suitable for diverse drug delivery needs. However, despite encouraging in vitro results, the translation of DES-based formulations into practical pharmaceutical products requires further exploration. Critical aspects such as long-term physical and chemical stability, regulatory acceptance, toxicological safety, and large-scale manufacturing feasibility remain insufficiently addressed. Furthermore, extensive in vivo pharmacokinetic and pharmacodynamic investigations are necessary to validate the improved bioavailability indicated by in vitro results. In general, DES is a promising, long-lasting, and effective way to make Cefuroxime Axetil and other drugs that don't dissolve well more soluble and easier to dissolve. To fully realize the potential of DES technology and move it closer to clinical and industrial use in modern drug delivery systems, more research that combines formulation optimization, mechanistic studies, and preclinical evaluation is needed.
