Formulation And Evaluation of Sunscreen Cream Using Nanoparticles of Zinc Oxide, Beta Carotene and Avobenzone

The sun's UV radiation has both positive and negative impacts on wellbeing. The hurtful impacts from exposures to bright (UV) radiation shift concurring to the levels of UV, the term, the radiation concentrated influencing on the individual uncovered, and the person skin â sensitivity of the individual to UV. The bright radiation (UVR) is isolated into three sorts depending on wavelengths locale: long wavelengths UVA (320-400 nm), medium wavelengths UVB (280-320 nm), and brief wavelengths UVC (200-280 nm). UVC is greatly destructive to the skin. Luckily, UVC radiation is totally ingested by ozone layer as well as expansive amounts of the UVB radiation. As a result, the UVR that comes to the earth’s surface contains around 5% of UVB and 95% of UVA. The ampleness of sunscreen is more often than not shown by Sun Security Figure (SPF). Sunscreen items got to contain SPF15 or higher. ZnO is one of the physical sunscreens that does not encounter chemical rot when revealed to UV radiation. ZnO in nanometer degree as well has direct appearance when associated on skin. In extension to ZnO, Avobenzone and beta carotene in sunscreen has fabric characteristics that are secure, viable, and wide range. Sunscreen could be a cream or fluid connected on the skin to ensure it from the destructive impacts of the sun and expect sunburn. Sunscreen to boot known as sun-cream, sun piece or suntan moisturizer, can be a moisturizer, splash, gel, foam follow or other topical thing that acclimatizes or reflects many of the sun's shinning (UV) radiation and subsequently makes a distinction guarantee against sunburn.Skin is the largest organ of the human body

• Accounts for 16-20% of body weight...it weighs twice as much as your brain. For the average adult human, the skin includes a surface range of between 1.5-2.0 sq.mtrs
• The skin is composed of two fundamental layers (regions)..Epidermis - outermost layerDermis-underlying connective tissue.
• Subcutaneous fat (Hypodermis), inspite of its near anatomic relationship and tendency to reply together to pathologic forms, isn't a portion of skin basic structure.

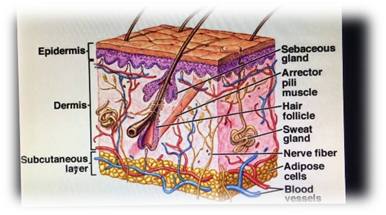

Fig.no.1 Anatomy of skin

Sunscreen:-

Sunscreen, too known as sunblock or suntan salve, could be a photo protective topical item for the skin that retains or reflects a couple of the sun's bright (UV) radiation and in this way makes a difference ensure against sunburn and most crucially maintain a strategic distance from skin cancer. Sunscreens come as salves, showers, gels, froths (such as an extended foam moisturizer or whipped balm), sticks, powders and other topical things. Sunscreens are common supplements to clothing, especially shades, sunhats and extraordinary sun defensive clothing, and other shapes of photo protection. The two most common physical sunscreens are the metal oxides titanium dioxide and zinc oxide. They reflect photons within the obvious light run, but work as chemical channels within the UV extend. Titanium dioxide retains up to 400 nm, and zinc oxide up to 370 nm.

COMPOSITION AND MECHANISM OF ACTION

Sun screening masters contain titanium dioxide (TiO2), kaolin, powder, zinc oxide (ZnO), calcium carbonate, and magnesium oxide. More up to date chemical compounds, such as bemotrizinol, avobenzone, bisoctizole, benzophenone-3 (BZ- 3, oxybenzone), and octocrylene, are broad-spectrum operators and are viable against a wide extend of sun oriented run both in test models and open air settings. Composition and instrument of activity of sun screening operators move from applying their activity through blocking, reflecting, and scrambling daylight. Chemical sunscreens assimilate high-energy UV bars, and physical blockers reflect or scramble light. Numerous natural compounds are more often than not joined into chemical sun screening masters to realize security against a run of the UV range. Inorganic particulates may scramble the micro particles inside the upper layers of skin, in this way expanding the optical pathway of photons, driving to assimilation of more photons and upgrading the sun assurance figure (SPF), coming about in tall proficiency of the compound. Culminate sunscreening specialists ought to be secure, chemically dormant, nonirritating, nontoxic, photostable, and able to supply total security to the skin against hurt from sun fueled radiation. They have to be be characterized in a cosmetically palatable outline and fixings need to stay on the upper layers of the skin without a doubt after sweating and swimming. They have to be moreover viably square both UVB and UVA pillars, which is conceivable with a master that has an SPF of 30 or more prominent. Sunscreens with an SPF of 30 or more prominent that solidify photostable or photostabilized UVA channels (labeled as broad Spectrum within the US) are more often than not perfect Sunscreens got to not because it were secure the skin from the sun, but moreover minimize the aggregate wellbeing dangers from sun harm caused over time.

Drug profile

1. Avobenzone

• Drug name - Avobenzone
• CAS         - 70356-09-1
• Category -  Sunscreen agent
• IUPAC name -  3-(4-tert-Butylphenyl)-1-(4-methoxyphenyl)propane-1,3-dione
• Molecular formula  -  C20H22O3
• Molecular weight  - 310.39 g/mol
• Melting point -  81-86 ?
• Solubility -  The solubility of avobenzone is approximately 5 mg/ml in ethanol and approximately 30 mg/ml in DMSO and DMF
• Molecular structure

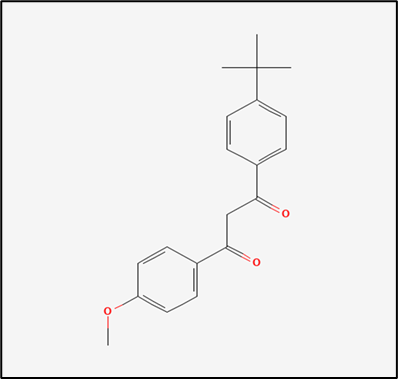

Fig no.2 structure of avobenzone

2. Zinc oxide

• Drug name -  Zinc oxide
• CAS - 1314-13-2
• Category - Sunscreen agent
• Molecular structure - ZnO
• IUPAC name -  Oxozinc
• Molecular formula -  ZnO
• Molecular weight - 81.379 g/mol
• Melting point - 1,975 °C
• Solubility -   It is insoluble in water but soluble in dilute acids and bases

3. Beta carotene

• Name-    Beta Carotene
• CAS-   7235-40-7
• Category- Sunscreen agent and precursor of vitamin A.
• Molecular formula-  C40H56
• IUPAC name -  1,3,3-trimethyl-2-[(1E,3E,5E,7E,9E,11E,13E,15E,17E)-3,7,12,16-tetramethyl-18-(2,6,6-trimethylcyclohexen-1-yl)octadeca-1,3,5,7,9,11,13,15,17-nonaenyl]cyclohexene.
• Molecular weight -  536.8726 g/mol
• Melting point -   180 °C
• Solubility  - Soluble in CS2, benzene, CHCl3, ethanol Insoluble in glycerin
• Molecular structure of B carotene.

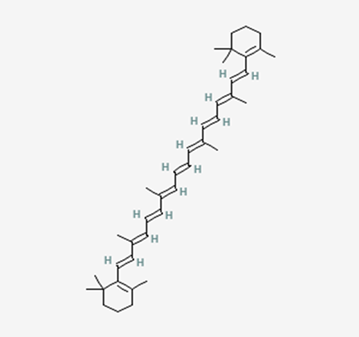

Fig.no.3 structure of beta carotene

MATERIALS AND METHODS

Tools and Materials

The instruments utilized in this consider are as takes after: X-Ray Diffraction (XRD), FTIR, UV-VIS Spectrophotometer, ultrasonicater, broiler, water shower, attractive stirrer, pH meter, thermometer, mortar and pestle, descriptive adjust, spatulas and aluminum upset. It too incorporates dish sets which joins measuring utensil, measuring container, mixing bar, dropper, measuring carafe, and funnel. The materials utilized in this consider are as takes after: zinc sulfate, ammonium hydroxide, ethanol, petroleum ether, avobenzone, beta carotene, beeswax, liquid paraffin, zinc oxide nanoparticles, borax, methyl paraben, rose oil, and water.

Procedures

Inside the mix of ZnO nanoparticles, 28gm of zinc sulfate were blended with 50ml refined water. These arrangement set on attractive stirrer with 80. Incorporate slowly drop canny ammonium hydroxide until gooey suspension is shaped. Accelerate was filtered, washed and dried utilizing broiler, ultrasonicater, and centrifugation gadget.

Table no 1. Formula of synthesis of nanoparticles of zinc oxide.

Table no. 2 formula of cream

Evaluation of synthesized zinc oxide nanoparticles

Evaluation of organoleptic characteristics of nanoparticles of zinc oxide was performed. Furthermore particle size determination by stage microscope, DLS and X-ray diffraction were also evaluated.

Evaluation of sunscreen organoleptic characteristics and other relevant parameters.

The assessment of organoleptic characteristics was performed. Watched parameters included coloration, odour, appearance, pH, and surface. Moreover, consistency, spreadability and homogeneity were moreover assessed.

Evaluation of the sun protection factor

To 1000 mg of sunscreen cream, 100 mL of ethanol was included and traded into a 200 mL volumetric jostle. The carafe was kept on ultra-sonication for 10 minutes, and the substance sifted utilizing a 0.45 ¼m Millipore channel. An aliquot of 5 mL was traded to a 25 mL volumetric jar and the volume was adjusted with ethanol to a final volume of 25 mL. The retention spectra of tests in arrangement were gotten inside the run of 290-320 nm in 1 cm quartz cell. Ethanol was utilized as clear. The absorption data were gotten inside the expand of 290-320 nm each 5 min interim and three judgments were made at each point. A showcased sunscreen thing was as well surveyed. The SPF of the characterized sunscreen points of interest and the showcased definitions were calculated utilizing Condition. The SPF of each sample was determined with the data obtained by spectrophotometric analysis, using the Mansur equation:

SPF spectrophotometric= CF ×∑290 EE (λ) ×I (λ) × Abs (λ)

Where,

CF is a correction factor (equals 10);

 EE (λ) is the eritematogenic effect of radiation at wavelength λ;

 I (λ) is the intensity of sun light at wavelength λ;

 Abs (λ) is the absorbance measured at wavelength λ.

 Values of EE × I are constants which were previously determined and reported.

Preparation of nanoparticles of zinc oxide

Zinc sulfate heptahydrate (ZnSO4 (H2O)7) and Ammonium hydroxide (NH4OH) were the two starting materials for the mix of ZnO nanoparticles. The designed procedure for ZnO nanoparticles by arrange precipitations strategy. Zinc sulfate mix with refined water and make a course of action of zinc sulfate. At that point incorporate ammonium hydroxide drop adroit with the help of appealing stirrer and lab stirrer. Homogeneous suspension happens, at that point sifting, washing and drying the course of action utilizing ultrasonicator and centrifugation .after drying the compound are zinc oxide nanoparticles.

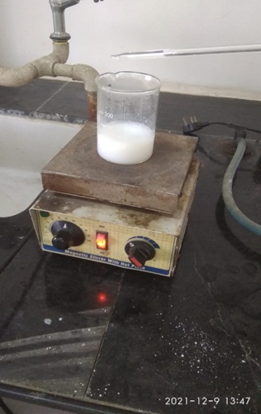

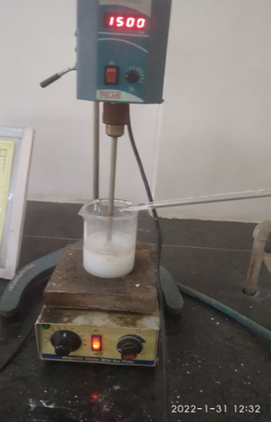

Fig .no.4 - preparation of zinc oxide nanoparticles

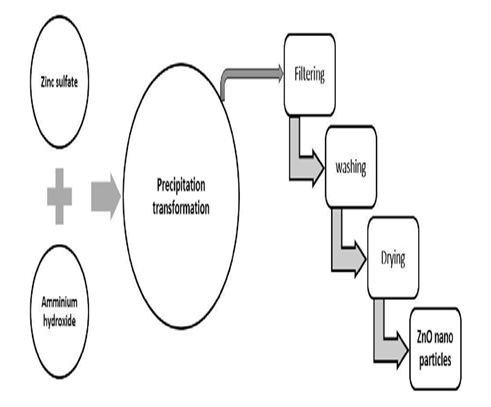

Fig .no.5- precipitation method

Isolation of Beta carotene from carrot

Particle size determination by stage microscope

Zinc oxide cream assay

Acetic acid, x M:  solution of any molarity x M may be prepared by diluting 57 x ml (60 x g ) of glacial acetic acid to 1000 ml with water.

Disodium Edetate, x M:  solution of any molarity x M may be prepared by dissolving 372.2 xg of disodium edetate in sufficient water to produce 1000 ml.

Identification

the reside obtained in the assay is yellow when hot and white when cool.

Table no 3.  Mean of zinc oxide

Fig no. 6 titration of zinc oxide cream yellow color obtained

RESULT AND DISCUSSION

Evaluation of sunscreen cream:-

Organoleptic characteristics:-

• Appearance- creamy smooth
• Colour -white
• Odour-pleasant
• Texture-smoth
• Spreadability- easily spreadable

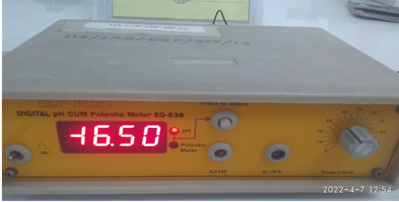

• PH-6.50

UV spectra of Avobenzone

Table no 4. Wavelength and abs avobenzone

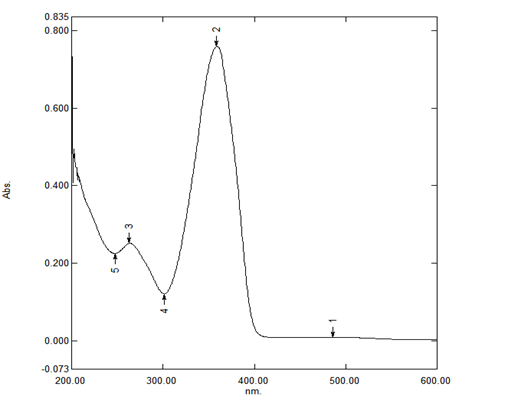

Fig .7- UV spectra of Avobenzone

FTIR analysis

Fig.no.8-FTIR analysis graph of Avobenzone

Table no 5. Wavelength and abs Beta carotene

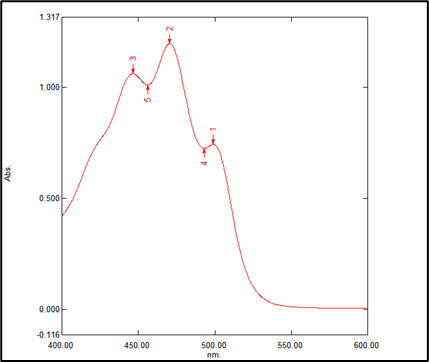

Fig.no 9- UV analysis graph of extracted beta carotene

SPF determination

SPF spectrophotometric= CF ×∑₂₉₀³²⁰ EE (λ) ×I (λ) × Abs (λ)

Where:

• EE (λ): Erythemal effect spectrum;
• I (λ): Solar intensity spectrum;
• Abs (λ): Absorbance of sunscreen product;
• CF: Correction factor (=10)

Tab.no.6 The value of Erythrmogenic Effect (EE) Is Constant

Tab no. 7 Absorbance of marketed product (SPF 15)

Calculations:

           SPF spectrophotometric = CF × ∑ EE (λ) × I (λ) × Abs (λ)

                                                      = 10 × 1.852

                                            SPF   = 18.52

Tab no. 8 Absorbance of marketed product (SPF 25)

Calculations:

           SPF spectrophotometric = CF × ∑ EE (λ) × I (λ) × Abs (λ)

                                                      = 10 × 2.267

                                            SPF   = 22.67

Tab no. 9 Absorbance of marketed product (SPF 50)

Calculations:

           SPF spectrophotometric = CF × ∑ EE (λ) × I (λ) × Abs (λ)

                                                      = 10 × 2.267

                                            SPF   = 22.67

Tab no. 10 Absorbance of formulated sunscreen
