Nanomedicine In Healing Chronic Wound

The application of nanotechnology in chronic wound care represents a paradigm shift in therapeutic approaches, promising enhanced precision and efficacy. As we embark on this exploration, we delve into the fundamental aspects of introducing nanotechnology to wound care.

1. Overview of Chronic Wounds :- Chronic wounds, characterized by delayed healing and persistent inflammation, present a substantialburden on patients and healthcare systems (Anderson etal., 2016). These wounds often accompany conditions like diabetes, vascular diseases, and aging, demanding novel interventions to address their intricate nature.[1]
2. Evolution of Therapeutic Approaches:- Traditional wound care approaches, while effective for acute wounds, fall short in managing the complexities of chronic wounds. The evolution of therapeutic strategies reflects a growing recognition of the need for precision and targeted interventions in chronic wound management (Jones et al., 2018).[2]

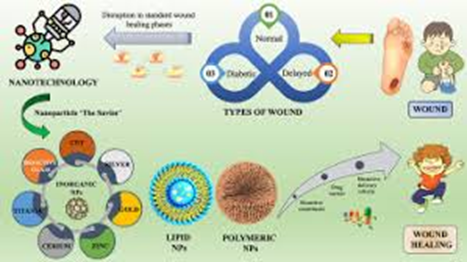

Showing Nano technology in wound care

 This shift in focus towards nanotechnology in wound care is driven by the unique properties of   nanoparticles, which allow for tailored interventions at the molecular and cellular levels. By understanding the distinct characteristics of chronic wounds and the limitations of conventional approaches, the stage is set for the exploration of nanotechnology's  transformative role.[3]

This introductory section lays the foundation for a deeper exploration of how nanotechnology can address the specific challenges posed by chronic wounds. As we proceed to subsequent sections, we will unravel the mechanisms, types of nanoparticles, clinical applications, challenges, and future directions in the integration of nanotechnology into chronic wound care.

TYPES OF NANOPARTICLES AND MECHANISMS IN WOUND HEALING:-

Understanding the diverse types of nanoparticles and their mechanisms in wound healing is pivotal in harnessing the full potential of nanotechnology for chronic wounds.

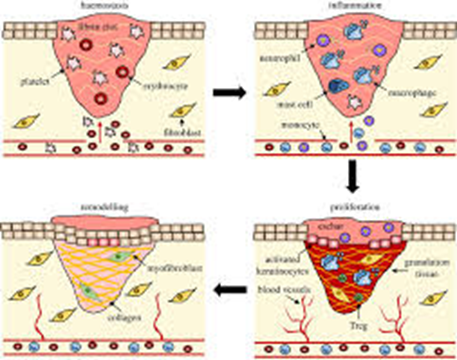

Showing mechanism of wound healing

1. Lipid-Based Nanoparticles: Enhancing Drug Solubility and Stability: Lipid-based nanoparticles offer a promising avenue for improving the solubility and stability of therapeutic agents, crucial for sustained and effective wound healing (Williams et al., 2017). These nanoparticles, often incorporating liposomes or lipidbased carriers, facilitate the encapsulation and controlled release of therapeutic cargos within the wound microenvironment. [4]
2. Polymeric Nanoparticles: Controlled Release for Prolonged Therapeutic Effects: Polymeric nanoparticles provide a platform for controlled drug release, ensuring prolonged therapeutic effects (Gupta et al., 2019). By leveraging the unique properties of polymers, these nanoparticles enable a sustained release of therapeutic agents, optimizing their presence in the wound site over time. [5]
3. Inorganic Nanoparticles: Unique Properties for Tailored Interactions: Inorganic nanoparticles, such as metallic or metal oxide nanoparticles, exhibit unique properties like high surface area and tunable reactivity (Chen et al., 2018). These properties enable tailored interactions within the wound microenvironment, influencing cellular responses and fostering an environment conducive to healing. [6] By exploring the mechanisms of these distinct types of nanoparticles, we gain insights into how nanotechnology can be precisely tailored to address the complexities of chronic wounds. The subsequent sections will further delve into the clinical applications, opportunities, challenges, and future directions in the integration of nanotechnology into chronic wound care.

CLINICAL APPLICATIONS AND FORMULATIONS

The translational potential of nanotechnology in chronic wound care is exemplified through its clinical applications and formulations, showcasing real-world efficacy and success stories.

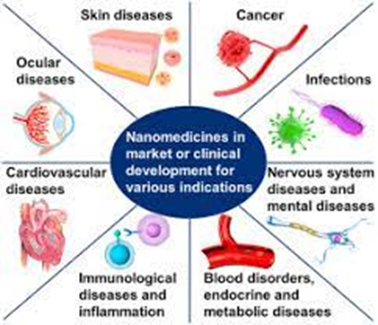

Showing clinical application

1. Real-world Efficacy: Case Studies and Clinical Trials: Clinical validation of nanotechnology in chronic wound healing is evident in compelling case studies and rigorous clinical trials. The application of nanomaterials has demonstrated notable success in promoting wound healing while maintaining safety standards (Rodriguez et al., 2020). [7]

These real-world applications underscore the transformative impact of nanotechnology, offering targeted and efficient solutions for chronic wound management.

2. Success Stories in Promoting Wound Healing: Within the landscape of chronic wound care, success stories emerge from the application of nanotechnology in promoting wound healing. Notable advancements in wound closure, tissue regeneration, and reduced healing times reflect the tangible benefits of nanoparticle-based therapies (Williams et al., 2017). [8] These success stories not only validate the efficacy of nanotechnology but also inspire further exploration into its diverse formulations and applications for chronic wound healing.As we proceed, we will delve into the opportunities presented by nanotechnology in chronic wound care, exploring targeted drug delivery precision and enhanced cellular uptake as key avenues for advancing therapeutic interventions.

This targeted approach holds significant promise, particularly in conditions like diabetic foot ulcers where localized therapy is paramount.

OPPORTUNITIES IN NANOMEDICINE FOR CHRONIC WOUNDS:-

Exploring the vast landscape of opportunities in nano-medicine for chronic wounds reveals two distinct yet interlinked avenues: targeted drug delivery and enhanced cellular uptake.

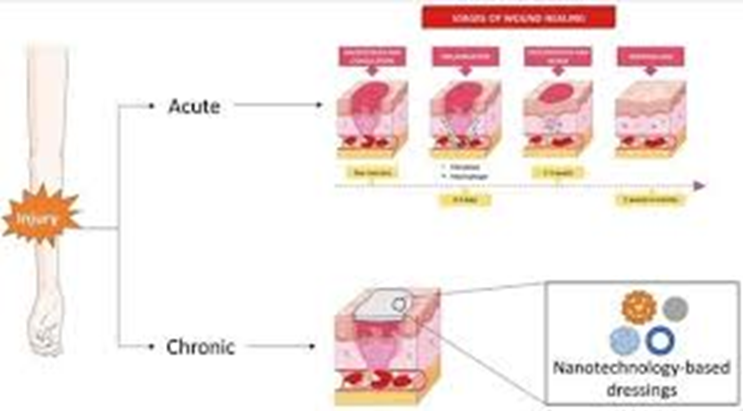

showing Nano-medicine for Acute and Chronic Wounds

1. Targeted Drug Delivery: Precision in Therapeutic Administration:-

Nanoparticles provide a precise platform for targeted drug delivery, addressing the specific challenges posed by chronic wounds (Shi et al., 2020). By engineering nanoparticles for site-specific recognition, therapeutic agents can be delivered precisely to the affected areas, minimizing systemic exposure and maximizing therapeutic impact. [9] This targeted approach holds significant promise, particularly in conditions like diabetic foot ulcers where localized therapy is paramount.

2. Enhanced Cellular Uptake: Overcoming Cellular Barriers:-

Chronic wounds often exhibit impaired cellular functions, hindering the natural healing process (Chen et al., 2018). Nanoparticles, with their small size and high surface area, facilitate enhanced cellular uptake, ensuring a more efficient delivery of therapeutic agents to key cells involved in wound repair[10].. This enhanced cellular uptake addresses a critical aspect of chronic wounds, promoting the activation of cellular processes necessary for an accelerated healing response. By capitalizing on these opportunities, nanomedicine not only offers precision in therapeutic administration but also navigates the cellular intricacies of chronic wounds. The subsequent sections will delve into the challenges associated with integrating nanotechnology into chronic wound care and propose future directions for overcoming these hurdles.

Nanotechnology in wound management :-

Nanotechnology in wound management represents a paradigm shift from conventional wound dressings to a more active, dynamic, and targeted approach to healing. Chronic wounds, which are often stalled in the inflammatory phase, require interventions that can effectively address a multitude of pathological factors simultaneously. Nanomaterials, with their unique properties such as a high surface area-to-volume ratio, customizable surface chemistry, and ability to interact with biological systems at a molecular level, are exceptionally well-suited for this purpose. The integration of nanotechnology into wound care involves several key strategies, each designed to overcome specific barriers to healing.

1. Targeted Drug Delivery and Bioactive Release:

One of the most significant advantages of nanotechnology is its ability to serve as a precise drug delivery system. Nanocarriers, such as liposomes, polymeric nanoparticles, and dendrimers, can be engineered to encapsulate and protect a variety of therapeutic agents, including antibiotics, growth factors, anti-inflammatory drugs, and gene-based therapies. This allows for the sustained and controlled release of these agents directly at the wound site, minimizing systemic exposure and potential side effects. For example, nanoparticles can deliver antibiotics directly to a bacterial biofilm, where the concentration of the drug is high enough to eradicate the infection while sparing healthy tissues. Similarly, the localized delivery of growth factors like VEGF or PDGF can promote angiogenesis and cell proliferation, which are often impaired in chronic wounds.

2. Antimicrobial and Anti-biofilm Strategies:

Chronic wound infections, particularly those caused by biofilms, are a major impediment to healing. Nanomaterials offer a powerful arsenal against these pathogens. Silver, gold, and zinc oxide nanoparticles, for instance, possess intrinsic antimicrobial properties that can disrupt bacterial cell membranes and inhibit their growth. These nanoparticles can be incorporated into wound dressings or hydrogels to provide a continuous and broad-spectrum antimicrobial effect. Furthermore, some nanomaterials are specifically designed to penetrate and disrupt the protective matrix of biofilms, making the encapsulated bacteria more susceptible to antibiotics and the body's immune response.

3. Bioactive Scaffolds for Tissue Regeneration:

Beyond simple drug delivery, nanotechnology is revolutionizing the development of wound dressings. Electrospun nanofiber scaffolds are particularly promising in this regard. Their intricate structure closely mimics the extracellular matrix (ECM) of native skin, providing an ideal environment for cell adhesion, migration, and proliferation. These scaffolds can be fabricated from biocompatible polymers and loaded with bioactive molecules to actively promote tissue regeneration. They can provide mechanical support, absorb wound exudate, and create a moist environment that is conducive to healing. By mimicking the natural tissue architecture, these scaffolds can guide the formation of new tissue, leading to enhanced re-epithelialization and reduced scar formation.

4. Modulating the Wound Microenvironment:

Nanomaterials can also actively modulate the chronic wound microenvironment to shift it from a non-healing state to a healing one. For example, cerium oxide nanoparticles and other antioxidant nanomaterials can neutralize the excessive reactive oxygen species (ROS) that contribute to chronic inflammation and cellular damage. Additionally, some nanomaterials have shown the ability to modulate the inflammatory response by regulating the activity of key cells like macrophages, promoting a switch from a pro-inflammatory to a pro-healing phenotype. This targeted manipulation of the biological processes within the wound bed is a major advantage that nanotechnology offers over traditional treatments.

In summary, nanotechnology provides a versatile and multifaceted platform for addressing the complex pathophysiology of chronic wounds. By combining targeted drug delivery, potent antimicrobial activity, tissue engineering principles, and microenvironment modulation, nanomedicine holds the potential to significantly accelerate healing, reduce complications, and improve the quality of life for patients with chronic wounds.

Types of nanoparticle and mechanism in wound healing:-

Nanoparticles, due to their unique physicochemical properties, are categorized into several types, each with distinct advantages and mechanisms of action in promoting chronic wound healing.

Types of Nanoparticles in Wound Healing

1. Metal and Metal Oxide Nanoparticles:

• These are some of the most widely used nanoparticles in wound care due to their inherent antimicrobial properties.
• Silver Nanoparticles (AgNPs): Silver has been used as a broad-spectrum antimicrobial agent for centuries. AgNPs are highly effective against a wide range of bacteria, including antibiotic-resistant strains. They are often incorporated into wound dressings to prevent and treat wound infections.
• Zinc Oxide Nanoparticles (ZnO NPs): These nanoparticles also exhibit strong antimicrobial activity and have been shown to promote cell proliferation, angiogenesis (formation of new blood vessels), and collagen synthesis, which are all crucial steps in wound healing.
• Gold Nanoparticles (AuNPs): AuNPs are highly biocompatible and can be functionalized with various therapeutic agents. They are used for targeted drug delivery, as well as for their anti-inflammatory properties and ability to scavenge reactive oxygen species (ROS).
• Copper Nanoparticles (CuNPs): Copper is an essential trace element for various enzymes involved in tissue repair. CuNPs possess both antimicrobial and pro-angiogenic properties, accelerating wound closure.
• Cerium Oxide Nanoparticles (CeO? NPs): Known as "nanoceria," these nanoparticles have potent antioxidant properties, which are critical for mitigating the chronic inflammation associated with non-healing wounds. They can mimic the activity of antioxidant enzymes, scavenging ROS and promoting a shift from a pro-inflammatory to a pro-healing environment.

2. Polymeric Nanoparticles:

• These nanoparticles are particularly valuable as smart delivery systems for a variety of therapeutic agents.
• Chitosan Nanoparticles: Chitosan is a natural, biodegradable, and biocompatible polymer with intrinsic hemostatic (blood-clotting) and antimicrobial properties. Chitosan nanoparticles can be used to deliver growth factors and antibiotics, and they also form a protective barrier over the wound.
• Poly(lactic-co-glycolic acid) (PLGA) Nanoparticles: PLGA is a well-known biodegradable and biocompatible synthetic polymer. PLGA nanoparticles are excellent carriers for controlled and sustained release of drugs, growth factors, and other bioactive molecules, ensuring a prolonged therapeutic effect at the wound site.
• Dendrimers: These are highly branched, tree-like nanoparticles with a well-defined structure. Their multiple surface groups allow for the attachment of various therapeutic agents, making them highly versatile for targeted drug and gene delivery.

3. Carbon-Based Nanomaterials:

• These materials offer unique structural and electronic properties that can be harnessed for wound healing.
• Carbon Quantum Dots (CQDs): These are tiny, zero-dimensional carbon materials that have shown promise in wound healing due to their antibacterial and anti-biofilm efficacy. They can also reduce inflammation and promote tissue repair.
• Graphene Oxide: This single-atom-thick sheet of carbon can be used in wound dressings to provide structural support, prevent bacterial growth, and modulate cellular responses, such as fibroblast proliferation and angiogenesis.

4. Nanocomposites and Hydrogels:

• These systems combine different types of nanoparticles or nanomaterials to create a synergistic effect.
• Nanofiber Scaffolds: Created through techniques like electrospinning, these scaffolds mimic the natural extracellular matrix (ECM), providing a structural framework for cells to migrate and proliferate. They can be loaded with therapeutic nanoparticles to create a "smart" dressing.
• Nanoparticle-Loaded Hydrogels: Hydrogels are polymer networks that can absorb large amounts of water, creating a moist environment conducive to healing. By incorporating various nanoparticles, these hydrogels can gain additional functionalities like antimicrobial activity, antioxidant properties, and sustained drug release.

Mechanisms of Action in Wound Healing

The mechanisms by which these nanoparticles promote wound healing are multifaceted and often work in synergy to address the various complexities of chronic wounds:

Antimicrobial and Anti-biofilm Activity: Many nanoparticles, particularly those made of silver, zinc oxide, and copper, directly kill bacteria by disrupting their cell membranes, producing reactive oxygen species (ROS), or interfering with their metabolic processes. Theycan also penetrate and disrupt the protective matrix of biofilms, making them a potent tool against chronic wound infections.

Modulation of Inflammation: Chronic wounds are stuck in a prolonged inflammatory phase. Nanoparticles can help by scavenging excessive ROS, which reduces oxidative stress and cellular damage. They can also modulate the activity of immune cells like macrophages, encouraging them to switch from a pro-inflammatory (M1) phenotype to a pro-healing (M2) phenotype.

Promotion of Angiogenesis and Re-epithelialization: Nanoparticles can stimulate the production of growth factors like VEGF, which is essential for the formation of new blood vessels. A sufficient blood supply is vital for delivering oxygen and nutrients to the wound site. Additionally, nanoparticles can promote the migration and proliferation of keratinocytes and fibroblasts, which are the key cells involved in re-epithelialization and the production of new tissue.

Controlled Drug and Gene Delivery: Nanocarriers can encapsulate therapeutic agents, such as growth factors, antibiotics, and anti-inflammatory drugs, and release them in a controlled, sustained manner. This localized delivery enhances the therapeutic efficacy, minimizes systemic side effects, and ensures that the agents are active at the wound site for an extended period.

Biomimetic Scaffolding: Nanofiber scaffolds and hydrogels can be designed to mimic the structural and biochemical cues of the natural ECM. This provides a supportive environment for cells to attach, proliferate, and differentiate, thereby promoting tissue regeneration and reducing scar formation.

Challenges and limitations in nanotechnology integration :-

Nanotechnology holds immense promise for revolutionizing various fields, from medicine and electronics to energy and consumer products. However, its widespread integration is met with a range of significant challenges and limitations. These issues are not only technical but also span across economic, social, and ethical domains.

Here's a breakdown of the key challenges and limitations in nanotechnology integration:

Technical and Scientific Challenges

Fabrication and Scalability:

• Complexity: The design and engineering of nanoparticles are highly complex, requiring precise control over their size, shape, and composition. Small variations can drastically alter their properties.
• Reproducibility: Manufacturing processes often lack the reproducibility needed for consistent product quality. Scaling up production from the lab to a commercial scale is a major hurdle.
• High Costs: The specialized equipment and intricate processes involved in creating nanomaterials are often expensive, limiting their commercial viability.

Characterization and Measurement:

• Detection: Nanomaterials are so small that they can be difficult to detect and characterize using conventional methods. New, more sophisticated techniques are required to accurately measure their properties.
• Inconsistent Techniques: A lack of standardized characterization techniques makes it difficult to compare results across different studies and laboratories.

Performance and Stability:

• Chemical Stability: Many nanomaterials can be chemically unstable, leading to issues like corrosion or degradation.
• Aggregation: Nanoparticles often have a tendency to clump together (aggregate) in a solution, which can reduce their effectiveness and alter their intended properties.
• Drug Delivery Barriers: In nanomedicine, a major challenge is for nanoparticles to overcome biological barriers like the blood-brain barrier or the dense stroma of tumors to reach their intended target.

Health, Safety, and Environmental (HSE) Concerns

• Toxicity: The unique properties of nanomaterials, such as their high surface-area-to-volume ratio, can lead to unknown or unpredictable toxic effects on biological systems.
• Bioaccumulation: There are concerns that nanoparticles could accumulate in organs and tissues, with potential long-term health consequences.
• Environmental Impact: The release of nanomaterials into the environment could have unforeseen ecological effects, and more research is needed to understand and mitigate these risks.

Risk Assessment and Regulation:

• Lack of Data: There is a significant lack of comprehensive data on the long-term health and environmental impacts of many nanomaterials, making it difficult to establish effective risk assessments and regulations.
• Regulatory Framework: The current regulatory frameworks are not always well-equipped to handle the unique nature of nanomaterials, which exist at the intersection of different fields.

Economic and Societal Challenges

Cost and Commercialization:

• Manufacturing Costs: The high cost of production and the need for expensive equipment can be a barrier to entry for many companies.
• Market Uncertainty: The lack of standardized regulations and long-term safety data can create uncertainty for businesses and investors.

Ethical and Social Issues:

• Public Perception: There is often a general lack of public knowledge about nanotechnology and its applications, which can lead to distrust and resistance.
• The high cost of nanotechnology:-based solutions could lead to disparities in access, particularly in fields like healthcare and agriculture.

Educational and Workforce Gaps:

• Interdisciplinary Training: Nanotechnology is a highly interdisciplinary field, requiring expertise in physics, chemistry, biology, and engineering. There is a need for educational programs and a workforce that can bridge these different disciplines.
• Lack of Teacher Training: A lack of systematic training for educators in this field can hinder the development of a new generation of nanoscientists.

In conclusion, while nanotechnology offers transformative potential, its successful integration hinges on overcoming these multifaceted challenges. Addressing these issues will require continued research, collaboration between different sectors, the development of robust regulatory frameworks, and public engagement to ensure responsible and sustainable innovation.

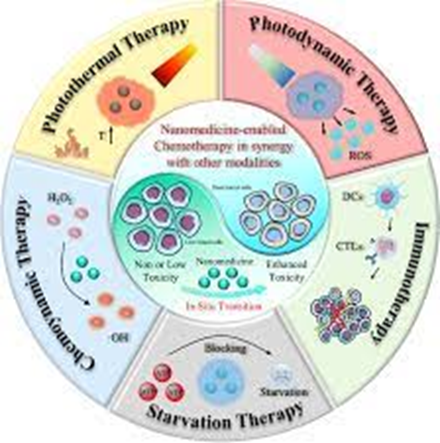

Nanomedicine-enable chemotherapy and derived synergistic cancer therapy

Nanomedicine-enhanced chemotherapy

As the first-line treatment strategy against cancer, chemotherapy has made tremendous achievements in suppressing tumor proliferation, preventing metastasis, and prolonging patients' lives [20]. Commonly used chemodrugs such as doxorubicin (DOX), paclitaxel (PTX), docetaxel (Dtxl), and cisplatin (DDP), etc., can effectively destroy cancer cells after being taken up by tumor cells. However, the therapeutic effectiveness of these chemical drugs is always severely compromised by rapid clearance and non-specific distribution, resulting in inevitable systemic toxicity. Additionally, tumor cells will gradually develop a strong resistance pathway against chemotherapy drugs during long-term administration, known as MDR, which is one of the primary reasons for chemotherapy failure. Nowadays, nanomaterial-enabled chemotherapy aims to elevate the efficacy of conventional cancer chemotherapy regimens through diverse strategies.

Targeted delivery of chemotherapy drugs

The enhanced tumor vascular permeability and inhibition of lymphatic drainage allow nanomedicines to enter the interstitial space of the tumor and then be retained, which is the typical EPR effect that achieves passive enrichment of therapeutic agents in the tumor [21]. Numerous studies have been reported in this area. For example, most recently, Li et al. developed a novel cationic dendrimer-decorated nanogels (NGs-G2) to reduce the detrimental retention of chemotherapeutics in the liver while increasing their accumulation in tumors (Fig. 1a) [22]. After modification by the G2 dendrimer, the overall charging NGs-G2 of is turned from neutral into positive, and it exhibits overall charging properties of positively charged corona and neutral core. This unique architecture and charge conversion confers NGs-G2 with highly desired biodistribution of reduced liver accumulation, increased tumor uptake, and facilitated drug release, leading to greatly enhanced anti-tumor therapeutic efficacy with no significant side effects (Fig. 1b). In addition, to further amplify the interactions between nanomedicines and cancer cells, Ma et al. fabricated a novel cancer chemotherapy nanomedicine by self-assembly of the mussel-derived tumor-targeting peptide with a pH-sensitive antitumor drug (Fig. 1c) [23]. In particular, this tumor-targeting peptide RGD enhances the enrichment of chemotherapeutic agents in tumor tissue by binding to αvβ3 integrins overexpressed on tumor cell membranes, making the self-assembled nanoparticles tumor-targeting.

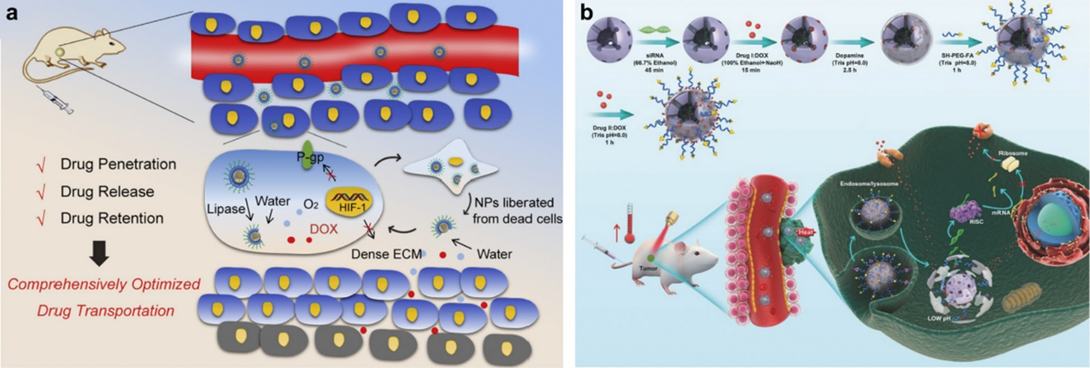

Schematic illustration of DOX-CaO2/MnO2-MS NPs for largely promoted drug transport. B. Schematic diagram of the synthesis process of M-R@D-PDA-PEG-FA-D and the combination of photothermal chemotherapy and gene targeting for the treatment of tumors
