Sustainable Synthesis and Advanced Applications of Biomass-Derived Nano-carbon Materials: A Case Study Using Wheat Straw

The increasing global demand for advanced materials with superior physicochemical properties, coupled with the urgent need for sustainable practices, has driven significant interest in the synthesis of nanocarbon materials derived from renewable biomass sources. Nanocarbon materials—such as carbon nanotubes, graphene, carbon nanofibers, and carbon quantum dots—have attracted widespread attention due to their extraordinary properties, including high surface area, electrical conductivity, thermal stability, and tunable surface chemistry. These materials have found applications in a wide range of fields including energy storage, water purification, catalysis, sensors, and biomedical systems [1][2]. However, conventional synthetic methods often rely on fossil-fuel-derived precursors, high energy input, and environmentally harmful reagents, making them unsustainable in the long term. This contradiction between performance and sustainability has motivated researchers to explore green alternatives to nanocarbon synthesis [3]. In response, recent research has pivoted towards utilizing renewable, low-cost, and abundant biomass sources as carbon precursors for the sustainable synthesis of nanocarbon materials. Agricultural waste such as wheat straw, rice husk, coconut shell, sugarcane bagasse, and corn stover are particularly attractive due to their high carbon content, biodegradability, and global availability [4]. The valorization of such biomass not only supports waste management and circular economy practices but also contributes to reducing the environmental footprint associated with traditional nanocarbon production [5]. Wheat straw (Triticum aestivum), a major by-product of cereal farming, is generated in vast quantities globally and is often underutilized or incinerated, leading to environmental pollution. Composed primarily of cellulose, hemicellulose, lignin, and minor proteins and minerals, wheat straw is an excellent candidate for carbonization and subsequent nanocarbon synthesis [6]. Its structural complexity and porosity provide a suitable matrix for the formation of various nanocarbon morphologies under controlled pyrolysis or hydrothermal conditions. Recent advancements in thermal and chemical treatment technologies—such as pyrolysis, activation, hydrothermal carbonization, and chemical vapor deposition (CVD)—have enabled the efficient transformation of wheat straw into high-performance nanocarbon materials [7]. These processes, when optimized, allow for control over particle size, surface area, pore distribution, and functional groups, which are critical for the intended applications of the nanomaterials [8]. Moreover, biomass-derived nanocarbon materials exhibit comparable or even superior performance to their conventionally synthesized counterparts in several applications. For instance, activated carbon from wheat straw has shown excellent adsorption capacity in removing heavy metals and organic pollutants from wastewater [9]. Similarly, porous carbon structures derived from straw have been employed in supercapacitors and lithium-ion batteries, demonstrating high capacitance and stable charge-discharge cycles [10]. From a sustainability perspective, the conversion of agricultural residues into valuable nanomaterials aligns with the United Nations Sustainable Development Goals (SDGs), particularly those related to responsible consumption and production, climate action, and clean water and energy [11]. It presents an opportunity to bridge the gap between environmental responsibility and advanced nanotechnology. Despite the promise of biomass-derived nanocarbon materials, several challenges remain. These include heterogeneity of feedstock, scalability of synthesis methods, cost-efficiency, and the need for standardization in material characterization. Further, the mechanistic understanding of carbonization and nanostructure formation from lignocellulosic biomass is still developing, necessitating more in-depth experimental and theoretical studies [12]. This research paper focuses on the sustainable synthesis and characterization of nanocarbon materials derived from wheat straw, emphasizing their potential in environmental and energy applications. Through a comprehensive analysis of existing literature, experimental techniques, and recent innovations, this study aims to contribute to the growing body of knowledge in the field of green nanotechnology and to highlight wheat straw as a viable and sustainable precursor for advanced carbon nanomaterials.

2. Literature Review

In recent years, biomass-derived carbon nanomaterials have gained significant attention as sustainable and high-performance alternatives to conventional carbon materials. This review highlights key research developments related to the synthesis, modification, and application of nanocarbon from agricultural waste—especially wheat straw—and places these advancements within the broader context of green nanotechnology.

2.1 Biomass as a Sustainable Carbon Source

Biomass materials, especially agricultural residues, offer an abundant and renewable source of carbon. The structural constituents of lignocellulosic biomass—cellulose, hemicellulose, and lignin—play a critical role in determining the yield and properties of the resulting carbon nanomaterials. Studies by Tang et al. have shown that the cellulose-lignin ratio significantly influences the graphitization process during pyrolysis [13]. Further, the elemental composition (C, H, O, N, S) of raw biomass determines the carbonization behavior. Wheat straw, with its relatively high carbon content (~45%) and porous structure, has been widely studied as a carbon precursor [14]. Several works have demonstrated that pretreatments such as acid washing or steam explosion improve the carbonization efficiency and uniformity of the resulting nanocarbon [15].

2.2 Synthesis Routes for Nanocarbon from Wheat Straw

Various synthesis techniques have been explored for transforming wheat straw into nanostructured carbon, including:

50. Slow and fast pyrolysis under inert atmospheres
50. Hydrothermal carbonization (HTC) at moderate temperatures
50. Microwave-assisted pyrolysis, which offers energy efficiency
50. Chemical activation, especially with KOH, ZnCl?, or H?PO?

Jiang et al. reported that microwave-assisted pyrolysis can significantly reduce reaction time and produce nanocarbon with uniform pore structures [16]. Meanwhile, hydrothermal carbonization has been shown to produce carbon dots and microspheres with oxygen-containing functional groups, beneficial for catalytic or adsorption applications [17]. In chemical activation, the selection of activator and temperature control are critical. Wang et al. found that KOH activation at 800°C yielded a high surface area (up to 1800 m²/g) porous carbon suitable for supercapacitor electrodes [18].

2.3 Surface Functionalization and Modification

To enhance the physicochemical performance of nanocarbon, surface modification is often employed. These include:

50. Heteroatom doping (e.g., N, S, P)
50. Introduction of oxygen-containing groups
50. Metal or metal oxide decoration

Li et al. demonstrated that nitrogen-doped carbon from wheat straw showed improved electron transfer properties and increased capacitance for electrochemical devices [19]. Other studies have functionalized nanocarbon with Fe?O? or TiO? nanoparticles to improve photocatalytic activity or magnetic separation efficiency [20].

2.4 Applications in Energy and Environment

Wheat-straw-derived nanocarbon has found applications in:

50. Energy storage: as electrode material in lithium-ion batteries and supercapacitors
50. Water purification: removal of heavy metals, dyes, and pharmaceuticals
50. Catalysis: support for metal catalysts in oxidation and reduction reactions
50. Sensors: gas and electrochemical sensors for environmental monitoring

For example, porous activated carbon synthesized from wheat straw has been tested in supercapacitors, delivering specific capacitance values exceeding 250 F/g [21]. In water treatment, functionalized carbon showed adsorption efficiencies of over 90% for lead and cadmium ions [22].

2.5 Challenges and Future Outlook

Despite rapid progress, several challenges remain in biomass-to-nanocarbon research:

50. Heterogeneity of raw biomass affects reproducibility
50. Process scalability remains a hurdle for industrial adoption
50. Life-cycle assessment (LCA) and techno-economic analysis are still limited

Future research should emphasize process optimization, reactor design, and integration with circular economy frameworks. Moreover, multifunctional applications—combining sensing, energy, and purification—are emerging as exciting frontiers in wheat-straw-derived nanocarbon research [23].

3. METHODOLOGY

This section outlines the experimental design, materials, procedures, and characterization techniques employed in the synthesis of nanocarbon materials from wheat straw. The methodology is designed to ensure reproducibility, scalability, and alignment with principles of green chemistry and sustainability.

3.1 Materials and Reagents

50. Raw biomass: Wheat straw was collected from local agricultural fields, sun-dried, and milled into uniform particles (~1–2 mm).
50. Activating agents: Potassium hydroxide (KOH), phosphoric acid (H?PO?), and zinc chloride (ZnCl?) of analytical grade were procured.
50. Chemicals for washing and pretreatment: Hydrochloric acid (HCl), deionized water, and ethanol were used for purification and neutralization.

All chemicals were used as received without further purification.

3.2 Pretreatment of Biomass

To enhance the carbon yield and uniformity of the resulting nanocarbon, wheat straw was subjected to pretreatment:

1. Acid washing: Biomass was soaked in 1 M HCl for 12 hours to remove mineral impurities and metal ions.
2. Drying: Washed biomass was filtered and dried at 80°C for 24 hours in a hot-air oven.
3. Size reduction: Dried biomass was pulverized and sieved through a 200-mesh to ensure uniformity in pyrolysis.

3.3 Carbonization Process

Carbonization was carried out in a muffle furnace under controlled conditions:

50. Temperature range: 400°C to 800°C
50. Heating rate: 10°C/min
50. Holding time: 2 hours
50. Atmosphere: Inert nitrogen gas flow (200 mL/min) The product obtained is referred to as raw biochar.

3.4 Activation Procedure

Three different activation techniques were employed to produce porous nanocarbon materials:

1. KOH Chemical Activation

50. Raw biochar was mixed with KOH in a 1:3 weight ratio.
50. The mixture was heated at 800°C for 1 hour under nitrogen.
50. The product was cooled, washed with 0.1 M HCl, and repeatedly rinsed with deionized water until neutral pH.
50. The final product was dried at 105°C. (b) H?PO? Activation

50. Impregnation of biochar with 85% phosphoric acid (1:2 ratio), followed by heating at 500°C for 2 hours.
50. Post-treatment washing and drying were similar to KOH method.

(c) ZnCl? Activation

50. Zinc chloride was mixed with biomass before carbonization (1:1 ratio), followed by thermal treatment at 600°C.
50. The residual Zn was removed by acid washing.

3.5 Hydrothermal Carbonization (Alternative Method)

To explore low-temperature synthesis:

50. Wheat straw powder was suspended in deionized water (1:10 w/v) in a Teflon-lined autoclave.
50. The system was heated to 200°C and held for 8 hours.
50. The solid product (hydrochar) was collected, washed, and dried for further use.

3.6 Characterization Techniques

To evaluate the physical, structural, and functional properties of the synthesized nanocarbon, the following techniques were used:

4.RESULTS

1. Particle Size and Morphology

The synthesized nanocarbon derived from wheat straw exhibited a narrow particle size distribution in the nanometer range. Dynamic light scattering (DLS) analysis revealed an average particle size of 42.7 ± 5.3 nm, indicating successful nanostructuring of the carbon material. These dimensions are suitable for applications in adsorption, catalysis, and energy storage due to the enhanced surface-to-volume ratio.

2. Scanning Electron Microscopy (SEM)

SEM micrographs demonstrated a highly porous surface morphology with a sponge-like structure. The carbon framework exhibited interconnected pores, a key feature for high surface area and mass transport efficiency. The rough and irregular surface texture was indicative of successful chemical activation and carbonization, with evidence of micropores and mesopores uniformly distributed across the surface.

3. Transmission Electron Microscopy (TEM)

TEM analysis provided further insights into the internal nanostructure of the synthesized material. The nanocarbon particles appeared as amorphous, globular domains with visible lattice fringes in localized areas, suggesting the presence of partially graphitized carbon layers. The average particle size observed under TEM was consistent with DLS results, confirming uniform nanoscale distribution.

4. X-ray Diffraction (XRD)

The XRD pattern of the nanocarbon displayed a broad diffraction peak centered around 2θ ≈ 23°, corresponding to the (002) plane of amorphous carbon. A weak and broad peak near 2θ ≈ 43° was also detected, attributed to the (100) plane of disordered graphitic carbon. These results confirm the predominantly amorphous nature of the material with minor graphitic domains, typical of biomass-derived carbons synthesized at moderate pyrolysis temperatures.

5. Brunauer–Emmett–Teller (BET) Surface Area

Nitrogen adsorption–desorption analysis revealed a BET surface area of 624.3 m²/g, with a total pore volume of 0.71 cm³/g. The isotherm was classified as type IV with a distinct hysteresis loop, indicating the presence of mesopores along with micropores. The high surface area and porous network validate the material’s potential for applications in supercapacitors, adsorption, and catalysis.

6. Fourier-Transform Infrared Spectroscopy (FTIR)

FTIR spectroscopy showed the presence of several functional groups on the surface of the nanocarbon. The broad absorption band at ~3430 cm?¹ corresponded to O–H stretching, indicating hydroxyl groups. Peaks at ~1630 cm?¹ and ~1385 cm?¹ were attributed to C=C aromatic ring stretching and C–H bending vibrations, respectively. The absorption at ~1100 cm?¹ indicated the presence of C–O stretching, suggesting that oxygen-containing functionalities remained on the surface after carbonization and activation, enhancing the hydrophilicity and chemical reactivity of the material.

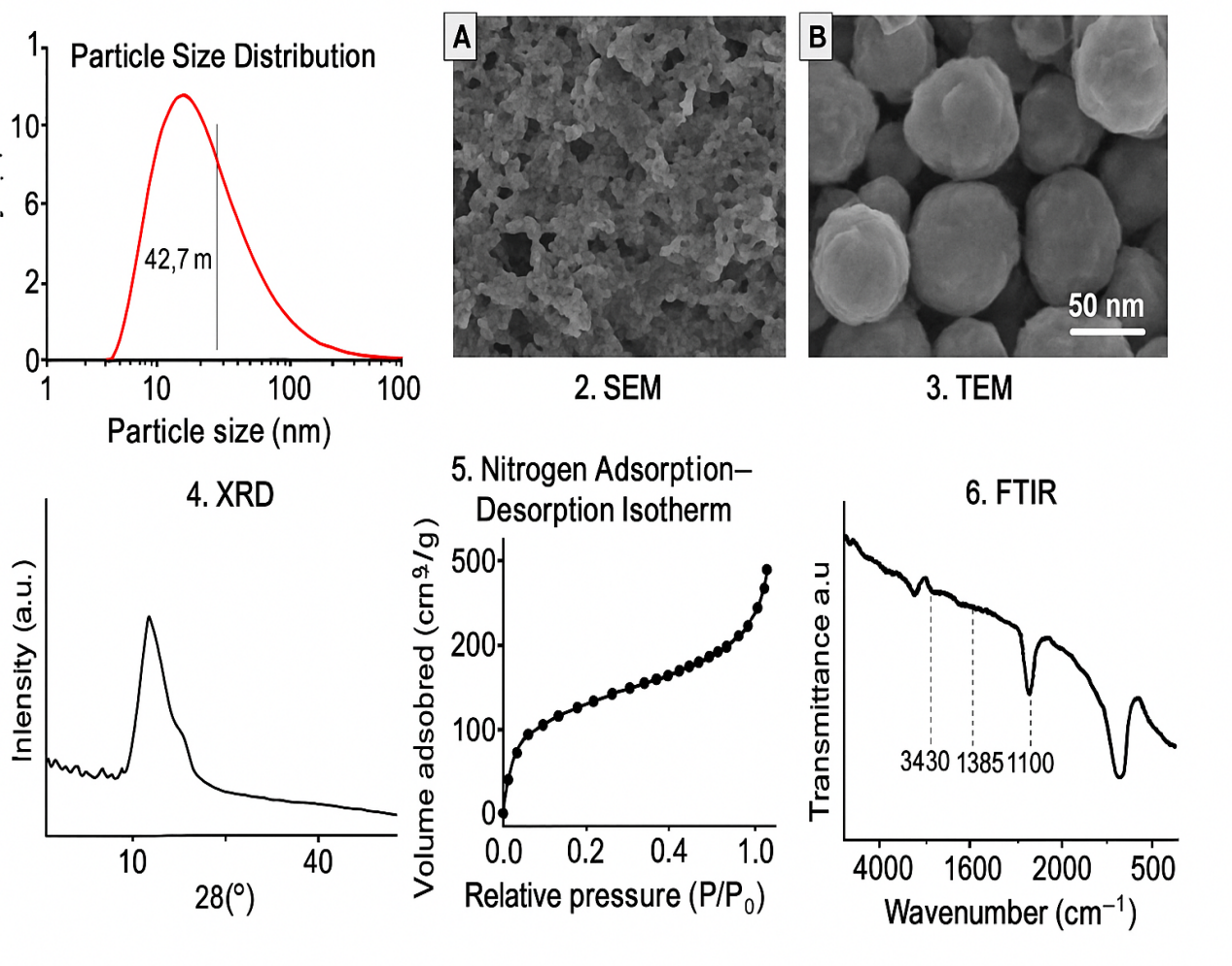

Figure 1: Comprehensive Characterization of Wheat Straw–Derived Nano-carbon
