The Oxford College of Pharmacy, Bengaluru, Karnataka 560068
Orally disintegrating tablets (ODTs) rapidly disintegrate or dissolve in the oral cavity without using water. ODTs are in greater demand, and the area has expanded in both academia and the pharmaceutical business. ODTs are said to offer a number of benefits over other traditional tablets. In these situations, the drug's bioavailability significantly increases since some of them are absorbed from the mouth, throat, and exophages as the saliva flows down into the stomach. Additionally, ODTs are3 a common oral dose form for youngsters, individuals with swallowing difficulties, and situations requiring a quick commencement of action due to their instant release feature. In addition to discussing various ODT formulation and their advantages and disadvantages, the current review paper provides various formulation technique, and resent advancements in ODT components and excipients used in ODT formulation. Additionally, necessary concerns and quality control procedures are provided.
Oral administration is the mostly used and effective method with high stability & packaging size & better patient adherence. The Oro dispersible tablets are the delivery system which rapidly disintegrate in mouth when it comes into touch with saliva & they do not required water [1]. However, geriatric, paediatric & bed redden patients experience difficulty in swallowing tab and there may be less water availability while travelling and some people may throw up under these circumstances. To get beyond this weakness the conventional tablets is developed insnovative drug delivery system known as Oro dispersible tablet.[2]
This innovative method in which tablets get disintegrate faster compared to other conventional tablets & they enhance good oral bioavailability. Where most of the conventional drug undergo first pass metabolism problem & poor drug bio-availability.[3]
It is necessary to distinguish between two types of dispersible tablets: While one dose form dissolves instantly in the mouth and can be eaten without the need for water, the other tablet formulation dissolves easily in water and forms a dispersion that the patient can easily swallow.[4]
ODTs offer various advantages such as fast onset of action, no swallowing difficulty & better patient compliance, good stability, increased bio availability. The main principal ingredient involved in formulation of ODT is super disintegrant & their main function is to break down tablets when it comes into contact with saliva. The super disintegrants most frequently utilized in ODT formulation are poly vinal pyrrolidone (PVP), Sodium starch glycolate cross povidone, cross carmellose sodium. There are various methods for manufacturing ODT such as moulding, direct compression, mass extrusion, freeze dryer, sublimation, spray drying, extrusion.[5]
ANATOMICAL AND PHYSIOLOGICAL CHARACTERISTICS OF THE ORAL CAVITY
The buccal cavity has a complex anatomical physiological environment &is an essential entry point for medication administration made up of several areas such as lining, specialized mucosa, masticatory. The buccal cavity has a special property & is essential for drug absorption. This through investigation explores the complexities of salivary flow, oral mucosa vascularization & buccal epithelium, illuminating their application to fast dissolving tablets.[6]

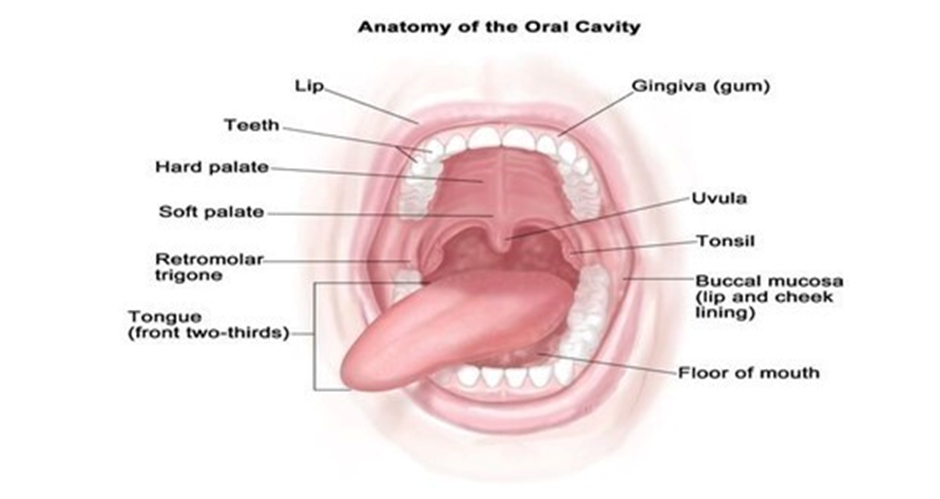

Figure 1: Anatomy of oral cavity
Masticatory mucosa
The gingiva and hard plate are protected by the masticatory mucosa, which has a thickness of 100-200μm. It makes almost 25% of oral mucosa and can tolerate abrasion &shear pressures during mastication, emphasizing its resilience and durability.[6]
Lining mucosa
The lining mucosa, which is 500-800μm thick and covers 60% of the oral mucosa is found on the surface of oral cavity, lips, cheeks, tongue its adaptability and coverage make it a crucial element of the overall mucosal structure. [6,7]
Specialized mucosa
The specialized mucosa which makes up to 15% of total mucosa which is located on the tongue’s dorsum & actively contributes to taste perception. Its specific functions highlight the diverse roles played by different regions within the buccal cavity
Buccal epithelium
The buccal epithelium, which is a non-keratinized stratified layer, exhibits several layers with different maturation patterns. The cells of basal layer are capable of dividing and maintaining epithelial population homeostasis. Homeostasis involved segregation, superficial cells proliferation and desquamation. Prickle cells that gather cytokeratin’s and lipid of low molecular weight are found in the intermediate layer.
Oral mucosa vascularization
The vascular network of the oral mucosa comprises lymphatic, arterial and venous capillaries that pass through the multi layered epithelium and extend into the connective tissue. The buccal mucosa receives a highly vascularized supply, primarily originating from the externally carotid artery including mouth surface, tongue root, cheek mucosa.
Salivary flow
Saliva which plays a vital role in the breakdown or dissolution of drug formulation which is mainly delivered into the buccal cavity by the sublingual gland, parotid gland, submandibular gland and several small glands compressing about 99.5%water, saliva include electrolyte, gases, mucines, amino acid, proteins, digestive enzyme, proteolytic enzyme, immunoglobulin, serum albumin & phosphorous compounds. Saliva which has a weak buffer capacity & ph ranges of 6-7, varies in between 5.3 to 7.8 during stimulation Natural salivary flow is about 0.1 to o.2 ml/min, increasing to 6.5 ml/min during stimulation. The saliva serves to hydrate the oral cavity and its mucus layer underneath – ranging in thickness from 1-400μm act as a protective barrier to drug transport. [6,7]
SALIENT FEATURES OF ODTs
ODT Should depict some ideal features to distinguish them from traditional conventional. [8,9]
ADVANTAGES OF ODTS [9]
DISADVANTAGES OF ODTS [5]
FEATURES OF API & EXCIPIENTS
The majority of API used in ODT formulation produce systematic effect rather than local ones. The properties of the drug &excipients should not have an important impact on the tablet’s properties, certain features such as solubility & particle size, crystal morphology hygroscopicity & A drug's compressibility can alter the final ODT properties. There are many requirements for a drug in ODT formulation can make ODT acceptable & ideal dosage form.
Table 1: Commercial ODT formulations on the market.
|
Active Ingredients |
Product |
Category |
Manufacturing Technology |
|
Paracetamol |
Febrectal |
analgesic |
Zydis® |
|
Risperidone |
Risperdal |
Anti-Psychotic |
Zydis® |
|
Ondansetron |
Zofran |
Anti emetic |
Zydis® |
|
Zolpidem |
Ambien |
sedative-hypnotics |
FlashDose® |
|
Tramadol |
Ultram |
analgesic |
FlashDose® |
|
Nimesulide |
Nimulid-MD |
anti-inflammatory |
Zydis® |
|
Montelukast |
Romilast |
Eukotriene receptor antagonists |
Orasolv® |
|
Zolmitriptan |
Zomig |
Anti migraine |
Dura Solv |
|
Loratadine |
Clartin |
Anti histamine |
Zydis® |
|
Rizatriptan |
Maxalt |
Anti migrain |
Zydis® |
|
Mirtazapine |
Remeron |
Anti dipresent |
Orasolv® |
For example, the medication must be ionized, distributed, and absorbed through the mucosa without leaving any behind in the oral cavity. Also, selection of the manufacturing method is equally as important as choosing the excipients. Due to the fact that different Technology has its own set of advantages disadvantages. Some of those are patented technology are WOWTAB, FLASHTAB, DURASOLV, EFVDAS, ZYDIS, QUICKSOLV, LYOC.[11]
The molecular weight of Api should not exceed 500 da for frequent use the active ingredients should be under 50 mg have a short life and possess a present taste and aroma moreover it is important to examine the compatibility of drug with excipients before choosing excipients. Interaction of physical, chemical & bio pharmaceutical nature & taken into account considering the possible interaction between excipients and API.[10]
ODT DRUG RELEASE TECHNOLOGY
The main action of ODT tablets depends on release pattern of super disintegrant used in it. The release of super disintegrant in following mechanism. [12-14]
METHOD OF PREPARATION OF ODT
This review article summarizes the commonly used methods for preparing ODTs, including moulding, direct compression mass extrusion, spray-drying, sublimation, and lyophilization (freeze-drying).

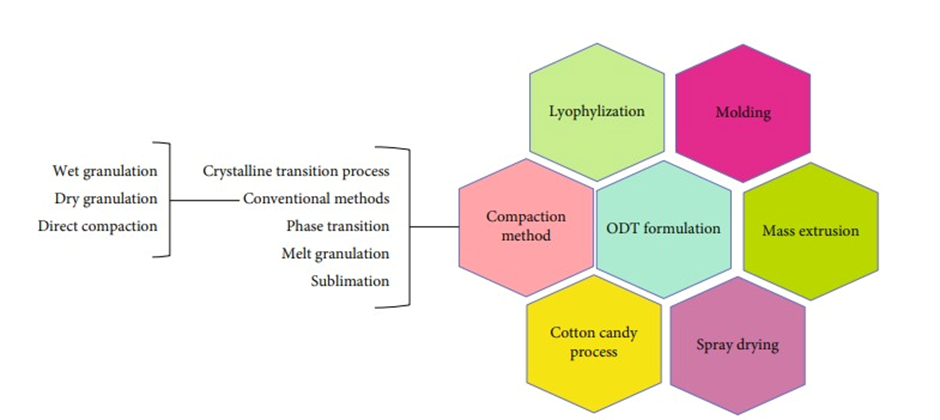

Figure 2: ODT formulation techniques
ODTs made using the moulding technique break apart in 5 to 15 seconds. Moulding or solid dispersion can be divided into two categories: compression moulding and heat moulding. Moulded tablets are created from a molten substance that contains a drug in solution or dispersion.[15] First, a suspension of the drug is prepared using water-soluble sugars like mannitol, lactose, glucose, sucrose, sorbitol, or xylitol, along with agar. These sugars serve as a binding agent, and their presence contributes to a pleasant mouthfeel. After that the suspension is placed into moulds and blister packs. The solvent is then evaporated under vacuum at a temperature of 30°C. This process solidifies the agar solution and produces ODTs. In compression moulding, a powder blend is combined with a hydroalcoholic solvent and then compressed into Mold plates using a low force. The tablets are subsequently air-dried to remove the solvent, resulting in a porous structure with elevated disintegration and dissolution rates. This method is used to prepare valdecoxib and perphenazine ODTs. [16,17] The primary drawbacks of this technique are its high production cost and low mechanical strength, which results in the breakage of ODTs during handling or when blister packs are opened. To address this limitation, it may be beneficial to incorporate binders such as acacia, polyvinylpyrrolidone, and PEG.[18]
2. Mass Extrusion
Water-soluble solvents like PEG, methanol or ethanol are employed in the mass extrusion process is to soften the powder mixture process. After that, it is either extruded through a sieve or syringed. Post-extrusion, alcohol was eliminated through evaporation. A gel in the shape of a solidified string was created, after which it was crushed into granules using a mortar. These granules could then be blended with other components and formed into ODTs through the compaction methods described in the subsequent sections.[19] In mass extrusion PEG stearate is utilized as a binder in mass extrusion to enhance physical strength and disintegration. This technique allows for masking the drug's bitter taste by coating granules with compounds such as Eudragit E 100, hydroxypropyl methylcellulose (HPMC), ethyl cellulose, hydroxypropyl cellulose (HPC), polyvinyl acetate, polyvinyl alcohol.[20]
3. Spray-Drying
Typically, solid dispersions and micronized drug/excipient particles are utilized in the spray-drying process. are ready to be administered orally or via inhalation.[21] To create a highly porous structure, a liquid mixture of materials is first sprayed into a heated chamber. These microparticles were then usually combined with mannitol, kneaded with distilled water, and dried for two hours at 60° C. The produced granules were then sieved, combined with additional excipients, and compacted into tablets using the compaction techniques covered in the sections that follow. made using this technique have a high porosity and break down quickly in the mouth. The product's fragility and high production costs, which render traditional packing techniques unsuitable for this dosage form, are the method's main drawbacks. This process produces tablets with high porosity that dissolve quickly in the mouth. This method's major drawbacks are the product's fragility and high production costs, which render traditional packing techniques unsuitable for this dosage form.
4. Cotton-Candy Process
This method produces crystalline flosses by using a unique spinning tool. When saccharides or polysaccharides, such as polymaltodextrin and polydextrose, are flash melted and spun simultaneously with the right flow at 180–266°C, a candy floss matrix is produced.
The produced matrix is thereafter compressed into ODTs after being ground and combined with API and excipients. This practice is specifically used to mask the unpleasant taste of medications. Furthermore, the candy floss matrix's flow characteristics, compressibility, and mechanical strength may all be somewhat enhanced by recrystallization. Additionally, it leads to the accumulation of a lot of drugs, but it isn't suitable for medications that are heat-labile.[22]
5. Lyophilization
The process of lyophilization involves utilizing a vacuum to dry thermosensitive APIs at a low temperature. Lyophilizates are another name for freeze-dried ODTs. They typically disintegrate quickly, have highly porous structures, and are extremely light. Accurate dosage results from creating freeze-dried OTDs in a liquid form. Furthermore, handling powerful or dangerous APIs in the liquid condition is safer for operators than gritty powder. Nevertheless, the procedure is somewhat expensive and inappropriate for formulations that lose their stability at high temperatures and humidity levels. [23,24]
Two platforms for lyophilization are Zydis and Lyoc. The Zydis method begins with the formation of an aqueous bulk liquid made up of mannitol as a mechanical booster and gelatin as a polymeric binder. In the final ODT, gelatin serves as a glue to hold the filler and API particles together. Additionally, the addition of a hydrophilic filler—one that dissolves well in water—like mannitol may encourage disintegration.[25] The formulation can also include preservatives, colorants, pH adjusters, and taste-masking agents. The liquid composition is then quickly frozen using a tunnel freezer after being placed into blister pockets. Once Blisters are sent to sizable industrial batch freeze-dryers for vacuum-assisted primary and secondary drying after freezing. Blisters are packed and sealed after drying. The medicine in this platform is water-insoluble, low dosage, and has a small particle size to save processing time and provide a smooth mouthfeel.[26]
In Lyoc technology, water-soluble fillers like lactose or mannitol are used to create an oil-in-water emulsion. A paste-like shape is produced when a lot of fillers are used, which
ultimately keeps the formulation from sedimentation. Then, in commercial freeze-dryers, freeze-drying phases occur, similar to the Zydis process. The Lyoc approach was less cost-effective due to low-porous particles and longer drying times.[27]
6. Compaction Methods
During this procedure, Crucial shapes like tablets or briquettes are prepared using a compression equipment.by exerting pressure to encourage particle agglomeration and bonding. The compression force that is applied is dependent on excipient characteristics, APIs, and tablet size. For instance, the study by Stoltenberg and Breitkreutz states that the compression force in the ODMT formulation should be between 3 and 8 kN.[28] Another important consideration is the excipient selection because compression reduces the product's porosity. This is necessary for a quick disintegration and requires the addition of super disintegrant and sugar-based fillers. Devices used in the compaction process include serial devices like extrusion and restricted devices like tabletting. The compaction methodology serves as the foundation for the following methods.[29]
7. Sublimation
Benzoic acid, ammonium bicarbonate, hexamethonium tetramine, urea, menthol, ammonium carbonate, camphor, naphthalene, phthalic anhydride, and urethane were among the excipients employed in the sublimation process. Sometimes, solvents like cyclohexane/benzene were employed to further increase porosity.[30] After compressing the produced blend into tablet form, the volatile substance is removed by temperature and pressure, leaving behind porous residual bulk. High The key component of tablets made using the sublimation approach is porosity. Furthermore, difficult processes like the sublimation of frozen water are eliminated by the volatilization of volatile material. The pharmacological impact of captopril, an angiotensin-converting enzyme inhibitor used to treat emergency hypertension, is expected to peak 1-2 hours after oral administration The necessity of giving patients captopril tablets Captopril is an excellent choice for ODT formulation because of its ability to help with swallowing issues.[31] Both in vitro and in vivo studies have been conducted on captopril ODTs made using this technique. A recent study found that captopril ODTs made with 10% camphor and 5% croscarmellose sodium (Ac-di-sol®) had the maximum in-vitro drug release (99:51 ± 0:24%) after 8 minutes, the shortest disintegration time (3:425 ± 0:12 kilopond, 17:48 ± 1:36 s), and the proper stiffness. Additionally, the in vivo evaluation revealed that hypertensive rats' mean arterial pressure stabilized 15 minutes faster. The other OTD that Suresh and Joshi developed and assessed using the sublimation process is salbutamol sulphate ODTs. The ODT's physicochemical characteristics were enhanced by the addition of camphor/ammonium bicarbonate as a volatile material, which caused disintegration in 5–40 seconds.[32]
7. Phase Transition
Using this method, the powder is compressed with two sugar alcohols that have high and low melting points, and the compacted mass is then heated to a temperature in between their melting points. Employed this process to create ODTs because low compressibility and stronger interarticular connections reduce hardness, but heating causes the hardness to increase due to sugar alcohol solidification and diffusion.[33] A low compression force is followed by a humidity or heat treatment to boost mechanical strength in the phase transformation procedure to preserve porosity, while the use of heat or humidity may reduce the stability of medications that are water-sensitive or thermolabile.[34]
8. CONVENTIONAL METHODS
ODTs are produced via conventional methods like direct compression, dry granulation, and wet granulation. The most used method is wet granulation technique, according to Shanmugam's thorough assessment of granulation techniques.[35] While dry granulation involves no liquid, wet massing of the excipients and API using granulation liquid, with or without binder, produces granules.[36] The wet granulation technique is used to prepare the ODT of glibenclamide. The simplest method for producing tablets, especially for large-scale ODT production, is direct compression, which includes super disintegrants like Cross povidone, croscarmellose, alginic acid, and calcium silicate. Tramadol hydrochloride OTDs have been prepared using the direct compression method, which involves first creating taste-masked granules of the drug using the mass extrusion method with Eudragit E100, and then formulating OTDs using Cross povidone, Ac-Di-Sol®, and sodium starch glycolate as the super disintegrants. This allows for a quick onset of action, which reduces postoperative pain.[37]
CHALLENGES IN DEVELOPING ODT [38]
EVALUATION OF ODTs
Tan ?=hr
where h and r stand for the cone's height and radius, respectively. An angle of repose of less than thirty degrees indicates that the material is flowing freely.
Table 2: Angle of repose as an indication of powder flow properties
|
Sr. No |
Angle of Repose (°) |
Type of Flow |
|
1. |
< 20 |
Excellent |
|
2. |
20 – 30 |
Good |
|
3. |
30 – 34 |
Passable |
|
4. |
> 34 |
Very Poor |
Bulk density=Weight of the powderVolume of the packing
Tapped Density=Weight of the powderVolume of the tapped packing
Compressibility Index%=(TD-BD)TD×100
Table 3: Relationship between % compressibility index and flow ability
|
Sr. No. |
% compressibility index |
Type of Flow |
|
1. |
5-12 |
Excellent |
|
2. |
12-16 |
Good |
|
3. |
18-21 |
Fair to Passable |
|
4. |
23-35 |
Poor |
|
5. |
33-38 |
Very Poor |
|
6. |
< 40 |
Very Very Poor |
Hausnes ratioTapped densityPoured density×100
V= Vb – Vp
Were,
Vb = Bulk volume (volume before tapping)
Vp = True volume (volume after tapping)
% Friability = W1-W2W1×100
Where,
W1= Weight of tablet before test,
W2 = Weight of tablet after test
T=2Fπ*d*t
Where
F is the crushing load, and
d and t denote the diameter and thickness of the tablet respectively.
Wa-WbWb×100
Where,
Wb is the weight of tablet before water absorption
Wa is the weight of tablet after water absorption
ADVANCEMENTS IN ODT TECHNOLOGIES
Zydis technology
Zydis is a special kind of freeze-dried oral solid dose form that dissolves on the tongue in less than three seconds and can be taken without water. To make a product that dissolves quickly, the medicine is physically confined in a water-soluble matrix and then freeze-dried. Water-soluble saccharides and polymers (gelatin, dextran, and alginates) make up the matrix, which allows for quick dissolution and enough physical strength to resist handling. The method creates porous units for quick breakdown using water. Different gums are utilized to solve the drug's sedimentation issue. Glycine is utilized to stop the zydis unit from shrinking during processing and storage. Because the zydis dosage form has a low physical strength, it comes in a peelable blister pack that makes it possible to remove the medicine without causing any damage. A medicine candidate for Zydis should have a tiny particle size (less than 50 microns), be water insoluble, and be chemically stable. The dosage of water-soluble medications is restricted to 60 mg since they may produce eutectic mixes and not freeze enough. During processing, bigger drug particles may cause sedimentation issues.[44]
Orasolv technology
It is the first fast-dissolving formulation developed by CIMA Lab. To reduce oral disintegration and dissolve time, tablets are made via direct compression with a low compression force. One type of mildly effervescent tablets that dissolves quickly in the mouth is Orasolv technology. The activity of effervescent agents disperses and masks the taste of the active medications in saliva. It gives the patient a pleasing feeling in their mouth. The limited mechanical strength of Orasolv technology is its main drawback. The generated tablets must be packed in a specifically made pack because they are soft and brittle.[45]
Durasolv technology
Additionally, CIMA Lab has a patent on the technique that creates second-generation ODTs. The medication, fillers, lubricant, and tablets made with traditional equipment are all included in the tablets made with this method. Because Durasolv formulations provide a stronger compaction pressure than their predecessors, they have a higher mechanical strength. Because Durasolv products are so long-lasting, they can be packaged in vials or conventional blister packs. It is among the best technologies for products that need little in the way of active chemicals.[46]
Wowtab technology
This invention was patented by Yamanouchi Pharmaceutical Company. "Wow" translates to "without water." Up to 50% of the tablet's weight may be made up of the active components. This method prepares the granules using saccharides with low and high moldability. The ability of a substance to be compressed is known as moldability. Because of its high compressibility, a highly mouldable substance dissolves slowly. To create tablets with the right amount of hardness, a mix of high and low moldability is utilized. After combining active components with low-moldability saccharides, high-moldability saccharides are granulated and crushed into tablets. It takes 15 seconds or less for the Wowtab substance to disintegrate. The Wowtab product is available in blister packs and regular bottles.[47]
Flash tab technology
The patent holder of this technology is Prographarm Labs. Microgranules of the taste-masked active medication are used in this method. Conventional methods such as Extrusion spherization, microencapsulation, and coacervation can all be utilized to create them. All of these procedures make use of standard tabletting technology. These taste-masked microcrystals of the active medication, dissolving agent, swelling agent, and additional excipients, such as soluble diluents, are compacted to create a multiarticulate tablet that breaks down quickly.[48]
AdvaTab technology
In order to disguise the taste and limit the drug's ability to dissolve in the mouth cavity, this method coats the drug particles with a gastrosoluble polymer using the microencapsulation process. In the mouth, AdvaTab tablets dissolve quickly—usually in less than 30 seconds. These pills are particularly well-suited for those who struggle with swallowing tablets and capsules. The ability to combine AdvaTab with complementary particle technologies from Europe, such as its industry-leading Microcaps® (taste-masking technology) and Diffucaps® (controlled-release technology), sets it apart from other oral disintegrating tablet solutions.[46]
FUTURE OF ODTS;
ODT technology adds value by working with a variety of therapeutic agents, including generics, such as "super generics" for use in humans or animals.
To identify the technological features of oral disintegrating tablets and specify the features of ODTs, several new quality control techniques can be developed.
Therapeutics based on proteins and peptides that are consumed orally have a low bioavailability when taken as immediate-release tablets. These products often break down in the gastrointestinal tract right away. Improved oral protein delivery technology developed by ODTs that dissolve and/or disperse in saliva shows great promise for delivering high molecular weight proteins and peptides.
When ODTs with controlled release capabilities are developed to deliver medications with short half-lives, such as 12 to 24 hours, it would be a creative advancement in ODT technology. Such formulations' increased compliance and convenience will be greatly utilized.
Another significant technological advancement will also come from the ability to create medications in huge quantities. significant doses of medication will merely make the final formulation too bulky to manage, as ODT formulations typically call for significant volumes of excipients. It will be revolutionary to develop ODT formulations that use less excipients than the medication itself. Although ODT technologies are being developed, it is difficult to create ODT formulations with lipophilic active medicinal components. To solve this issue, new ODT technology ought to be created.
There aren't many delayed release ODTs available on the market, according to the literature. As the next generation of ODT technology, controlled release ODTs, purpose-based systems, and/or fixed dose combination ODTs can be created.[49]
CONCLUSION
In conclusion, the development and acceptance of Fast Dissolving Tablets (FDTs) mark a significant advancement in oral drug delivery systems. These tablets present a viable way to address the issues with conventional dosage forms, particularly for patients who have trouble swallowing, such as young children and elderly patients. FDTs' special qualities, such as their quick decomposition or disintegration They are a practical and patient-friendly substitute because they don't require water, have a large drug load capacity, and effectively mask flavour. The quick beginning of action linked to ODTs is facilitated by the architectural and physiological features of the buccal cavity, which are essential for drug absorption through the buccal mucosa. Optimizing medication formulations and improving therapeutic results requires an understanding of the intricacies of the salivary flow, oral mucosa vascularization, and buccal epithelium. The significance of novel formulations like ODTs is highlighted by the pharmaceutical industry's growing emphasis on non-invasive drug delivery methods as well as the need for improved bioavailability and patient acceptance.
REFERENCES
Vikram Choudhary, Deepak S, Gururaj Kulkarni, Oro Dispersible Tablets: Recent Advancements, Challenges and Future Perspectives, Int. J. of Pharm. Sci., 2025, Vol 3, Issue 10, 2471-2486. https://doi.org/10.5281/zenodo.17433338
10.5281/zenodo.17433338
