Chalapathi Institute of Pharmaceutical Sciences, Guntur, Lam, Andhra Pradesh, India 522034
Spray drying is a widely employed technique for converting liquid feed into dry powder by atomizing the liquid into fine droplets and exposing them to a heated drying medium. This method ensures rapid moisture removal while preserving the physical and chemical properties of the material. The process begins with the Finely divided liquid drops, forming droplets with a high surface-area-to-volume ratio, which accelerates drying. The droplets come into contact with hot air, causing evaporation of the solvent, and the resulting dried particles are collected using cyclones filters. Spray-desiccator offers advantages such as controlled particle size, high product stability, and suitability for temperature-sensitive products. The efficiency of drying depends on several factors, including inlet air temperature, feed flow rate, atomization method, and droplet size. Recent studies emphasize the importance of optimizing these parameters to enhance product yield and quality. Spray drying finds extensive applications in pharmaceuticals, food processing, and chemical industries, where it is used to produce powders, encapsulated materials, and granules. Overall, spray drying of liquid droplets represents a critical unit operation that combines engineering principles with process optimization to achieve high-quality dried products.
Drying process is one of the most Predominantly used unit operations in the pharmaceutical, food, chemical, and biotechnology industries, has a key function in enhancing the stability, shelf life, and handling properties of products. Among the various drying techniques, spray drying has gained remarkable attention owing to its versatility, scalability, and Competence to turn liquid formulations into stable dry powders in a one step. A spray dryer is essentially a device that atomizes a liquid feed into fine droplets, exposes them to a stream of hot drying gas, and quickly removes the solvent, resulting in dry product, free-flowing powder. This technique has become indispensable for heat-unstable materials, bioactive compounds, and formulations requiring precise Oversight of fine particle measurement and morphology.
The development of spray drying technology dates back to the late 19th century, and since then, it has undergone significant advances in design, process optimization, and application. Its unique ability to handle diverse feedstocks—such as solutions, emulsions, suspensions, and slurries—makes it superior relative to the conventional drying process. Unlike oven or tray drying, spray drying offers rapid moisture removal due to the large surface area of atomized droplets, thus minimizing thermal degradation of sensitive molecules. Additionally, the process allows for the production of uniform, spherical particles with customizable characteristics such as porosity, bulk density, and Droplet size distribution. These advantages have led to its extensive utilization in pharmaceuticals for drug formulation, in food processing for coating or encapsulating of flavors and probiotics, and in materials science for developing functional powders.
The effectiveness of spray drying depends on several critical parameters including atomization method, inlet and outlet air temperature, feed concentration, and drying chamber design. Different droplet formation methods such as rotary atomizers, pressure nozzles, and two-fluid nozzles are employed depending on the feed properties and desired particle attributes. Temperature control is particularly important when dealing with thermolabile substances like proteins, enzymes, and vitamins, as inappropriate conditions can lead to denaturation or loss of activity. Furthermore, the ability to integrate excipients and stabilizers during the drying process makes spray drying highly suitable for producing amorphous solid dispersions and encapsulated bio actives, thereby improving solubility and bioavailability.
During the past decade, the importance of Atomized drying has expanded in advanced pharmaceutical technologies, including the preparation of inhalable powders for pulmonary drug delivery, nanoparticle engineering, and controlled release formulations. Similarly, in the food industry, spray drying has enabled the large-scale production of milk powders, instant coffee, encapsulated flavors, and nutraceutical ingredients with enhanced stability. Continuous innovations, such as closed-loop systems for organic solvents, low-temperature spray drying, and integration with supercritical fluid technology, have further broadened its applications.
The spray dryer operates on the basis of the creation of a highly dispersed liquid state in ahigh temperature gas zone. Three equally important processes must occur-
1.1. Atomization
The atomization is the first stage to improve evaporation condition and produce dried material with the good properties. Atomization is the heart of spray- drying processes. Its principal effects are to produce a finely divided product with special physical characteristic of particle shape and density. Three fundamentally different methods can be used to atomize liquid in spray dryers.
These are
velocity by centrifugal force and discharging into a hot gas zone.

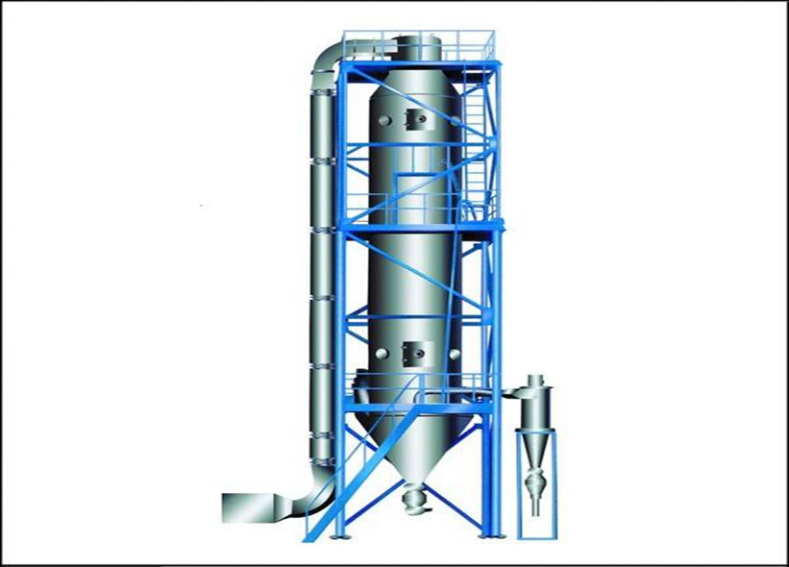

Figure 1. Principal of Spray Dryer
In the spray dryer chamber, the liquid feed is microdroplets into fine droplets using a nozzle or rotary atomizer. These droplets are introduced into a current of hot air inside the drying enclosure. As each droplet comes in contact with the heated air, rapid moisture evaporation begins at its surface. The rate of drying depends on droplets size, temperature, dampness in the air, and airflow pattern. Initially, the surface moisture evaporates quickly, leading to the formation of a thin solid layer around the droplet. Later, the remaining moisture diffuses from the interior to the surface and continues to evaporate until a dry particle is formed. This process enables the conversion of solution feed into free-flowing dry powder in a very short time, making spray drying highly suitable for heat-fragile compounds.

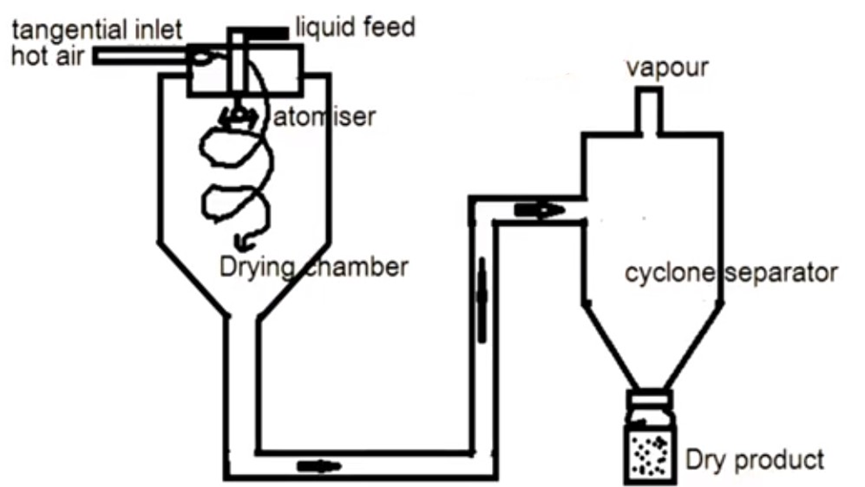

Figure 2. Spray Dryer
The mixing pattern of the drying and the Desiccant gas determine the effectiveness of thermal and material transfer. Spray dryers can operate in co-current, counter-counter, or mixed flow systems. In co-current flow, both the atomized droplets and the drying gas move in the same direction, which is preferred for heat-sensitive materials snice the highest temperature exposure is brief. In counter-current flow, the droplets move opposite to the gas stream, providing longer drying time but higher thermal stress. Mixed flow designs combine both mechanism to balance drying efficiency and product stability.
Centrifugal spray dryers, among the very common types, use a high-speed rotating disc to atomize the solution Atomize into fine droplets. These droplets come into interaction with warm air swiftly vaporization of water content. Absolute for producing fine, agreeing powders.
Benefits:

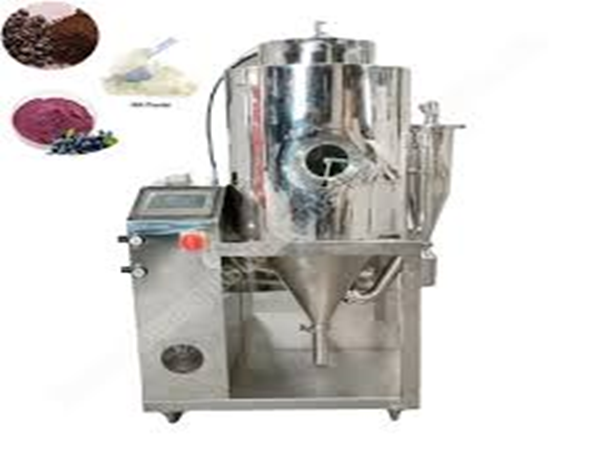

Figure 3. High-Speed-Centrifugal Spray Dryer
A pressure spray dryer is a type of spray drying system where liquid is atomized into fine particles using a high-pressure nozzle. The liquid is forced through a small orifice at elevated pressure, which breaks it into fine mist. The droplets are then exposed to a stream of hot air, leading to rapid evaporation of the solvent and formation of dry powder particles. This method is widely used in the pharmaceutical, food, and chemical industries because it allows efficient conversion of liquid formulation into stable, free-flowing powders.
Benefits:

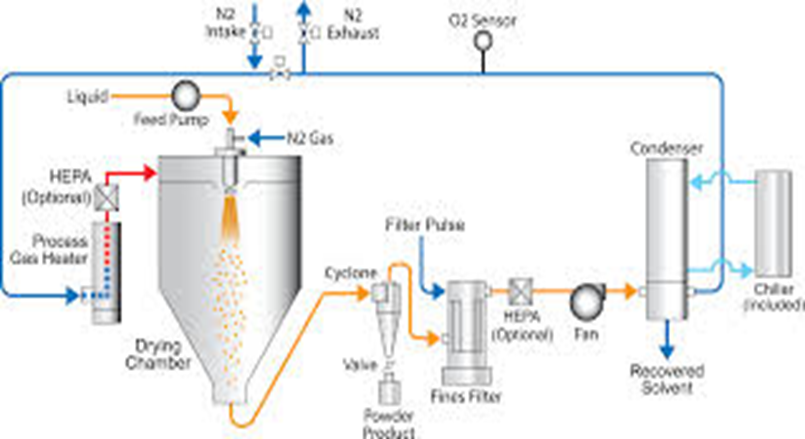

Figure 4. Pressure Spray Dryer in Industry
A two-stage spray dryer is an advanced drying system designed to improve energy efficiency and product quality compared to conventional single-stage dryers. In this process, atomized droplets from the feed solution are first exposed to hot air in the drying chamber, where the majority of the solvent is evaporated rapidly. Instead of collecting the powder immediately, the partially dried particles are transferred to a secondary drying unit, such as a fluidized bed dryer. This arrangement allows the final removal of residual moisture under milder conditions, minimizing heat damage and enhancing powder stability.
Benefits:

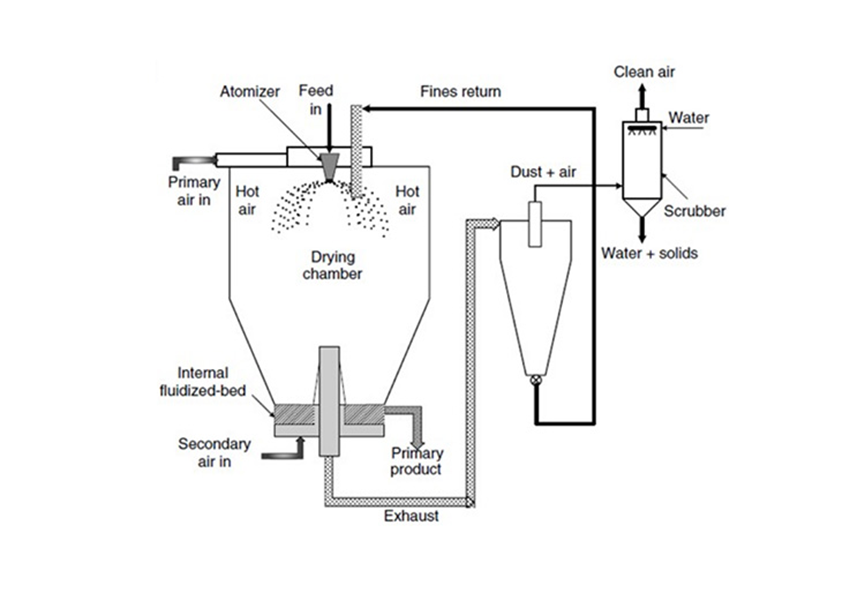

Figure 5. Two-Stage Spray Dryer
A rotary spray dryer is a type of spray drying equipment in which atomization of the liquid feed is achieved through a high-speed rotary atomizer or wheel instead of a pressure nozzle. The solution formulation is fed onto the rapidly rotating disk, which disperses it into fine droplets due to centrifugal force. Thes droplets are then introduced into a stream of moisture and the formulation of dry, free-flowing powder. Rotary atomizers are particularly advantageous when dealing with high-viscosity feeds or when precise control over particle size distribution is required.
Benefits:

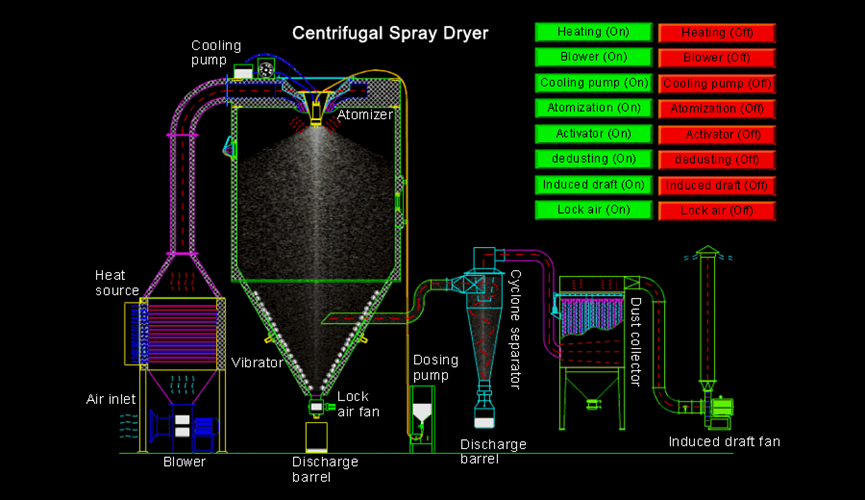

Figure 6. High-speed Rotary Spray Dryer
A Nozzle atomizer dryer is a specially designed equipment that converts solution feed into dry powders through atomization and rapid drying in a thermal draft vapor. The basic construction consists of several key components:
3.1 Drying Chamber- A large, usually cylindrical or conical chamber made of stainless steel, where Dispersed droplets come into contact with hot air and undergo rapid solvent evaporation. The chamber heat loss.
A spray dryer is a mostly used in the pharmaceutical industry, food, and chemical industries for converting liquid feed into a dry powder in a single step. The process involves atomization of the liquid feed, rapid drying through contact with a hot drying medium, and collection of the final powder.
The sample feed (solution, suspension, or emulsion) is pumped into the spray dryer chamber through an atomizer. Atomization converts the liquid into fine particles, significantly increasing the surface area available for drying.
The Microdroplets are introduced into a drying chamber, Where they immediately come into contact with hot air or gas. The drying medium is usually introduced in a co-current, counter-current, or mixed flow pattern, depending on the design.
4.1.2. Moisture Evaporation
Due to the high surface area of the droplets, moisture evaporates rapidly. The temperature inside the chamber is carefully controlled to ensure efficient drying without degrading heat-sensitive materials. Evaporation occurs within a few seconds, leading to the information of solid particles.
The dried particles, now in powder form, are parted from the drying air stream. Centrifugal separator, or Cottrell precipitator, are commonly used to recover the product.
The final powder is congregate, at the bottom of the chamber or in the cyclone collector. It is then further processed, packed or stored.
5. Applications
5.1. Application of Spray Dryers in Food Manufacturing
5.1.1. Application of Spray Dryers in Pharmaceutical Industry
5.1.2. Application of Spray Dryers Chemical Industry
CONCLUSION
Spray desiccator remains a versatile and reliable technique for producing stable and uniform powders from liquid feedstocks. Its role in pharmaceuticals and food processing continues to expand, especially with advancements in nano-spray drying and encapsulation technology. Although challenges such as energy consumption and processing of viscous feed persist, innovations in Construction and operation are steadily improving its efficiency and applicability.
ACKNOWLEDEMENTS
By the guide of my institute to write the review article on spray dryer. I also acknowledge the support of my friends, whose discussions and feedback helped me refine my understanding of the subject.
REFERENCES
Gudavalli Yathishwar Rao, Gajjala Swetha, The Complete Guide to Using a Spray Dryer Effectively, Int. J. of Pharm. Sci., 2025, Vol 3, Issue 9, 3685-3694. https://doi.org/10.5281/zenodo.17235524
