Formulation and evaluation of Transdermal Patch containing Azadiracta and Allium sativum

Fig No: 1

Epidermis layer: The thickness of epidermis,which is the skin’s outermost layer varies measuring around 0.8 mm on the palms of hands and the soles of feet. The viable epidermis is sometimes referred to as the epidermal layers underneath the stratum corneum and is composed of multi- layered areas of epithelial cells[10][11]. Approximately 95% of the cells of the epidermis are keratinocytes, melanocytes, Langerhans cells and merkel cells make up the remaining cells in the epidermal layers. The outermost layer of the epidermis is called the stratum corneum [12][13][14]. It has direct touch with the outside world and its extremely high density (1.4g/cm3) may contribute to some of its barrier qualities in the arid condition and its minimal 15%–20% hydration. The majority of the cells of the stratum corneum are made up of 20% lipid and 70% insoluble keratins. keratin in the corneocytes is linked to water in the stratum corneum..[15][16]

Dermis Layer: The dermis is a critical layer of the skin situated beneath the epidermis and plays a vital role in providing strength and flexibility. Typically measuring around 2-3 mm in thickness, the dermis is primarily composed of collagenous and elastin fibers which make up approximately70% of its structure. These fibers are essential for maintaining the skin’s resilience and elasticity, allowing it to withstand various forms of stress while remaining pliable.[17] This vascular network is crucial for sustaining the health of the skin facilitating not only nutrient delivery but also waste removal. Furthermore, the dermis houses lymphatic vessels, which play a significant role in immune function and fluid balance..[13]

Hypodermis layer:

The innermost layer of the skin known as the hypodermis or subcutaneous layer is made up of a network of fat cells. It serves as the layer of contact between the skin and the body’s deeper tissues including the bones and muscles. Thus, the primary roles of the hypodermis are defence from physical shock, heat insulation, skin conductivity and support for vascular and neurological signals. About half of the body’s fat is made up of cells that dwell in the hypodermis; the other main hypodermis cells are made up of macrophages and fibroblasts..[18][19]

Drug Penetration Pathways:

The fundamental prerequisite for the therapeutic response in the formulation used for transdermal medication delivery is drug permeability. The drug molecules involved in formulation must pass through multiple layers of the skin and eventually enter the systemic circulation to produce a therapeutic response It can reach systemic circulation in several ways.[20][21][22].

They are as follows:

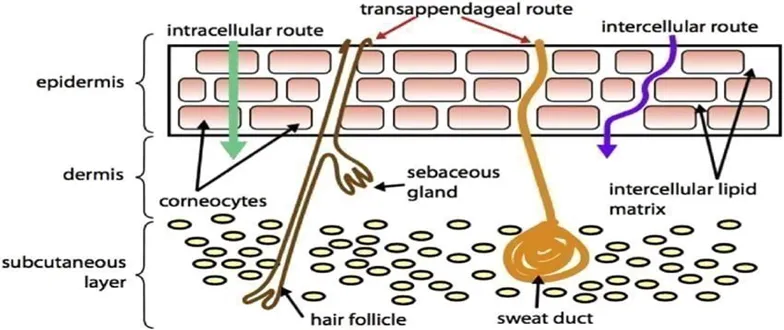

A.        Transepidermal Routes

•           Intracellular (molecular intersection through the cells) routes

•           Intercellular (molecular intersection between the cells) routes.

B.        Trans-appendageal (shunt routes) routes [24][25][26][27].

Fig No: 2

Aim:-Formulation and evaluation of transdermal patch containing Azadiracta indica and Allium sativum.

Objectives:- To design and formulate transdermal patches for controlled and sustained drug delivery through the skin.To select suitable polymers and excipients (film-forming agents, plasticizers, permeation enhancers, and backing membrane) for patch formulation.To optimize the composition and ratios of polymers and plasticizers for achieving uniformity, flexibility, and stability of the patch. To evaluate physicochemical compatibility of the drug with formulation excipients using techniques such as FTIR. To standardize the method of preparation (solvent evaporation, melting, or casting method) for reproducible patch characteristics

MATERIALS AND METHODS

Azadiracta indicaPowder  and  Allium sativum L. Powder

HPMC: Pharmaceutical grade E15 Thermo fisher scientific

Propylene glycol: IP grade Thermo fisher scientific

Gelatin: Pharmaceutical grade, Type B Thermo fisher scientific

Glycerin: IP grade Thermo fisher scientific

Ethanol: 95% v/v IP Thermo fisher scientific

2.1. Determination of calibration curve:

From the standard stock solution (1000 ug/ml), 10 ml solution was diluted to 100 ml using the solvent (100 ug/ml ). From this 0.2 ml, 0.4 ml, 0.6 ml, 0.8 ml, 1ml of solutions were taken into different volumetric flask and made upon 10 ml with solvent so as to get the concentration of 2 ug, 4 ug, 6 ug, 8 ug and 10 ug respectively. The absorbances of these solutions were measured at 243 nm.[33][37]

2.2. The process of making transdermal patch:

The solvent casting method is a common technique used to prepare transdermal patches by dissolving drug and excipients in a solvent and forming a thin film after evaporation. In this method, polymers such as Hydroxypropyl methylcellulose, Methyl cellulose, and Gelatin are dissolved in a suitable solvent like Ethanol. The drug (for example herbal extracts like neem or garlic) is added and mixed thoroughly to obtain a uniform solution. Plasticizers such as Glycerin are added to improve flexibility and prevent brittleness of the film. A permeation enhancer like Propylene glycol is incorporated to enhance drug penetration through the skin. The resulting mixture is stirred properly and allowed to stand or sonicated to remove air bubbles. The solution is then poured onto a flat surface such as a glass plate or petri dish and spread uniformly. The solvent is allowed to evaporate slowly at room temperature or under controlled conditions, forming a thin and uniform film. After complete drying, the film is carefully peeled off and cut into patches of required size. These patches are then evaluated for thickness, weight variation, drug content, folding endurance, and drug release. [38].

3.         Evaluation of transdermal patches

3.1 Physical appearance:

Color, clarity, flexibility and smoothness were all visually assessed for all of the prepared patches.

3.2       Patch thickness:

A digital micrometer was used to measure the drug loaded patch's diameter at various points and the average width and variation were calculated to ensure the patch's thickness.[39][40][41]

3.3       Weight uniformity:

In order to assess weight variance, the individual weight of 10 randomly chosen patches were obtained, followed by the average weight. The individuals weight and the average weight shouldn't vary significantly.[42]

3.4       Flatness:

A transdermal patch needs to have a smooth surface and shouldn't shrink over time. The study of patch used to demonstrate this. To establish how flat a patch is three strip are cut from it two from each side and one from the middle. The length variance is calculated using the % constriction method after measuring the length of each strip. [44]

Flatness is equivalent to a limitation of 0%.

% Constriction = (L1 L2) / L1 × 100 L1 = Initial length of each strip

L2 =Final length of each strip.

3.5 Folding endurance:

Two by two centimeters of strip were cut, folded in the same place repeatedly and broken. The folding endurance number was derived by figuring out how many times a film could be twisted in the same direction before rupturing.[45]

3.6       Drug content determination:

It can be determined by completely dissolving patches of 2 by 2 cm in a solvent that is appropriate, stirring them for up to 24 hours, then placing them in a sonicator, filtering them and then conducting a spectroscopic investigation on the filtrate, it was possible to estimate how much drug was there.[43]

3.7       pH determination

About 1 g of each powder was weighed separately and mixed with 100 mL of distilled water to prepare a 1% w/v solution. The mixture was stirred and allowed to stand for 30–60 minutes to extract soluble components. It was then filtered to obtain a clear solution. The pH meter was calibrated using standard buffer solutions. The electrode was immersed in the filtrate and pH was recorded once stable readings were obtained. Measurements were taken in triplicate and the average value was noted.[46]

3.8       In vitro drug release :

The patch was placed and fixed between donor and receptor compartments. The receptor compartment was filled with phosphate buffer of pH 7.4 and maintained at 37˚C with continuous stirring. Since the herbal drug have low solubility, a small amount of ethanol was added to maintain proper drug release. At fixed time intervals, 5ml was taken and replaced with fresh buffer. The sample was analyzed using a UV spectrophotometer at 254 nm.

3.9  Determination of concentration for diffused drug(ug/ml) :

using calibration curve: Y = mX + c.

Where, Y= Absorbance, m= slope, X= conc. , c = intercept.

i.          Cumulative amount of drug diffused (CADD) :

[Concentration (ug/mg) x Volume of diffusion medium x dilution factor]/1000

ii.         Surface area (A) of onion membrane (cm2):

A=𝜋𝑟2

a.         Cumulative amount of drug diffused per unit area (CADD):

CADD/cm2 = CADD/Area of membrane.

b.         Percent cumulative drug released:

Amount of drug released x 100/ strength of patch

4.         RESULT AND DISCUSSION

4.0 Preformulation Studies

4.1.      Organoleptic evaluation:-

•           Azadiracta indica:-

Color: Greenish to dull green (leaf powder) Odour: Strong pungent and bitter

Taste: Intensely bitter and astringent

Texture: Fine to coarse powder, slightly fibrous

•           Allium sativum:-Color: Off-white to pale yellow

Odour: Strong, characteristic garlic aroma

Taste: Pungent, spicy and less sharp than fresh garlic Texture: Fine, dry, free-flowing powder

4.2.Melting point

Azadiracta indica was found to be between 158 to 162°C Allium sativum was found to be between 164 to 168°C.

4.3.Solubility

Azadiracta indica and Allium sativum are methanol and ethanol but in water and mild acids.

4.4.FTIR Spectroscopy

i.          IR of Azadiracta indica-

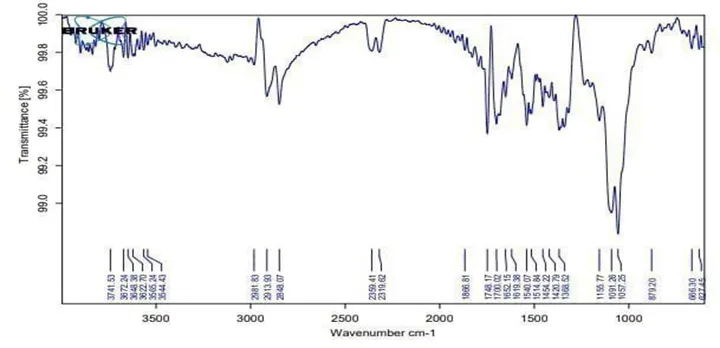

Fig no.3

The FTIR spectrum shows a broad peak in the range 3741–3544 cm⁻¹, indicating O–H stretching of alcohols or phenols. Peaks at 2981, 2913, and 2848 cm⁻¹ correspond to aliphatic C–H stretching.

Strong absorption at 1748 and 1700 cm⁻¹ suggests the presence of carbonyl (C=O) groups such as esters or ketones. The peak around 1652 cm⁻¹ indicates C=C stretching of alkenes or conjugated systems. Bands at 1596 and 1540 cm⁻¹ confirm aromatic ring structures. Peaks in the region 1514–1398 cm⁻¹ are due to C–H bending vibrations. The bands at 1155, 1091, and 1057 cm⁻¹ indicate C–O stretching of alcohols or ethers. Peaks at 879, 666, and 627 cm⁻¹ correspond to aromatic C–H bending. Overall, the spectrum confirms the presence of hydroxyl, carbonyl, and aromatic functional groups.

ii.         IR of Allium sativum-

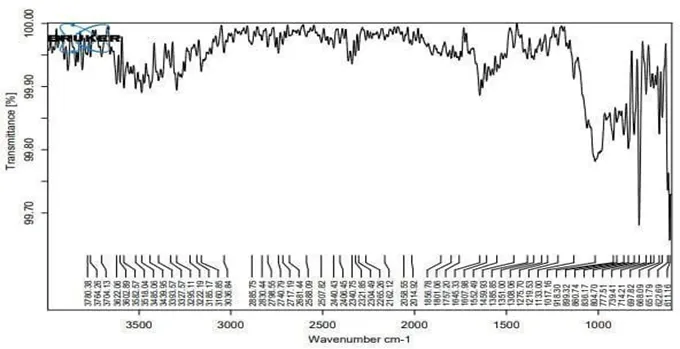

Fig.no: 4

The FTIR spectrum shows a broad absorption band in the region 3700–3200 cm⁻¹, indicating O–H stretching of alcohols or phenolic compounds. Peaks around 2915–2850 cm⁻¹ correspond to aliphatic C–H stretching, confirming the presence of hydrocarbons. Weak bands near 2350 cm⁻¹ may be due to atmospheric CO₂ interference. The peak observed around 1700–1600 cm⁻¹ suggests C=O stretching or C=C stretching of conjugated systems. Absorption bands near

1500–1400 cm⁻¹ indicate aromatic ring vibrations and C–H bending. Strong peaks in the region 1250–1000 cm⁻¹ correspond to C–O stretching, indicating alcohols, ethers, or esters. The peaks below 900 cm⁻¹ represent out-of-plane C–H bending, confirming substituted aromatic structures.Overall, the spectrum indicates the presence of hydroxyl, carbonyl, aliphatic, and aromatic functional groups, and suggesting phytoconstituents in the sample.

iii.       IR of mixture of Azadiracta indica and Allium sativum

Fig.no: 5

The FTIR spectrum shows a broad and strong peak at 3341 cm⁻¹, indicating O–H stretching of alcohols or phenolic compounds. A sharp peak at 1637 cm⁻¹ corresponds to C=C stretching or may indicate amide (N–H bending) vibrations. The absence of strong peaks near 2900 cm⁻¹ suggests minimal aliphatic C–H stretching. Peaks observed at 1138, 1083, and 1044 cm⁻¹ are due to C–O stretching, indicating alcohols, ethers, or glycosidic linkages. The bands at 929, 888, and 858 cm⁻¹ represent out-of-plane C–H bending, suggesting substituted aromatic rings or alkenes. Overall, the spectrum confirms the presence of hydroxyl, unsaturated (C=C), and ether functional groups, indicating phytochemical constituents in the sample.

4.5.      Lambda Max  mixure of Azadiracta indica and Allium sativum

Fig. no.6

4.6 Calibration curve of Azadiracta indica and Allium sativum

Fig no: 7

5.         Evaluation of transdermal patches

5.1.      Physical appearance

All of the patches are found to be opaque, non-sticky, homogenous. The presence of plasticizers may explain the flexibility, smoothness opaqueness and non-stickiness of the material.

Fig no: 8

5.2.Thickness

The thickness of each produced patch varied from 0.24 to 0.28 mm . Low standard deviation values in measures of film thickness kept patches uniform, demonstrating the dependability of the patch preparation process

5.3.Weight uniformity

Individually weighing 10 randomly selected patches was used to investigate weight variation. For each formulation , this determination was made. The weight ranged from 284.50 to 291.07 milligrams.

5.4.      Flatness

The flatness evaluation indicated that all formulations were completely flat, as there was no change in the strip length before and after cutting. The absence of constriction confirmed that the patches possessed a smooth and uniform surface. This suggests that the patches would maintain their shape and remain properly adhered when applied to the skin.

5.5.Folding endurance

The tested patches demonstrated remarkable mechanical resilience, effectively maintaining their structural integrity and original form when subjected to skin-like folding. The folding endurance values, ranging from

28.64±0.08 to 36.55±0.06, confirm that these formulations are flexible and resistant to rupture during typical application on the skin.

5.6. Percentage drug content

The evaluation of drug content across all formulations revealed high uniformity among the patches. Measured values spanned from 76.56% (±0.25) to 83.67% (±0.18). These results confirm that the manufacturing process used in this study is effective at producing patches with stable medicinal concentrations and minimal deviation.

5.7.      pH

The pH for Azadiracta indica was found to be 5.8 to 6.2 and for Allium sativum pH was found to be

5.4 to 6.0 .

Fig. no: 9

5.8.      In vitro Cumulative Percentage Drug Release

Fig. no.10
