Herbal Based Microneedle Patches for Diabetes Management: A Novel Approach to Insulin Delivery

Fig. 1.1 Microneedles delivery system

Mechanism

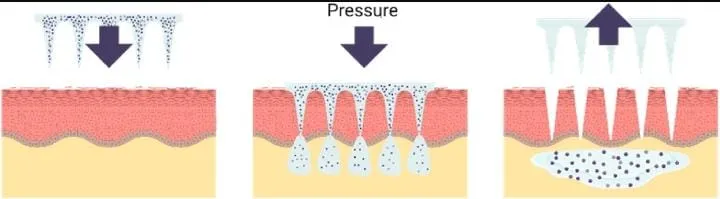

Mechanism of Action of Microneedle in Insulin Delivery

Micro needles are the small and less invasive objects which pierce the outermost layer of the skin or stratum corneum. They create micro channels, in which insulin may be directly injected into the dermis, where it may be absorbed into the blood. The micro needles break down quickly upon insertion releasing insulin payload. Substances like starch and gelatin are generally used because they are biocompatible and dissolve rapidly in the interstitial fluid of the skin hence offering effective and efficacious delivery of insulin [22.]. The mechanisms of micro-needle devices which react to glucose are fitted to enhance the amount of insulin released as per the present concentration of glucose in blood. The application of hypoxia-sensitive vesicles is one of them. These vesicles would secrete insulin in case there is an increase in the blood glucose level. The concept of such a mechanism is to mimic the natural functioning of the pancreas which releases insulin when the blood glucose level is high. The hypoxia-sensitive vesicles are sensitive to the changes in the oxygen levels of the body, which are associated with high blood glucose. In case of high blood glucose, vesicles chemically transform resulting in the release of insulin at the action site. This glucose sensitive technology would be able to regulate the level of blood glucose much better reducing the risk of hyperglycemia and hypoglycemia. The micro-needles have low oxygen sensitive vesicles. Metabolism of glucose in the region forms a hypoxic (low oxygen) environment. This causes the vesicles to secrete insulin in a regulated way that makes sure that when the insulin is needed, it is released based on the oxygen levels in the locality [23].

Advantages of Microneedles in Insulin Delivery

1. Micro-needle patches are designed to penetrate the skin dermal layer without causing pain or blood loss, which makes them more acceptable than the traditional needles. The micro-needles are small and have a design that ensures that they are less intimidating and more acceptable to the users, which in turn may lead to improved compliance to the treatment of insulin.

2. The patch uses a bio-sensor based on graphene to detect glucose levels and release insulin, and an electro osmotic micro-pump delivers insulin in a controlled and stable way to regulate glucose during the long term period [24].

3. Microneedles have a high bio-availability of insulin of approximately 98.8% compared to most bioavailability with injections or oral administration. They do this through the direct delivery of insulin into the skin by bypassing the first-pass metabolism of the liver, which maintains its potency. This results in the more effective control of glucose using low doses and reduced frequently.

4. Various types of micro-needle structures such as hydro-gel and dissolving insulin are available to allow a customized insulin-release profile to meet the needs of diverse diets. The use of innovations like microneedles that are thermo sensitive can also deliver insulin depending on the level of blood glucose thereby providing a reactive treatment remedy [25].

Types of Microneedles

Micro-needles are very small needles that are applied in different ways, mostly during drug administration and diagnostics. Micro-needles are available in five major types with specific characteristics and use:

3.1 Solid Micro-needles

This type of needle permeates the skin making micro incisions whereby drug solutions seep into the skin. They are simple to produce, but they may cause infections when they are not handled. It is applicable as drug delivery agent and  cosmetics agent [26].

3.2 Coated Micro-needles

These are coated with a drug that dissolves when placed in the skin enabling the drug to be absorbed. They make the application process easy and have restrictions in the quantity of drug they can impart as a result of the thin layer [27].

3.3 Hollow Micro-needles

These needles have a hollow canal that can receive the direct delivery of drugs out of the reservoir. They are capable of delivering bigger doses though they might have 3. problems such as leakage and clogging. They have common application in disease diagnosis [28].

3.4 Dissolvable micro-needles

These needles consist of such materials as sugar or polymers and are dissolved in the skin when the needle is inserted releasing the drug they carry. They are useful in the delivery of vaccines and cosmetic treatments and are more complicated to produce [26].

3.5 Hydro-gel-forming micro-needles

These distend when in contact with the body fluids that results in the quick development of hydro-gel that promotes the release of drugs. In comparison to dissolvable microneedles, they do not dissolved, so they stay there until taken off together with the patch. They are appropriate in the delivery of hydrophilic drugs [29].

Fig. 1.2 Solid microneedle

Fig. 1.3 Coated microneedle

Fig. 1.4 Hollow microneedle

Fig. 1.5 Dissolving microneedle

Fig. 1.6 Hydro-gel microneedle

Table 1.1 Overview of types of microneedles [29]

Herbal Bioactives With Antidiabetic Potential

Plant-derived phytochemical have potential to serve as insulin mimetics, i.e. agents that replicate the effect of insulin, and as beta cell protective/ regenerative agents, reduce beta cell oxidative stress and promote regenerative. Insulin resistance and progressive beta cell dysfunction characterizes type 2 diabetes, and multi-target phytochemicals have the potential to enhance insulin signalling and protect beta cell simultaneously, becoming interesting complementary agents [30].

Mechanism of action

1. Insulin – signalling pathway modulation/GLUT-4 Translocation:

 Many extract enhance insulin signalling or stimulate GLUT-4 recruitment in muscle/adipose, increasing glucose uptake.

2.  Incretion and insulin secretion modulation:

Some botanicals stimulate insulin release directly example: Gymnema.

3. Beta – cell regeneration and neogenesis signals:

 Preclinical reports of increased beta cell proliferation or expression of beta cell transcription factors after treatment with specific extracts [31, 32].

Gymnema Sylvestre

Gymnema sylvestre is considered as one of the plants with strong anti diabetic effect. Gymnema tea is also used as a control measure of obesity using this plant. The active ingredient of the plant is a complex of acids, called as gymnemic acids. It is seen that a potential association may be present between obesity, Gymnemic acids and diabetes. The plant is native to central and western India, tropical Africa and Australia. Other names in Tamil: Adigam, cherukurinja [33]. It is a powerful antidiabetic herb and is applied in folk, ayurvedic, and homeopathic medicine. Also, it is applied in treating asthma, eye conditions, inflammations, and snakebites [34]. Moreover, it has antimicrobial, anti hypercholesteroleic, hepato protective and sweet suppressing properties. Gymnemic acids are antidiabetic, anti inflammatory and anti sweetener. It was later found that the anti diabetic array of molecules is a family of closely related gymnemic acids having been successfully isolated and purified in the leaves of Gymnema sylvestre [35, 36].

Fig. 1.7 Gymnema Sylvestre

Mechanism of action of Gymnemic acid

Gymnema sylvestre is a plant leaf that has been known to induce hypoglycemia in laboratory animals, and has been used in herbal medicine to treat adult onset diabetes mellitus (Type 2). The administration of the Gymnema leaf extract to a patient with diabetes has been shown to stimulate the pancreas due to which an increase in the faecal excretion of cholesterol has been found [37], although more research is needed to demonstrate their clinical importance in managing hypercholesterolemia (high serum cholesterol). Other applications of the Gymnema leaf extract include the fact that it is used as a laxative, diuretic, and cough suppressant. These other processes would be regarded as the adverse reactions in case of involving Gymnema in its glucose lowering action in diabetes:

 1) It enhances secretion of insulin.

2) It induces repair of islet cells.

3) It enhances the use of glucose: it is demonstrated to stimulate the work of enzymes to use glucose through insulin-independent pathways and thus the activities of phosphorylase, the decrease of gluconeogenes enzymes and sorbitol dehydrogenases.

 4) It brings about an inhibition of intestinal glucose absorption. The gymnemic acid ingredients are thought to inhibit the glucose absorption in the small intestine in the mechanism that is not well known. It might be engage one or more mechanisms [39].

Bioactive anti diabetic compounds

In Gymnema sylvestre metabolites are found in secondary forms. These are oleanane saponins and dammarane saponins. There are two types of oleanane saponin i.e. gymnema saponins and gymnemic acid saponins. Gymnemasaponins are made up of two a-glycone saponins such as gymnemagenin and gymnestrogenin [40]. Gymnemasides [41, 42] are dammarane saponins. These antidiabetic properties belong to all these secondary metabolites. Other than these triterpenoid saponins and other antidiabetic compounds are anthraquinone, flavones, flavonoid such as epicatechin, apigenin, luteolin, phytin, resins, tartaric acid, formic acid, butyric acid, lupeol, bamyrin related glycosides [43]. An athraquinones and their derivatives, alkaloids- conduritol, gymnamine, a and b chlorophyll, polypeptide (Gurmarin), d-quercitol, stigma sterol, nonacosane, parabin, calcium oxalate, cellulose, lignin etc. also have antidiabetic potential [44, 45].

           Table 1.2 Gymnema sylvestre and their mode of action

Momordica Charantia

Bitter melon or Momordica Charantia is a common plant that is consumed by the indigenous people of the Asian continent, South America, India, the Caribbean and East Africa as a form of treating diabetes related conditions [51, 52]. The fruit possesses a characteristic bitter flavour much stronger in succession of growing older, therefore the name bitter melon or bitter gourd. Momordica Charantia has demonstrated strong antidiabetic effects and strong hypolipidemic effects such that it can be employed as an adjuvant together with allopathic treatment of medicine to treat diabetes as well as to prevent the late complications of diabetes [54]. Phenols, flavonoids, isoflavones, terpenes, anthroquinones, and glucosinolates are among those that contribute to its bitter flavour giving bitter melon medicinal value because of their high antioxidant properties [55].

Fig. 1.8 Momordica Charantia

Polypeptide-p

One of the most widely used vegetable, which contains polypeptide-p and is used in the control of diabetes in a natural manner, is Polypeptide-p Bitter melon [56]. Polypeptide-p or p-insulin is an  insulin like hypoglycemic protein, which has been demonstrated to reduce the level of blood glucose in gerbils, langur and human beings when injected subcutaneously [57]. The p-insulin is initiated by the action of human insulin in the body and can therefore be utilized as an insulin replacement in patients with type-1 diabetes is a  plant based insulin [58]. It has been recently cloned and expressed the 498 bp gene sequence of the Momordica Charantia polypeptide p gene and Wang et al. have also demonstrated the hypoglycemic activity of the recombinant polypeptide in alloxan induced diabetic mice [59]. The oral administration of bitter melon seeds extract does exert hypoglycemic effects in streptozotocin (STZ) elicited type-1 diabetic rats. This suggests that bitter melon seeds have other compounds that can be also involved in the treatment of type-1 diabetes besides the p-insulin [60].

Anti-diabetic effect of Momordica charantia

Momordica Charantia and its several extracts and constituents have been speculated to implement their hypoglycemic actions through various physiological, pharmacological and biochemical mechanisms [61, 62]. Hypoglycemic effect [63, 64], stimulation of peripheral and skeletal muscle glucose utilisation [65, 66], intestinal glucose uptake inhibition [67, 68], adipocyte differentiation inhibition [69], suppression of major gluconeogenic enzymes [70, 71], HMP pathway stimulation [70], and islet 0 cell and functions preservation [72] are the possible modes of the hypoglycemic actions of Momordica Charantia. The anti-hyperglycemic and hypoglycemic effects of the various extracts and components in Momordica charantia have been studied in more than 140 studies on the world today [73, 74, 61]. MomordicaCharantia has been identified to have a strong neuroprotective effect against global cerebral ischemic perfusion caused neuronal injury and resultant neurological impairment in diabetic mice [75]. A negative insulin signal regulator, protein tyrosine Phosphatase 1B (PTP1B) has been a possible therapeutic target in treating type 2 diabetes [76].

Momordica Charantia and glucose metabolism

Insulin has a significant biochemical effect of stimulating the uptake of glucose by various body cells in the production of energy [77, 78]. Momordica Charantia has direct effect in inhibiting the activities of fructose 1, 6diphosphatase and glucose-6-phosphatase and at the same time inducing the action of glucose-6- phosphatase dehydrogenase [79].

Mechanism

To start with, it has the ability to control the amount of glucose the gut releases into the blood after a meal and secondly it can increase the uptake of glucose by the skeletal muscle cells similarly to that of insulin. In addition, it appears to have its action through the same intracellular signaling pathways as insulin in the control of glucose metabolism within the body [80].

Advantages of Herbal Extract

Natural origin

The plants are used to produce herbal extracts and hence are abundant in naturally occurring bioactive compounds like alkaloids, flavonoids, terpenoids, saponins and phenolic acids. The fact they are naturally produced implies that they are better compatible with the human body as opposed to synthetic agents. Also, as renewable and biodegradable, they are environmentally friendly. Also, the history of traditional use of medicinal plants among cultures facilitates their safety and efficacy profiles [81].

Synergistic effect

Depending on the type of herbal extract, there can be many phytoconstituents, unlike synthetic medications which often have one active ingredient, which will work together in a synergistic manner. These elements have the ability to attack multiple biochemical pathways at once, which increases the overall treatment effect. An example is that antioxidant, anti-inflammatory, or antidiabetic effects of herbal formulations are more effective with the combination of flavonoids and saponins than with isolated compounds [82].

Minimal side effects

Herbal extracts have fewer adverse reactions than conventional synthetic drugs mainly because they are naturally composed and have a long history of use by man. Patients can more easily tolerate them especially in long-term treatments. Moreover, administration of whole plant extracts will aid in maintaining a balanced pharmacological profile, which can minimize the chances of toxicity that can be caused by the administration of pure compounds in large doses [83].

Formulation Design of Herbal Based Microneedle Patches: Development of The Microneedle Selecting The Base Material

The microneedle matrix is usually based on biocompatible polymers like hyaluronic acid, gelatin or polyvinyl alcohol  since the materials are readily degradable, possess easy dissolution properties and can be used to make dissolvable or biodegradable microneedles [84].

Incorporating Herbal Extracts

Add 100g Herbal Extracts to the mixture. The agents are the herbal extracts which are added to the base polymer in either solution form or as a dispersed solid. Herbs and concentrations are selected to address the desired therapeutic effect, e.g. wound healing, anti inflammatory effect or targeting microbial infections.

To Prepare a Homogenous Mixture

The herbal extracts and the base polymer are combined to achieve a homogenous performance and dosage. The step is essential to attain a uniform distribution of the active components in the microneedle matrix [85].

Materials

The main development of microneedles is that they will be able to penetrate the skin and they will not bend or break. In order to overcome the difficulties related to microneedle fabrication, the material used, manufacturing methods and design of structure has been widely examined Micro needles have been made using numerous materials such as silicon, metals, ceramics and polymers to name but a few. The hybrid versions of these materials have also been used to achieve better results in biomedical applications namely drug delivery, tissue engineering, and the development of medical implants [86].

Silicon

Micro needles were initially made out of silicon in the 1990s. Silicon has a number of benefits among them being natural flexibility and the ability to be constructed into different shapes and sizes with no trouble It has also been extensively exploited to make solid micro needles, hollow micro needles and coated micro needles. Nevertheless, silicon-based microneedles have drawbacks, including the time-consuming fabrication procedures, and great chances of fracturing under the skin when using these needles [87].

Metals

Microneedle fabrication is largely based on the use of metals because of their good mechanical characteristics and biocompatibility. They are more robust and less likely to break the silicon they are also more resistant to fractures due to their high fracture toughness and yield strength. Microneedle development used stainless steel then titanium as the most common metal. Although it is effective in skin penetration, metal microneedle can cause cases of allergy in others [88].

Ceramic

Micro needle fabrication has utilized ceramic materials, such as alumina, calcium sulfate dihydrate, and calcium phosphate dihydrate due to their good chemical stability and high compression property. Such materials are susceptible to micro-molding methods that can be used to sustain scalable and cost-efficient production. Ceramics such as alumina do not however have high tensile strength and it has been shown that microneedles made out of such materials may fracture when inserted manually into the skin [89].

Polymer

Micro-needles made of polymers are gaining momentum in the fabrication of microneedles because of their great biocompatibility, low toxicity, and the low cost. Polymers are particularly immune to mechanical limitations because they are weaker than silicon and metals, and are particularly useful in designing dissolvable and hydrogelforming arrays of microneedles. They are also applicable to solid, coated and hollow types of microneedles. Biodegradable polymers like poly methyl methacrylate, polylastic acid, polycarbonate, polystyrene, and SU-8 photo resist have been utilized in the delivery of various drugs through the skin hence it is useful in transdermal therapeutic use [90].

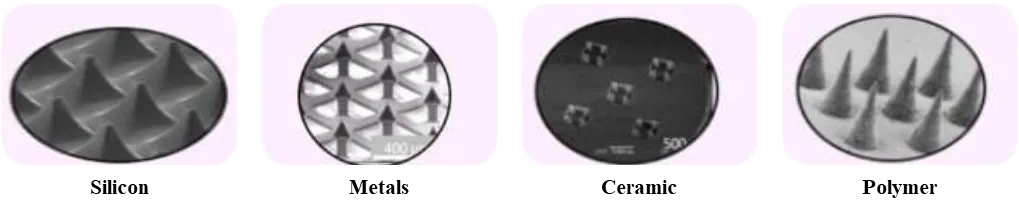

Fig. 1.9 Schematic diagram of microneedle material of construction

Plasticizers and stabilizers

4.1 Plasticizers

Polymer Plasticizers like glycerol, sorbitol, are also added to minimize brittleness and increase the elasticity of polymeric network example: chitosan, or hyaluronic acid. They operate by suppressing the intermolecular forces between polymer chains thus enhancing mobility and flexibility of the matrix. This alteration contains the cracking in the process of microneedle drying and insertion [91].

Glycerol

 A biocompatible plasticizer is a polyhydric alcohol that is frequently used. Glycerol improves the mechanical strength, flexibility, and moisture retention, and it is particularly significant in the case of hydrophilic polymers such as poly vinyl alcohol, poly vinyl pyrrolidone. It also assists in keeping the needles sharp and it does not fracture when they penetrate the skin [92].

Sorbitol

Sorbitol is another sugar alcohol that is applied as a plasticizer and humectant and enhances the integrity and stability of microneedles by maintaining a sufficient level of moisture content. It gives it a smoother surface and helps in uniform distribution of drugs or herbal extracts through microneedle matrix [93].

4.2 Stabilizers

Glycerol and sorbitol are both capable of stabilising bioactive herbal compounds and serve to protect them against drying, oxidation or changes in temperature. They are hygroscopic, which preserves the hydration condition of the delicate phytochemicals and guarantees extended shelf-life as well as uniform liberation action [94].

Preparation Methods

Solvent Casting Micro Molding

The most widespread technique to make dissolving microneedles is solvent casting micro-molding where no extra heat is needed and thus dissolving microneedles can be utilized to deliver heat-sensitive proteins and peptides [96]. Moreover, the fairly easy production of dissolving microneedles can also be implemented at an industrial scale and is beneficial to the production of protein-based microneedles [97].  Dissolving microneedles are commonly prepared by pouring a liquid formulation into a prepared microneedle mold [98]. Laser machining has been an eminent alternative or complementary technique to lithography-based microfabrication in the late 1980s. Carbondioxide lasers are typically employed to fabricate prototypes quickly and at low cost, and in microfabrication. The micro channel engraving has been effective in the production of microfluidic devices. Also, laser drilling can be termed as ablation, a conventional method of producing arrays of microstructures, e.g. concavities or through-holes, in a variety of industrial and research applications [99].

This process is effective, easy, and efficient in saving time hence more appropriate in mass production and more economical than other technologies. Specifically, it is a good choice in sugar and polymeric microneedles [100]. As such, mold filling techniques are required to defeat surface tension. Researchers have come up with various processes among them being vacuum-assisted processes, centrifugation, spinning coating, imprinting, infiltration and atomized spray to address this challenge of filling a mold. Micromolding has limitations regardless of these attempts. It finds it difficult to form complicated structures like the adhesive structure with barbs or hollow structure. Moreover, the stress of demolding may possibly harm end structures especially soft and delicate ones such as hydrogels. Besides, it cannot process materials like metal, silicon and glass through this technique [101]. The solvent-casting micromoulding process is divided into two types in the development process which are onestep and two-step casting.

One step casting

Microneedle manufacturing process can be dissolved and a single step can be used to cast the micromoulding which is known as one step casting micromoulding. Cast polymer solution containing the active substance into the polydimethylsiloxane molds and centrifuged or vacuum dried [102]. Prepared insulin filled dissolving microneedle with GantrezTM AN-139 polymer one-step casting method. The insulin at 2.5 and 10mg was combined with the GantrezTM aqueous solution, poured in silicone moulds, centrifuged and dried at room temperature in 24 hours. Micro needles of insulin were put on the skin of neonatal porcine and it was found that at doses of 2.5mg and 10mg insulin in 1 dissolving microneedle only 40% and 55% of the insulin in whole dissolving microneedle was delivered, respectively. As a result of this finding, the author mentioned that the insulin that was in the needles entered the skin, but the insulin in the base plate was not administered. This was due to the fact that the microneedle base plate was no longer in the dried form as it turned into a gel after 24 hours and no holes in the skin were observed after 24 hours [103].

Two step casting

To eliminate the issues brought about by one-step casting, it is best to design a technique whereby the active substance will solely be concentrated at the tip of the microneedles or needles referred to as two-step casting. In this procedure, two sets of polymer mixtures will be prepared, the first solution will contain both polymer and active substances, and the second solution will contain purely blank polymer, i.e. devoid of active substances. The initial water-based polymer solution will be transferred into poly dimethylsiloxane molds and dried, and the second water-based polymer solution will be added on the top of the former one in such a way that the active substance will only be concentrated in the needle. This will save on waste of drugs since the drugs incorporated in the base plate are not wasted [104]. Exenatide is one such peptide that is incorporated in the dissolving microneedles system through the two-step casting method [105].

3D Printing

The two-photon polymerization process which involves the use of two-photon absorption in triggering polymerization was the first photopolymerization technique that was utilized in the fabrication of the microneedles. This stereolithography method can print microneedle arrays that have excellent resolution, a good printing quality and have a high level of accuracy. In recent researches, the two-photon polymerization is implemented in the direct and indirect production of microneedle arrays. Cordeiro et al. revealed the fabrication of the three-dimensional structures by the two-phyton polymerization technique as they created templates of various shapes and sizes and fabricated dissolvable and hydrogel forming micro-needles with another type of microfabrication known as micro-molding [106].

There are other types of photopolymerization techniques that can be used to 3D-printing of microneedles. Laser or light-emission technologies can also be used instead of the two-photon absorption of the polymerization of materials in order to accomplish the same purpose of polymerization that is Digital light processing, Continuous liquid interface production and laser stereolithography. The micro-molding of biodegradable microneedles can be developed further by obtaining the direct printing of the molds with the laser stereolithography method. The polymer microneedles coated anti-cellulite herbal product was also studied, characterized, and pharmacologically tested [107]. Following a similar method, 3D- printed masters of micro-needle  which  were  produced  and  recapsulated into molds using cheap and fast production methods. These scientists could reproducibly and customize recombinable microneedle molds [108]. Three-dimensional-printed cone-shaped microneedles were directly produced one step [109].  There was a fabrication of a heterogeneous mixing and transport of fluids using microfluidic-enabled hollow microneedles. This research led to the implementation of hollow microneedles in the delivery of various drug formulations through the transdermal routes by creating microchannels on the human skin using the patch of microneedles manufactured by one-step laser stereolithography [110].

It has been found out that the human skin which has been treated with microneedles has a comparatively enhanced permeability [111].  Microneedles are needles measuring height of 25-2000 mm with a height of 25-2000 m. All the 3D-printing technologies can be used to manufacture the microneedles of the above-mentioned range in a repeatable way with a high level of quality and resolution. Depending on the material and the type of application, one can use a specific 3D-printing technology. As it has been mentioned above, there are four different types of microneedles: solid, hollow, coated, dissolvable, and hydrogel-forming microneedles. Table 1.3 demonstrates the various forms of 3D-printing technologies depending on the type of the microneedle, the smallest resolution of the layer, and the type of application. The optimal features of the 3D-printed microneedle are the optimal size, the adequate mechanical stability, the efficient drug delivery, and the capability to be leak-free [112, 113]. The figure of scanning electron microscopy of the microneedles fabricated using the various kinds of 3D-printing technologies is depicted in table 1.3

Fig. 1.10 Schematic diagram of stereolithography 3d printing process

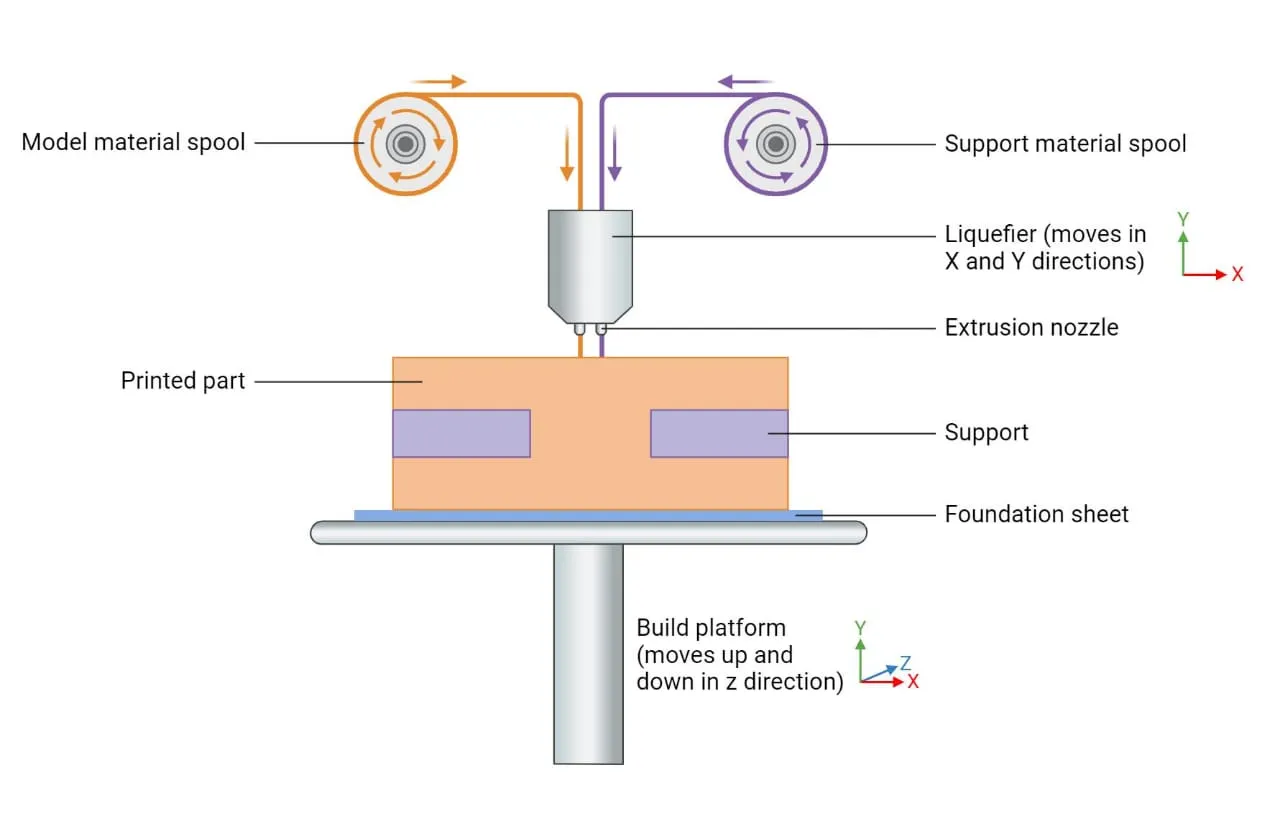

Fig. 1.11 Schematic diagram of fused deposition modelling 3D printing

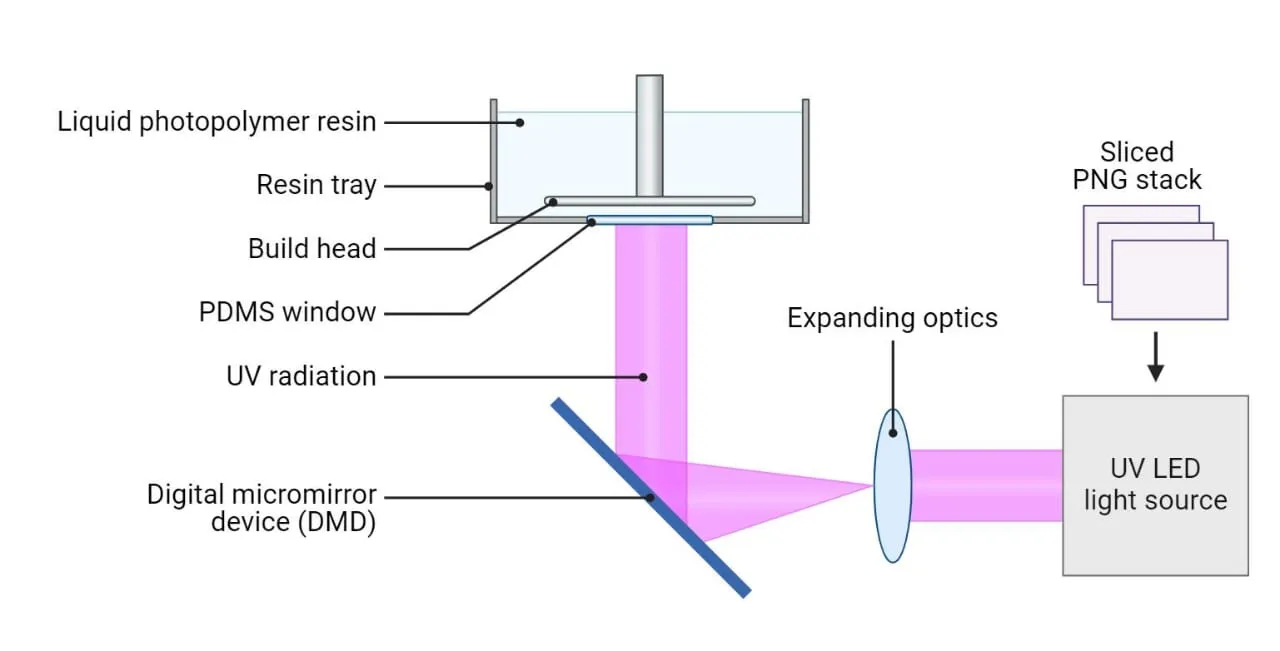

Fig. 1.12 Schematic diagram of digital light processing 3D printing

Fabrication

These methods are applied either separately or together to form implantable biomedical device. Implants are usually micro fabricated in silicon or other similar substances as they are easy to produce. Once the demonstration of concept has been presented, the implant can then be reshaped to be cast in other materials through methods like micromolding. The most widespread method of fabrication is micromolding of microneedles. Polymer casting is done in this technique with negative elastomeric polydimethylsiloxane mold to make microneedles [115].

3D Printed Microneedle patches          Filling with polydimethylsiloxane                 Drying in the oven

Filling with polymer mixture                                       Centrifugation and drying                                   Ready to use Dissolvable Patches

Mechanism Of Drug Delivery And Action

The mechanism of drug delivery and action are described in the following way Drug permeation through microneedle-created microchannels, Controlled and sustained insulin/herbal release, Enhanced bioavailability compared to topical or oral routes, Dual mechanism: herbal bioactives and  insulin co-delivery to improve glycemic control.

Microneedle created micro channel

The insertion of the microneedles into the skin surface forms micro pores or microchannels of depth 10-200 µm depending on Microneedle geometry, material and force of insertion. Contrary to hypodermic needles, microneedles do not approach the nerve ends or blood vessels hence giving the administration of the drug without any pain. The formed microchannels interfere with the lipid-enriched structure of stratum corneum and establish aqueous pores in which drug molecules are allowed to transverse [116]. These microchannels stay open over a few hours and they ultimately close because of the skin restoration processes in the form of migration of keratinocytes and production of lipids in the barriers. Drug Permeation Pathways: Drugs passed through the microneedle created microchannels using a concentration found between the formulation and the interstitial fluid within the skin using a concentration gradient which is the first law of diffusion according to Fick. Convective Flow and Capillary Action: When the skin and microchannels become moist, the diffusion process of dissolved drug molecules is enhanced, and it moves deeper into the dermal tissue. The pathways formed by microneedles, to a large extent, enhance the permeability coefficient and lower the resistance to diffusion and thus maximize flux when compared to intact skin [117].

Factors Affecting Drug Permeation: Several parameters control the level of drug permeation by the microneedlecreated microchannels: Microneedle Geometry and Material: The length, tip sharpness, density of needles and materials (metal, silicon or polymer) determine the level of needle insertion and the depth of the pore. An example is polymeric dissolving microneedles which are capable of sustained release due to dissolution in the skin [118]. Drug Properties: The Molecular size, charge, and solubility determine the ease with which the drug diffuses through the aqueous channels. Insulin and peptides, as well as vaccines, are some of the examples of macromolecules with increased permeation relative to standard patches. Formulation Design: Coated or encapsulated microneedles release the drug when exposed to interstitial fluid. Microneedle swelling  Hydrogelforming microneedles swell to create a controlled drug release environment [119].Skin Recovery Time: The microchannels do tend to close within 24-72 hours, depending on skin site and depth of microneedles, which amplifies the length of enhanced permeability [120].

Controlled and Sustained Insulin Release

Polymers that are derived out of herbs are also significant in the regulation of drug release of microneedles. Chitosan is a natural polymer of chitin and can offer good film-forming and muco-adhesive characteristics as well as biocompatibility. Microneedles based on chitosan allow indirect, extended (up to 24 hours) release of insulin or phytochemicals because of the adjustment of its molecular weight or mild crosslinking [121]. On the same note, guar gum and alginate are employed due to their gelling and swelling properties to create diffusion controlled matrices that release drugs in a prolonged fashion. Gum acacia and derivatives of starch have also been used to control hydration and degradation rates therefore regulating the release kinetics of herbal actives [122].Individual phytoconstituents have also been investigated to be used as sustained release in diabetes therapy. Berberis aristata (is an isoquinoline alkaloid called berberine) acts as an activator of the AMPK pathway and enhances insulin sensitivity. Incorporated into HA -chitosan Microneedles, berberine showed prolonged dermal release and increased pharmacological activity [123].

Curcumin is a polyphenolic compound that is found in Curcuma longa; it exhibits antioxidant and beta cellprotective properties; the addition of curcumin to the nanocarrier-loaded PVP Microneedles would allow a constant release of this compound up to 48 hours, eliminating the burst effect [124]. Likewise, flavonoid quercetin of Moringa oleifera or Allium cepa and resveratrol of Vitis vinifera have been successfully loaded to produce bi phase or sustained release curves in Microneedles to provide short- and long-term glycemic regulation results [125]. Indicatively, Microneedles patches comprising of insulin plus extracts of Gymnema sylvestre delivered an initial insulin spurt and a prolonged herbal discharge, which has shown to be a great way to offer effective postprandial as well as basal glucose control [126]. Likewise, the concurring effect of Insulin with curcumin or fenugreek extracts in polymeric Microneedles led to an increase in antioxidant and hypoglycemic effect [127].

Enhanced Bioavailability

Physical Microneedle patches circumvent stratum corneum by either making micron size punctures or injecting drug into viable epidermis or dermis. This bypasses first-pass hepatic metabolism and a lot of digestive enzymes and results in much higher fractions of the nominal dose to reach the local capillaries and lymphatics thus better systemic bioavailability. Systemic bioavailability of phytochemicals which would otherwise be rapidly metabolised is also increased by avoidance of gastrointestinal degradation and hepatic first-pass metabolism [117]. Most phytochemicals such as poly phenols, alkaloids, saponins and peptides exhibit a low permeability over intestinal membrane leading to low absorption by the systemic system and low therapeutic effect. Likewise, the traditional topical preparations like creams or gels have drawbacks because of the barrier characteristics of stratum corneum which inhibits the permeation of hydrophilic or high-molecular-weight substances. Consequently, it becomes challenging and unreliable to obtain herbal actives at their therapeutic relevant plasma concentrations by oral or topical administration [128].

Microneedle technology can offer an exciting solution to such problems, as it will make microscopic pores in the stratum corneum and direct delivery of herbal bioactives into the viable epidermal and dermal layers that have plentiful vascular and lymphatic networks. This transdermal system is particularly useful in bypassing gastrointestinal degradation and hepatic first-pass metabolism, rendering the system improved systemic absorption and bioavailability of the drug [129] in the case of gymnemic acids of Gymnema sylvestre, charantin and polypeptide-P of Momordica charantia, or 4-hydroxyisoleucine of Trigonella foenum-graecum, oral bioavailability is low, but transdermal delivery using microneedle systems Herbal-based microneedle patches can be used to increase the bioavailability of herbal antidiabetic agents in comparison with oral or topical preparations because it overcomes biological barriers to bioavailability of gastrointestinal and stratum corneum. They offer patient-friendly, efficient, and non-invasive route of delivery that enables the discharge of phytoconstituents in a rapid and sustained manner that ensure the maintenance of study therapeutic level and enhanced control of diabetes [130].

Dual Mechanism

Dual delivery of herbal bioactives and insulin by the use of microneedle patches is an up-and-coming technology in transdermal diabetes therapeutics, which is intended to treat several pathophysiological factors of diabetes mellitus, especially insulin inadequacy and insulin resistance, by means of a synergistic medication modality [131]. The exogenous insulin and herbal bioactive loading capabilities of these hydrophilic polymers, e.g., chitosan, hyaluronic acid, polyvinyl alcohol and polyvinyl pyrrolidone, provide both immediate and long-term benefits in glucose homeostasis due to the speed of glycemic control with exogenous insulin and the long-term metabolic modulation, antioxidant and protective effects of the biology on the 2 -cell [132].The polymeric matrices employed to produce the microneedle. As an example, insulin can be trapped into the tip of dissolving microneedles to release quickly at the beginning and herbal substances trapped in the bottom layer release slowly or slowly to keep the plasma glucose levels constant over a period. This two-way action also solves the problem of insulin stability [133]. Numerous herbal antioxidants, e.g. curcumin or quercetin, have the opportunity to stabilize insulin molecules by inhibiting aggregation and oxidative degradation processes during storage and administration. Besides, their local anti-inflammatory actions lower dermal irritation, which occasionally happens in repeated use of the microneedles [134]. Such a twofold system of protection does not only make patients comfortable, but also prolongs the life of patches and improves the overall results of the treatment process [135].

Evaluation And Characterization Of Microneedle Patches Microneedle Patch Morphology

Digital microscope is applied to examine the dimension and morphology of prepared patch such as length, width, height of patch and of the inter-space of patch and the microneedle patch. It then analyzed  and the outcome compared with the master mold [136].

Weight variation

Three patches are picked and weigh each one separately through electrical balance to find the mean weight value [137].

Thickness uniformity

The drug content may be determined by placing the prepared patch of the microneedle patch in 100 ml of phosphate buffer with pH 7.4 within 30 min. Subsequently, the solution obtained is filtered and examined using the drug content [138].

Folding test

Folding test may be described as the folds that are obtained with no patch breaking, in case the folding was repeated in the same place. This is a triplicated test, to record the average of the value [139].

PH measurement

The patch is dipped into a glass vessel that has contained 10 ml of deionized water. Measurement of the  pH is done by immersing the pH electrode in contact with patch surface during one minute to bring to equilibrium [140].

Percentage of moisture loss

Three patches are individually weighed and put in a desiccator with anhydrous calcium chloride over a period of three days at the room temperature. The patch is then reweighed again to determine the difference between the weights.  Lastly, the loosing of moisture percentage is determined using the following equation  PML = [( W0 0− Wt )/W0 ) × 100 W0= weight at the beginning, Wt= weight at the end [141]. Percentage of moisture absorbed  Individual weighing of three patches is followed by placing it in a desiccator with saturated solution of potassium sulphate over a period of three days at room temperature. The patch is reweighed again afterwards [142].

Measurement of axial needle fracture force

The axial needle fracture force can be explained as the lowest force that acts against microneedle axis that leads to microneedles breakdown.  This test is measured with TA texture analyzer. XT apparatus. A microneedle patch is inserted in this test, a microneedle patch is placed on an affixed cylinder platform, and the instrument programmed to compress the axially the patch of the microneedle. The highest force which apply instantly prior to patch deflection is deemed as the  axial needle fracture force and the immediate force loss which is documented as a needle failure [143].

In vitro skin permeation study

In vitro skin permeation experiment was carried out by using a Franz cell diffusion apparatus having effective diffusion area and an opposite receptor volume. In this case, the animal skin is laid between the donor and the receptor where the subcutaneous layer is laid on the face of the donor cell. The media of receptor were agitated  to ensure consistent  receptor  dispersion during the experiment, some volume of the sample leaving receptor fluid and substitution with an equal volume at particular time interval.  Lastly, a comparison of the profile of cumulative permeation of microneedle treated and untreated skin was conducted [144].

Histological study

The efficiency of the microneedle patch of stratum corenum penetration is investigated through rat skin by applying  microneedle patch on the rat skin, after 1min by using soft thumb pressure then the skin was put in 10% formalin solution and allowed to stay overnight. The paraffin-impregnated tissue is then embedded in the tissue, paraffin removed by using of microtome, followed by cutting a thin section and then attaching the tissue to the slide followed by staining by use of haematoxylin and eosin pigment[145].

In vitro release study

A patch of  a microneedle  is mounted  between  the  donor and  the  receptor  compartment  of  diffusion  cell  by  using  Franz  cell  diffusion.  The liquid of receptor is stirred in the presence of magnetic stirrer; this receptor is filled with a certain volume of phosphate buffer pH 7.4 and the temperature of receptor is adjusted at 32C. Sample  withdrawals  at  some  time  interval  and substituted  with  same  volume  of  phosphate  buffer pH7.4. Following this, measured at specific wave length following a specific dilution, thereafter, the test repeated thrice  sub-sequently assume the average value [146].

Advantages

Minimally Invasive and Painless Delivery:  Herbal based microneedles enter the stratum corneum without moving past the dermis to the pain receptors and therefore, painless and blood-free delivery is possible. This improves compliance in patients, particularly in the long term management treatments such as diabetes management [119].

Improved Bioavailability of Herbal Actives:  Herbal bioactives do not have high bioavailability rate because of low solubility and first-pass metabolism when orally administered. Microneedle delivery avoids the gastrointestinal tract and hepatic metabolism and introduces the herbal drugs directly to the systemic circulation via the microchannels of the dermis, which greatly enhances the therapeutic concentration of herbs [147].

Sustained and Controlled Release:   Biodegradable polymers in herbal Microneedles (including chitosan, hyaluronic acid  allow active and controlled delivery of herbal products or insulin mimics, so that plasma drug levels remain steady and the number of injections is lowered [128].

Synergistic Therapeutic Action:   Synergistic effects of herbal bioactives (with or without insulin in MNs) may be observed (antioxidant, anti-inflammatory, and 6-cell protective effects) to improve glycemic control and decrease diabetic complications.

Less Systemic Systemic Side Effects: The nature of the delivery is localized, and gastrointestinal absorption is avoided; therefore, herbal-based MNs are less toxic, irritable, and degrading by systemic routes compared to the oral or injected counterparts [148].

Challenges And Limitations

Microneedle patches of herbal-based have a number of challenges which restrict their clinical translation. There is also a change in the herbal extract makeup with change in the plant source and mode of extraction resulting in unreliable treatment effect. Polymer materials and bioactive herbs can lead to incompatibility with herby bioactives causing either instability or inefficiency. Balance between dosage and drug loading and controlled release of the herbal compounds is challenging to achieve. Micro needles can also be made weak by the high concentration of herbal ingredients thus not penetrating the skin fully. Also, insufficient clinical trials, regulatory not very clear pathways, and scalability are disadvantages to commercialization. Long-term stability and safety are another factor that creates restrictions to these innovative systems  [117].

Recent Advances

Biodegradable Polymers

Biodegradable polymer-based micro-needles are now getting more popular as the polymer is bio-compatible, costeffective, and dissolves or degrades in the skin upon drug delivery.

Material Innovations

Polymers Poly-lactic acid, poly lactic-co-glycolic acid, and polyvinyl pyrrolidone are considered to be common because of their mechanical strength and degradation controlled properties [149,150].

Printing Processes

FDM has facilitated accurate production of micro-needles with shaped, sizeable, and identifiable shapes and sizes. The chemical etching after fabrication enables tip sizes to a small 1 μm, which produces better penetration and drug release.

Metal-Based Micro-needles

Metal micro-needles are appreciated because of mechanical strength, durability and bio-compatibility.  The most common metals that are used are stainless steel and titanium, which are robust and can be used with the biological tissues. Nickel and palladium are some of the other metals that are under investigation to be used in particular applications.

Applications

The metal micro-needles are specially chosen to be used in high mechanical strength application, like vaccine administration or cancer treatment. They have a high accuracy in dosage and quick acting.

Market Growth

Metal micro-needles took a large percentage of revenues in the world market in 2024, and the fact that they have become common in clinical treatments indicates their popularity [150].
