A Review on Microneedle Drug Delivery Systems: Classification, Fabrication, and Biomedical Applications

One of the most practical ways to administer medications is orally however occasionally this is not possible since medications may be poorly absorbed or destroyed as a result of enzymatic breakdown in the liver or gastrointestinal tract over the past century injection using a hypodermic needle has become a popular substitute for oral drug delivery which are more painful and invasive also create the biohazardous waste and require trained personnel Hypodermic needles are inserted to muscles where there is a lower immune response than there in the skin  so TDDS is used as an alternative method to the hypodermic needles TDDS also bypasses the hepatic first pass metabolism and it is non-invasive painless alternative and it can be self-administered stratum corneum  is the outermost layer of the skin made up of the dead corneocytes that acts as a primary barrier for transdermal administration it causes significantly reduced effectiveness of the drug delivery and restricts the different kinds of the drugs that are transported via skin Microneedle technology was proposed in year 1976 to overcome the problems associated with old transdermal delivery technique The microneedles are about 25 um to 2000um long and are much sharper than the usual hypodermic needles so that they can cross stratum corneum and create micro scale drug delivery channels without disturbing the nerve fibers and blood vessels present in the epidermis and dermis layers of the skin therefore the efficacy of the drug delivery can be markedly improved and a wide range of drugs delivered by TDDS can be significantly expanded in a painless and least invasive way.

2. CLASSIFICATION OF MICRONEEDLES:

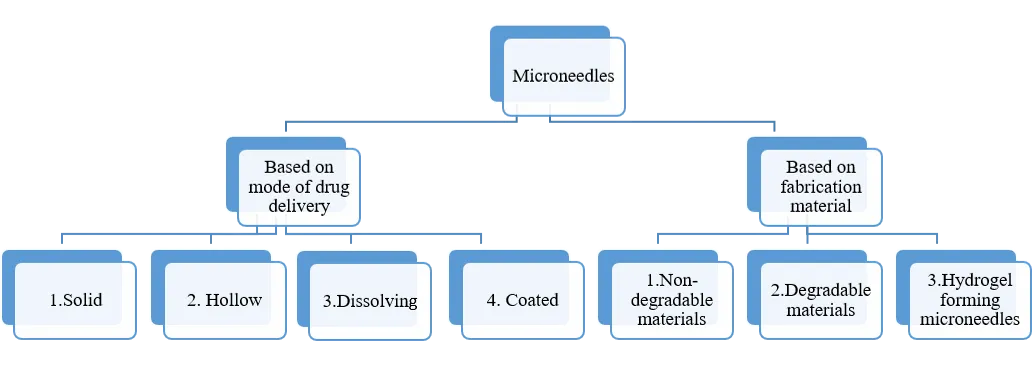

Figure 1: Classification of microneedles

2.2 Based on fabrication material:

Microneedles are manufactured using a various types of material including metals, ceramics, silicones, and polymers. These materials used for microneedles manufacture are classified as non- degradable and degradable materials. Materials such as metals, ceramics and silicones are non- degradable materials while the polysaccharides and polymers are the degradable materials that are employed in microneedle manufacturing.

2.2.1 Non degradable materials:

1. Metals: One of the first metal based microneedle product to be introduced was Soluvia®. Microjet®, a silicone- based product was another that arrived on the market. The two metals that are most frequently utilized to create microneedles are titanium and stainless steel. Metal microneedles can be manufactured as hollow, solid, or microneedles with coatings. Wet etching, metal electroplating, laser cutting, and three- dimensional laser ablation are examples of fabrication methods. The AdmiPen® is a type of hollow microneedle that has been released commercially. Its length ranges from 600 to 1500 µm. Titanium or stainless steel derma rollers are used professionally for cosmetic applications.
2. Silicone: For more than 20 years, silicones had been studied as one of the most popular material for microneedle devices. In micromoulding, silicone microneedle arrays could serve as the main mould. Silicones make it possible to create microneedles with a variety of shapes. Using an etching process, Narayanan et al created silicon microneedles. Etching factors including time, different concentrations of tetra methyl ammonium hydroxide (TMAH) , sharper microneedles with greater aspect ratio were created by adjusting the temperature, etching rate, and other factors. According to Krieger et al, a 3D printer can also be used to create high aspect ratio microneedle silicone master mould.
3. Ceramic: One of the most popular materials used to make microneedles is alumina i.e., (Al₂O₃). Because of its porosity, alumina can hold a specific volume of active ingredient. Microneedles have also been created using gypsum and brushite. Microneedles have been created using Ormocer® which is a new material composed of organically modified silicon alkoxides and organic monomers. It creates a three-dimensional network that expands the region where the drug solution can be absorbed.
4. Synthetic polymers: A number of synthetic polymers, including poly vinyl alcohol (PVA) and polyvinyl pyrrolidone (PVP), have been studied for usage I microneedles. For microneedle arrays, poly (methyl methacrylate) i.e., PMMA is a biocompatible polymer.

2.2.2 Degradable materials:

1. Natural materials: For the production of microneedles, carbohydrates are a good substitute. The affordability and safety of carbohydrates is one of their most significant qualities. They have low toxicity in addition to having great biocompatibility. It is recognized that certain carbohydrates have a notable degree of toughness or strength. These materials are inexpensive and readily biodegradable. Using master templates, it is simple to shape carbohydrates into microneedles. A combination of active substance and carbohydrates can be created. After that, this mixture can be poured into molds that dissolve when inserted into the skin, releasing the pharmacological payload. Maltose is one of the sugars most frequently utilized in the preparation of microneedle arrays. In parenteral formulations that have received FDA approval, maltose is a frequently used excipient. FDA approved parenteral preparations use maltose as an excipient.
2. Synthetic materials: Microneedles have been created using a wide range of synthetic macromolecular materials. These consist of poly lactic acid (PLA), poly lactic co-glycolic acid (PLGA), polyglycolic acid (PGA). Microneedles control the drug release for these kinds of materials, which is dependent on the microneedle materials’s composition.
3. Hydrogel forming microneedles: These are called as in – situ microneedles and fabricated with a polymer is cross-linked to form dry hydrogels. They absorb in water from interstitial fluid when injected into the skin, which causes microneedles to swell.  Conduits that serve as drug reservoirs and regulate dug distribution are created by swelling hydrogel network. Additionally, it keeps the microneedles in skin intact. The molding method, which also involves a cross-linked phase, is mostly used to create these microneedles. Numerous materials have been investigated for hydrogel forming microneedles. Polysaccharides are the most prevalent. Otherv polymers have been investigated for hydrogel forming microneedles, including Poly (ethylene glycol) diacrylate i.e., PEGDA and PVA, polyacrylic acid- co- maleic acid (PAMA), and methylvinylether-co- maliec acid. Because of microneedle base’s capacity to swell, the primary benefit of hydrogel forming microneedles is the delivery of large quantities of medication.

Microneedles have been made from a variety of materials. They can be made from either biodegradable or non-biodegradable materials. Although there are many options for both biodegradable and non-biodegradable materials, it is important to take into account supporting factors that may affect the building materials. Several types of materials have been used for fabrication of microneedles. The choice of material is influenced by a number of factors, including the available manufacturing method, the drugs and excipients of choice, the drug’s compatibility with the material and fabrication process, the eventual usage, and the mode of delivery.

3. FABRICATION TECHNIQUES OF MICRONEEDLES:

Skin is an elastic organ that has considerablevtensile strength. Microneedles need to be as strong as possible to penetrate without breaking or cracking during insertion. As a result, creating microneedles is difficult. The required skin depth, microneedles geometry, and preferred material all influence the construction process. For example, solvent- casting might work well for polymeric microneedles, whereas metal microneedles are best designed using microelectromechanical system. The manufacturing technology has been used to categorize the fabrication procedures.

1. Fabrication of polymeric microneedles using solvent:

1. Micromolding: Micromolding is used to create a variety of polymers, from PVA and PVP (synthetic or semisynthetic polymers) to pectin (natural polymer). The method uses many methods to evenly pour a liquid polymeric solution onto the mold, then removes air gaps. Air spaces can be eliminated by using a vacuum (or, alternately, a centrifuge), drying in an oven, and then being removed from the molds.
2. Atomized spraying to fill molds: Because of the centrifugation or vacuuming process involved, continuous production of microneedles using micromolding techniques can be difficult. This difficulty can be solved by atomized spraying the polymer solution into the molds. As demonstrated by McGrath et al., atomization of aqueous solution might effectively cover the whole surface of the mould without creating any voids. Using atomized spraying, the authors created dissolving microneedles (5% solids concentration) in silicon micromolds.
3. Droplet born air blowing (DAB): This technique uses air blowing to create a polymer droplet the shape of microneedle, enabling mild conditions without the requirement for harsh external conditions like heat or UV radiations. The first step in the procedure is to dispense the solution onto the upper and lower plates. The viscous solution is extended by keeping the two plates in contact and gradually pulling them apart. After that, the extended viscous solution is subjected to controlled blowing air. This drying stage provides the necessary form. Kim et al suggested the manufacturing process. The droplet’s size, concentration, and regulated drug loading without drug loss are all managed using a single polymer drop per microneedle. The authors successfully lowered blood glucose levels in diabetic rats by using this method to create insulin loaded dissolving microneedles.
4. Pulling pipettes: The pulling pipettes method is only useful for creating hollow glass microneedles. Glass is heated to a high temperaturebefore being pulled with a micropipette puller to form microneedle arrays. Programmable pullers can be used to make this method more reliable.

2. Fabrication of microneedles using electromagnetic/ microsystem/ laser technology:

1. Microelectromechanical system (MEMS): Integrated circuit technology has been used for developing MESM. The three primary processes of MEMS are:

(i) Deposition, (ii) patterning, and (iii) etching.

1. Deposition:

This process involves the creation of films on substrate, which is a base material. A chemical or physical process creates the films. While the chemical vapour deposition (CVD) technique involves a chemical reaction between the hot substrate and the carrier gases in the chamber, the physical vapour deposition (PVD) technique involves removing the materials from the source and depositing them on the substrate.

2. Patterning:

The microneedle geometry pattern, such as height, base width, tip angle, and bore size details is transferred onto the film during the patterning process. One popular method for patterning is lithography. In short, a microneedle pattern is transferred when a radiation source, like light strikes a photosensitive substrate. Radiation can come from a variety of sources, including x-ray, ion, or electron beam lithography. The mask transfer onto the photosensitive coated substrate typically involves the following successive steps:

The first stage is heating in the presence of steam or humidified oxygen to generate an oxide layer. A thin layer of an organic polymer known as a photosensitive/ photoresist or resist substances (sensitive to UV radiation) is then spin coated. The resist layer is then heated in order to eliminate the solvent. After that a mask is exposed to a UV lamp, which enables an almost flawless transfer or to put it another way, ‘printing’ of the mask image onto the resist-coated wafers.

3. Etching:

In order to create an interesting microneedle design, the unprotected portions of the substrate are etched out using a strong caustic solution. Both wet and dry methods can be used for etching.

• Dry process: Ion beam milling or reactive ion etching techniques may be used in the dry process. Solid and hollow microneedles are produed by the dry etching method.
• Wet process: This method involves immersing the substrate in a chemical liquid to assist removal of extra material. Wet etching can occur at distinct (anisotropic) or the same (isotropic) rates. Silicon and metallic arrays are made with it.

2. Laser cutting: This technique involves cutting metallic sheets into the shapes of microneedles using an infrared laser. The microneedle’s geometry is designed using AutoCAD software. The metal sheet is subsequently removed by the laser beam in accordance with the design, creating in-plane Microneedles. After being cleaned, the manufactured microneedles are bent at a 90° angle. After that, electropolishing is used to adjust the tips. Metallic microneedles are produced using this technique. Stainless steel is the most commonly used material.
3. Laser ablation: This technique creates a bulge by impinging a laser on a metal plate, as the name implies. To create a microneedle, light pulses are employed to give the bulge to distinct shape. Laser ablation is also used to create solid metallic arrays, much like laser cutting. Additionally, metals such as tantalum are manufactured.
4. Deep X-ray lithography: This method involves coating and curing a polymer solution on a silicon wafer. The silicon wafer is exposed to a vertical deep x-ray, creating an array of triangular columns and channels. To achieve the required microneedle geometry, the substrate and the x-ray mask are continually aligned and modified. This method is well known for producing hollow microneedles with high precision. Microneedle array can be made up of glass, ceramic, polymeric and metallic materials.

3. Additive manufacturing:

1. Two photon polymerization: This is a low-cost, high throughput methods of creating 3- dimensional structures layer by layer. Resins are polymerized into microneedle structures using femtosecond or picosecond laser pulse. Two-photon absorption, which produces an energy centered at laser focal point, starts the polymerization. A computer-aided design (CAD) model is used to first slice the required structure. After that, the laser’s contour in the photosensitive resin. Resin is cleaned with a solvent once the microneedle is made, and ultraviolet radiation is used to cure it.
2. Microstereolithography (µSL): A high- throughput Fabrication method is called microstereolithography (µSL). It uses a bottom-up addition method to create 3D microstructures. Tissue engineering and biomedicine have made extensive use of this method. The creation of a liquid’s spatially controlled solidification using photopolymerization. A laser beam produces an microneedle pattern on a resin’s surface, giving it a distinct depth. Following support platform is made easier by this. The first layer is photo- polymerized, separated, and realigned, and then the first built layer is recoated. The second layer cures the pattern. To create a solid, 3- dimensional object, continue these processes.
3. Continuous liquid interface (CLIP): Microneedles are computationally designed using CLIP. In contrast to the above-mentioned conventional layer-by-layer procedure, this innovative approach uses a continuous additive process. The primary benefit of CLIP over the conventional method is that it produces microneedles with a much higher resolution. By doing away with separation and realignement, efficiency is increased and microneedles are produced more quickly. Johnson et al created microneedle arrays utilizing CLIP employing triethylol propane triacrylate, polyethylene glycol dimethacrylate, polycaprolactone trimethacrylate, and polyacrylic acid. It was demonstrated that prepared microneedles could pierce the skin of mice and release rhodamine dye. In 2 -10 minutes, any microneedle patch may be designed using the CLIP technique. The CLIP approach’s great versatility for microneedle generation and rapid prototyping allows for the examination of a wide range of parameters, such as size, shape, and composition, in a throughput process.
4. Microneedle pain and effectiveness of drug delivery: The primary goal of microneedles is to effectively and painlessly administer medications into the skin. Skin permeability is improved for solid microneedles by flat tips, longer needle length, greater pressing power, and longer skin residence time. Permeability is also improved by increasing microneedle number, but the “bed of nails” effect may make very high density less effective. Drug delivery effectiveness is greatly impacted by microneedle geometry, although insertion speed yields inconsistent findings. Drug release rates are enhanced by separating dissolvable microneedle designs and flexible or self-swelling substrates. Fluid flow through needle conduits is necessary for drug delivery in hollow microneedles. Poisuille’s law governs the resistance, however skin tissue adds additional resistance that lowers flow rate. Deeper insertion, the use of bevel tips, microneedle vibration or retraction, and co-injection of hyaluronidase can all enhance flow. Due to strong cutaneous resistance, tip opening size has minimal impact. Conduit designs that have been modified enhance flow and lessen blockage.

When compared to hypodermic needles, microneedles have a significant benefit in terms of pain. Microneedles’ number has a minor impact on pain, whereas microneedles’ length has a greater influence. Microneedles that are less than 400µm often cause little pain. Pain for hollow microneedles diminishes with reduced flow and hyaluronidase use, but increases with increased pressure and flow rate. In general, microneedles are painless, and their design is not significantly hampered by discomfort.

4. APPLICATIONS OF MICRONEEDLES:

In contrast to traditional patches, microneedle systems frequently need outside help to penetrate biological tissues consistently and reliably. While applicator devices allow for consistent microneedle insertion with less inter-individual variability, manual application may result in varying insertion depth and applied pressure. Microneedle arrays provide regulated penetration into stratum corneum and can be applied to the skin before device is activated or pre-mounted with applicator. Both single use and multiple use setups are supported by reported applicator design.

The ability of a molecule to enter the skin is a major factor in the effectiveness of transdermal medication delivery. Due to their enormous molecular size, many compounds particularly peptides and vaccines have faced challenges during formulation and application. When compared to traditional delivery methods, microneedles have shown efficacy in delivering these molecules intradermally and, in certain instances, have been able to achieve the same therapeutic impact at lower doses. For instance, employing microneedles rather than conventional intramuscular administration resulted in a similar increase in hemagglutinin inhibition antibody titer with less than half the medication dose.

Several regulatory bodies have approved microneedle devices for the delivery of seasonal influenza vaccinations, further demonstrating their efficacy. Microneedles have also been investigated for the treatment of psoriasis, dermatitis, viral warts, and even skin cancer. Microneedles are being studied for ocular medication administration in addition to intradermal applications, and they have shown encouraging outcomes in the treatment of disorders such glaucoma, macular degeneration, uveitis, and retinal vascular occlusion. Currently, the majority of commercially available microneedles are used in cosmetic applications; dissolving microneedles are frequently used to treat acne, while dermarollers improve the general health of the skin.

Yun Liu et al described various applications of polymeric microneedles as follows:

1. Diabetes:

Insulin delivery devises, which are known for their rapid in vivo glucose responsiveness, usually have limited insulin carrying capacity and pose manufacturing issues. Therefore, the rapid in vivo glucose release response seen in pancreatic β-cells is being replicated in microneedle devices for blood glucose management, while also emphasizing excellent biocompatibility to address acute and long term toxicity concerns. By avoiding the epidermal barrier and enabling the direct administration of macromolecules using a variety of microneedles, the microneedle patch provides a clear advantage. This characteristic increases their effectiveness in reducing pain, making them favoured choice for people with long term medical conditions like diabetes tat requires ongoing treatment. Dopamine nanoparticles (PDA NPs) are incorporated into the exterior layer of microneedle system in a unique method devised by Ma and colleagues. By improving the microneedles’ adherence to skin tissue, this design helps diabeteic wounds heal more quickly. Synthetic nanovescicles ( NV) generated from mesenchymal stem cells (MSCs) are produced by extrusion via a porous membrane showed significant improvements in mRNA and protein expression levels, as well as a noteworthy 250- fold increase in manufacturing yield. The PDA microneedle patch’s powerful therapeutic growth factor offers significant benefits in boosting collagen regeneration, decreasing inflammation, and encouraging angiogenesis. Additionally, the potential benefits of polymeric microneedles medication delivery devices for wound healing management were shown.

2. Cancer:

The medicine can reach the stimulation site and the associated subcutaneous tissues and be quickly dissolved or destroyed with excellent bioavailability thanks to the microneedle drug delivery system, which completely encapsulates the drug within the microarrays. One of the most successful medication delivery techniques for skin cancer and other cancer treatments is microneedling. Compared to conventional metal and glass micro and nanomaterials, polymer- based micro and nanocomposited provide benefits such as high drug loading, structural durability, and the elimination of the requirement for external drug storage. The very hydrophobic and biocompatible polycaprolactone (PCL) enhaces the solubility and bioavailability of low molecular weight lipid soluble medications.

Drugs are delivered at a more effective drug release rate using a hydrophilic crosslinked PVP polymer microneedle device. In the 500 µg/mL concentration range, PCL and PNVP are both highly biodegradable and non-toxic, which enhances the effectiveness of low molecular weight drug delivery and guarantees long-term safety. Additionally, both of them work well with blood, which facilitate the systematic distribution of medications. The polymer based hydrogel made from carboxy methyl cellulose can mimic the pharmacokinetic process of cellular DOX release in vivo, hence enhancing the therapy of melanoma cancer cells. Polymer microneedles insertion site’s long term durability guarantees the steady blood pressure and long lasting pharmacological benefits that improve performance and lower the risk of infection. In conclusion, compared to traditional drug release techniques, polymer microneedle architectures exhibit significant potential for enhancing drug bioavailability, extending circulation time, regulating drug release and tumor targeting.

3. Pain management:

In order to avoid systemic toxicity or infection, the long term management of chronic pain restricts the use of delivery methods like parenteral injections. Treatment resistance brought on by patient’s skin nociceptive sensitivity to pain is effectively reduced by microneedle device reacts to biophysical cues gathered in subcutaneous tissue for potential physiological monitoring in case of secondary pain brought on by complex disorders like diabetes.

Therapeutic agents must be delivered locally and specifically to treat problems connected to chronic pain. For the treatment of chronic pain, transdermal delivery devices such as microneedles offer a slow- release mechanism that guarantees sustained plasma delivery and medication efficacy. The microneedle administration devices prevented substance misuse and dramatically decreases the frequency of treatment programs for managing chronic pain. The physicochemical characteristics of the medication (such as solubility, partition coefficient, hydrophobicity), loading dose, molecular diffusivity, and polymer layer all affect the therapeutic efficacy of traditional transdermal patches. Although oral meloxicam effectively reduces osteoarthritis pain in individuals, it has side effects such as ulceration and perforation.

4. Rheumatoid arthritis:

Currently, corticosteroids, non-steroidal anti-inflammatory agents (NSAIDs), and disease modifying antirheumatic drugs (DMARDs) including Etanercept and methotrexate are the main treatments for rheumatoid arthritis. These drugs are often administered orally or by subcutaneous and intramuscular injections. A viable alternative for transdermal drug delivery is microneedle arrays, which may avoid first pass metabolism and its dangerous side effects, including hepatotoxicity, myelosuppression and gastrointestinal bleeding. Compared to traditional delivery methods, this strategy also reduces the risk of infection and improves patient compliance.

Drug delivery vehicles are made of nanoscale synthetic and natural polymers with diameters under 200 mm. These polymers encapsulation of therapeutic substances enables tailored administration to inflammatory areas, encouraging localized drug accumulation and reducing medication waste overall. According to a new study, delivering antigens to antigen presenting cells (APCs) via polymer microneedles promotes a crucial interaction with antigen specific CD4+T cells. Significant anti-inflammatory qualities are conferred with a living organism by this interaction, which successfully controls T cell development into regulatory T cells. Its therapeutic potential has been demonstrated by a notable reduction in the anti-inflammatory response. Additionally, a variety of therapeutic agents, such as genes, nucleic acids and antigen-specific modified cells and proteins, can be delivered more easily. For rheumatoid arthritis, microneedle system offers a very promising substitute for traditional drug delivery techniques, with the possibility for affordable, secure, and long lasting therapeutic treatments.

5. Vaccine delivery:

The most effective method of controlling infectious diseases is preventive vaccination, and the way is administered is crucial to its effectiveness. An important development that offers a viable substitute for the conventional approaches is the introduction of microneedle system-based vaccination administration. The need for cryogenic storage and transportation, which limits accessibility, is a significant obstacle in the delivery of the BCG vaccination. This invention offers a potential remedy for the cold-chain dependency by preserving the vaccine’s immunogenicity and antigenic qualities without sacrificing its efficacy or integrity.

While significantly preventing skin irritation and the development of post-vaccination scars, the BCG vaccine administered using microneedle powder (BCG-MNP) shows efficacy comparable to the conventional intradermal delivery. By effectively introducing antigens to the skin’s dendritic cells (DCs), this microneedle-based vaccination approach produces a strong local immune response that is not seen with intramuscular injections. The choice of microneedle matrix biomaterials is important since they can enhance the immune response and modify the vaccine’s immunogenicity.

5. CONCLUSION:

By successfully getting over the stratum corneum barrier, microneedle-based medication delivery systems mark a substantial breakthrough in the field of transdermal therapies. Microneedles provide a less intrusive, painless, and patient-friendly option with better bioavailability and fewer systemic side effects than traditional delivery methods like oral administration and hypodermic injections.

Depending on the therapeutic need, a variety of microneedle types, such as solid, hollow, dissolving, and coated systems, offer flexible platforms for drug administration. Additionally, the development of microneedles with improved mechanical strength, accuracy, and drug-loading capacity has been made possible by the variety of fabrication materials and sophisticated production procedures.

Microneedles have a wide range of therapeutic applications, including vaccine administration, diabetes management, cancer therapy, pain management, and dermatological diseases. Notwithstanding these encouraging benefits, issues with cost-effectiveness, long-term safety, regulatory approval, and large-scale manufacturing still need to be resolved.

All things considered, microneedle technology has enormous potential as a cutting-edge medication delivery method that could transform contemporary treatments and enhance patient compliance.

6. FUTURE OUTLOOK:

Microneedle drug delivery systems have a bright future thanks to continuous developments in biomedical engineering, materials science, and microfabrication technologies. It is anticipated that new techniques such hydrogel-forming systems, stimuli-responsive drug delivery platforms, and smart microneedles would further improve therapeutic accuracy and efficiency. Personalized medicine may be made possible by the integration of microneedles with digital health technology, such as wearables and biosensors, which could allow for regulated drug delivery and real-time monitoring. Furthermore, the creation of self-administrable microneedle patches has the potential to greatly increase healthcare accessibility, particularly in environments with low resources.

Since microneedles reduce the requirement for cold-chain storage and skilled staff, more study is also expected in the field of vaccine delivery, especially for quick immunization during pandemics. It is anticipated that developments in 3D printing and additive manufacturing would enable affordable mass production and customizable designs.

Future research, however, must concentrate on guaranteeing long-term safety, drug formulation stability, regulatory consistency, and patient acceptance in order to achieve broad clinical adoption. Microneedle technologies have the potential to be a key component of targeted and non-invasive medication delivery in the future with further development and interdisciplinary cooperation.
